CECLE Machine

180 Series Vertical Pneumatic Blister Packing Machine - DP-180 / CP-180 / BP-180 for Capsules & Tablets

$1,399.00 USD

~~$1,500.00 USD~~ $1,399.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model BP-210 CP-210 DP-210

Shipping method Ship it by sea to your port(25-35days) Ship it by sea+truck deliever to your door(45-55days)

Download Product PDF BP-180

Download Product PDF CP-180

Download Product PDF DP-180

180 Series Vertical Pneumatic Blister Packing Machine (DP-180 / CP-180 / BP-180)

The 180 Series is our professional-grade line of vertical pneumatic blister sealers, designed to provide industrial-strength 0.4T sealing pressure in a compact footprint. Perfect for pharmaceutical labs, R&D, and small-batch production of capsules and tablets.

📘 Access Technical Documentation & User Manuals:

DP-180 Technical Center

CP-180 Technical Center

BP-180 Technical Center

Which Model Suits Your Needs?

Feature	BP-180 (Basic)	CP-180 (Standard)	DP-180 (Advanced)
Foil Feeding	Manual Sheets	Automatic Roll	Automatic Roll
Registration	Manual Alignment	Automatic Feeding	Photoelectric Sensor
Control System	Digital Timer	Digital Timer	PLC + Touch Screen
Best For	Ultra-low budget	General Efficiency	Printed Foil / Logos
Air Required	Yes (External)	Yes (External)	Yes (External)

🎬 Model Demonstration Videos

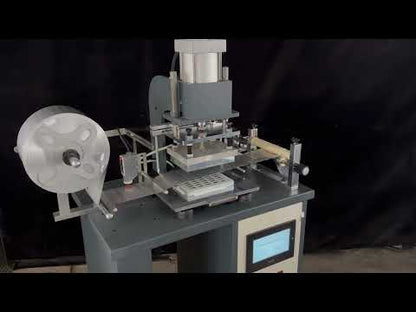

DP-180 (Photoelectric Control): Watch Demo Video

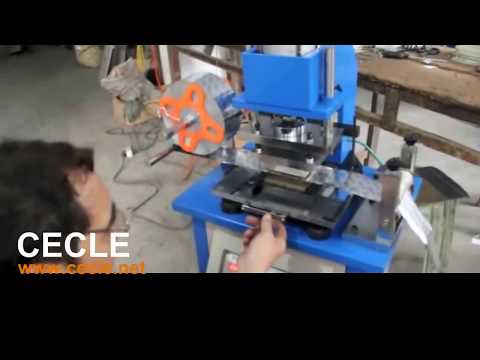

CP-180 (Automatic Feeding): Watch Demo Video

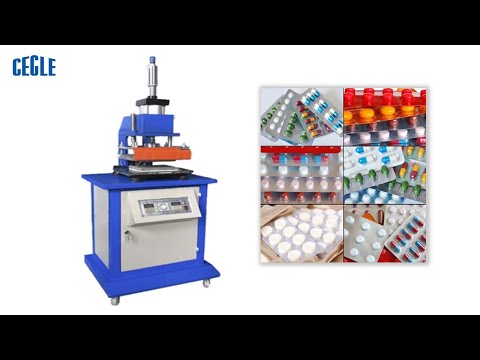

BP-180 (Manual Placement): Watch Demo Video

Core Advantages

High-Pressure Sealing: Pneumatic drive delivers 0.4T of pressure, ensuring a much tighter and more professional seal compared to manual or electric machines.

Precision Alignment (DP-180): The photoelectric registration system is essential for using printed foil with logos, ensuring the text stays perfectly centered.

Customized Molds: We customize each mold based on your specific blister samples. Switching molds for different products takes less than 10 minutes.

Date/Batch Coding: Molds can be customized to include integrated coding (Sealing + Batch Number/Expiry Date in one step).

Stable Vertical Design: Small footprint, easy to operate via foot switch, and built for long-term industrial use.

Technical Specifications

Max Sealing Area: 180 × 140 mm (7.09 × 5.51 inch)

Production Speed: 10 - 15 pieces/minute

Sealing Temperature: 80 – 200 ℃ (Adjustable)

Heating Time: 3 – 5 seconds

Voltage: 110V / 220V, 50/60Hz

Air Requirement: 0.6 – 0.8 MPa (External air compressor required)

Frequently Asked Questions (FAQ)

Q: Does it come with an air compressor?
A: No, an external air compressor (1200W / 50L recommended) is required to provide the pneumatic pressure for sealing and foil feeding.

Q: Can I use one machine for different capsule sizes?
A: Yes! You can buy additional molds for different capsule or tablet sizes. The machine is designed for quick mold changes.

Q: What is the benefit of the DP-180 over the others?
A: If your aluminum foil has a printed pattern or logo, you need the DP-180. Its photoelectric sensor detects the "eye mark" on the foil to prevent the pattern from drifting.
