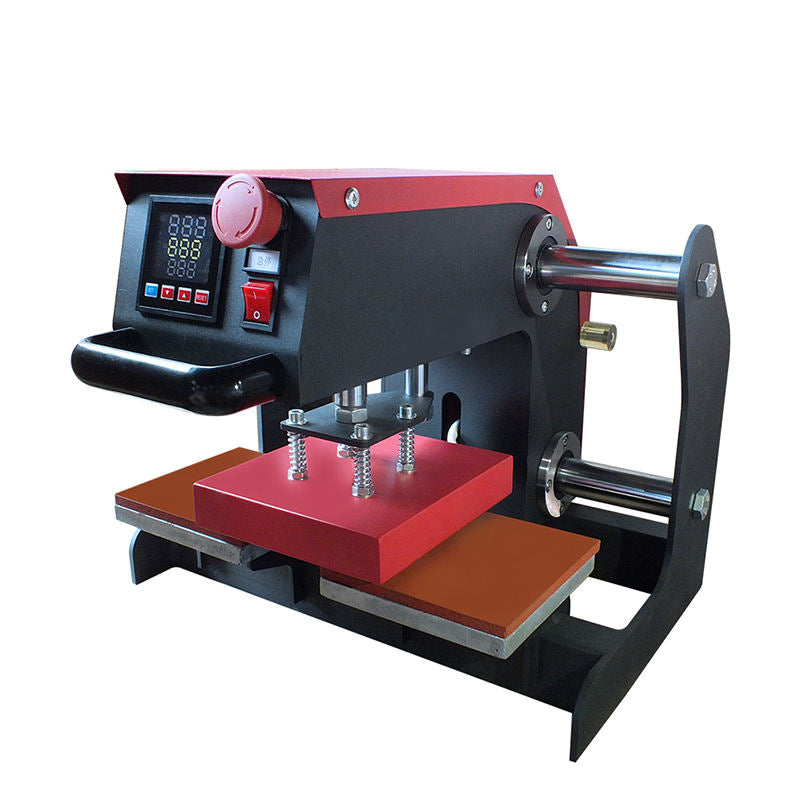

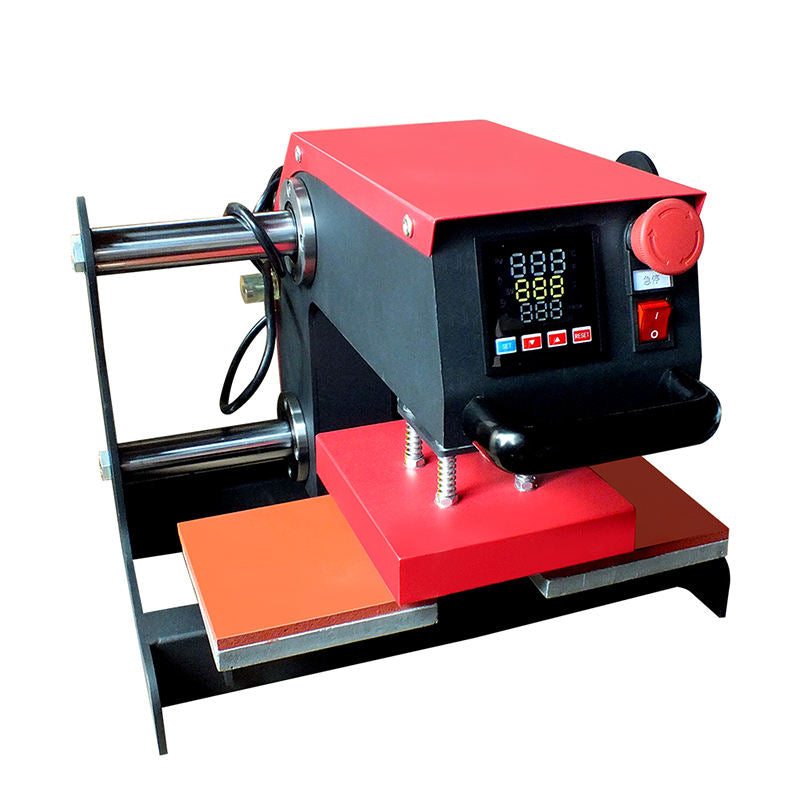

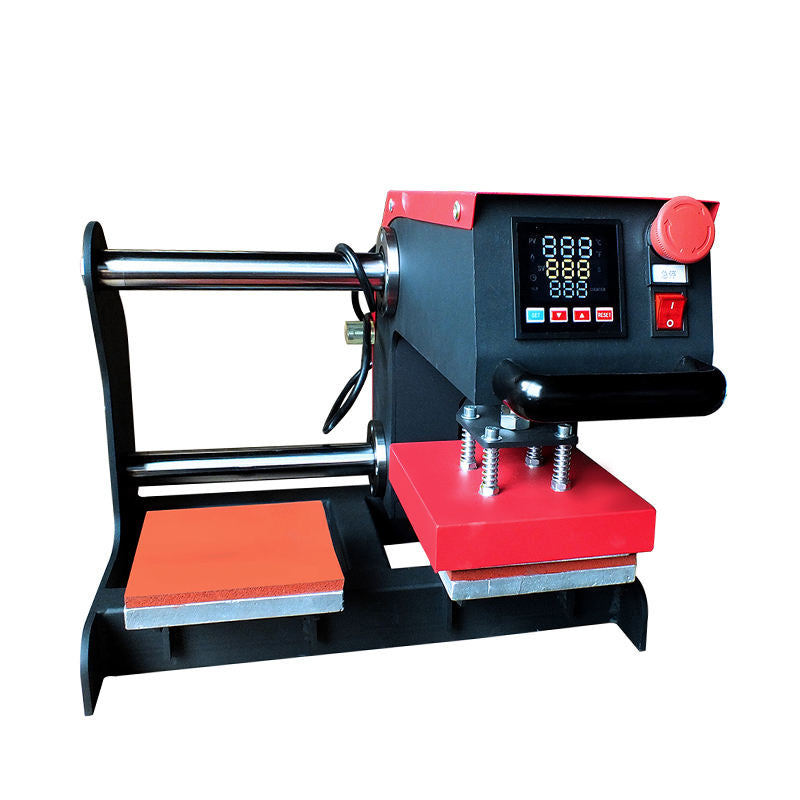

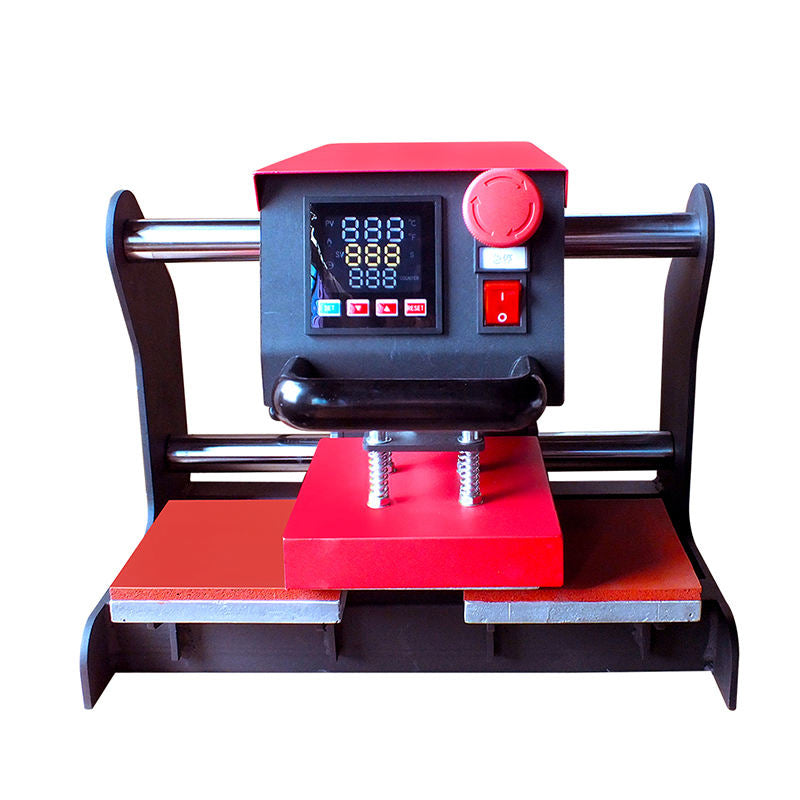

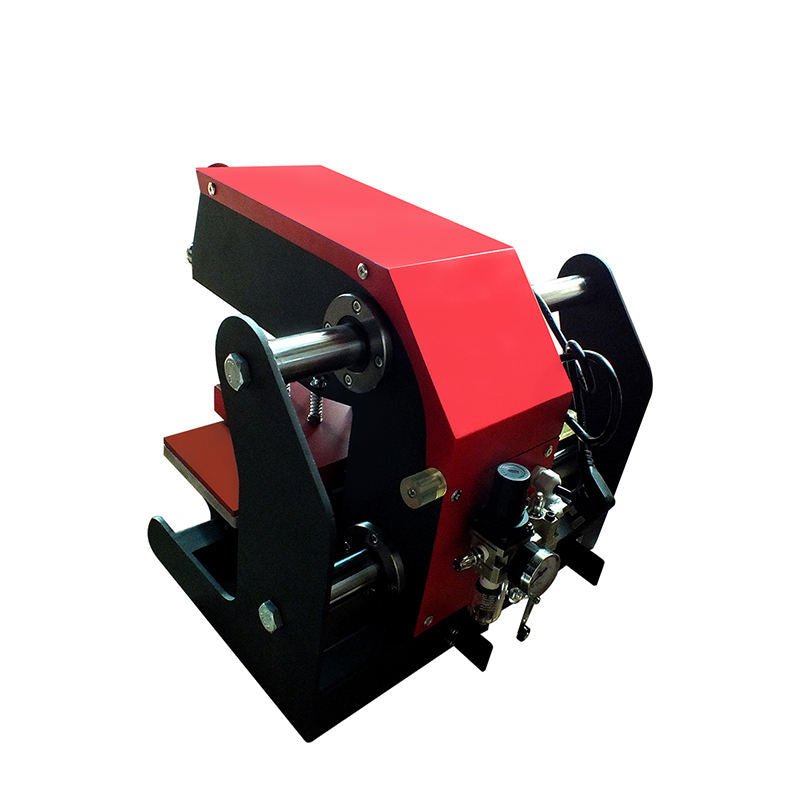

TD-034A Double-Station Small Heat Press Machine for Logo Patches & Caps (Pneumatic Drive)

TD-034A Double-Station Small Heat Press Machine for Logo Patches & Caps (Pneumatic Drive)

$1,029.00 USD
$1,029.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Model
Shipping method
Quick Answer: The CECLE TD-034A is a double-station pneumatic logo heat press machine designed for precise pressing of garment labels, chest badges, sleeve tags, cap fronts, and small-size heat-transfer prints.

CECLE TD-034A vs. Traditional / Generic Alternative

Where the CECLE TD-034A stands out against manual or generic heat press machines — measured on the dimensions buyers care about most.

Pressure Consistency
CECLE TD-034ALabor-Saving & Efficient : The pneumatic system replaces manual force, so operators don't fatigue during long runs; the dual fixed worktables plus the upper slide enable "press on one side, load on the.
Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.
Thermal Response & Heating System
CECLE TD-034AOperator Safety : The machine is equipped with an emergency stop button and a micro-switch; it only activates after both hands leave the danger zone. The heating area is separated from the working area.
Single Fixed HeatingUses cheap quartz tubes with slow preheating, uneven heat distribution, and frequent element burnouts.
Output Speed & Throughput
CECLE TD-034AIt is tuned for continuous commercial throughput with minimal idle time.
Slow Manual CyclingLoading and cycling depend on operator pace, limiting real throughput and raising labor cost.
Operational Mechanism & Drive
CECLE TD-034APurpose-Built Power: 600W drive delivers steady, operator-independent output.
Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Technical Specifications

Items Specifications
Model TD-034A
Worktable Size 15×15 CM / 5.91×5.91"
Power 600W
Voltage 110V/220V
Temperature Range 0-399°C
Heat-up Time 10-15 minutes
Packaging Dimension 50×62×49cm/19.7×24.4×19.3"
Gross Weight 40KG/88.2LB

Pre-installation requirements: Power: 600W; Voltage: 110V/220V; Packaging Dimension: 50×62×49cm/19.7×24.4×19.3"; Gross Weight: 40KG/88.2LB.

Compatible Applications & Materials

  • industrial products — primary target products for this Heat Press Machine line
  • Standard industrial materials compatible with the machine's rated spec range
  • B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

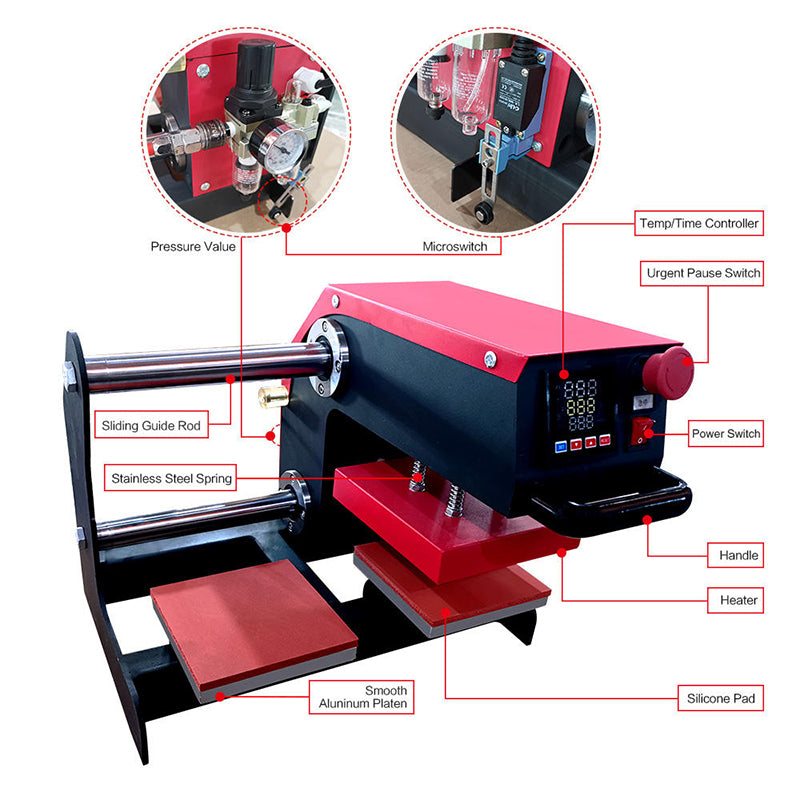

  1. Step 1: Connect the air source and adjust pressure
  2. Connect the air hose to the pneumatic machine, ensuring the fitting is secure and leak-free
  3. Lift the pressure valve and rotate clockwise to increase pressure, counterclockwise to decrease it
  4. The factory standard pressure is set to 0.4 MPa and usually needs no frequent adjustment
  5. after adjustment, press the pressure valve down to lock it
  6. Adjust the solenoid valve (set at the factory, generally no need to adjust): the upper regulator raises the pressure setting to control the heating plate lift force
  7. the lower regulator sets the downward pressure to control the heating plate pressing force

Engineering FAQ

What can be printed on the 15×15 cm worktable?
A: This size is ideal for fine pressing jobs such as garment labels, chest badges, sleeve tags, cap fronts, and small-size heat-transfer prints.

Can this machine be used with 110V voltage in the United States?
A: Absolutely. We provide both 110V (North American standard) and 220V (European/Asian standard) voltage specifications, with power plugs that comply with the corresponding national standards.

What power supply does the TD-034A require?
A: The TD-034A runs on 600W Power. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the TD-034A?
A: Beyond the rated 110V/220V Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the TD-034A stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the TD-034A handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.

Full Documentation & Drawings

Complete technical manual, parameters and engineering drawings: CECLE Docs — TD-034A
