TD-14-0.5L Automatic 14-Head Quantitative Combination Scale | Multi-Function Weigher

Core Abstract: The TD-14-0.5L Automatic 14-Head Quantitative Combination Scale is a top-tier weighing solution engineered for maximum speed, accuracy, and complex mixing tasks. Designed for medium to large food packaging enterprises, it easily handles sugar, seeds, snacks, and coffee across a wide 50-2000g range. The 14-head configuration provides a massive calculation base, ensuring an extreme precision of 0.1~1g at up to 60 bags per minute. It excels in multi-zone mixing for products like mixed nuts. Featuring a robust modular control system and tool-free dismantling, it offers unmatched reliability and efficiency for demanding production environments. For detailed technical specifications, wiring diagrams, and calibration guides, please visit our official TD-14-0.5L Combination Scale Technical Documentation.

1. Product Overview

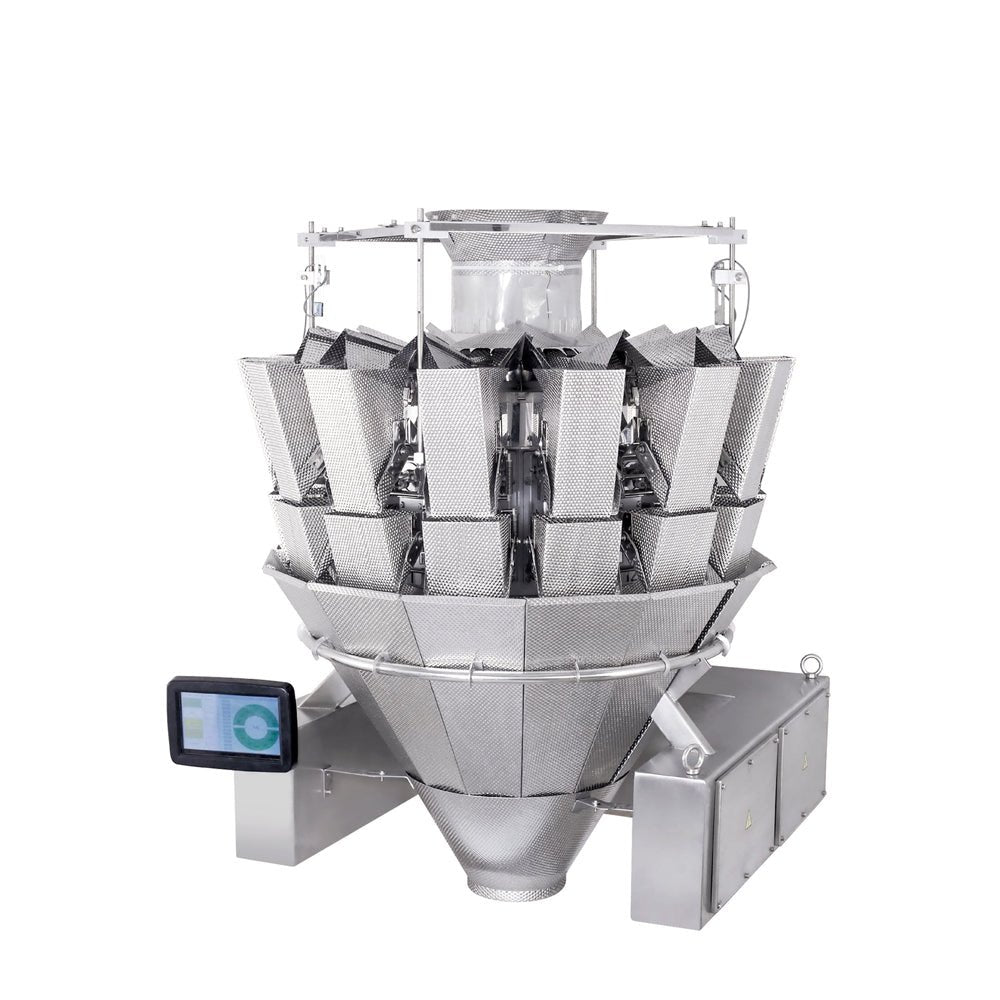

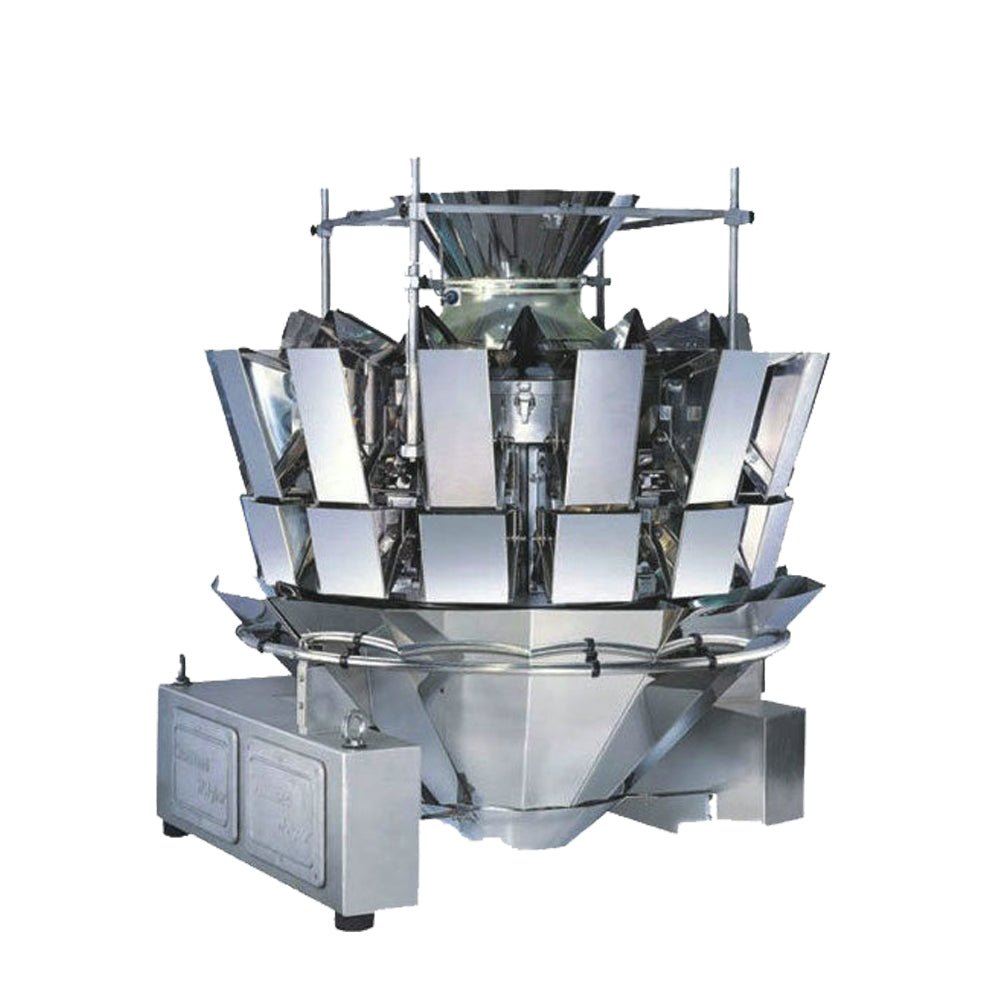

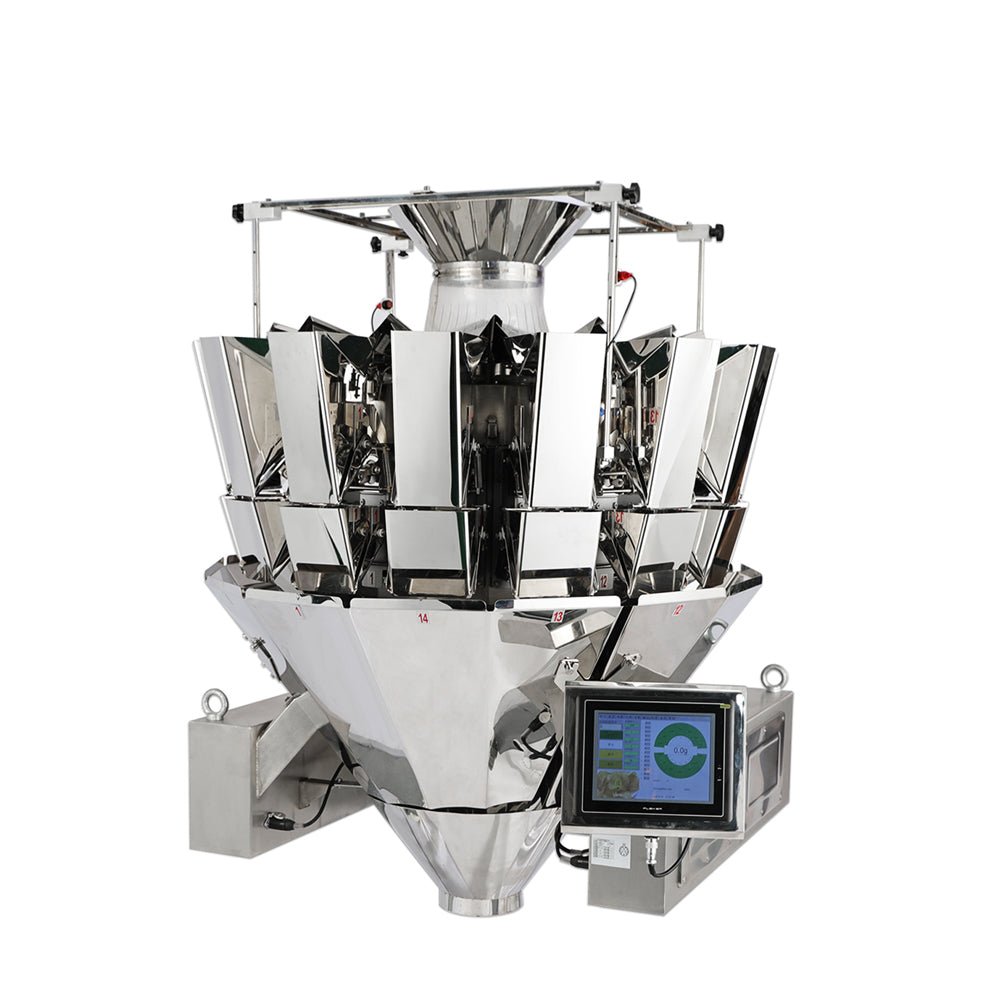

The TD-14-0.5L is a top-configuration 14-head microcomputer combination scale. More weighing heads mean the computer has exponentially more combination possibilities, thereby achieving ultimate precision and speed over a wider weight range. It is suitable for precisely weighing granular materials like slices, rolls, or regular shapes. For complete material compatibility lists, check our TD-14-0.5L Product Overview Guide.

2. Core Advantages

1. 14-Head Ultimate Combination Calculation: A larger combination base provides a wider range (50-2000g) with average precision as high as 0.1~1g.
2. Brand New Modular Control System: Upgraded algorithms for stable, lag-free operation and modular mainboards for simple maintenance.
3. Stepless Vibrating Feeding System: All-around even material distribution ensures smooth flow and protects product integrity.
4. Powerful Multi-Material Mixing Capability: Exceptionally adept at handling high-precision mixed weighing for 2-4 or more different materials across divided zones.
5. Flexible Parameter Adjustment: Production recipe parameters can be easily recalled and modified at any time.

3. Technical Parameters

For complete structural dimension blueprints and installation load-bearing advice, consult our Technical Parameters Documentation.

• Model: TD-14-0.5L
• Voltage: AC220V ±10% 50Hz(60Hz)
• Single Weighing Range: 50-2000 g
• Average Precision: 0.1~1 g
• Packing/Weighing Speed: 10-60 bags/min
• Power: 1200 W

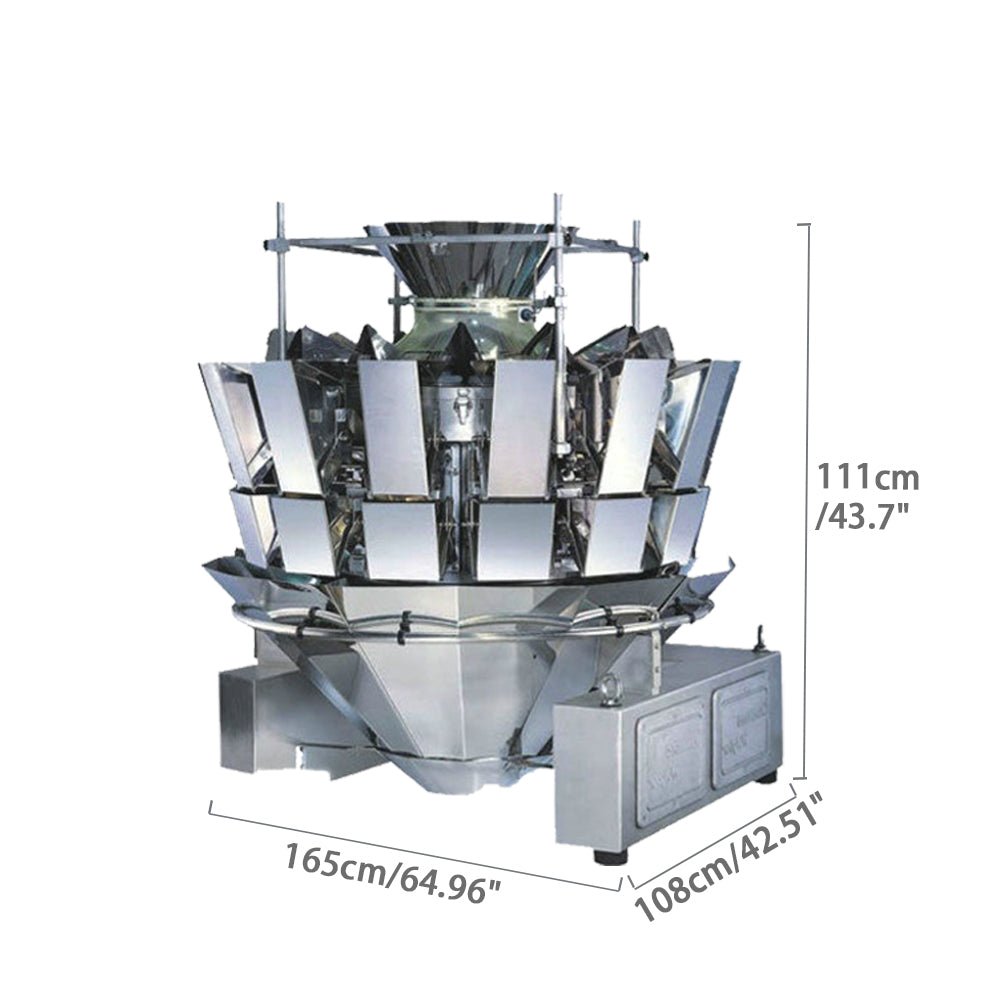

• Machine Dimensions: 1650×1080×1110 mm
• Machine Weight: 380 KG

4. Operation Process

To view best practices for recipe setting and automated loop cycles, visit the TD-14-0.5L Operation Process Guide.

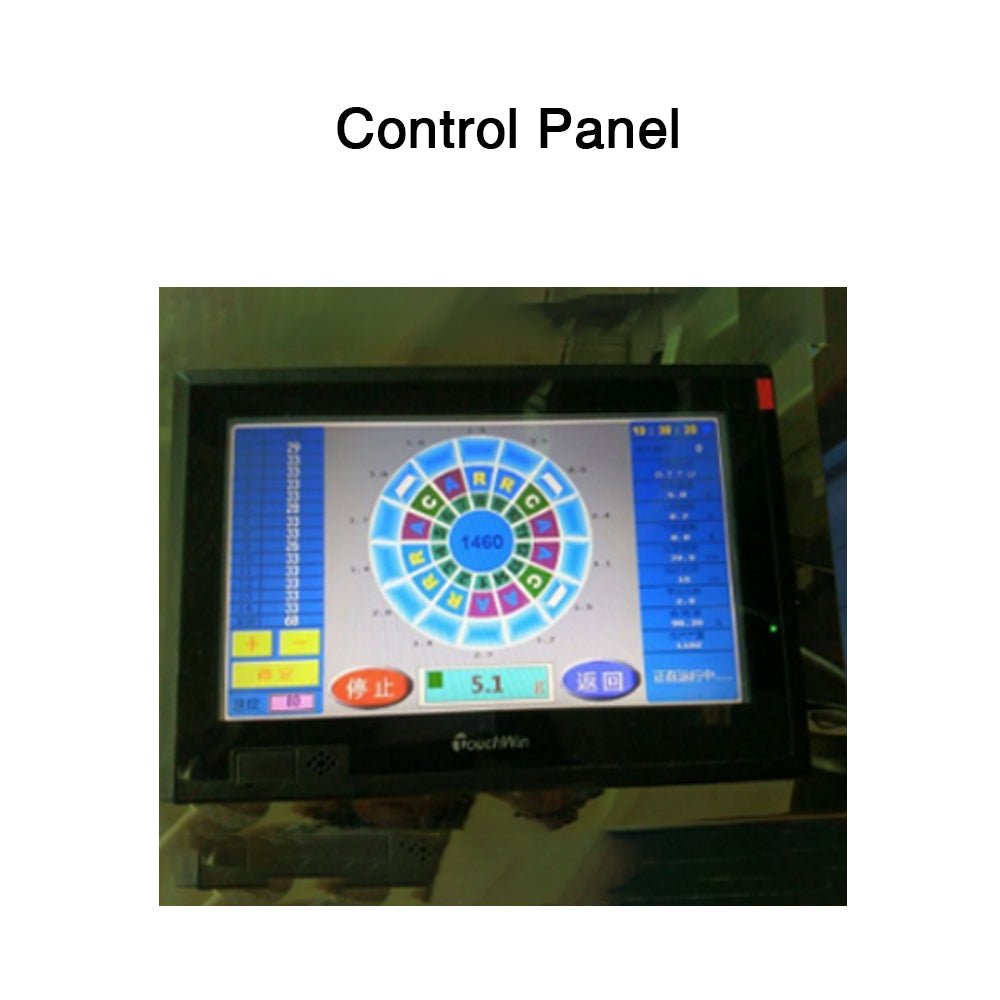

• Step 1: Start equipment and recall product recipe via the touch screen.
• Step 2: Material drops into the central main vibrator pan and is distributed to 14 linear vibrator pans.

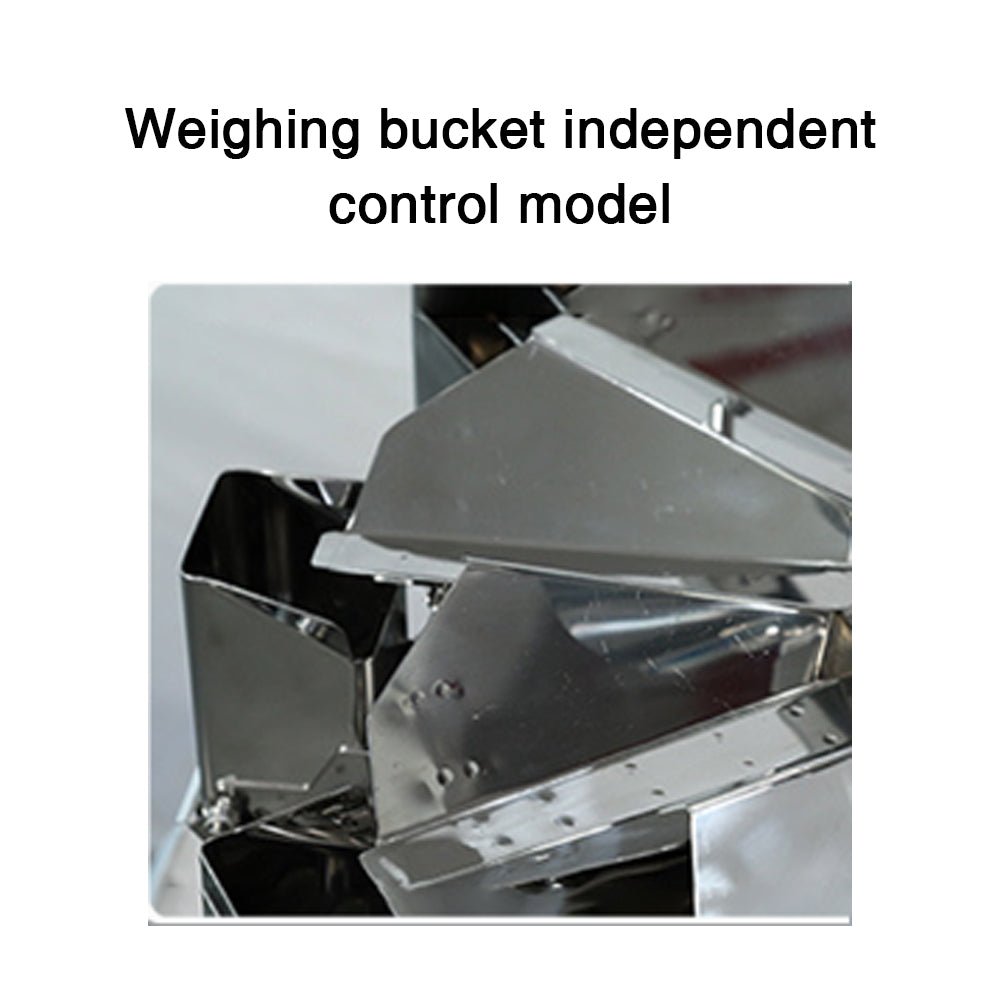

• Step 3: Material is temporarily stored in 14 high-precision weighing hoppers via buffer hoppers.
• Step 4: The modular computer board calculates weight combinations in milliseconds.
• Step 5: The system selects the most precise hopper combination and instantly discharges to complete a dose.

5. Frequently Asked Questions (FAQ)

Find more expert troubleshooting and sales advice on our FAQ & Sales Support Page.

Q1: Should I choose 14-head or 10-head?

A: If your target weight is large (close to 2KG) or you need multi-material mixing, the 14-head offers better precision and stability. For smaller single-item packs, a 10-head is sufficient.

Q2: Is cleaning and maintenance difficult?

A: No. The hoppers feature a snap-on design, allowing you to easily remove them bare-handed for cleaning without any professional tools.

Q3: How long is the warranty?

A: The whole machine has a 1-year warranty (excluding wearing parts), with lifetime maintenance.

Q4: What services do you provide?

A: We provide comprehensive online support, video installation guidance, and free spare parts service during the warranty period.

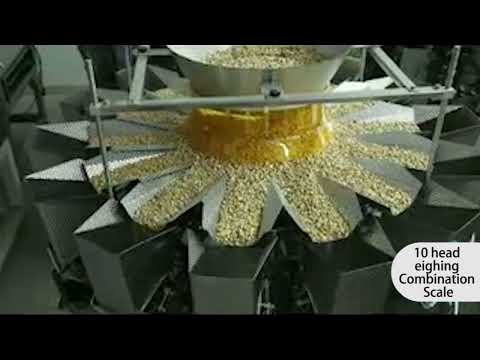

6. Watch Operation Video

Watch how the multi-function combination scale operates: YouTube Video Link
