Why is this stacker called a straddle legs stacker? How does it differ from regular stackers?

Regular stackers have base legs located directly beneath the forks, limiting them to single-sided pallets. Straddle stackers feature wider leg spans that bypass the sides of the pallet, perfectly accommodating double-sided, block, and stringer pallet configurations.

What are the practical benefits of the removable design?

The removable design significantly reduces logistics volume and freight costs during shipping, provides massive convenience when navigating narrow doorways and elevators, and allows damaged legs to be replaced independently.

Can the fork and leg widths of this truck be adjusted as needed?

Yes. The equipment supports a width-adjustable design, allowing flexible adaptation to varying pallet sizes and narrow rack aisles.

1 6

CECLE Machine

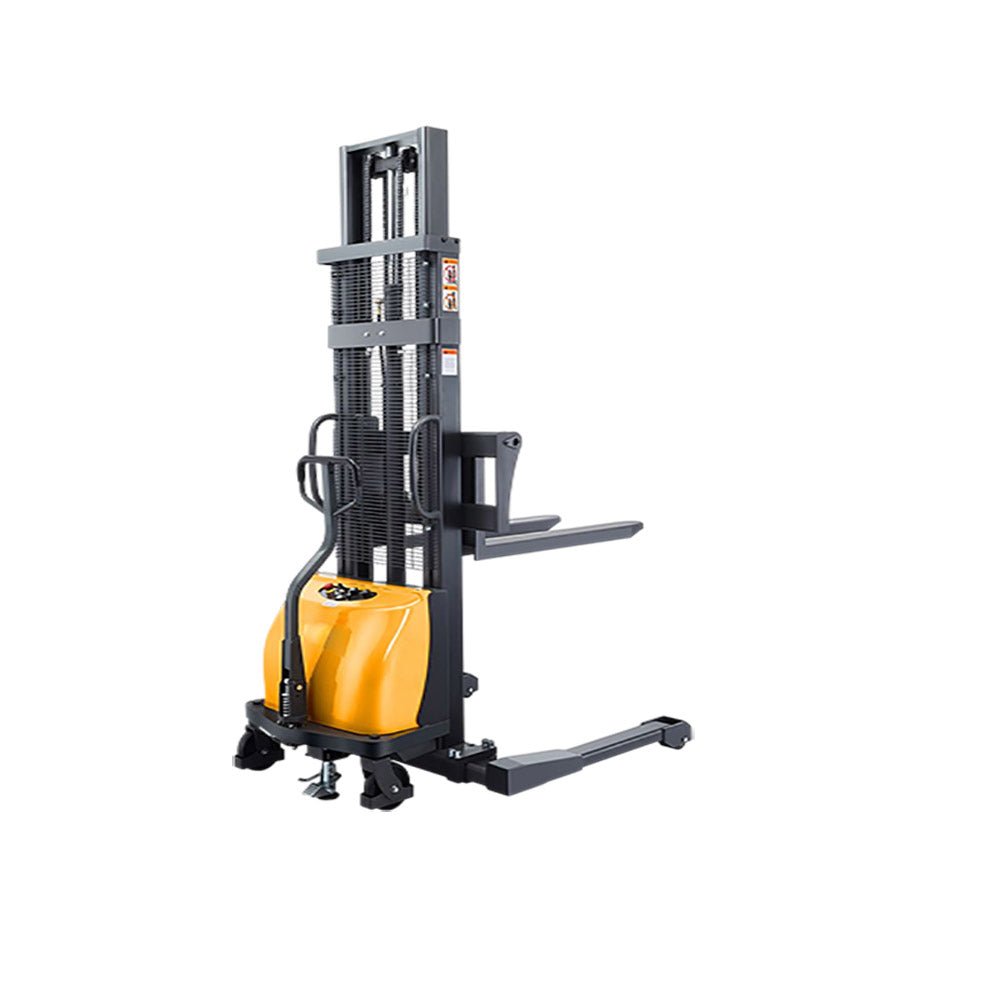

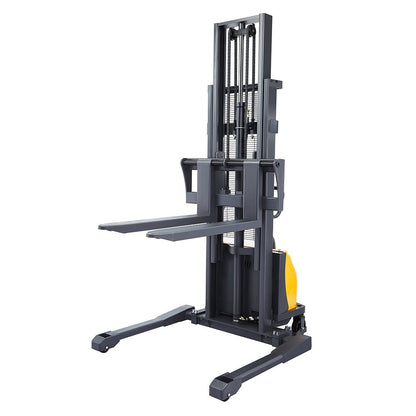

118" High Semi Electric Straddle Stacker with Straddle Legs 2200lbs Capacity, Semi Electric Straddle Stacker with Adj Forks and Legs

$3,999.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Shipping method by sea to door with tax(25-40days)

Download Product PDF

Removable Widened Straddle Legs Semi-Electric Stacker

The Removable Widened Straddle Legs Semi-Electric Stacker is an economical material handling solution engineered for complex warehousing environments and diverse pallet types. Featuring width-adjustable, removable straddle legs, it effortlessly bypasses the bottom of closed-bottom pallets, making it fully compatible with double-sided pallets, block pallets, and stringer pallets.

Technical Documentation & Manuals: For complete structural assembly blueprints, maintenance logs, and troubleshooting guidelines, please explore our Straddle Stacker Technical Knowledge Base.

Key Advantages & Industrial Benefits

Exceptional Pallet Versatility: Widened straddle legs bypass closed-bottom structures, allowing seamless handling of double-sided and block pallets.
Superior Stability: Wider base and increased contact surface prevent lateral shaking or tipping when handling oversized goods at height.
Removable Design Benefits: Drastically reduces shipping volumes and freight costs, simplifies floor-to-floor transfers, and allows independent replacement of damaged legs.
Flexible Adjustability: Width-adjustable legs and forks adapt effortlessly to varying pallet sizes and narrow racking aisles.
Effortless Electric Lifting: High-power motor handles strenuous lifting tasks via smooth button control, reducing physical fatigue.

Technical Specifications

Parameter Item	Specification Details
Load Capacity	1000kg (2200 LBS)
Max. Lifting Height	250cm (98 inch)
Overall Length & Width	173cm (68.3") / 95.5cm (37.6")
Turning Radius	142cm (56.1 inch)
Battery & Voltage	Lead Acid, 12V / 120Ah

*For custom parts guides and maintenance records, visit our technical support portal.*
