Choosing the Right Pallet Wrapper: TP1650F-L Pallet Stretch Wrapping Machine Guide

In modern warehousing and logistics, securing palletized goods is critical to preventing damage during transit. However, many operations struggle with two competing challenges: ensuring consistent load stability and controlling the rising cost of stretch film.

Manual wrapping or using basic friction-stretch machines often leads to inconsistent tension, wasted material, and higher physical strain on warehouse staff.

To address these challenges, many facilities transition to semi-automatic turntable wrapping systems. In this article, we will break down the features, technical specifications, and operational benefits of the TP1650F-L Pallet Stretch Wrapping Machine—a standard, floor-standing solution designed to balance packaging efficiency and film consumption.

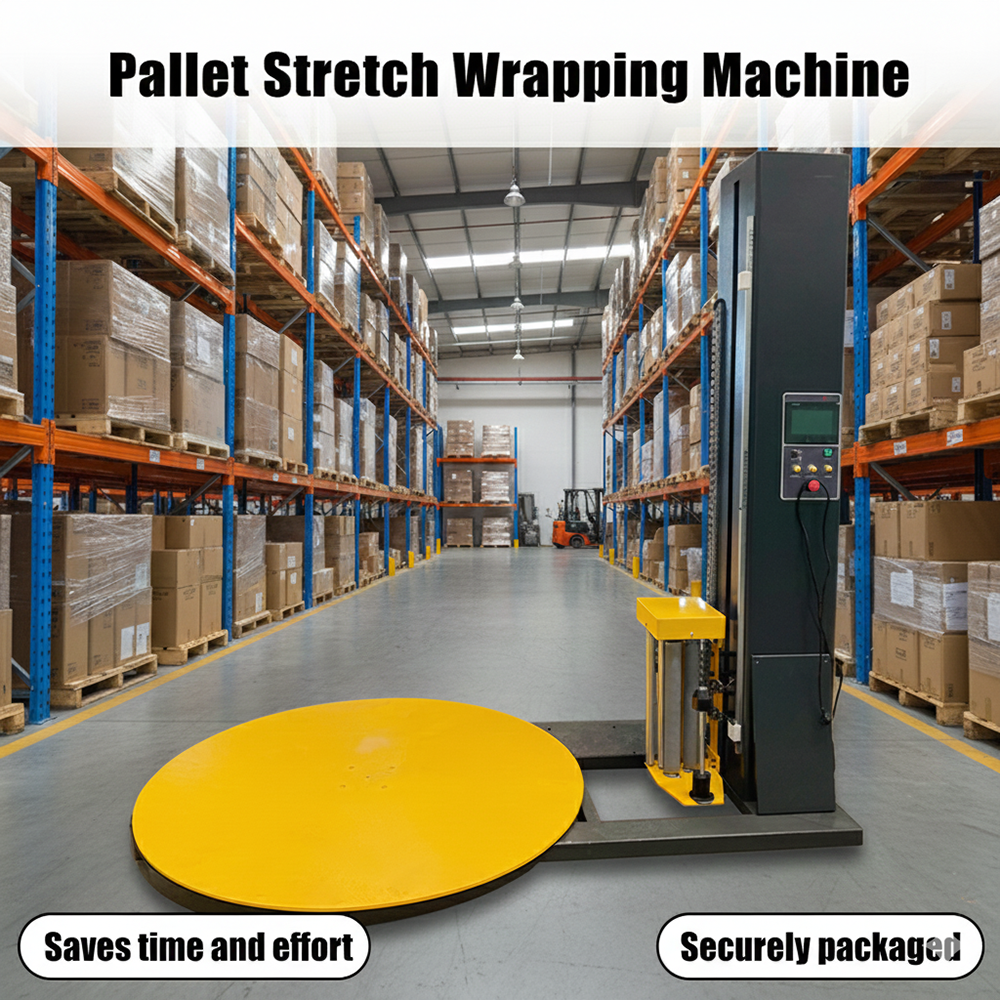

1. What is the TP1650F-L Pallet Stretch Wrapping Machine?

The TP1650F-L is a high-efficiency, floor-standing pallet packaging machine designed for standardized logistics pallets. With a maximum load capacity of 2000 kg (4409 lbs) and a packaging speed of 20 to 40 pallets per hour, it is built to handle medium-to-high-intensity operations in industries such as:

  • Chemicals and raw materials

  • Electronics and consumer goods

  • Food and beverage production

  • Export logistics and freight forwarding

Its low-profile 85mm (3.3") turntable allows for easier loading via forklift or ramp, reducing the physical effort required to position heavy loads.

2. Key Features Explained: Powered Pre-Stretch & PLC Control

Understanding 250% Powered Pre-Stretch

One of the primary factors in pallet-wrapping operational costs is film consumption. Traditional "friction" or "core-brake" wrapping machines simply stretch the film as it is applied to the pallet, which can lead to punctured film or crushed cardboard boxes.

The TP1650F-L features a 250% powered pre-stretch carriage.

  • How it works: Two motorized rollers inside the film carriage thread and stretch the film before it ever leaves the carriage and contacts the pallet.

  • The benefit: 1 meter of raw film is stretched into 3.5 meters of usable wrap. In practical warehouse environments, this mechanism can reduce film consumption by approximately 30% to 50% compared to manual or non-pre-stretch methods, while maintaining high load containment force.

Programmable PLC Touch Screen

Consistency is vital for standardized logistics. The TP1650F-L uses a programmable PLC control system that allows warehouse operators to pre-define the wrapping parameters:

  • Top & Bottom Wrap Counts: Ensure extra layers are applied to high-stress areas.

  • Variable Turntable Speed: Adjust rotation between 0 and 12 RPM to safely wrap unstable or lightweight loads.

3. Technical Specifications

For logistics managers planning floor layout and electrical requirements, here are the core technical parameters of the TP1650F-L:

Specification Metric Units Imperial Units
Max Pallet Size 1200 × 1100 mm 47.2" × 43.3"
Max Packing Height 2000 mm 78.7"
Max Load Capacity 2000 kg 4409 lbs
Turntable Diameter 1650 mm 65"
Turntable Height 85 mm 3.3"
Turntable Speed 0–12 RPM 0–12 RPM
Machine Dimensions 260 × 165 × 250 cm 102.4" × 65" × 98.4"
Machine Weight 700 kg 1543 lbs
Power Requirements 220V Single Phase 50Hz/60Hz (110V Customizable)

4. Operational Workflow

Integrating the TP1650F-L into a daily warehouse workflow is designed to be straightforward, typically requiring minimal training for operators.

  1. Placement: A forklift operator positions the palletized load in the center of the 1650mm turntable.

  2. Attachment: The operator pulls a small tail of stretch film from the pre-stretch carriage and ties or tucks it secure at the base of the pallet.

  3. Initiation: The operator selects the pre-programmed cycle on the PLC touch screen and presses start.

  4. Automated Cycle: The turntable rotates while the film carriage rises and falls automatically to complete the programmed wrap pattern.

  5. Completion: Once the cycle ends and the turntable automatically resets to its home position, the operator cuts the film and removes the completed pallet.

Frequently Asked Questions (FAQ)

What film thickness is recommended for this machine?

We recommend using 15 to 35 μm pre-stretch grade machine stretch film. For optimal general performance, a 25 μm film thickness is recommended.

What about warranty and after-sales services?

We provide a 1-year warranty service. During the warranty period, if damage occurs under normal use according to the manual, we provide free replacement parts (the buyer is responsible for the international shipping costs from China to their local area).

Can the machine be configured for different power standards?

Yes. While the standard voltage is 220V Single Phase, we can configure the equipment for 110V or other standard regional voltages upon request before shipping.

Ready to Optimize Your Packaging Process?

Determining the right wrapping system depends on your throughput, pallet dimensions, and budget. If you are looking to lower material costs and improve wrapping consistency, you can explore pricing or request a custom quote directly.
