Weighing Pallet Stretch Wrapping Machine 2000kg Capacity | CTP1650F-L
Weighing Pallet Stretch Wrapping Machine 2000kg Capacity | CTP1650F-L
Couldn't load pickup availability
At a Glance (TL;DR)
- Integrated 2-in-1 Design: Combines pallet weighing and stretch wrapping into a single operation, boosting logistics efficiency by over 50%.
- Integrated Weighing System: Built-in 4-sensor system (0.5kg increments) delivers instant weight verification for outbound shipments.
- High Film Savings: 200% powered pre-stretch system drastically reduces film consumption and operational costs.
- Heavy-Duty Capacity: Built to handle loads up to 2000 kg (4409 lbs) with standard pallets up to 1100×1200 mm.
2-in-1 Wrapping & Weighing Solution for Freight & Logistics

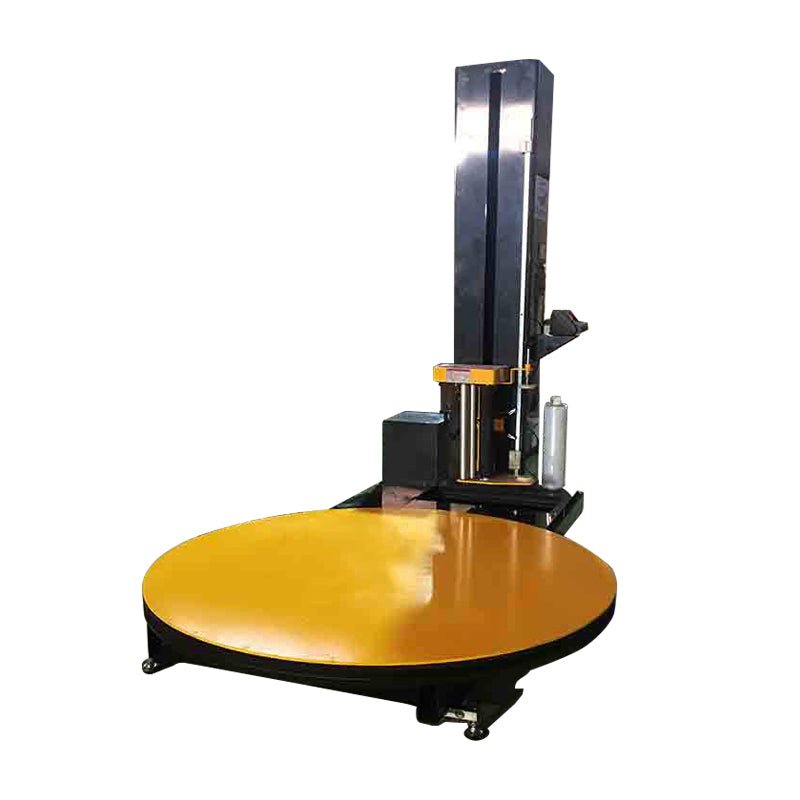

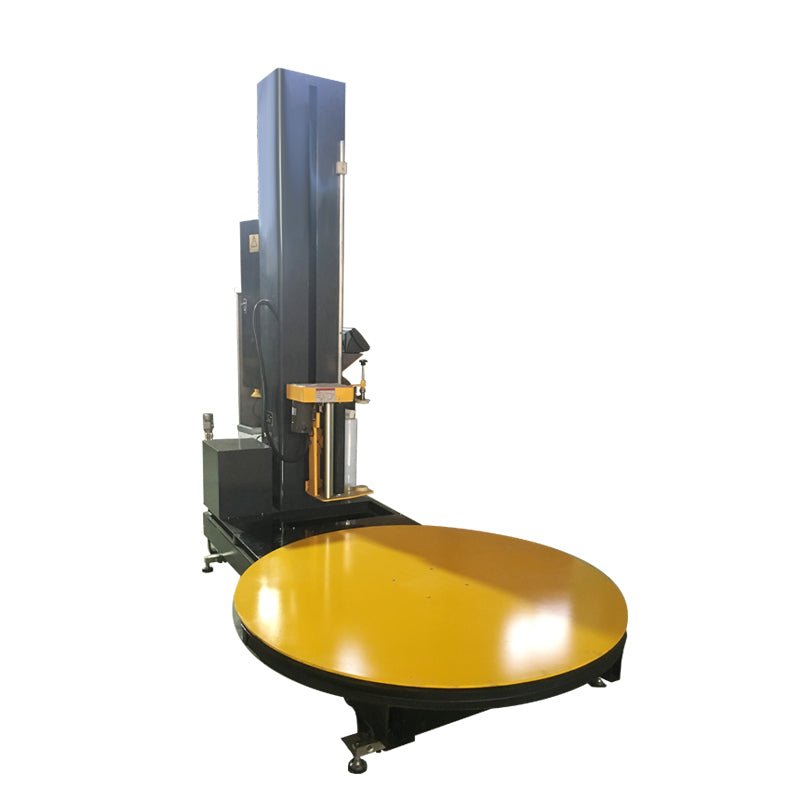

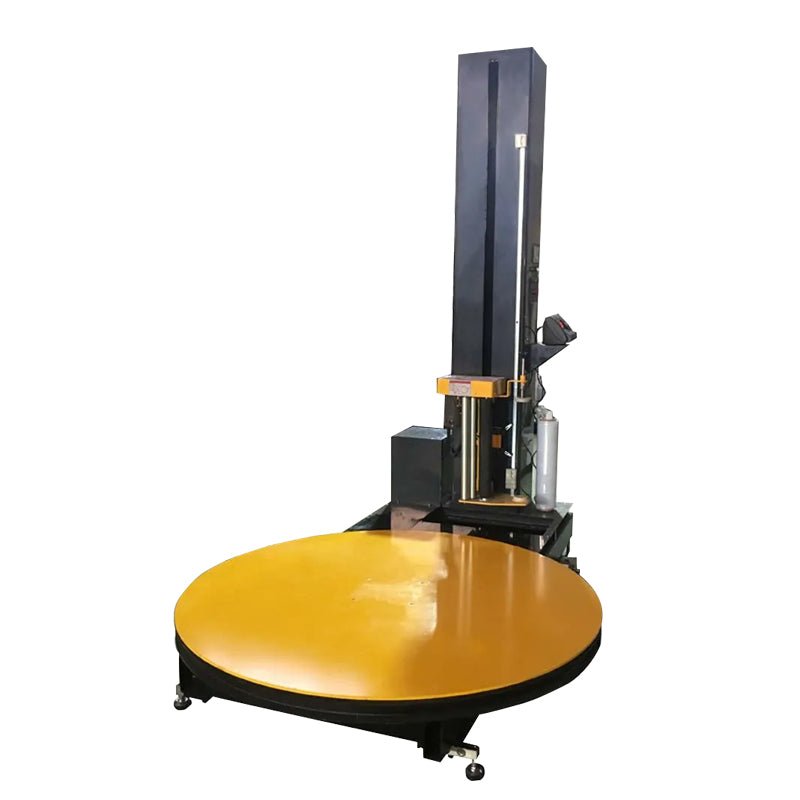

The CTP1650F-L Weighing Pallet Stretch Wrapping Machine revolutionizes warehouse operations by integrating pallet stretch wrapping and weight recording into one seamless step. By eliminating secondary forklift handling and redundant scale stops, this multi-functional wrapper increases overall packing efficiency by over 50% while saving valuable floor space in busy distribution centers, chemical facilities, and food processing plants.
Key Features
- Integrated Weighing System: Equipped with Keli/Zhonghang load sensors and a Yaohua digital weight indicator. Features a 0.5kg weighing increment and complies with Class III scale standards (±1/1000 calculation error).
- 200% Powered Pre-Stretch Mechanism: Stretches film automatically prior to application, maximizing roll yield and cutting consumable costs significantly.
- Smart PLC Touchscreen Controls: Intuitive programmable operation allows custom setting of wrapping cycles, top/bottom layer counts, and variable turntable rotation speeds (0–12 RPM).
- Photoelectric Auto Height Sensing: An integrated optical switch automatically detects the top height of pallet loads for uniform, hands-free wrapping.
- Soft Start & Soft Stop Safety: Smooth acceleration and deceleration prevent loose or fragile cargo from shifting or scattering during the wrapping cycle.

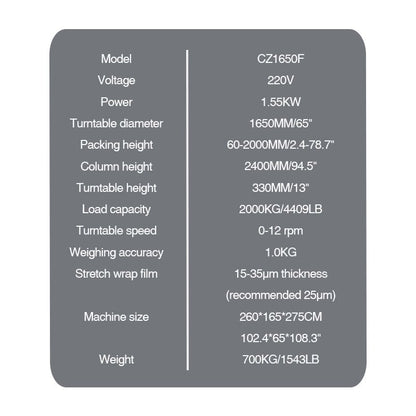

Technical Specifications
| Specification | Detail |
|---|---|
| Model | CTP1650F-L |
| Turntable Diameter | 1650 mm (65 in) |
| Max Packing Height | 2000 mm (78.7 in) |
| Column Height | 2400 mm (94.5 in) |
| Turntable Height | 330 mm (13 in) |
| Max Load Capacity | 2000 kg (4409 lbs) |
| Turntable Speed | 0 - 12 RPM (Adjustable) |
| Max Pallet Size | 1100 × 1200 mm (43.3 × 47.2 in) |
| Min Pallet Size | 800 × 800 mm (31.5 × 31.5 in) |
| Weighing Increment | 0.5 kg (1.1 lbs) |
| Power & Voltage | 1.55 kW | 220V Single Phase / 50Hz (110V customizable) |
| Weight / Machine Size | 700 kg (1543 lbs) | 2600 × 1650 × 2750 mm |
See the CTP1650F-L in Action
Need Comprehensive Technical Documentation?
Explore complete operational manuals, electrical diagrams, and custom configurations on our official documentation platform.
📖 View Full Technical Documentation & User ManualFrequently Asked Questions
Q: What happens if the goods exceed 2000kg?
A: Overloading is strictly prohibited. The weight of the goods cannot exceed the maximum load-bearing weight of the machine, otherwise it will cause the electronic scale to fail.
Q: What if my pallet height exceeds 2 meters, or the pallet is extra wide?
A: We can provide customized services. Both column height and turntable diameter can be customized according to your pallet size. Please inform us of your maximum pallet size before placing an order.
Q: What about warranty and after-sales services?
A: We provide a 1-year warranty service. During the warranty period, if damage occurs under normal use according to the manual, we provide free replacement parts (the buyer is responsible for the international shipping costs from China to their local area).
