Vacuum Skin Packing Machine For Steak, Raw Meat & Seafood Vacuum Skin Packaging Machine, Food Skin Vacuum Packing Machine
Vacuum Skin Packing Machine For Steak, Raw Meat & Seafood Vacuum Skin Packaging Machine, Food Skin Vacuum Packing Machine
Couldn't load pickup availability
Vacuum Skin Packing Machine For Steak, Raw Meat & Seafood Vacuum Skin Packaging Machine, Food Skin Vacuum Packing Machine

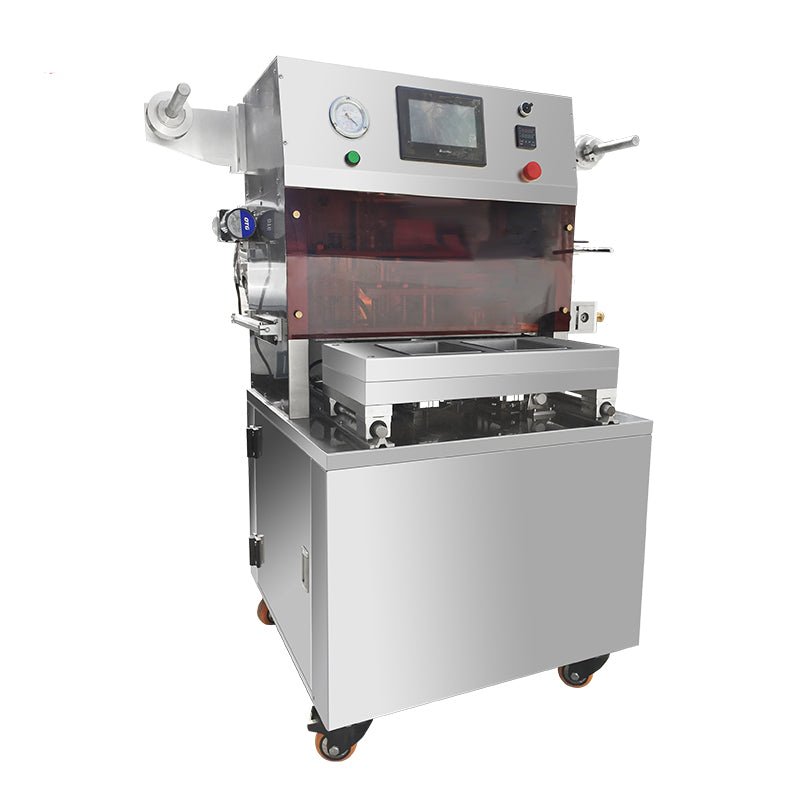

The VSP-4634 is an industrial-grade automatic vacuum skin packaging machine designed for high-efficiency production. Ideal for food processing plants, large supermarket distribution centers, and central kitchens, this machine provides superior preservation and 3D visual presentation for fresh meat, seafood, ready-made meals, and premium cheese.
1. Core Advantages
- Superior Preservation: The high-vacuum environment effectively blocks oxygen and inhibits microbial growth, significantly extending shelf life compared to traditional packaging.
- Anti-Leakage Logic: Full-surface film sealing locks in juices and sauces, ensuring zero leakage during transport.
- Precise Parameter Control: Industrial-grade PLC system allows for exact settings of vacuum level, heat-sealing time, and temperature for consistent quality.
- Enhanced Brand Value: The 3D skin-pack effect provides a vibrant, crystal-clear display that maximizes consumer appeal.
- Robust Construction: Built with industrial-grade stainless steel to ensure durability during high-frequency, long-term assembly line operations.
2. Technical Specifications
| Parameter | Specifications |
|---|---|
| Applicable Tray Size | 640×440×50mm (25.2"×17.3"×1.9") |
| Packaging Speed | 1-2 cycles/min |
| Rated Power | 4 kW |
| Working Pressure | 0.6-0.8 MPa |
| Control Mode | Pneumatic and Electric |
| Power Supply | AC220V/380V 3-phase 50-60Hz |
| Machine Weight | 400 kg |
| Machine Dimensions | 1010×1000×1450mm |
3. Mold Configuration & Consumables

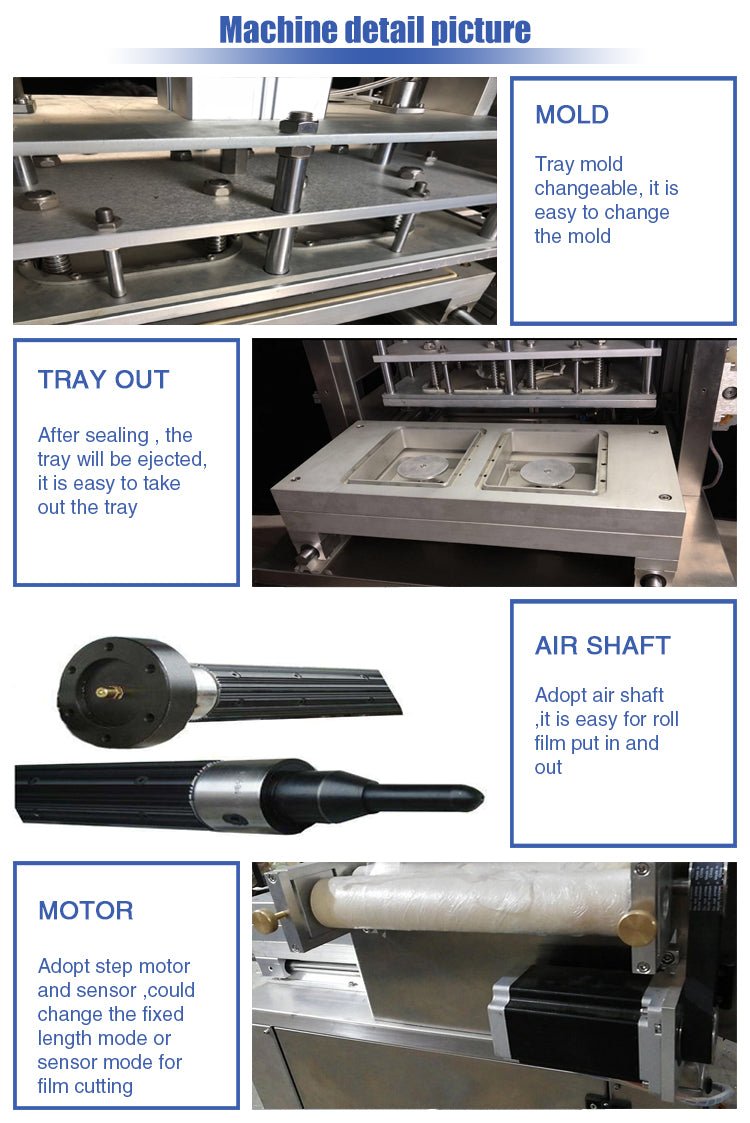

Mold Customization
The total mold dimension is 640 * 440 mm. It is highly customizable to match your specific product needs (Standard depth: 50mm, protrusion: up to 10mm).
Layout Options:
- 4-Cavity (1-out-4): Max single-box size: 280 * 180 mm
- 3-Cavity (1-out-3): Max single-box size: 390 * 175 mm
Consumable Recommendations
- Film Material: Food-grade PE/PA high-barrier skin packaging film.
- Recommended Thickness: 100 microns for optimal structural integrity.
- Max Film Width: Supports up to 440 mm.
4. Technical Documentation & Support
For detailed technical specifications, mold installation guides, and troubleshooting, please refer to our dedicated documentation center.
👉 View VSP-4634 Official Technical Documentation
5. Workflow
- Manual Loading: Place trays into the mold cavity in the loading area.
- Automatic In-feed: Press start; the mold automatically slides into the machine.
- Heating & Skinning: Vacuum removes air, causing the film to bond tightly to the food surface.
- Sealing & Cutting: The machine heat-seals and trims edges for a clean finish.
- Unloading: The mold slides out, ready for tray removal.
6. Frequently Asked Questions (FAQ)
Q: Does the VSP-4634 support changing molds for different specifications?
A: Yes, the equipment is designed for flexibility. You can interchange upper and lower molds to match various tray sizes.
Q: What are the packaging material requirements?
A: Specialized high-barrier skin films (PA/PE or PET/PE) are required. We offer film recommendations tailored to your specific product type.
Watch the Video: View English Marketing Video on YouTube
