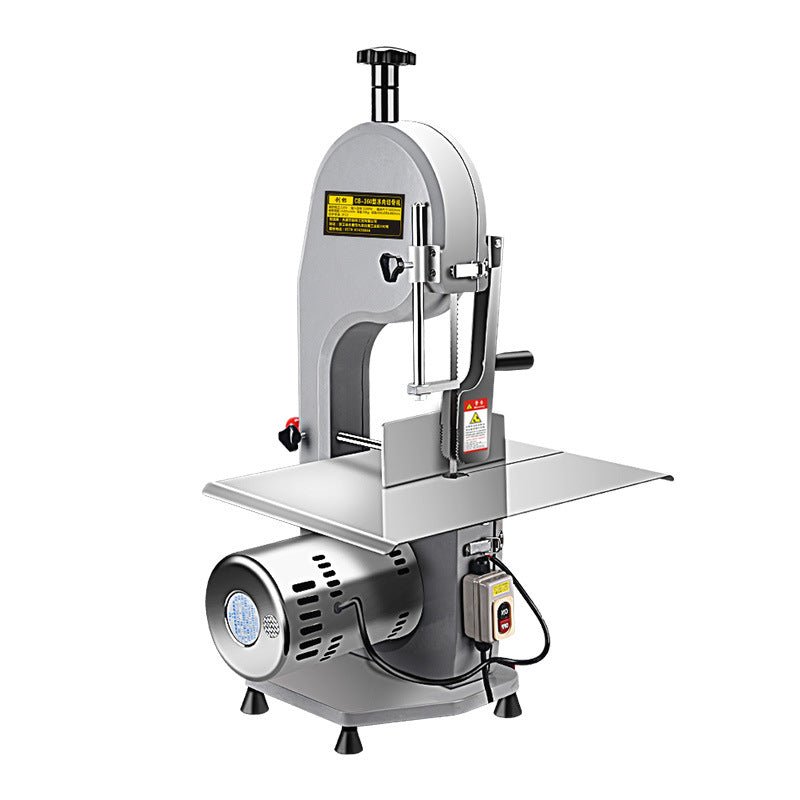

BSM-1400 High-Speed Beef Mutton Pork Saw Bone Machine for Food Processing (Electric Drive)

Name: BSM-1400
Brand: CECLE
Price: 950.0 USD
Availability: InStock

$950.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Modle BSM-1400

Voltage 110V 220V

Shipping Method By sea to door about (45-50days)

Quick Answer: The CECLE BSM-1400 uses an industrial high-torque motor driving upper and lower alloy wheels to rotate a flexible alloy band saw blade continuously at high.

CECLE BSM-1400 vs. Traditional / Generic Alternative

Where the CECLE BSM-1400 stands out against manual or generic machine — measured on the dimensions buyers care about most.

Pressure Consistency

CECLE BSM-1400The CECLE Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Output Speed & Throughput

CECLE BSM-1400Rated 1400 r/min (High-speed clean cut, minimal kerf waste) Spindle Speed: Built for steady commercial output with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Operational Mechanism & Drive

CECLE BSM-1400Purpose-Built Rated Motor Power: 1500W (1.5 kW) High-Torque Pure Copper Motor drive delivers steady, operator-independent output.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Chassis Rigidity & Vibration Resistance

CECLE BSM-1400Industrial-Reinforced Frame: 35 kg (Heavy-duty countertop stabilization) Net Weight chassis eliminates vibration and keeps seals tight.

Lightweight Sheet Metal (<30 kg)Prone to chassis flex, frame warping over time, and seal leakage.

Technical Specifications

Key Technical Parameter	BSM-1400 Detailed Specification
Product Model	BSM-1400
Equipment Name	Commercial Beef, Mutton & Pork Bone Saw Machine
Rated Motor Power	1500W (1.5 kW) High-Torque Pure Copper Motor
Operating Voltage	110V / 220V (50Hz / 60Hz; configurable with US, EU, or UK plugs)
Spindle Speed	1400 r/min (High-speed clean cut, minimal kerf waste)
Blade Length	1650 mm (High-hardness wear-resistant alloy band saw blade)
Worktable Dimensions	49 × 38 cm (Thickened anti-slip stainless steel surface)
Machine Dimensions	49 × 38 × 90 cm (L × W × H)
Net Weight	35 kg (Heavy-duty countertop stabilization)
Cutting Thickness Range	0 - 150 mm (Adjustable via laser-etched guide plate)
Applicable Materials	Frozen ribs, beef marrow bones, lamb spine, tomahawk steaks, frozen fish, whole poultry
Safety Features	Industrial waterproof self-locking switches, physical door safety locks, ergonomic pusher guard

Pre-installation requirements: Rated Motor Power: 1500W (1.5 kW) High-Torque Pure Copper Motor; Worktable Dimensions: 49 × 38 cm (Thickened anti-slip stainless steel surface); Machine Dimensions: 49 × 38 × 90 cm (L × W × H); Net Weight: 35 kg (Heavy-duty countertop stabilization).

Compatible Applications & Materials

industrial products — primary target products for this Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

To maintain maximum operator safety and prolong the working life of the band saw blade, adhere strictly to the following standard operating procedures:

Engineering FAQ

Can the BSM-1400 bone saw cut fresh, unfrozen soft meat?
A: It is not recommended for completely unfrozen, room-temperature soft meats. High-speed band saws rely on fine-toothed blades running at high vertical velocity to shear rigid structures (such as bones, ribs, semi-frozen, or hard-frozen meat blocks). Cutting unfrozen soft meat can cause sinew and soft fibers to catch between the teeth and enter the wheel guide cavities, resulting in torn meat and potential jams. For fresh meat slicing and shredding, rotary slicers/dicers (such as the MG series) are recommended.

How long does a saw blade last, and how do I adjust blade tension properly?
A: Blade lifespan depends directly on daily production volume and bone density. Replace the blade when cutting feed resistance noticeably increases, cutting speed drops, or cut surfaces display tearing. Tension adjustment is straightforward: rotate the top handwheel clockwise to tighten and counter-clockwise to loosen. Proper tension is reached when pressing firmly against the side of the blade yields slight, firm flex. Avoid overtightening (which accelerates blade fatigue breakage) or leaving it too loose (which risks blade derailment).

How does the machine ensure operator safety during continuous commercial use?
A: The BSM-1400 incorporates multiple safety protections: ① A dedicated ergonomic pusher plate with an anti-slip grip ensures a physical barrier between the operator's hands and the saw blade at all times; ② Enclosed cabinet doors with dual locking screws prevent startup when doors are unlatched; ③ Industrial-grade waterproof power switches prevent electrical shock during wet-hand operation; ④ A stable 35 kg net weight and anti-skid foot pads suppress vibration and prevent machine drift.

What power supply does the BSM-1400 require?
A: The BSM-1400 runs on 1500W (1.5 kW) High-Torque Pure Copper Motor Rated Motor Power. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What routine maintenance keeps the BSM-1400 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the BSM-1400 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
