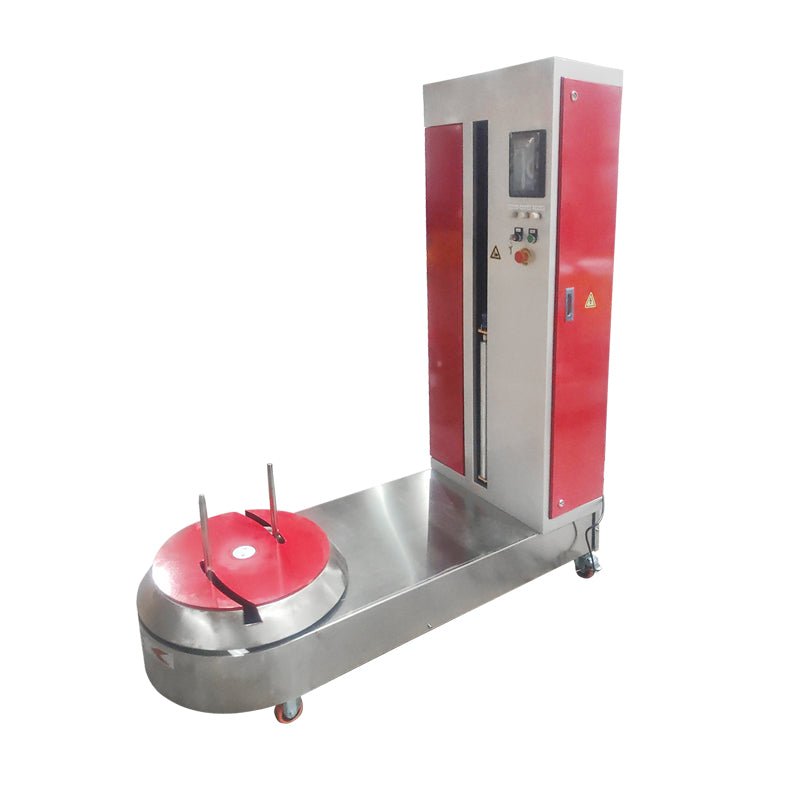

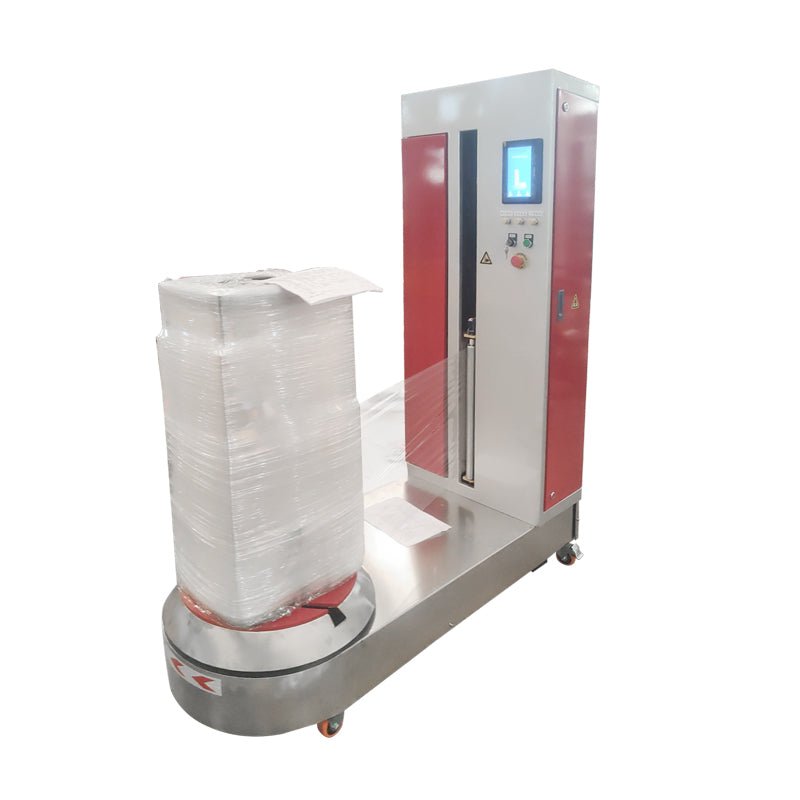

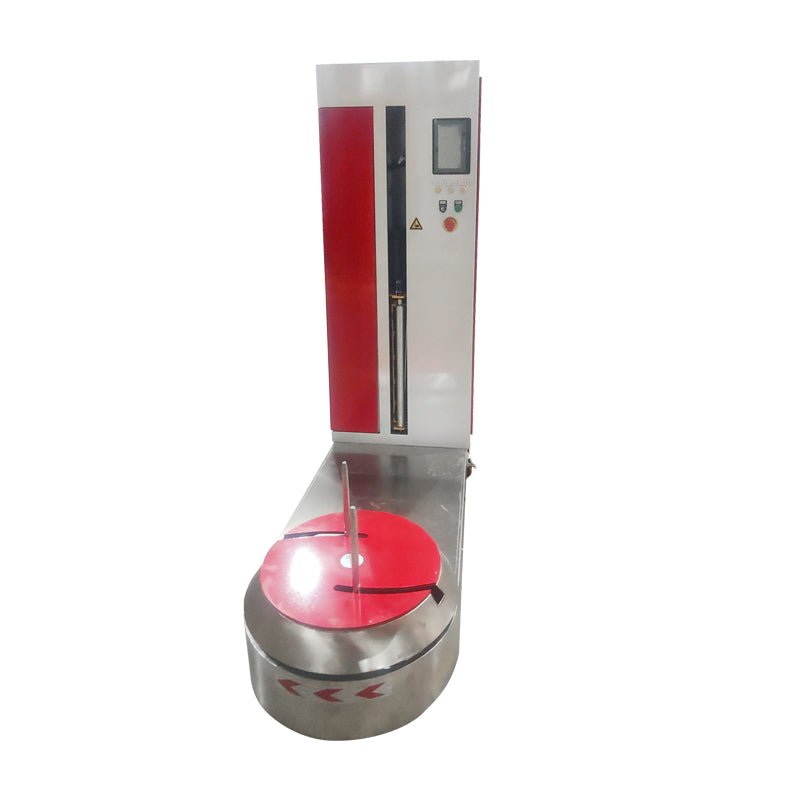

Airport Luggage Stretch Wrapping Machine LP600F-L | 100KG Baggage Wrapper
Airport Luggage Stretch Wrapping Machine LP600F-L | 100KG Baggage Wrapper
Couldn't load pickup availability
⚡ At a Glance (TL;DR)
- Core Function: Compact, high-efficiency baggage and parcel stretch wrapping machine designed specifically for airports, hotels, and logistics centers.
- 200% Powered Pre-Stretch: Stretches 1 meter of film into 3 meters, reducing film consumption by over 50% while delivering tight, tamper-evident protection.
- Smart Auto-Sensing & Tracking: Photoelectric sensor automatically detects package height; built-in counter memory simplifies shift tracking.
- Dual Operation Modes: Supports fully automatic wrapping for standard luggage and manual override for irregular boxes or extra-long parcels.
Key Benefits & Core Features
The LP600F-L Luggage Stretch Wrapping Machine is an essential packaging unit for high-traffic environments, including airport wrapping terminals, hotel concierge desks, express logistics hubs, and e-commerce shipping centers. Engineered to handle loads up to 100KG (220 lbs), it provides superior protection against wear, theft, moisture, and dust during transit.
- High-Ratio Film Cost Reduction: Powered film carriage with 200% pre-stretch technology elongates stretch film before application, significantly lowering consumable overheads while ensuring tight, tear-resistant encapsulation.
- Photoelectric Auto Height Sensing: Integrated photoelectric sensor automatically detects luggage height without manual adjustments, smoothly accommodating luggage up to 1000mm in height.
- Flexible PLC Controls & Counter Memory: Touch screen panel allows easy configuration of wrapping layers and film tension. Features an integrated package counter for accurate shift handovers.
- Gentle Film Handling: Fitted with special rubber guide rollers to eliminate film tear-outs, guaranteeing smooth dispensing and uniform stretch tension across all suitcase contours.
Technical Specifications
| Specification Item | Details & Parameters |
|---|---|
| Model | LP600F-L |
| Load Capacity | 100 KG / 220 LBS |
| Turntable Diameter | 500 MM / 19.7 INCH |
| Turntable Speed | 0 – 36 RPM (Variable frequency adjustable) |
| Max Luggage Size (L×W×H) | 800 × 450 × 1000 MM / 31.5 × 17.7 × 39.4 INCH |
| Voltage | 110V / 220V Single Phase |
| Power | 0.8 KW |
| Weight | 320 KG / 705 LBS |
| Machine Dimensions | 1650 × 600 × 1900 MM / 65 × 23.6 × 74.8 INCH |
📖 Need operating instructions, maintenance details, or technical documentation?
View Full Technical Documentation & User Manual
Frequently Asked Questions
Q: What does 200% powered pre-stretch mean?
A: It means 1 meter of film can be stretched to 3 meters for use, which can save customers more than half of the consumable costs while making the packaging more secure.
Q: Luggage heights vary; does it need manual adjustment?
A: No. The machine is equipped with a photoelectric switch that automatically senses the luggage height. The film carriage moves up and down, easily wrapping taller luggage (over 500mm).
Q: What about warranty and after-sales services?
A: We provide a 1-year warranty service. During the warranty period, if damage occurs under normal use according to the manual, we provide free replacement parts (the buyer is responsible for the international shipping costs from China to their local area).
