CECLE packaging machinery

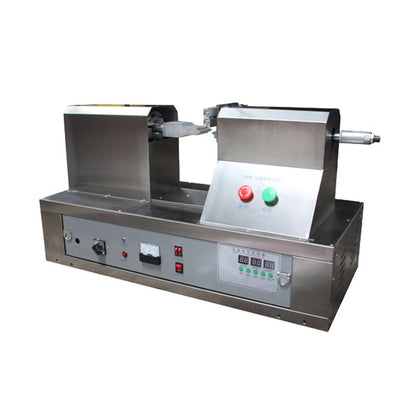

QDFW-125 Tube Sealing Machine for Tubes (Pneumatic Drive)

Name: QDFW-125
Brand: CECLE
Price: 2399.0 USD
Availability: InStock

$2,599.00 USD

~~$1,500.00 USD~~ $2,599.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Plug AU/EU/US/UK

Voltage 110V/220V 220V/110V

Shipping method by express to door(7-10 days) by sea to door(25-40 days)

Quick Answer: The CECLE QDFW-125 is a versatile pneumatic ultrasonic tube sealing machine specifically designed for small-to-medium enterprises and laboratories in the cosmetics, pharmaceutical, food, and chemical.

CECLE QDFW-125 vs. Traditional / Generic Alternative

Where the QDFW-125 stands out against manual or generic alternatives — measured on the dimensions buyers care about most.

Pressure Consistency

CECLE QDFW-125Multi-Material Compatibility: Suitable for aluminum tubes and various composite tubes. The seal is aesthetic and firm, with no charring or burning

Inconsistent Spring/Manual PressureForce drifts with operator fatigue and batch size, causing weak seals and rejects.

Adaptability & Changeover

CECLE QDFW-125Flexible Layout Design: Available in horizontal (benchtop) or vertical sealing directions to choose from, perfectly adapting to different workbench heights

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Precision & Consistency

CECLE QDFW-125Smart Digital Monitoring: Equipped with high-precision digital display instruments to show the working frequency and pressure in real-time, making operation intuitive and easy for beginners to learn quickly

Analog / Blind OperationNo real-time parameter feedback; operators guess settings, so quality drifts batch to batch.

Sealing / Transfer Quality

CECLE QDFW-125Integrated Sealing and Embossing: Automatically embosses the date block while sealing. The characters are clear, anti-counterfeiting, and permanent

Uncontrolled Contact ConditionsEdges wrinkle, seals weaken or transfer is incomplete because pressure/heat are not synchronized.

Technical Specifications

Specification	Value & Unit
Voltage	220V 50Hz
Sealing Size	100mm × 7mm (3.9 × 0.3 in)
Sealing Speed	10 pcs/min
Air Pressure	0.4 ~ 0.6 MPa
Power	1.5 kW
Net Weight	79 KG (174.2 lb)
Dimensions	110cm × 56cm × 64cm

Pre-installation requirements: Voltage: 220V 50Hz; Air Pressure: 0.4 ~ 0.6 MPa; Power: 1.5 kW; Net Weight: 79 KG (174.2 lb); Dimensions: 110cm × 56cm × 64cm. External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Tube Sealing Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Preparation: Connect the 220V power supply and 0.4-0.6 MPa air source, and adjust the ultrasonic frequency to the normal range
Manual Tube Loading: Place the filled tube into the working fixture of the machine
Trigger Sealing: Press the start button or step on the foot switch, and the sealing mold closes
Ultrasonic Fusion: The machine instantly emits ultrasonic waves to melt the inner wall of the tube opening, while simultaneously embossing the date block into it
Discharging: The mold dwells for about 0.5 - 1 second to complete setting, then automatically opens, and the finished product can be taken out.

Engineering FAQ

What power supply does the QDFW-125 require?
A: The QDFW-125 runs on 220V 50Hz Voltage. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the QDFW-125?
A: Beyond the rated 220V 50Hz Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the QDFW-125 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the QDFW-125 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
