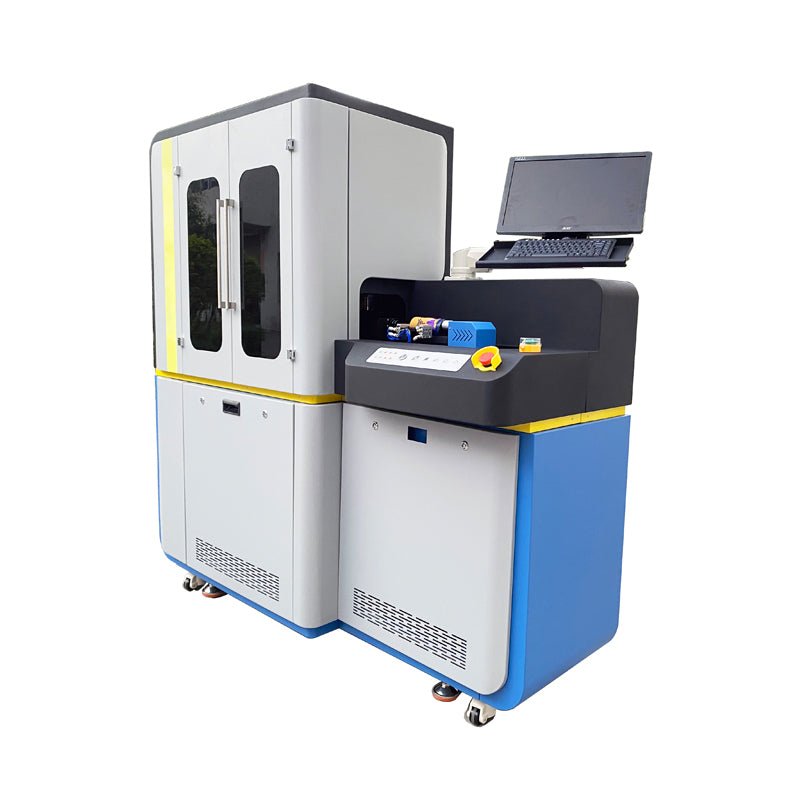

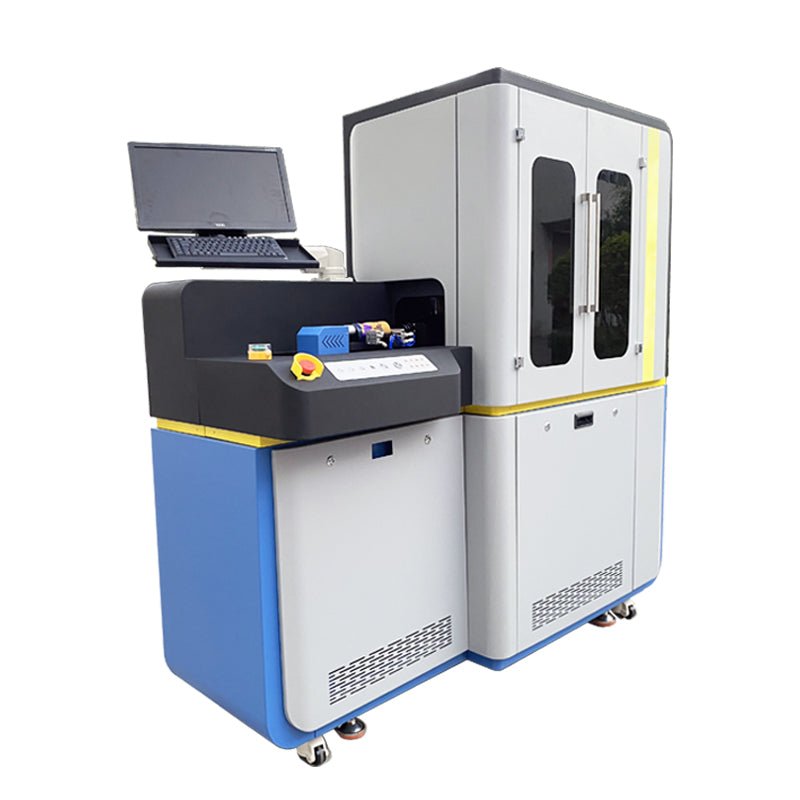

TD-F5 Cylindrical UV Printer for Drinkware & Promo Gifts (8-Color LED UV)

Name: TD-F5
Brand: CECLE
Price: 43999.0 USD
Availability: InStock

$43,999.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model TD-F5

Shipping Method By sea to door(About 35-55 days)

Quick Answer: The CECLE TD-F5 is a Cylindrical UV Printer designed for Drinkware & Promo Gifts with a print speed of 50 S / PCS, engineered for stable, repeatable commercial-scale production.

CECLE TD-F5 vs. Traditional / Generic Alternative

Where CECLE TD-F5 stands out against the conventional alternative — measured on the dimensions buyers care about most.

White, Colour & Varnish in One Pass

CECLE TD-F5Five Toshiba CF3R heads lay down K, C, M, Y, Lc, Lm, white and varnish together at 600 × 1800 DPI, so there is no second registration to chase.

AlternativePad and screen lines print one colour per cycle, so a white base plus four colours is five passes and five chances to drift out of register.

Conical & Special-Shaped Work

CECLE TD-F5Auto-scanning follows tapers and irregular cylinders across 45 - 125 mm diameter and 30 - 270 mm print length without a new fixture per shape.

AlternativePad printing needs a dedicated cliche and pad per profile, and a cone still needs a rotating jig that smears along the taper.

Changeover for Short Runs

CECLE TD-F5New artwork is a new file, so a 50-piece promo batch costs 50 × 50 s of machine time and no tooling.

AlternativeEvery new design needs a new screen or cliche, which is why pad printers quote minimums in the hundreds and hold stock against them.

Photographic Gradients & Fine Type

CECLE TD-F5A 3.5 PL minimum drop with light cyan and light magenta holds gradients and fine type around a thermos curve.

AlternativeSpot-colour screen printing is flat by nature; continuous tones have to be faked with halftones that band on a curved surface.

Technical Specifications

Items	Specifications
Model	TD-F5
Voltage	110V / 220V
Print Diameter	45 mm – 125 mm
Print Length	30 mm – 270 mm
Printhead Quantity	5 pcs
Printhead Type	CF3R
Resolution	600 × 1800 DPI
Minimum Ink Drop	3.5 PL
Print Speed	50 S / PCS
Ink Colors	K, C, M, Y, Lc, Lm, W, V
Curing System	LED UV Lamp
Cleaning System	Auto Negative Pressure Cleaning
Data Interface / Software	Gigabit Ethernet / RIIN (RIP software)
Environment	Temperature 20℃–30℃ / Humidity 30%–60% (Standard office environment)
Machine Dimensions	1990 × 685 × 1850 mm
Net Weight	530 KG

Pre-installation requirements: Voltage: 110V / 220V; Machine Dimensions: 1990 × 685 × 1850 mm (78.3 × 27.0 × 72.8 in); Net Weight: 530 KG (1168.4 lb). External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

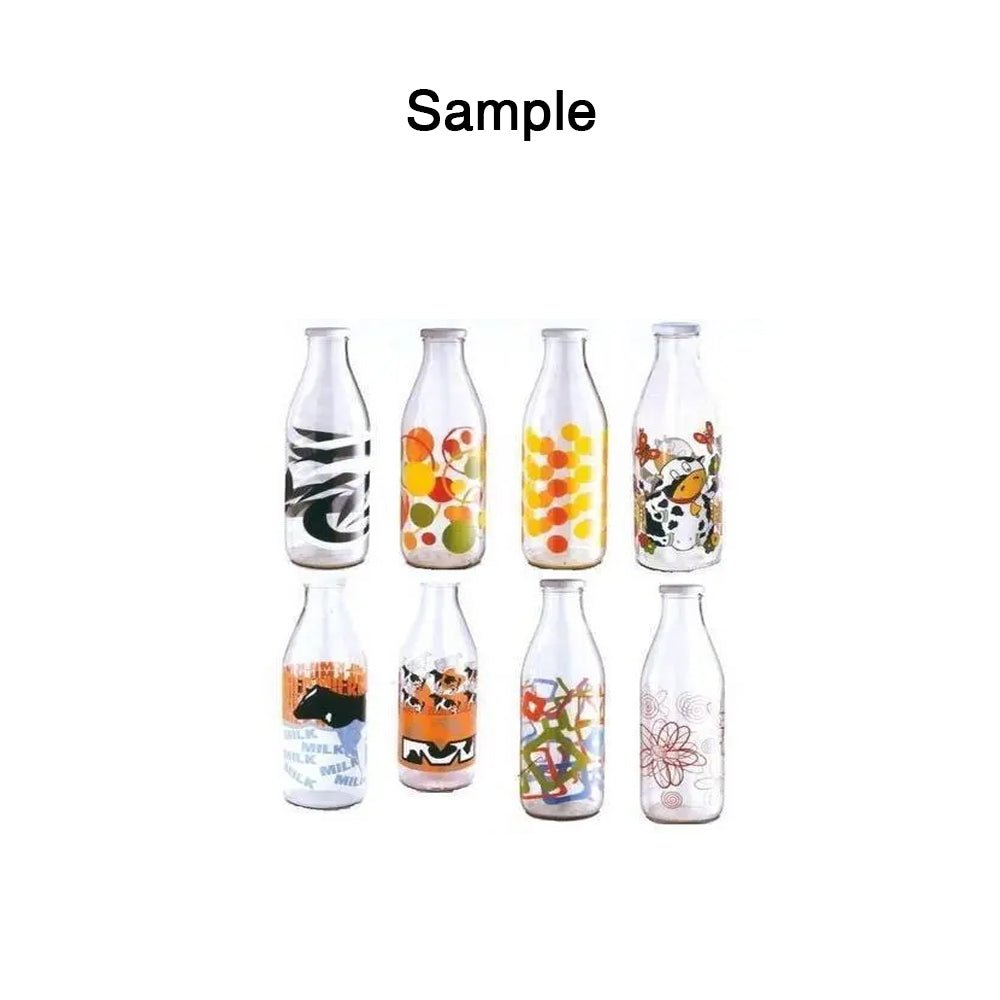

Drinkware & Promo Gifts — a core application for this Cylindrical UV Printer line

Standard Operating Procedure (SOP)

Power On & Self-Check : Turn on the main power supply, check air pressure, ink negative pressure, and cooling systems, and wait for the machine to auto-zero
Import Files : Import the target cylindrical design artwork into the RIP software (RIIN) (supports TIFF, JPG, EPS, PDF, PNG, AI, PSD formats), and adjust dimensions along with white/color/varnish layers
Load Workpiece & Auto-Scan : Place the cylindrical/conical product onto the rotary fixture, and initiate Auto-Scanning to let the system automatically recognize the bottle contour
Height Measurement & Positioning : Use the infrared sensor to automatically set the safe printing height, ensuring the optimal distance between the printhead and the workpiece
Start Printing : Initiate printing

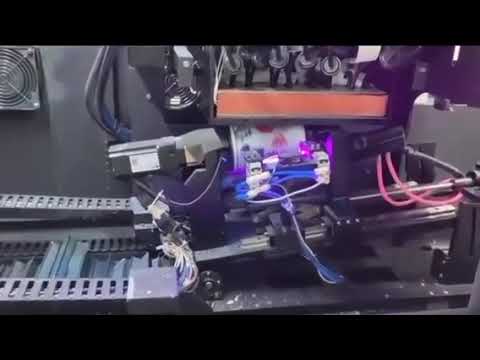

the machine will automatically execute rotary inkjet printing and simultaneous LED UV curing
Unload & Quality Check : Take out the finished product and inspect the color adhesion and varnish effect.

Engineering FAQ

Can this machine print conical cups besides standard cylinders?
A: Yes. The TD-F5 is equipped with an auto-scanning function, perfectly supporting seamless printing on cylinders, cones, and various special-shaped cylinder products.

Can it print white and color simultaneously?
A: Absolutely. The machine supports simultaneous white, color, and varnish printing in one pass, eliminating the hassle of multi-pass registration.

What are the environmental requirements for operation?
A: It is recommended to operate in a standard office or workshop environment with a temperature of 20℃–30℃ and humidity of 30%–60%.

What power supply does the TD-F5 require?
A: The TD-F5 runs on 110V / 220V. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

Does the TD-F5 need an external air compressor?
A: Yes. The TD-F5 is pneumatically driven and needs a stable external air supply at the rated pressure. Size the compressor for continuous duty so pressure holds through a full shift; a compressor that cycles on and off shows up as inconsistent penetration.

What routine maintenance keeps the TD-F5 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.
