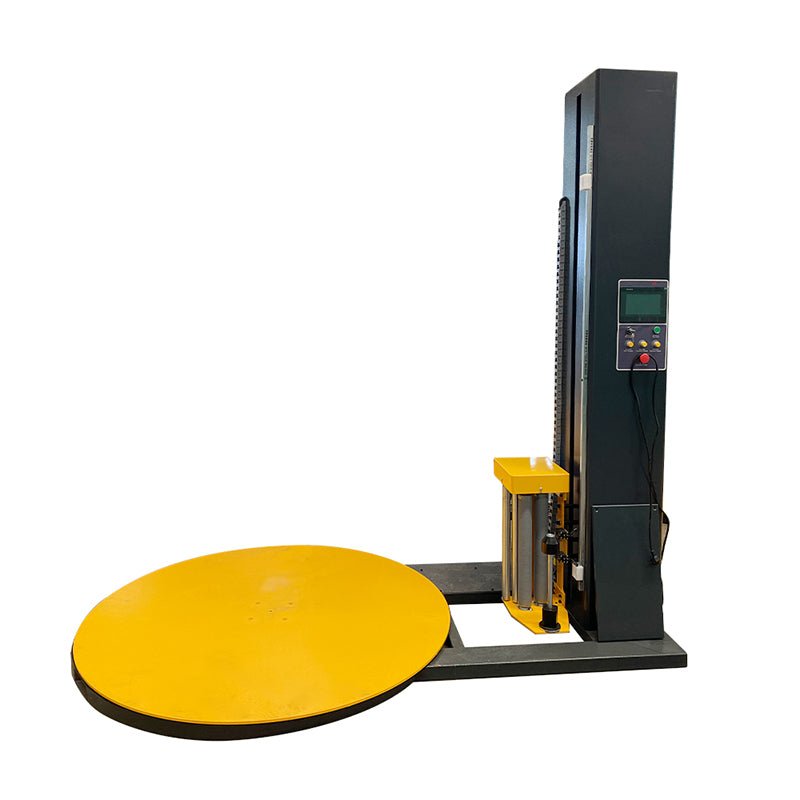

TP1650F-L Pallet Stretch Wrapping Machine

Industrial Turntable Wrapper with 250% Powered Pre-Stretch (2000KG Capacity)

The TP1650F-L Pallet Stretch Wrapping Machine is a high-efficiency, floor-standing packaging solution engineered for standard logistics pallets. Ideal for warehousing, chemicals, electronics, food & beverage, and export logistics, this machine is built to handle medium-to-high intensity packaging operations.

Featuring a heavy-duty 2000KG (4409LB) load capacity and a 250% powered pre-stretch film carriage, the TP1650F-L delivers exceptional load stability while significantly reducing film consumption. Its ultra-low 85mm (3.3") turntable height allows for convenient loading via hand pallet jacks or forklifts.

🌟 Core Advantages & Technologies

• 250% Powered Pre-Stretch Technology: The motorized film carriage pre-stretches the film up to 250% before application. This reduces stretch film consumption by 30% to 50% compared to standard friction-stretch wrappers, delivering substantial long-term material cost savings.
• Heavy-Duty Turntable (1650mm): Supports palletized goods weighing up to 2000KG. The automatic turntable auto-resets to its starting position after every wrapping cycle.
• PLC Programmable Controls: An intuitive touch screen control panel allows operators to adjust wrap layers, carriage speed, turntable rotation (0–12 rpm).
• Enhanced Safety & Ease of Use: Operators require only a brief 5-minute training session to master the touch screen interface and run continuous wrapping cycles safely.

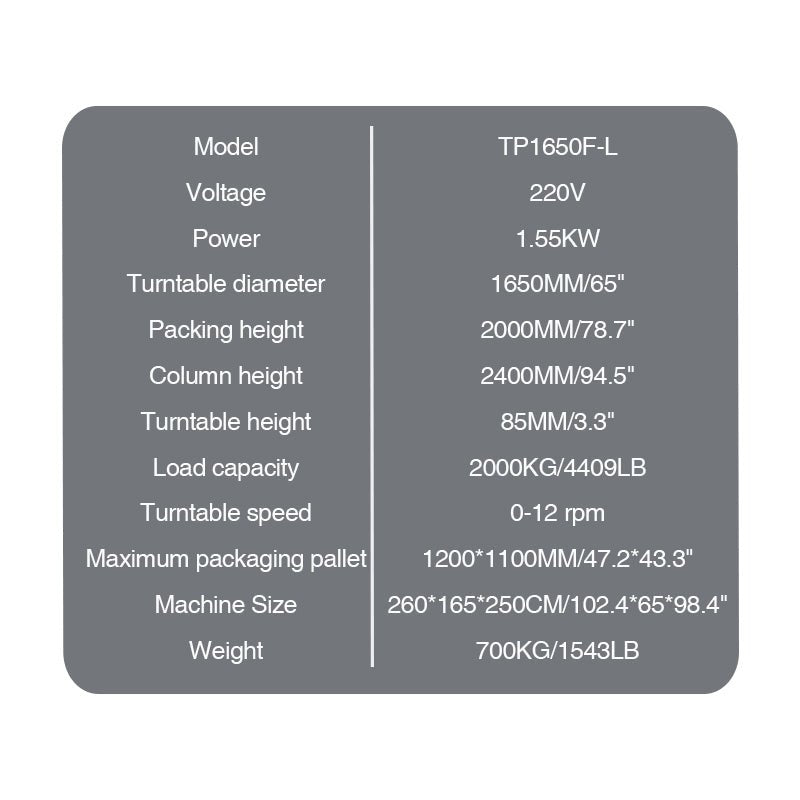

📐 Technical Specifications

🔄 Standard Operational Workflow

1. Loading: A forklift or hand pallet jack places the loaded pallet in the center of the turntable.
2. Securing the Film: The operator manually pulls the start of the pre-stretched film and ties it securely to the base of the pallet.
3. Initiating: Tap the start button on the PLC touch screen.

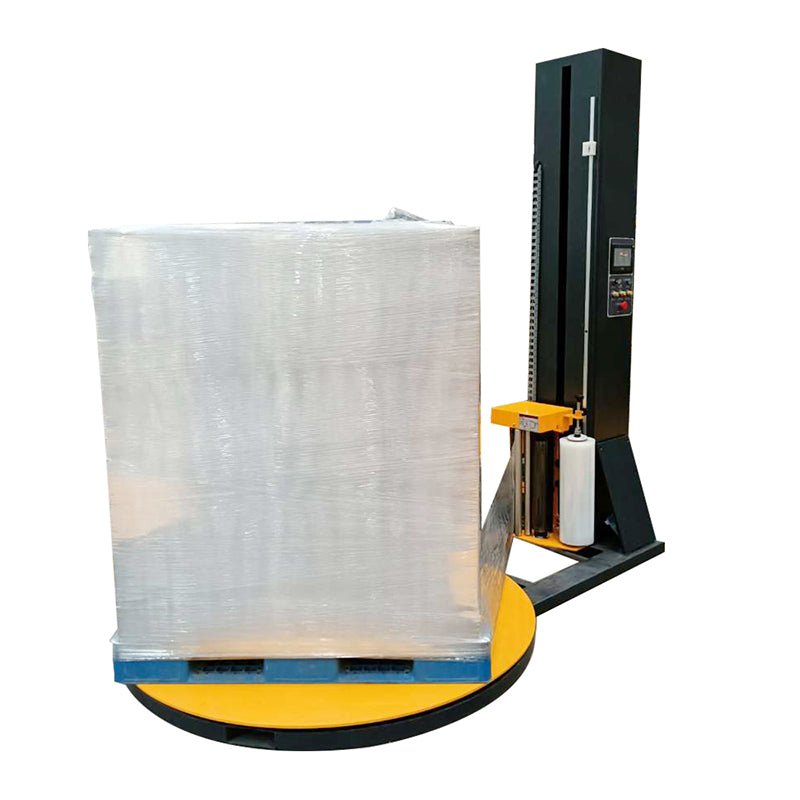

4. Automated Wrapping: The turntable rotates while the film carriage automatically moves vertically to complete the pre-programmed wrapping cycle.
5. Completion: Once finished, the turntable stops at its original home position. The operator cuts the film manually, and the forklift removes the wrapped pallet.

📦 Prerequisites & Material Requirements

• Stretch Film Specification: Requires pre-stretch type machine stretch film with a thickness of 15μm to 35μm (25μm is highly recommended).
• Electrical Supply: Ensure single-phase 220V (or custom 110V) power is accessible at your packing station.

❓ Frequently Asked Questions (FAQ)

Q: What is the main benefit of 250% powered pre-stretch?
A: Powered pre-stretch mechanically thins the film before it reaches the pallet. This means you use less plastic film per pallet (saving up to 50% in consumable costs) while obtaining a stronger elastic memory pull, ensuring much higher cargo stability during transit.

Q: My pallets exceed the standard size or 2-meter height limit. Can this machine be customized?
A: Yes. Both the turntable diameter and column height can be custom-manufactured to match your maximum pallet sizes. Please contact us with your exact dimensions before finalizing your order.

Q: What about warranty and after-sales services?
A: We provide a 1-year warranty service. During the warranty period, if damage occurs under normal use according to the manual, we provide free replacement parts (the buyer is responsible for the international shipping costs from China to their local area).

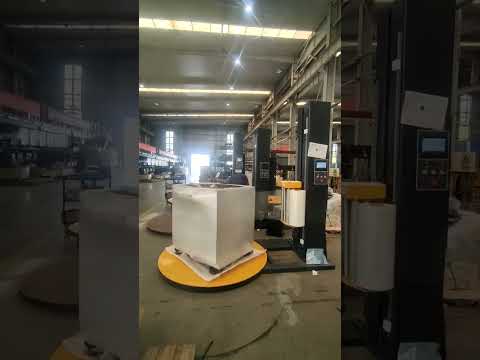

🎥 Demonstration Video

📚 Technical Resources

For complete setup instructions, electrical diagrams, PLC programming guides, and detailed troubleshooting parameters, visit our official technical hub:
👉 TP1650F-L Stretch Wrapper Technical Documentation (doc.cecle.net)
