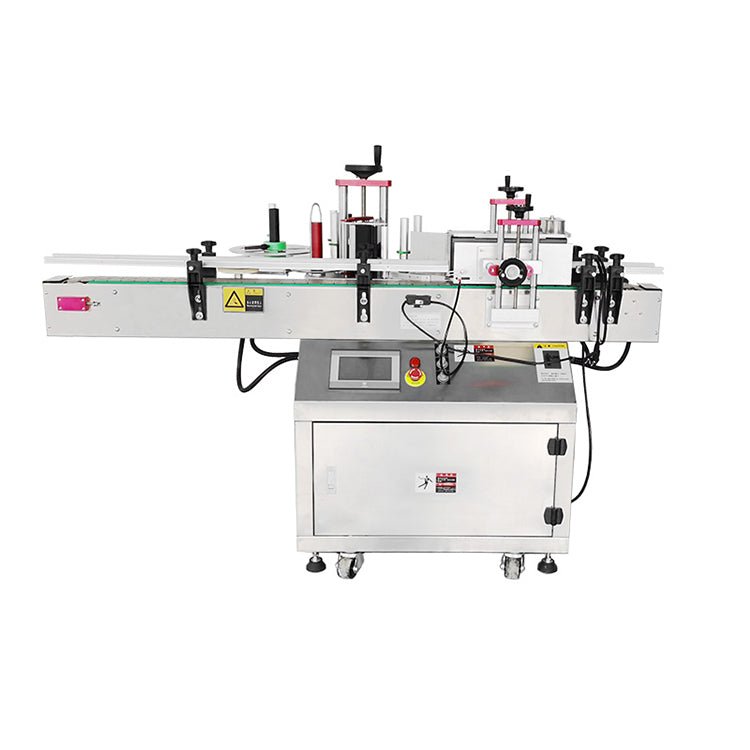

AL-220 Automatic Vertical Round Bottle Labeling Machine - Advanced Industrial Solution
The AL-220 Automatic Vertical Round Bottle Labeling Machine is an advanced industrial solution engineered for high-precision cylindrical and vertical bottle labeling across the daily chemical, pharmaceutical, and food industries. Ideal for hand sanitizer bottles, spray cans, and cosmetic vials, this versatile system delivers a throughput of 30 to 60 bottles per minute with high servo-driven precision within plus or minus 1 mm.
Technical Documentation & Support
For detailed electrical layouts, parts manuals, and comprehensive maintenance guides for this equipment, please visit our Official Technical Documentation Portal.
I. Product Overview & Use Scenarios
Widely applicable to the daily chemical, pharmaceutical, food, and fine chemical industries. Specifically designed for precise vertical labeling of cylindrical containers such as hand sanitizer bottles, disinfectant spray bottles, small cosmetic vials, medicine bottles, cans, and alcohol bottles, ensuring stable operation, precise placement, and zero air bubbles.
II. Core Advantages
- High Customizability & Modular Expansion: Supports bottle spacing wheels, automatic unscramblers for inline automation, pneumatic cylinders for fixed-point or front-and-back dual-labeling, transparent label sensors, and thermal transfer ribbon coders.
- Multi-Mode Labeling: Supports single, dual-label, and positioned modes to accommodate diverse branding and regulatory requirements.
- Stable & Efficient Drive: Equipped with a high-performance servo drive system ensuring extreme consistency in labeling position and preventing tilting, wrinkles, or air bubbles.
III. Technical Specifications
| Parameter Name | Technical Specifications |
|---|---|
| Applicable Bottle Diameter | 30-100 mm (customizable) |
| Label Size | Width: 10-120 mm / Length: 15-300 mm |
| Labeling Speed | 30-60 bottles/minute |
| Labeling Accuracy | Within plus or minus 1 mm |
| Coding Capability & Power | Supports optional ribbon coder / AC 110V/220V 50/60Hz |
| Machine Weight & Dimensions | Approx. 228 kg / 1850 × 850 × 1420 mm |
IV. Workflow

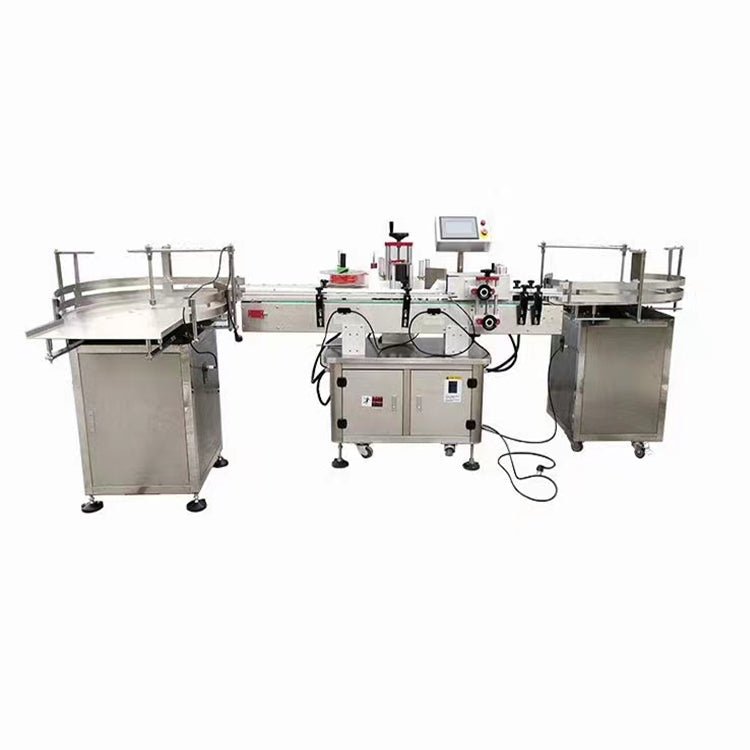

- Automatic Feeding: Bottles are fed onto the conveyor system manually or via an optional bottle unscrambler.

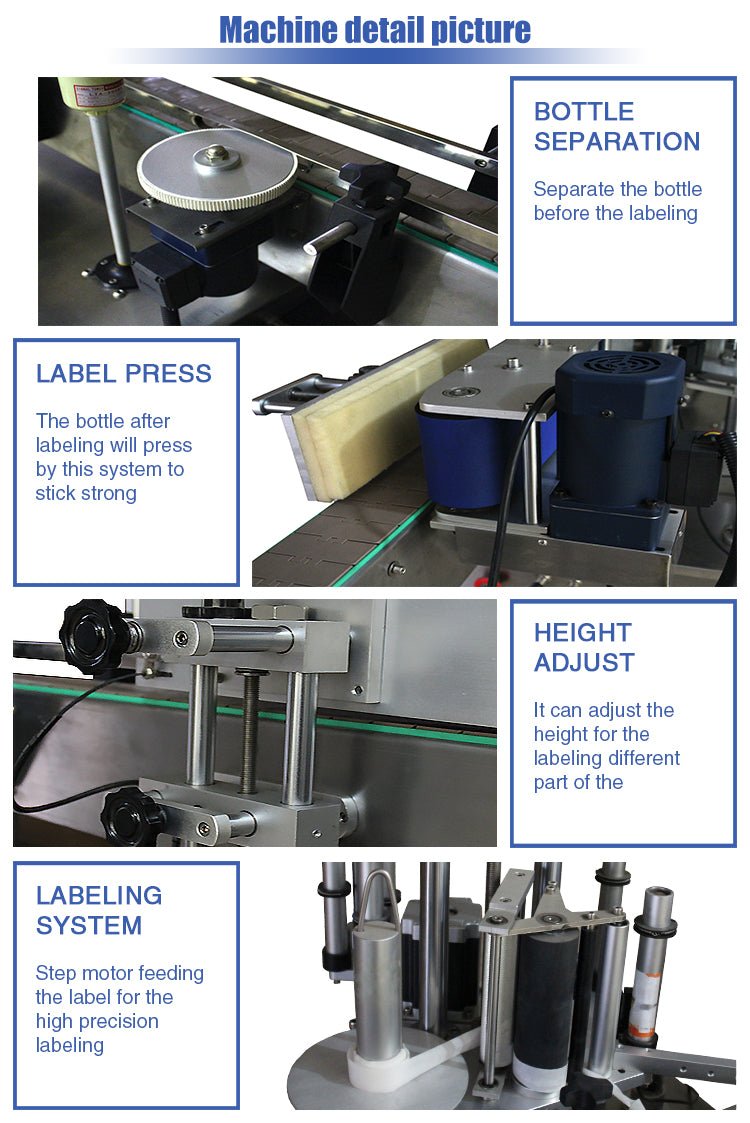

- Spacing & Positioning: The bottle spacing wheel regulates intervals; the pneumatic cylinder clamps and rotates the bottle for precise orientation or dual labeling if equipped.

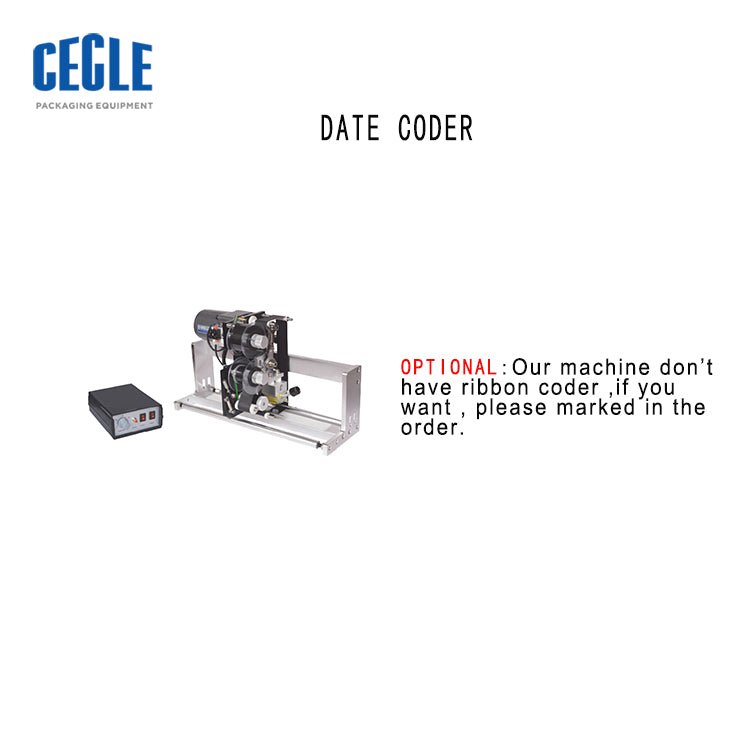

- Label Peeling & Coding: Sensors trigger the label dispensing mechanism while the optional ribbon coder prints batch data onto the label.
- Smooth Application: The container rotates as the labeling unit presses the label down securely for a wrinkle-free and bubble-free finish.
- Finished Product Output: Labeled bottles are smoothly discharged to the collection area.
V. Frequently Asked Questions (FAQ)
Q: Can the machine handle bottles requiring dual labels or specific position alignment?
A: Yes. By incorporating our specialized pneumatic cylinder mechanism, the machine securely holds and positions the bottle to apply front and back dual labels or align precisely with existing markings.
Q: Is it possible to use clear or transparent labels on this machine?
A: Absolutely. We offer customizable transparent label sensors that can be installed to reliably detect transparent backing materials and labels.
