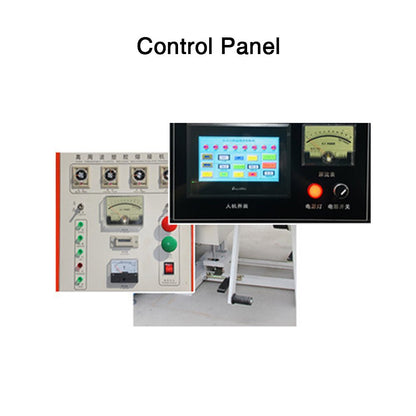

  • PLC touch screen control panel and built-in high-frequency oscillator for blister sealing without oil
  • PLC touch screen control panel and built-in high-frequency oscillator for blister sealing without oil
  • PLC touch screen control panel and built-in high-frequency oscillator for blister sealing without oil
  • Heavy-duty 500KG frame and pneumatic pressurization system for large-scale packaging factories

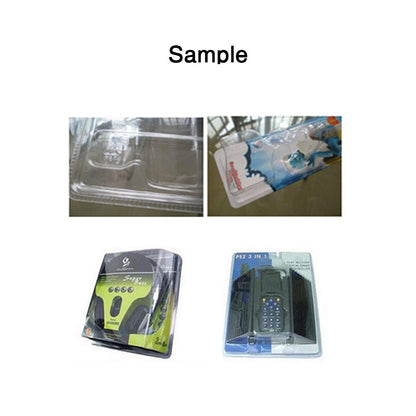

  • APET and PETG double blister packaging fused by high frequency thermal bonding
1 7

CECLE Machine

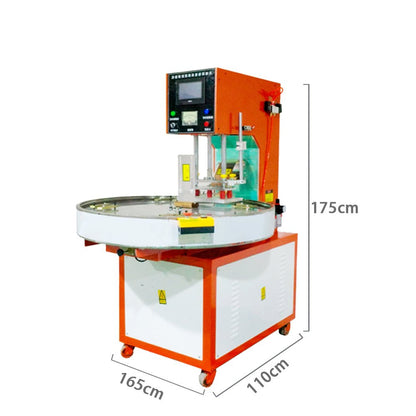

HFQ-04 / HFQ-05 Fully Automatic High Frequency Blister Welding Machine | Rotary Turntable

HFQ-04 / HFQ-05 Fully Automatic High Frequency Blister Welding Machine | Rotary Turntable

$9,500.00 USD
$9,500.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Model
Shipping Method
Download Product PDF

24/7 Unattended Mass Production. Zero Blister Oil Required.

The HFQ-04 and HFQ-05 Series represent the pinnacle of fully automatic high-frequency blister welding. Designed specifically for large-scale packaging factories, electronic accessory manufacturers, and medical blister plants, these machines utilize an advanced high-frequency oscillation system to achieve molecular fusion—meaning no blister oil is needed for APET, PETG, PVC, or Leather thermal bonding.

Controlled by an intuitive PLC touch screen and featuring a high-speed 3-station automatic rotary turntable, this series is engineered to drastically reduce labor costs while boosting output up to 10 pcs/min.

📘 Official Engineering Resource: Need to integrate this into your assembly line? Looking for PLC wiring diagrams or robotic arm setup guides?
➔ Access the Complete HFQ-04 / HFQ-05 Technical Documentation Here.

1. Choose Your Automation Level: HFQ-04 vs. HFQ-05

HFQ-04: Basic Automatic Model

Best for: Semi-automatic workshops with dedicated operators and limited budgets.

  • 3-Station Automatic Rotary Turntable.
  • Automatic heat sealing and rotation.
  • Manual unloading required.
  • Speed: 6~8 pcs/min.

HFQ-05: Robotic Arm Unload Model

Best for: 24-hour continuous assembly lines requiring fully unattended operation.

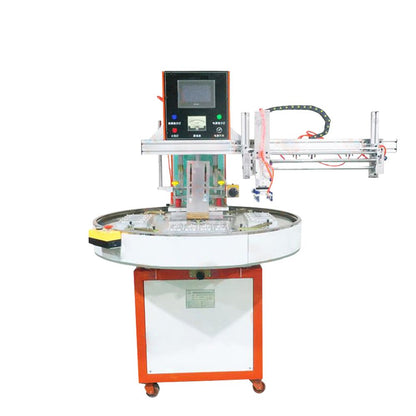

  • 3-Station Turntable + Servo Robotic Arm.
  • Robotic arm automatically grabs and offloads finished goods.
  • Can be connected directly to downstream conveyor belts.
  • Speed: 8~10 pcs/min.

2. Core Features & Advantages

  • No Blister Oil Needed: The built-in high-frequency oscillator achieves material molecular self-heating fusion. This delivers stronger, highly transparent sealing edges free of whitening and delamination.
  • Smart PLC Touch Screen: Full automatic program control. Save and recall all production parameters (temperature, pressure, robotic stroke) with a single click.

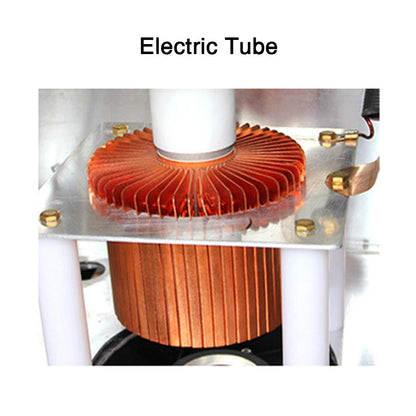

  • Dual Protection Circuit: Equipped with a highly sensitive spark suppressor and overcurrent protection to safeguard your custom molds and high-frequency vacuum tubes.
  • Industrial-Grade Stability: The massive 500KG (1102 lbs) rigid frame ensures zero vibration during high-speed rotation and pressing. Includes safety door interlocks and emergency stop features.

3. Technical Specifications

Specification HFQ-04 (Basic Auto) HFQ-05 (Robotic Auto)
Worktable Type 3-Station Auto Turntable 3-Station Turntable + Servo Robotic Arm
Production Speed 6 ~ 8 pcs/min 8 ~ 10 pcs/min
Total Power 8 KW 8.5 KW (Includes servo power)
Power Supply 220V / 380V (50~60Hz)
Working Air Pressure 0.6–0.8 MPa (External Compressor Required)

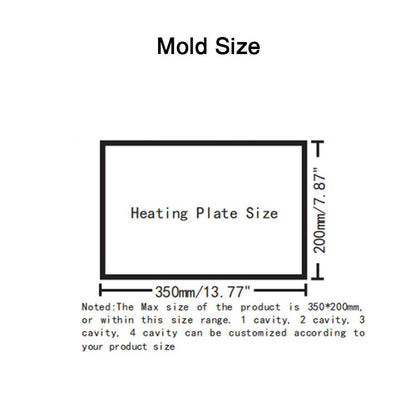

Heating Platen Size 200 × 350 mm (7.87'' × 13.78'')
Compatible Materials APET, PETG, GAG, PVC, PP, EVA, Leather, PU
Machine Weight 500 KG (1102.31 lbs)

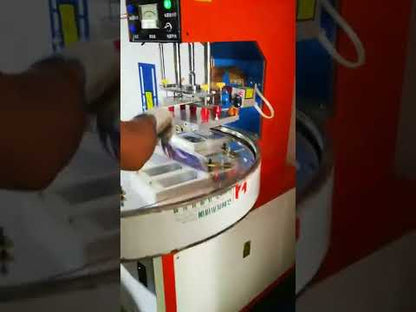

4. See the Automated Workflow in Action

5. Frequently Asked Questions (FAQs)

Q1: Is blister oil needed for blister-card packaging with this machine?
A1: No. Unlike traditional heat sealers, our built-in high-frequency oscillator realizes material molecular self-heating fusion. This eliminates the need for blister oil, delivering stronger and cleaner sealing strength.

Q2: Can the robotic arm be retrofitted to the HFQ-04 model later?
A2: No. The servo robotic arm on the HFQ-05 is an exclusive, factory-integrated structure (including specific PLC programming and power systems) and cannot be installed on the HFQ-04 after delivery. Please select HFQ-05 if you anticipate needing automation.

Q3: Do both machines require an air compressor?
A3: Yes. Both models utilize a heavy-duty pneumatic pressing structure. A stable external air source of 0.6~0.8MPa is mandatory for normal operation.

Q4: Are molds interchangeable between HFQ-04 and HFQ-05?
A4: Yes. They share the exact same 200×350mm heating platen size, so custom multi-cavity molds can be used interchangeably.

For custom mold configurations, conveyor belt integration, or advanced troubleshooting, visit our HFQ Technical Hub or speak with our engineers.
