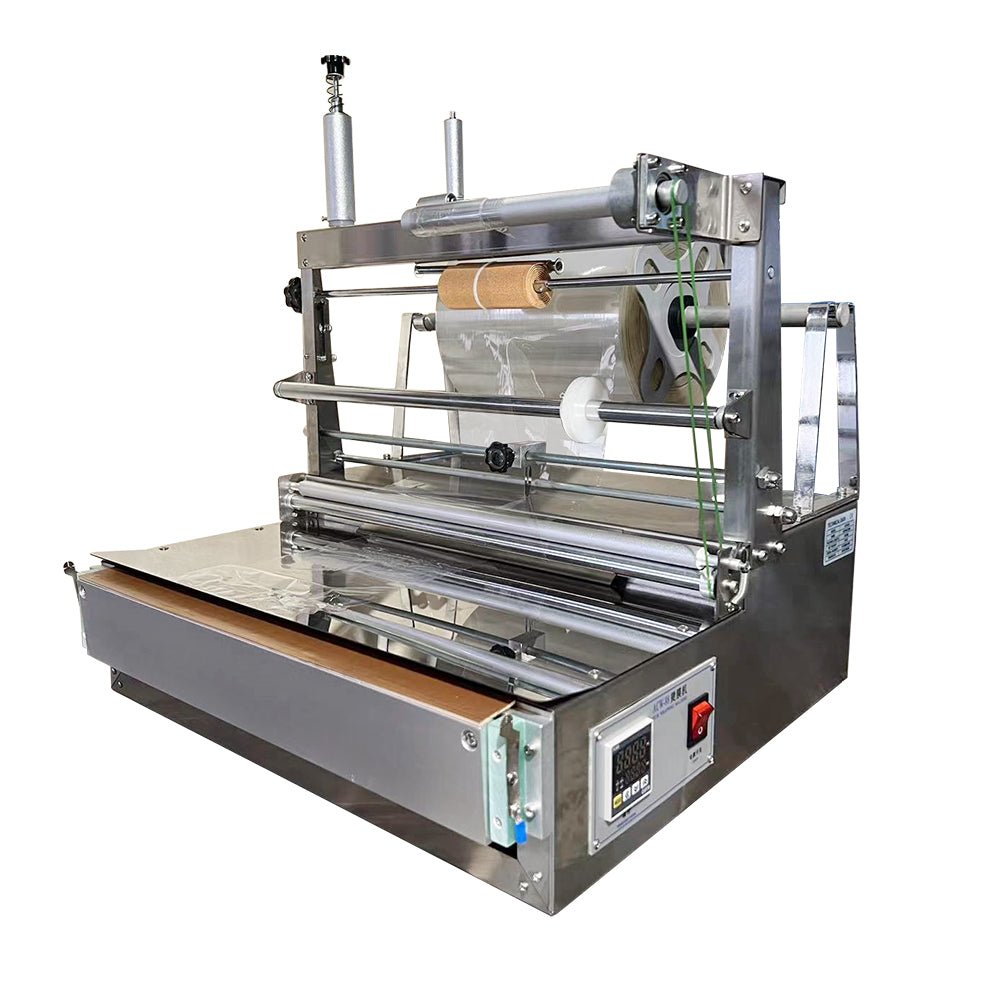

ACW-88F Cellophane Wrapping Machine for Perfume Boxes (Automatic)

ACW-88F Cellophane Wrapping Machine for Perfume Boxes (Automatic)

$1,099.00 USD
$1,099.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Model
Shipping method
Quick Answer: The CECLE ACW-88F is a light industrial entry-level manual cellophane (3D) wrapping machine designed specifically for startups, studios, and small-batch production.

CECLE ACW-88F vs. Traditional / Generic Alternative

Where the CECLE ACW-88F stands out against manual or generic cellophane wrapping machines — measured on the dimensions buyers care about most.

Output Speed & Throughput
CECLE ACW-88FHigh Flexibility (Cost-Effective) : "One film for multiple uses" achieved via the built-in cutter eliminates the need to purchase different film widths for each specification, significantly reducing accessory.
Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.
Chassis Rigidity & Vibration Resistance
CECLE ACW-88FExcellent Sealing Texture : Equipped with a premium aluminum heating plate that provides even and stable heat transfer, it easily achieves a professional packaging finish comparable to industrial-grade.
Lightweight Sheet Metal (<30 kg)Prone to chassis flex, frame warping over time, and seal leakage.
Pressure Consistency
CECLE ACW-88FThe CECLE Cellophane Wrapping Machine holds working pressure steady across batches, cutting weak-output rejects.
Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.
Operational Mechanism & Drive
CECLE ACW-88FPurpose-Built Voltage: 110V / 220V (50~60Hz) drive delivers steady, operator-independent output.
Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Technical Specifications

Specification Value & Unit
Max Film Width 40cm (15.7 in)
Max Box Size (L×W×H) ≤ 400mm × ≤ 200mm × ≤ 150mm
Speed 5~10 pcs/min (depending on the operator's proficiency)
Net Weight 21kg (46.3 lb)
Voltage 110V / 220V (50~60Hz)
Power 1.5 kW
Dimensions 58 × 58 × 28cm

Pre-installation requirements: Net Weight: 21kg (46.3 lb); Voltage: 110V / 220V (50~60Hz); Power: 1.5 kW; Dimensions: 58 × 58 × 28cm.

Compatible Applications & Materials

  • industrial products — primary target products for this Cellophane Wrapping Machine line
  • Standard industrial materials compatible with the machine's rated spec range
  • B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

  1. Installation &amp
  2. Loading : First, complete the machine assembly
  3. Load the packaging film roll and the tear tape in sequence according to the manual
  4. Cutter Adjusting &amp
  5. Positioning : Manually move and lock the cutter into the appropriate position based on the width of the packaging box
  6. Waste Rewinder Setup : Guide the trimmed excess edge film and secure it onto the automatic waste film rewinding mechanism
  7. Temperature Setting : Turn on the power and set the required temperature for packaging (110-130°C is recommended)

Engineering FAQ

Can the cutter adjust the cutting width?
A: Yes. You can freely set the cutting position within the 40cm width limit simply by adjusting the manual control knob.

Does this machine require an air compressor?
A: No. This model features pure electric heating with manual operation. It is plug-and-play, making it ideal for home workshops or office environments.

Is it easy to install the pulling tape on ACW 88F?
A: Yes, it is very easy. We will provide you with professional installation videos.

What voltage is available for ACW 88F?
A: We can supply 110V or 220V.

What is the maximum box size that ACW 88F can pack?
A: Length ≤ 400mm, width ≤ 200mm, height ≤ 150mm.

What is the maximum module width for ACW 88F?
A: The maximum module width is 40 cm.

Full Documentation & Drawings

Complete technical manual, parameters and engineering drawings: CECLE Docs — ACW-88F
