In the world of screen printing, upgrading from manual setups to semi-automatic equipment is a crucial step for any studio or print shop aiming for high efficiency and consistent quality. Today, we're doing a deep dive into an industry-favorite "efficiency booster": the Oblique Arm Flatbed Screen Printing Machine.
What is an Oblique Arm Flatbed Screen Printing Machine?
As the name suggests, "oblique arm" refers to how the screen frame lifts—it hinges up from one end like a clamshell. "Flatbed" indicates it is designed for printing on flat surfaces. Compared to massive and expensive fully automatic carousels or long-table setups, this machine strikes the perfect balance between footprint, operational flexibility, and cost-effectiveness.
Why is it the MVP of Print Shops?
Customers often ask us, "Do I really need to upgrade to this kind of machine?" Here are the core advantages that make it indispensable:
- Pinpoint Registration Accuracy: Built with a robust metal mechanical structure, once the screen is locked in, every lift and drop lands in the exact same spot. Paired with a micro-registration table, multi-color printing becomes effortless.
- Consistent Printing Pressure: Modern oblique arm machines typically use Pneumatic systems to drive the squeegee. This means whether you are printing 10 pieces or 1,000, the downward pressure of the squeegee remains perfectly consistent. Say goodbye to the uneven ink coverage caused by operator fatigue during manual printing.
- Wide Range of Applications: It's not just for textiles like T-shirts and canvas tote bags. By swapping screens and inks, it's widely used for printing on PVC panels, membrane switches, cardboard packaging, acrylic sheets, and even electronic components.
Seeing is Believing: The Machine in Action
Words can only say so much. Watch how smoothly the pneumatic squeegee glides to lay down a flawless layer of ink:
💡 Top Pick: Making Printing Smarter

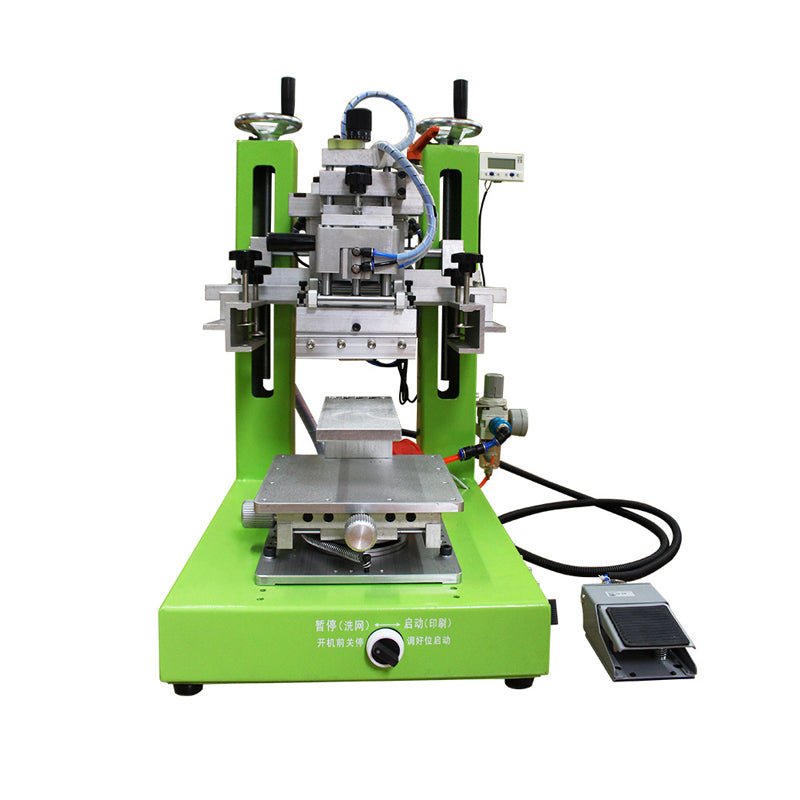

Our Recommendation: The Pneumatic Button-Control Oblique Arm Printer
If you are looking for equipment that instantly upgrades your studio's production capacity, we highly recommend the model featured in the images. It packs all the traditional benefits of an oblique arm machine, plus significant detail optimizations:
- The control panel features multiple buttons, making operation simple and convenient.
- The workbench is adjustable.The printing head/scraping/returning knife is driven by a cylinder, and the balance/angle of the knife holder is adjustable.
- This foot switch is equivalent to a start button, stepping on one foot starts printing.
Investing in stable, high-efficiency screen printing equipment doesn't just improve your product quality; it saves you countless hours of manual labor and trial-and-error costs.
