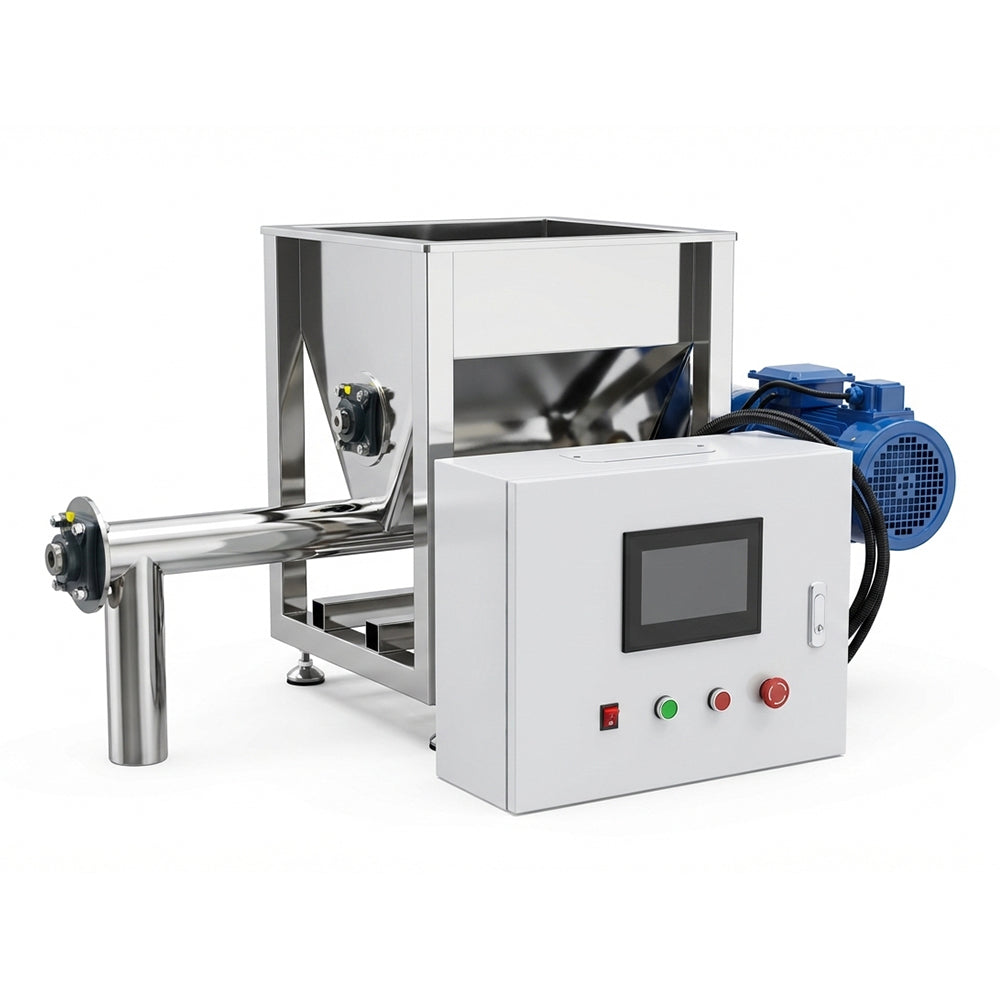

Loss-in-Weight Screw Feeder: Guide to Industrial Powder Dosing
Comprehensive Guide to Industrial Powder Dosing: Why You Need a Loss-in-Weight Screw Feeder
In modern industrial manufacturing—spanning chemical compounding, pharmaceutical production, food processing, and battery material manufacturing—achieving high-precision continuous or batch dosing is critical to final product quality. Traditional volumetric feeders often struggle with density fluctuations and material bridging. This is where advanced gravimetric solutions, particularly the Loss-in-Weight Screw Feeder (Model: TD4040), become indispensable for modern production lines[cite: 7].
1. Product Overview & Core Mechanics
- Category: Industrial Automation Metering & Dosing System / Powder Gravimetric Feeder[cite: 7].
- Applications: Widely utilized in industries requiring strict formulation consistency, such as plastics (e.g., masterbatch addition), chemicals, pharmaceuticals, food processing, and fine powder/granule handling[cite: 7].
- Core Function: Utilizing dynamic weighing technology, the system monitors the weight reduction rate of the material inside the hopper in real-time (loss-in-weight logic). An intelligent PLC system dynamically regulates the screw auger speed to guarantee steady, high-precision material delivery[cite: 7].
2. Key Advantages of the TD4040 Loss-in-Weight Feeder
- High-Precision Dosing Control: Equipped with industrial-grade high-sensitivity load cells that provide real-time weight feedback, achieving a metering accuracy of ±1% to 2% to ensure strict formulation consistency[cite: 7].
- S304 Stainless Steel Construction: All product-contact surfaces are crafted from food/pharmaceutical-grade S304 stainless steel, offering corrosion resistance, easy sanitation, and compliance with strict international hygiene standards[cite: 7].
- Active Agitation & Anti-Bridging Technology: Features an internal agitation mechanism designed to eliminate material "bridging" or "rat-holing" in the hopper, ensuring an uninterrupted flow even for sticky or ultra-fine powders[cite: 7].
- Intelligent PLC Closed-Loop System: Automatically adjusts variable frequency motor speed according to the target feeding rate without manual intervention, supporting seamless linkage with upstream and downstream production equipment[cite: 7].
- Modular Customization: Discharge outlet heights and interface styles can be tailored to fit your existing reactors, packaging machines, or industrial mixers[cite: 7].
3. How It Works: Operation Workflow
- Material Loading: Bulk material is loaded into the 40L storage hopper[cite: 7].
- Parameter Setting: Operators input the target feeding rate (e.g., kg/h) or total batch weight via the PLC touch screen[cite: 7].
- Start Operation: Upon activation, the PLC reads the initial gross weight from the load cell[cite: 7].
- Loss-in-Weight Monitoring: As the screw rotates to discharge material, the hopper weight decreases. The PLC calculates the weight difference per unit of time[cite: 7].
- Dynamic Adjustment: If the actual flow rate drops below the set point, the PLC automatically accelerates the screw; if it exceeds, it decelerates, securing a constant output[cite: 7].
- Automatic Stop/Refill: The system triggers a low-level alarm or stops automatically once the target batch weight is reached[cite: 7].
4. Technical Specifications
| Parameter | Specification / Value |
|---|---|
| Model | TD4040[cite: 7] |
| Hopper Volume | 40L[cite: 7] |
| Metering Accuracy | ±1% - 2%[cite: 7] |
| Machine Material | S304 Stainless Steel[cite: 7] |
| Motor Power | 1.1KW[cite: 7] |
| Power Supply | 220V / 110V[cite: 7] |
| Discharge Outlet Height | Customizable[cite: 7] |
| Dimensions | 1150 * 75 * 85 cm[cite: 7] |
5. Sales Insights & Frequently Asked Questions (FAQ)
Sales Tips:
- Pain Point Marketing: Target customers struggling with inaccurate manual dosing, inconsistent blends, or severe dust pollution by highlighting automatic closed-loop control and fully enclosed sanitary designs[cite: 7].
- Performance Proof: Reference actual testing data (such as achieving 999g stability in a 1000g target test) to demonstrate exceptional reliability[cite: 7].
FAQ:
-
Q: Can this machine handle sticky or poor-flowing powders?
A: Yes. The built-in internal agitation mechanism actively prevents material bridging, ensuring smooth, even flow for difficult powders[cite: 7]. -
Q: Is dosing accuracy affected by factory vibrations?
A: The machine base features vibration-damping supports, and the PLC algorithm includes advanced digital filtering to eliminate interference from industrial environments[cite: 7]. -
Q: How is technical support handled post-purchase?
A: We provide a one-year warranty on core components alongside professional remote video guidance and English technical assistance[cite: 7].
6. See It in Action (Media Library)
- Demo Video: Watch the gravimetric feeding process live on YouTube — Weighs While It Feeds! Horizontal Screw Powder Feeder[cite: 7]
7. Business Terms & Ordering Information
Domestic Market (China)
- Payment: 30% deposit; balance paid after video inspection prior to shipment[cite: 7].
- Logistics: Dedicated line freight delivery with secure wooden crating[cite: 7].
- Service: 1-year machine-wide warranty with long-term spare parts supply[cite: 7].
International Clients
-
Pricing Options (Shipping Included):
- Sea Freight Door-to-Door (DDP): $3,549 USD (All-in price including customs clearance and duties)[cite: 7].
- Express Delivery Door-to-Door: $3,999 USD (Accelerated transit directly to your facility)[cite: 7].
- Payment: 30% T/T deposit, 70% balance before shipment[cite: 7].
- Lead Time: 10–15 working days[cite: 7].
- Packaging: Standard export-grade plywood case for maximum shipping protection[cite: 7].
- After-sales: 12-month warranty on key components with professional English support[cite: 7].
Ready to Upgrade Your Production Line?
🛒 Click here to view pricing and purchase the Loss-in-Weight Screw Feeder on our official store[cite: 7]
