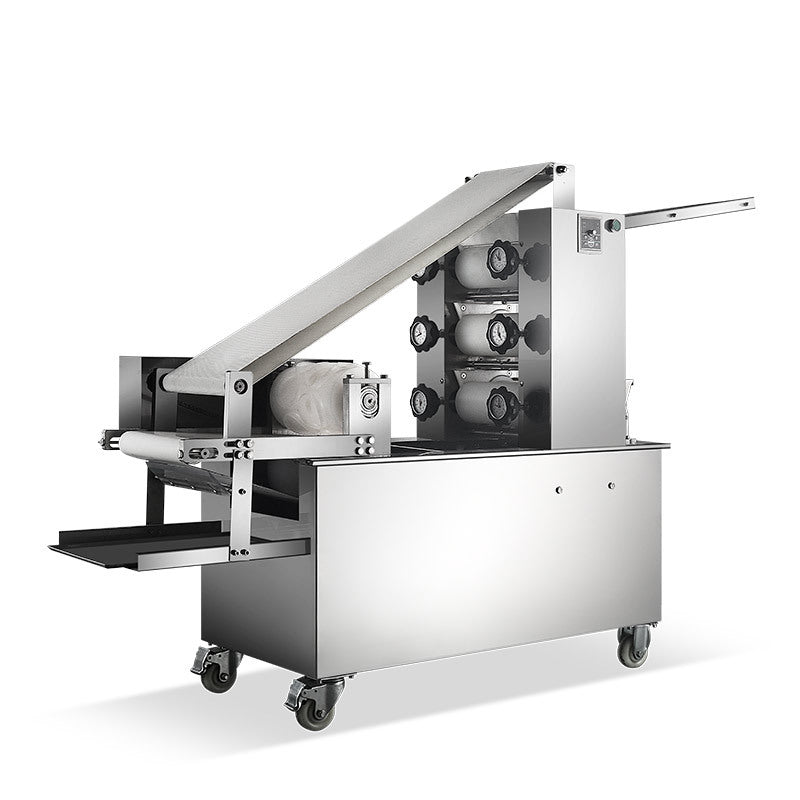

ADS-220 Dumpling Wrapper Machine for Food Processing (Automatic)

$4,999.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model ADS-220

Dumpling skin size 7cm 10cm 11cm

Shipping method By sea to door about(40-60days)

Quick Answer: The CECLE ADS-220 Large Commercial Automatic Dumpling Wrapper Machine is a high-capacity, industrial-grade dough skin forming equipment engineered for large quick-frozen food factories, central kitchens.

CECLE ADS-220 vs. Traditional / Generic Alternative

Where the CECLE ADS-220 stands out against manual or generic dumpling wrapper machines — measured on the dimensions buyers care about most.

Chassis Rigidity & Vibration Resistance

CECLE ADS-220For high-volume central kitchens and food manufacturing plants, the ADS-220 delivers distinct industrial advantages: 330 kg Floor-Standing Heavy-Duty Chassis : The reinforced steel frame ensures rock-solid.

Lightweight Sheet Metal (<160 kg)Prone to chassis flex, frame warping over time, and seal leakage.

Precision & Consistency

CECLE ADS-220Exceptional Consistency : Dimensions and thickness are determined by precision mechanical molds, completely eliminating the human error of manual rolling (e.g., uneven centers or inconsistent diameters)

Analog / Blind OperationNo real-time parameter feedback; operators guess settings, so quality drifts batch to batch.

Output Speed & Throughput

CECLE ADS-220Substantial Labor Cost Reduction : A single unit's production efficiency equals that of 8–10 skilled workers rolling wrappers by hand, dramatically lowering manufacturing labor expenses

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Pressure Consistency

CECLE ADS-220The CECLE Dumpling Wrapper Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Technical Specifications

Features	Small Desktop Wrapper Machine	ADS-220 Large Commercial Automatic Wrapper Machine
Machine Weight & Structure	35 – 60 kg (Lightweight tabletop)	330 kg / 727 lbs (Floor-standing heavy-duty industrial frame)
Overall Dimensions	Approx. 65 × 38 × 75 cm	144 × 69 × 154 cm (56.6" × 27.0" × 60.6")
Forming Size Range	Single fixed spec, narrow adjustment	7 – 11 cm (2.7" – 4.3") Wide Range Support
Thickness Range	1 – 3 mm	0.01 – 5 cm (0.0039" – 1.96") Wide Stepless Adjustment
Scrap Handling & Automation	Manual pulling/assisted handling	Fully Automated Mold-Roll Cutting + Synchronous Scrap Spooling
Target Application	Small noodle shops, small diners	Large central kitchens, frozen food factories, wholesale producers

Technical Specifications	ADS-220 Specification Details
Model	ADS-220
Rated Power	250W / 0.3hp (High-efficiency energy-saving drive)
Machine Weight	330 kg / 727 lbs (Floor-standing heavy-duty chassis)
Dumpling Skin Thickness	0.01 – 5 cm (0.0039" – 1.96") Adjustable
Dumpling Skin Diameter	7 – 11 cm (2.7" – 4.3") (Custom mold specs available)
Packaging / Machine Dimensions	144 × 69 × 154 cm (56.6" × 27.0" × 60.6")
Forming Method	Mold roll forming (Rotary die-cutting)
Anti-Sticking System	Dual-sided automatic quantitative dry flour dusting
Waste Handling	Synchronous automatic take-up continuous scrap spooling

Pre-installation requirements: Rated Power: 250W / 0.3hp (High-efficiency energy-saving drive); Machine Weight: 330 kg / 727 lbs (Floor-standing heavy-duty chassis).

Compatible Applications & Materials

industrial products — primary target products for this Dumpling Wrapper Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Below are the standard operating procedures for initial setup, cutting operations, and daily maintenance of the ADS-220:
Pre-Operation Preparation &amp
Inspection Inspect the leveling feet to ensure the 330 kg machine sits flat and stable, with the grounded power source securely connected
Fill the upper dusting hopper with dry cornstarch or tapioca starch and adjust the dusting brush dispensing rate
Check the mold rollers and output conveyor belt to ensure they are clean and free of hardened dough debris
Dough Sheet Feeding &amp
Thickness Calibration Turn on the main power and conveyor switches

Engineering FAQ

What are the advantages of the ADS-220's 330 kg heavy-duty chassis over small desktop units?
A: The 330 kg industrial-grade chassis provides superior operational stability. During continuous multi-shift high-load production, the heavy body completely eliminates machine vibration, ensuring that the rotary mold and pressing rollers maintain exact concentricity and precision mesh. This results in cleaner wrapper cut edges and significantly longer equipment service life.

Can this machine make different sizes or shapes of dough wrappers (such as square wonton skins)?
A: Yes. The forming roller on the ADS-220 features a modular quick-release design. You can order round dumpling molds in custom diameters from 7 to 11 cm or select square wonton molds. A trained operator can complete a mold changeover in just a few minutes.

How is the trim scrap handled? Does it cause raw material waste?
A: There is zero raw material waste. The unit comes equipped with a synchronous automatic scrap spooling reel. The remaining lattice dough after cutting is wound up automatically into a clean roll, which operators can immediately reintroduce into the dough mixer or sheeter for the next batch.

What power supply does the ADS-220 require?
A: The ADS-220 runs on 250W / 0.3hp (High-efficiency energy-saving drive) Rated Power. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What routine maintenance keeps the ADS-220 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the ADS-220 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
