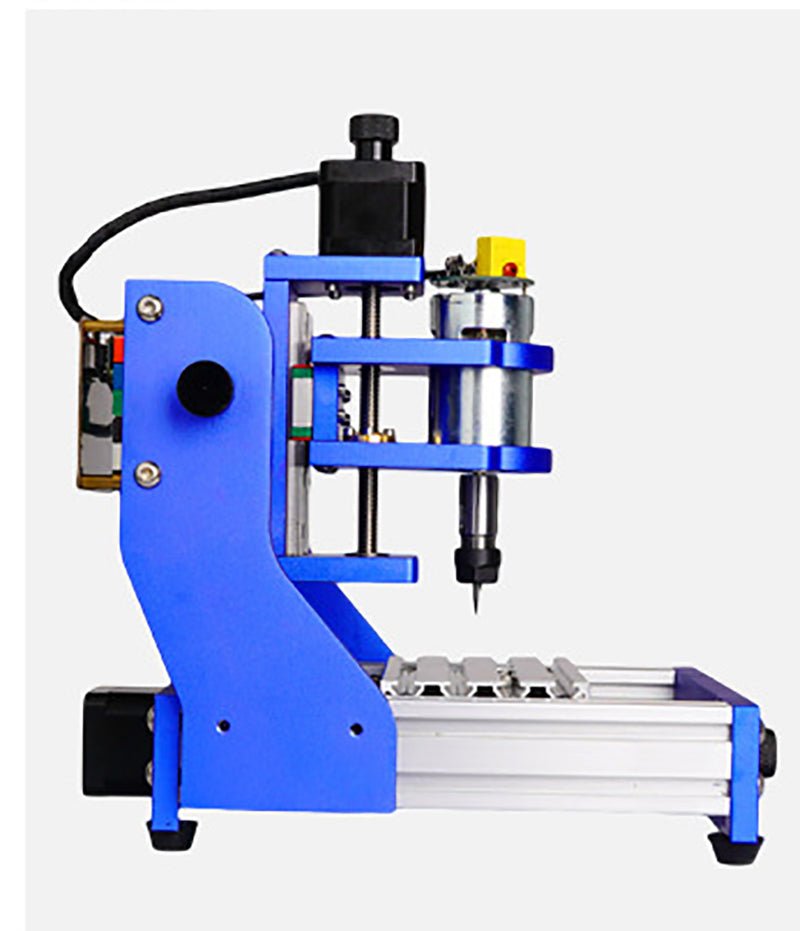

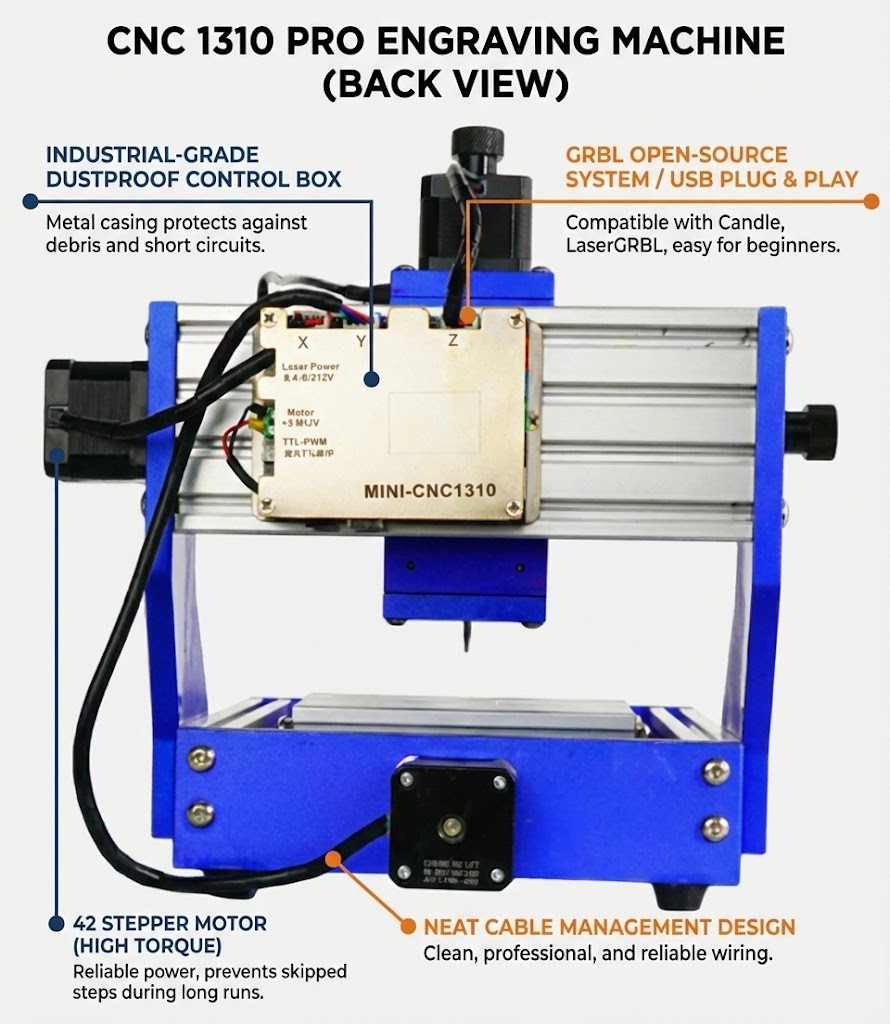

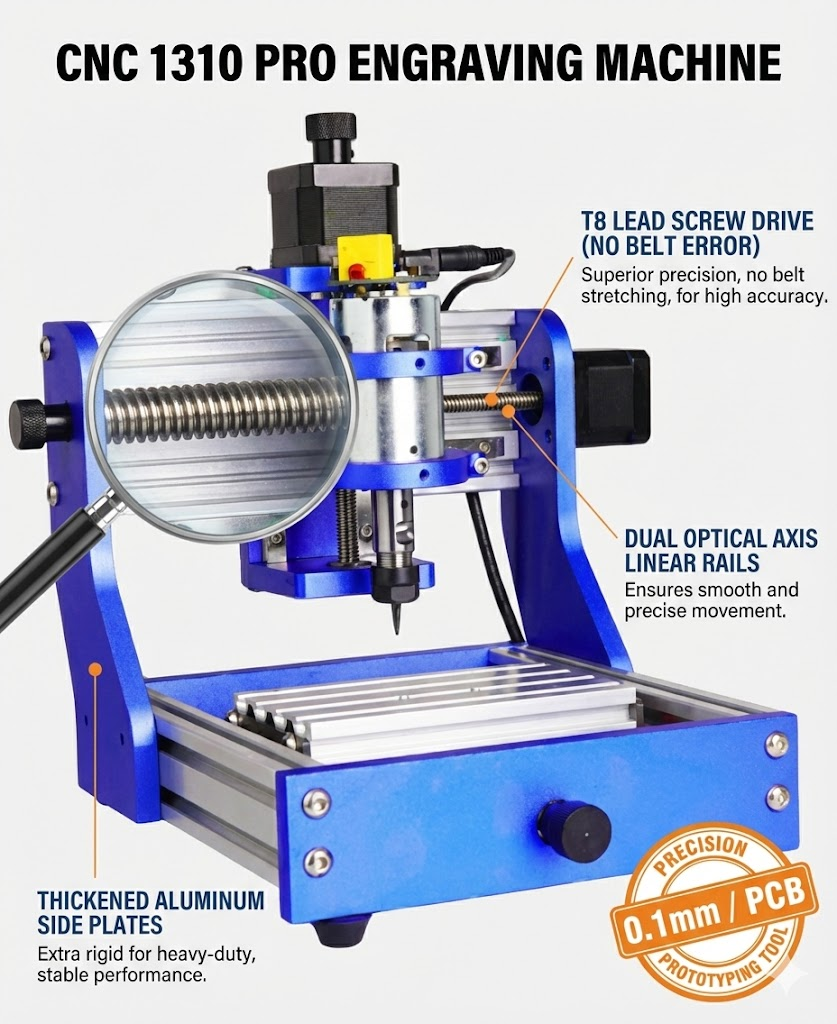

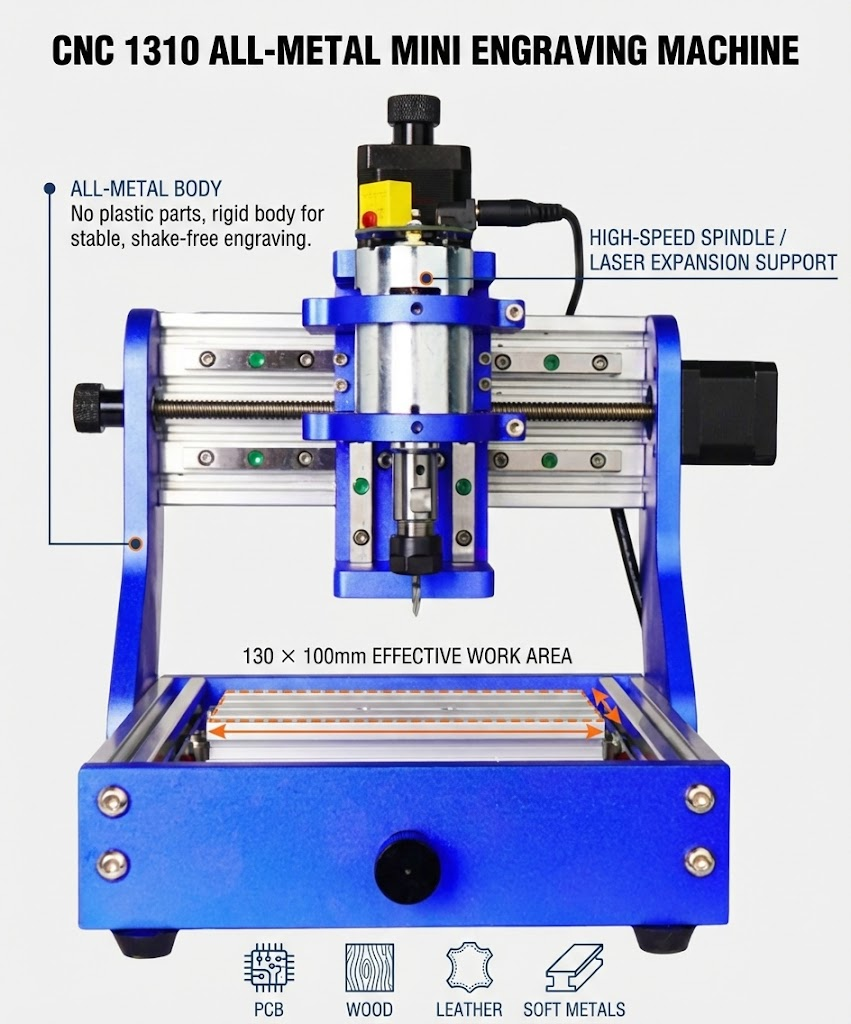

CNC1310 Laser Engraving Machine
1.Laser Engraving Machine, 1310 CNC engraving/laser engraving two-in-one, suitable for DIY hobbies, programming teaching, product proofing design, etc.
2.All the laser engraving machine cannot cut plywood.
3.Support all computer system control laser engraving machines.
4.Easy to use operating software.
5.Laser engraving machine could meet more needs.
|
Specification |
|
|
Machine Dimension |
281mm*281mm*290mm |
|
Working Range |
135*115*45 mm |
|
CNC Software |
candle control (More professional than GRBL control) |
|
Laser Software |
LiteFire |
|
Machine Material |
Aluminum+Profile |
|
Spindle |
775 Spindle(12-36V)(8000r/min, if 24V) |
|
Stepper Motor |
2-Phase 4-Wire Stepper Motors(1.3A 0.25N.m) |
|
Lead Screw |
T8 Lead Screw |
|
Power Supply |
12V (110V-240V) |
|
Supported OS |
Windows XP, Win 7, Win 8, Linux |
|
Laser Head |
500mW/1000MW/2500MW/5500MW/7W/10W/15W Laser Head (Optional) |
|
Applicable Material |
Copper, Aluminum and other soft metalPlastic, Wood, Acrylic, PVC,PCB,etc... |
|
Package Size |
330*330*330 mm |
|
Package Weight |
8.0kg |
|
Universal voltage |
220V/110V compatible |
|
Standard Package |
Complete machine |
