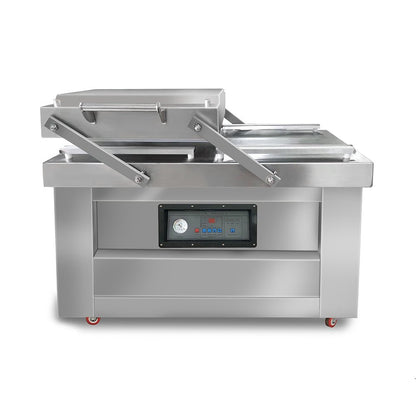

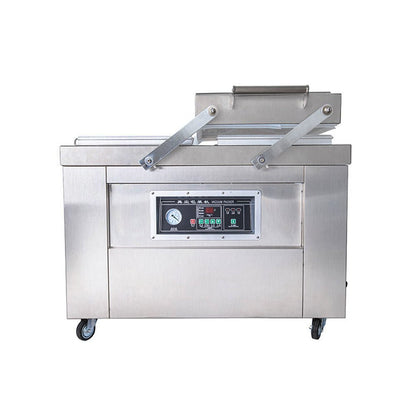

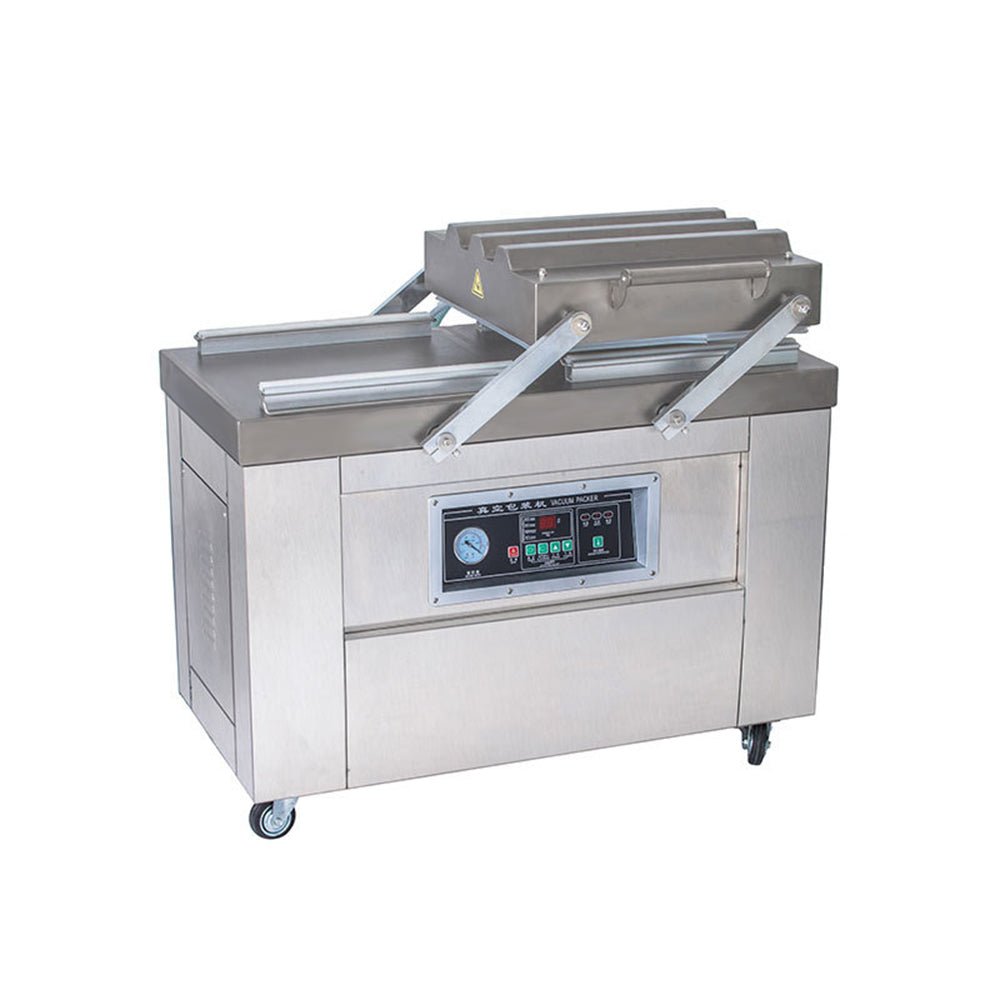

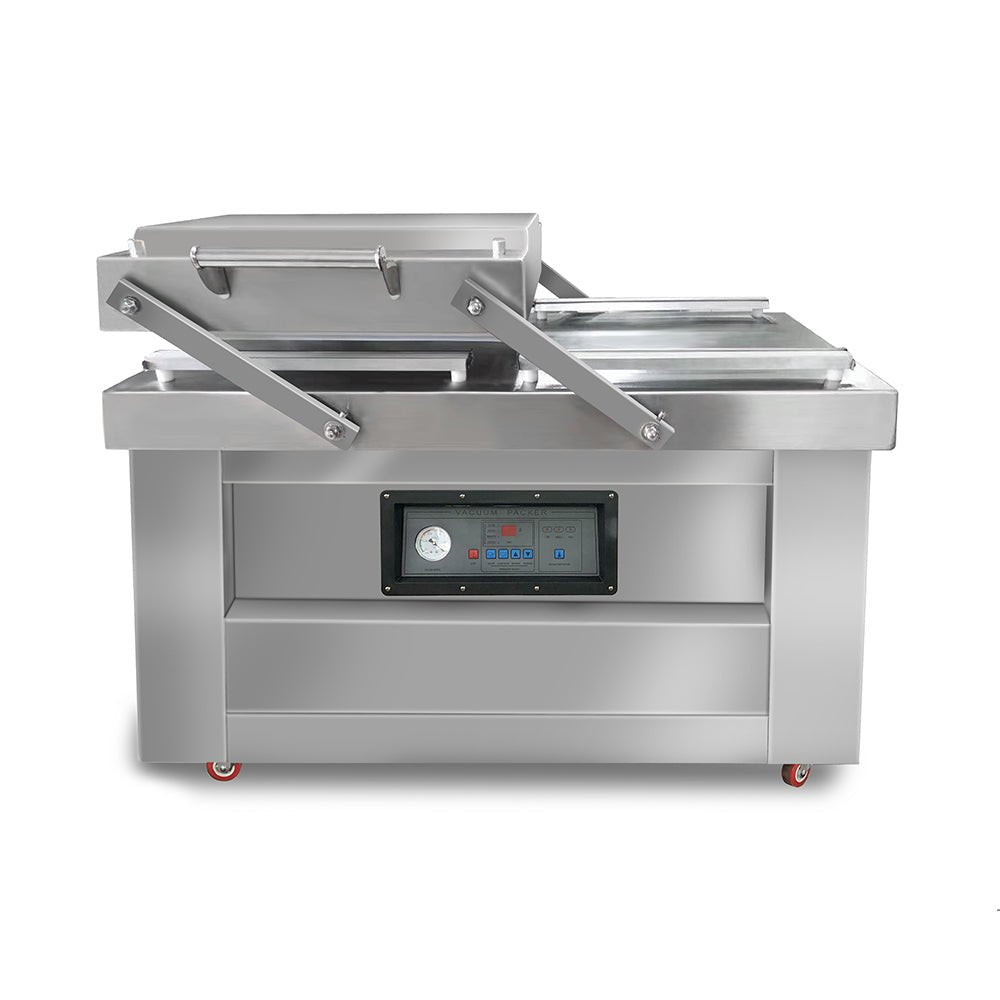

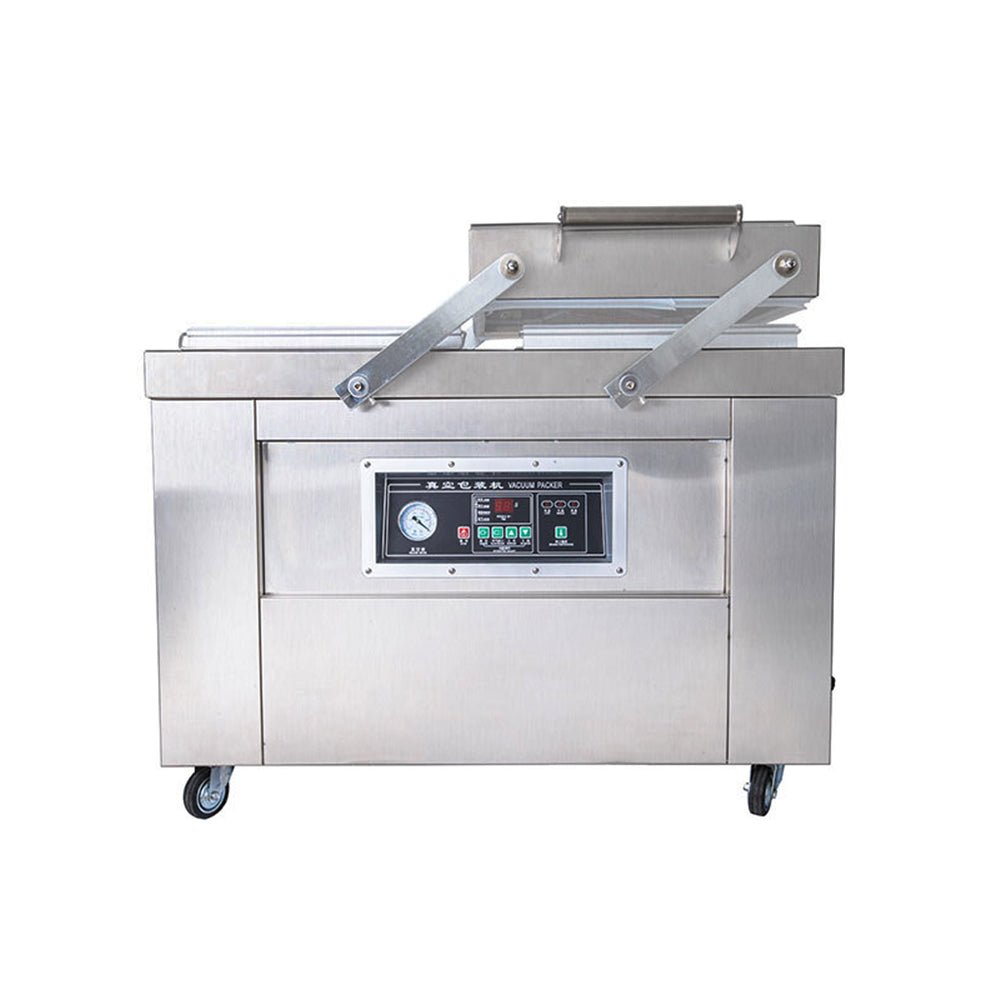

Two-Chamber Vacuum Packaging Machine DZ500/2C with 19-3/4" Seal Bar
Two-Chamber Vacuum Packaging Machine DZ500/2C with 19-3/4" Seal Bar
Couldn't load pickup availability

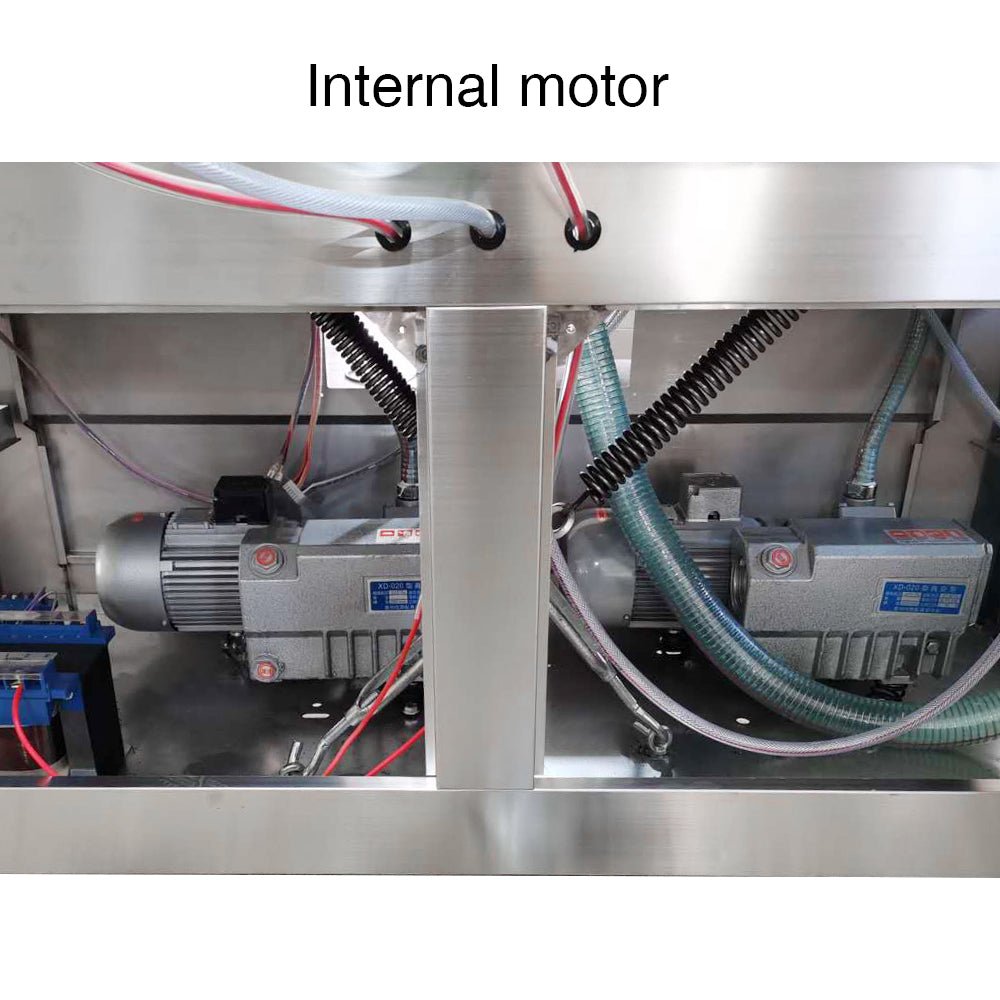

1. 2 hp oil pump, max. pumping rate up to 1413 cu·ft/h

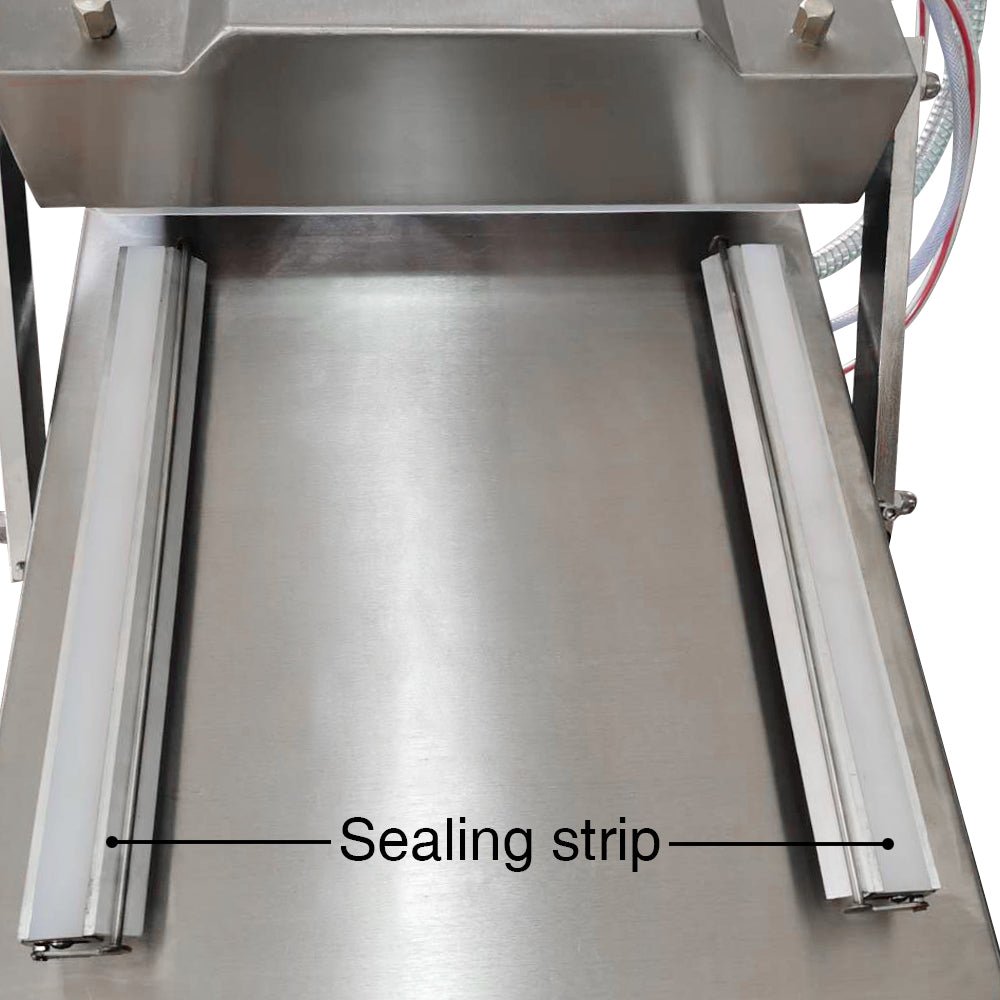

2. Chamber with 2 x 2 seal bars, 19-3/4"(500mm)
3. 25/64"(10mm) seal width and 12 mil seal thickness
4. Chamber Size: 22-1/4" × 21-1/16" × 7" (565 × 515 × 178 mm)
5. Food grade 304 stainless steel vacuum chambers
6. Control panel with simple digital controls
|
Model |
DZ-500 |
|
Seal Bar Length |
500mm (19-11/16") |
|
Seal Width |
10mm (25/64") |
|
Seal Thickness |
0.3mm (12 mil) |
|
Chamber Length |
565mm (22-1/4") |
|
Chamber Width |
515mm (20-1/4") |
|
Chamber Height |
178mm (7") |
|
Number of Seal Bars |
2 × 2 |
|
AC Power Input |
220V, 60Hz, 3 phases |
|
Total Current |
26 Amps |
|
Machine Size |
49-5/8" × 27" × 37-1/2" (1260 × 685 × 980 mm) |
|
Packaging Size |
52-3/4" × 30" × 48-1/2" (1340 × 760 × 1230 mm) |
|
Machine Weight |
396 lbs (180 kg) |
|
Packing Weight |
440 Ibs (200 kg) |
