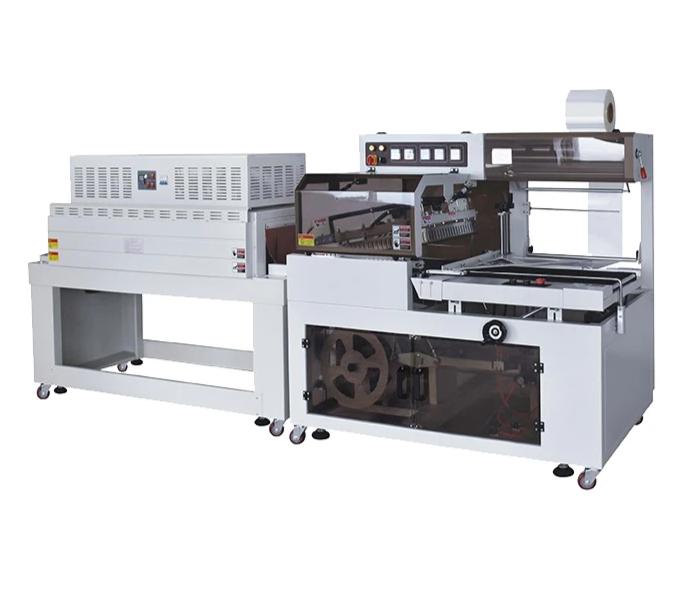

FQA-450 & BSE-4522 Fully Automatic L-Bar Sealer & Shrink Packaging System
The FQA-450 & BSE-4522 fully automatic L-bar sealer and shrink packaging system is an industrial-grade solution engineered for enterprises pursuing high-efficiency production lines. Covering medium-to-large batch production needs, this system combines automated feeding, sealing, cutting, and heat shrinking into a seamless, unattended workflow. Designed primarily for center-folded POF film, it significantly reduces labor costs while maximizing packaging consistency and shelf appeal.
At a Glance (TL;DR)
- Fully Automated Operation: Achieves a closed-loop production cycle ranging from 15 to 25 pieces per minute, effectively replacing heavy manual labor.

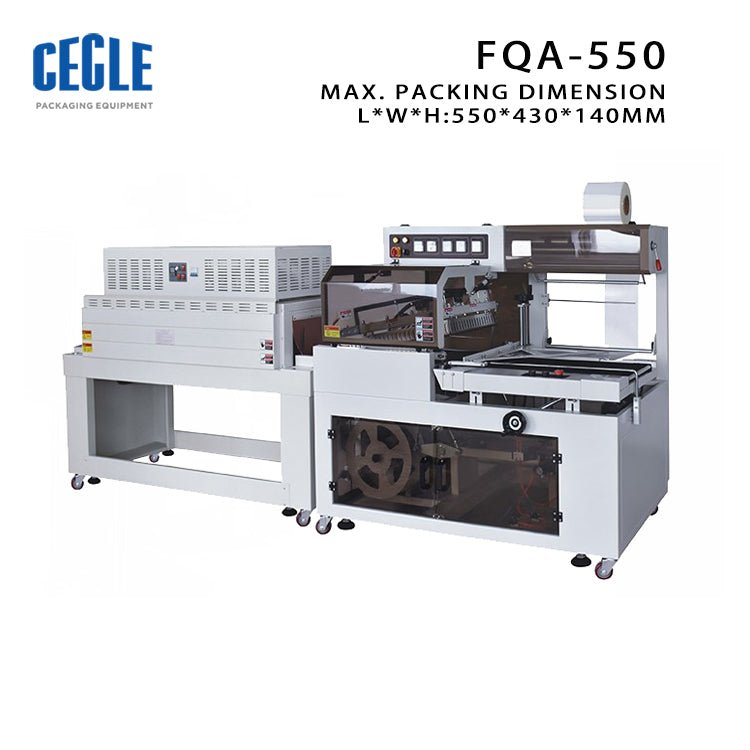

- Flexible Model Options: Tailored configurations available (FQA-450/BSE-4522 for medium products and FQA-550/BSE-5530 for large formats).
- Advanced Customization: Supports special requirements including PE film configurations, close-belt integration for tiny items, and optional infeed/discharge conveyors.
- Wide Applications: Ideal for food, daily chemicals, pharmaceuticals, books, stationery, and electronic accessories assembly lines.
📖 View Full Technical Documentation & User Manual
For complete electrical diagrams, sizing references, and maintenance guides, please check our Official Technical Documentation Portal.
I. Key Benefits & Core Features
- Unattended High Throughput: Integrates photoelectric sensors and automated pushing devices to position and feed items without manual intervention.
- Targeted Customization Services: Tailor your setup with optional PE film kits, specialized close-spacing belts for products under 100mm, and modular conveyor extensions.
-
Precise Sizing Formula: Easily calculate film width using our standard formula:
Film Width = Product Width (W) + Product Height (H) + 150mm (Allowance).
II. Technical Specifications
FQA-450 Automatic L-Bar Sealer
| Parameter Name | Specification |
|---|---|
| Packaging Speed | 15–25 pcs/min |
| Max Film Width | ≤550mm |
| Packaging Size Limits | Length 100–450mm, Width Max 300mm, Height Max 150mm |
| Machine Weight | Approx. 350–400kg |
| Dimensions | 1700 × 1010 × 1560mm |
BSE-4522 Automatic Shrink Tunnel
| Parameter Name | Specification |
|---|---|
| Conveying Speed | 1–15 m/min |
| Heating Power | 9kW |
| Shrink Tunnel Size | 1300 × 450 × 220mm |
| Dimensions | 1810 × 810 × 1450mm |
III. Frequently Asked Questions (FAQ)
Q: Can we add extra conveyors for feeding and collecting products?
A: Yes, we offer optional front infeed conveyor belts with pushing mechanisms and rear discharge conveyor belts or roller tables for easy collection (available for an extra charge).
Q: What should I do if my product length is less than 100mm?
A: Standard belt spacing carries a jamming risk for short items, so we provide a custom "close-belt integration" feature to ensure smooth conveyance.
Q: Can the machine package PE film?
A: Yes, with customization. PE film requires a dedicated replacement cutter and a PE-specific shrink tunnel setup.
Q: How do I calculate the film width to purchase?
A: Use the formula: Product Width (W) + Product Height (H) + 150mm allowance.
