CECLE Machine

TD-850 Series Rotary Machine for Food Processing (Electric Drive)

Name: TD-850 Series
Brand: CECLE
Price: 1699.0 USD
Availability: InStock

$1,899.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Mold TD-850(Electricity） TD-850(Gas）

Shipping method By sea to door abouu 45-55days

Quick Answer: The CECLE TD-850 Series appearance Examples & Technical Craftsmanship.

CECLE TD-850 Series vs. Traditional / Generic Alternative

Where the CECLE TD-850 Series stands out against manual or generic machine — measured on the dimensions buyers care about most.

Output Speed & Throughput

CECLE TD-850 SeriesTo accommodate environments ranging from "environmentally regulated indoor shopping malls" to "mobile night market stalls with limited power capacity," the series provides two distinct models: TD-850.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Pressure Consistency

CECLE TD-850 SeriesThe CECLE Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Operational Mechanism & Drive

CECLE TD-850 SeriesIts drive removes operator-dependent variation, so output stays consistent.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Chassis Rigidity & Vibration Resistance

CECLE TD-850 SeriesThe frame is built rigid to damp vibration and hold alignment under load.

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Technical Specifications

Comparison Dimension	TD-850 (Electricity)	TD-850 (Gas)
Model	TD-850 (Electricity)	TD-850 (Gas)
Energy Source	Pure Electric Heating	Gas Heating + Auxiliary Electric Drive
Rated Voltage	380V (Three-Phase)	220V / 50Hz (Single-Phase)
Rated Power	12 KW	580 W (Rotation motor & controls only)
Internal Heating Method	Central Heating Element + Side Heating Element	Central Vertical Burner + Side Burner
Roasting Temperature Range	0 - 300 ℃	0 - 300 ℃

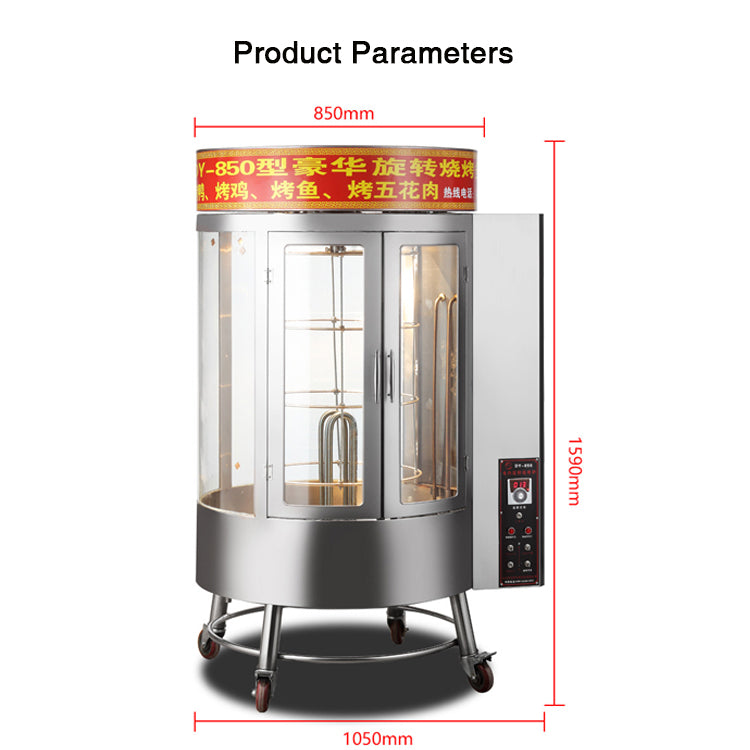

Overall Dimensions	850 × 1000 × 1610 mm	850 × 1000 × 1610 mm
Visual Display Area	360° Curved Panoramic Tempered Glass	360° Curved Panoramic Tempered Glass
Best Application Scenarios	Commercial malls, indoor dining, zero-flame zones	Street food stalls, night markets, limited electrical setups

Compatible Applications & Materials

industrial products — primary target products for this Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Setup: connect the required power / air supply and verify the control display.
Parameter preset: set speed / temperature / pressure per the product spec.
Material loading: place the product in the correct fixture / mold slot.
Execution: start the cycle; monitor for stable, repeatable output.
Quality check: inspect the first units; adjust if deviation appears.
Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.

Engineering FAQ

How should I choose between the TD-850 (Electricity) and TD-850 (Gas)?
A: Both models share identical external dimensions (850 × 1000 × 1610 mm) and batch capacities. If your facility is located inside a modern commercial mall, office building atrium, or any space with strict zero-open-flame fire codes and has 380V three-phase power available, select the TD-850 (Electricity) . If your shop is a street-side deli, outdoor food stall, or has limited electrical capacity (cannot support 12KW electric load) with only standard 220V outlets, choose the TD-850 (Gas) for rapid heat output and minimal power draw.

What is the advantage of having central and side heating elements/burners operating together?
A: Conventional roasting cabinets generally rely on unidirectional heat, often leaving the internal carcass undercooked while scorching the exterior facing the heat source. The TD-850 series uses a coordinated "central + side" dual heat source architecture paired with a 360° continuous rotation system. This forms an enveloping thermal convection zone, ensuring uniform caramelization and consistent core cooking for every single bird.

With high-volume daily roasting, is grease removal complicated?
A: Not at all. The base features a funnel-shaped stainless steel drainage pan connected to an external ball valve. Adding a shallow layer of water before cooking stops falling grease from burning and smoking. At the end of the shift, simply place a waste receptacle under the valve and turn the lever to drain the pan completely.

What routine maintenance keeps the TD-850 Series stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the TD-850 Series handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
