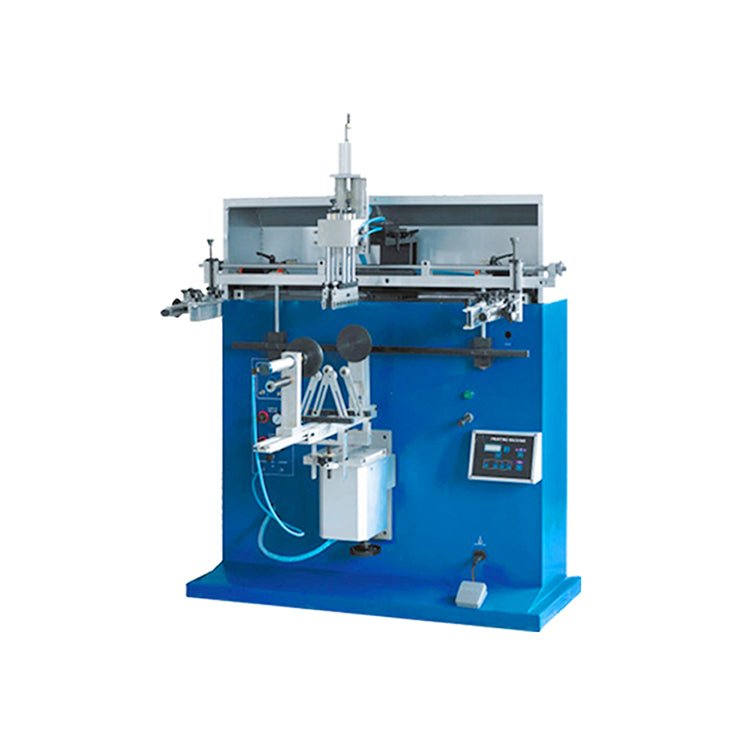

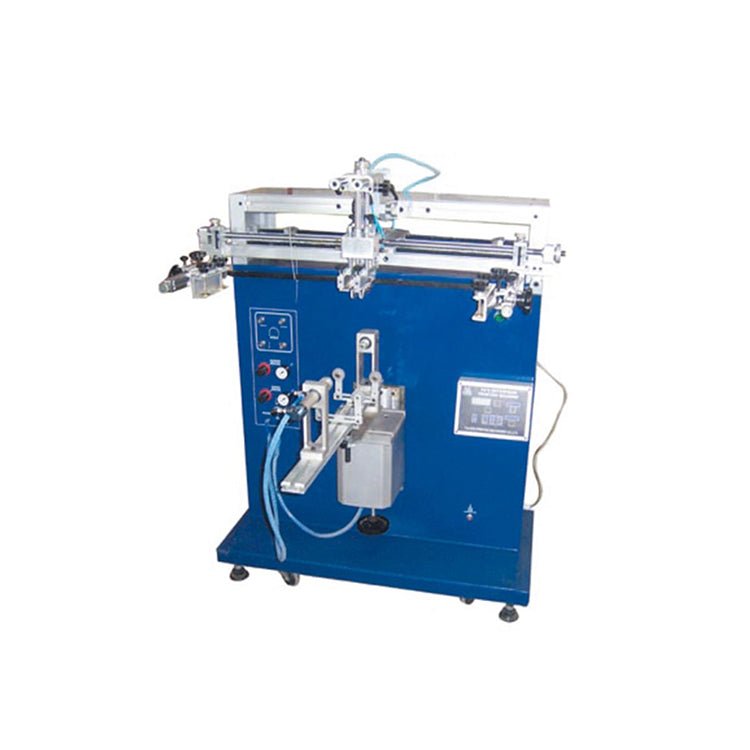

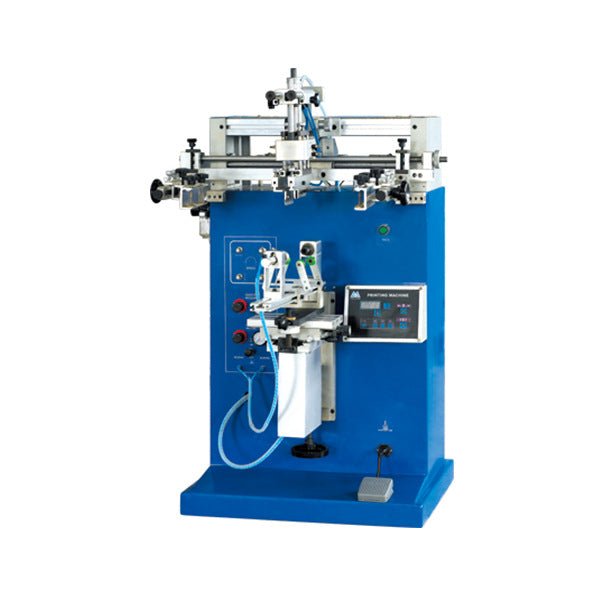

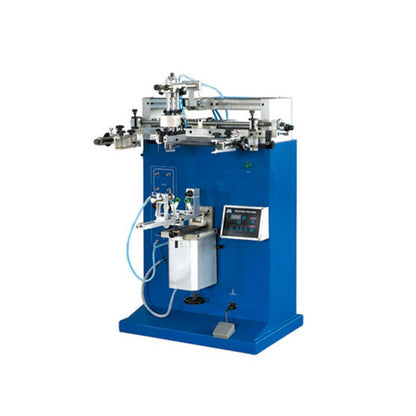

Pneumatic Cylindrical Screen Printing Machine

Microcomputer-Controlled Cylindrical Screen Printer for Bottles, Cups, Buckets

The Cylindrical-Series Cylindrical Screen Printing Machine offers an automated, highly efficient industrial printing solution for cylindrical packaging. Featuring a built-in microcomputer control system and pneumatic drive, this series ensures precise, consistent printing across a wide range of container sizes.

Whether you are printing on small cosmetic tubes, daily beverage cups, or large industrial paint buckets, the Cylindrical Series (covering models TD-250 to TD-1100) provides the exact specifications you need to scale your production.

🌟 Core Advantages & Automation

• Microcomputer Control System: Delivers a high level of automation with an intuitive interface and a built-in 4-digit automatic counter to track your production runs.
• Automated Squeegee & Worktable: Features automatic squeegee scraping, ink flooding, and worktable lifting/lowering. This minimizes manual labor while ensuring highly stable and consistent print quality.
• Precision Multi-Axis Fine-Tuning: Achieve perfect alignment easily. The worktable can be micro-adjusted vertically and angularly; the screen frame adjusts front/back, left/right, and up/down; and the squeegee can be fine-tuned horizontally.
• Adjustable Stroke & Speed: Fully customizable printing stroke and speed settings to adapt to different materials, ink types, and production requirements.

🎯 Applications & Model Selection Guide

Choose the right model based on your product's diameter and printing area:

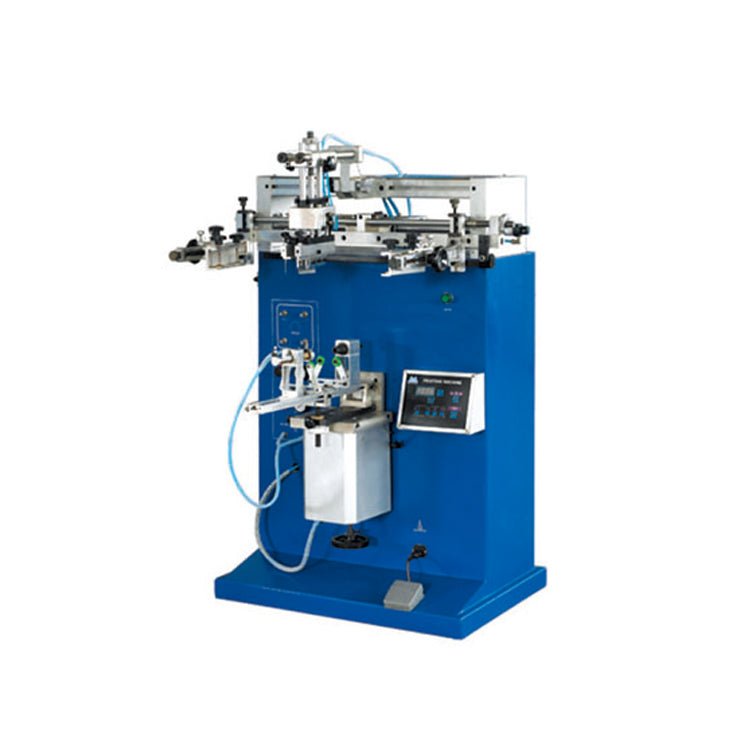

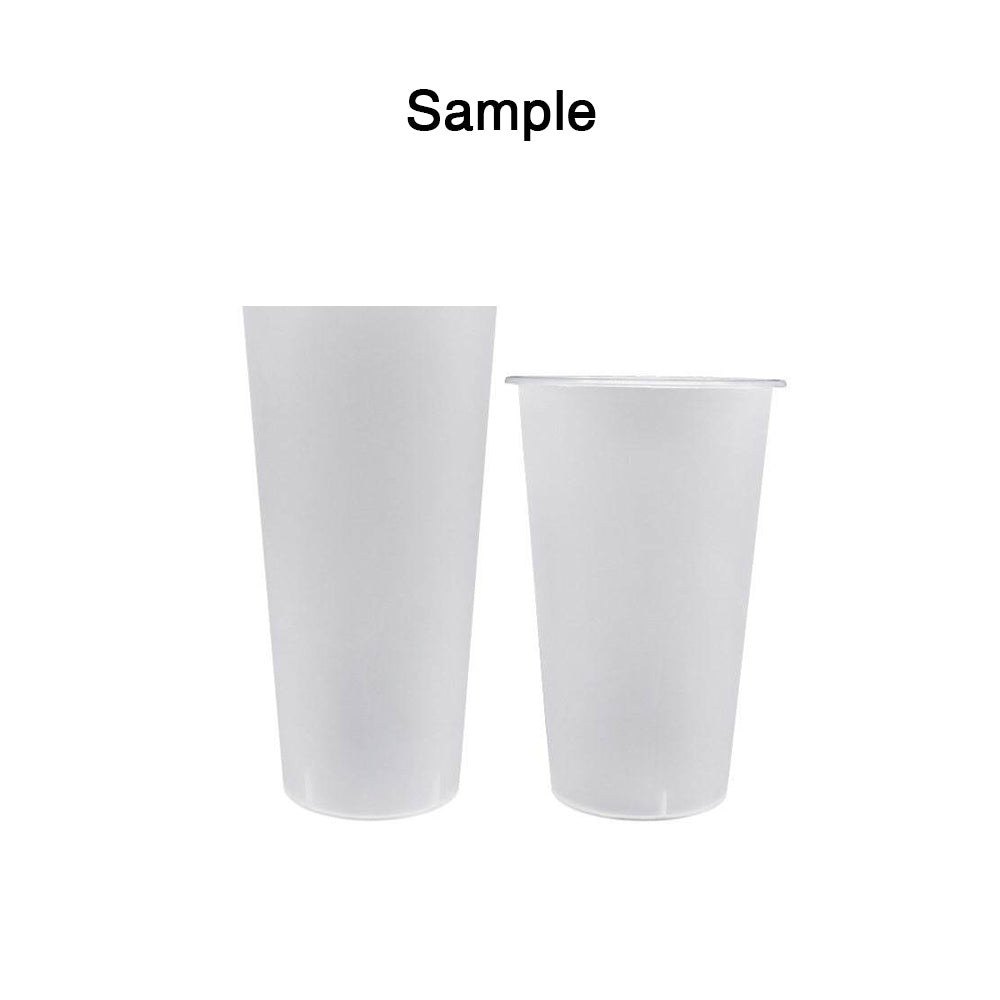

• Small/Medium Cylinders (TD-250 / TD-400 / TD-600): Perfect for lipstick tubes, test tubes, cosmetic cream bottles, glass bottles, and milk tea cups.

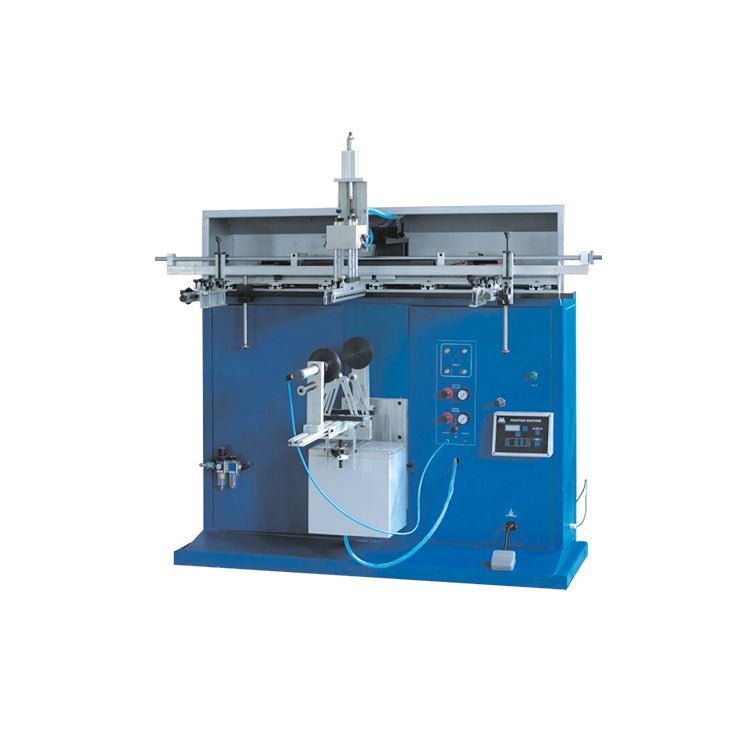

• Large Cylinders (TD-800 / TD-1100): Designed for heavy-duty industrial containers like paint buckets, motor oil drums, and large water bottles.

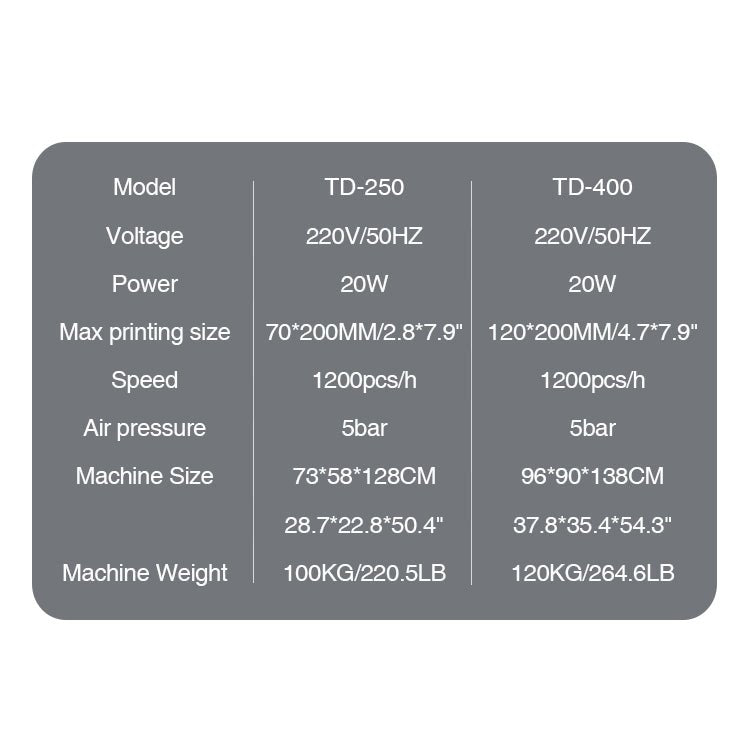

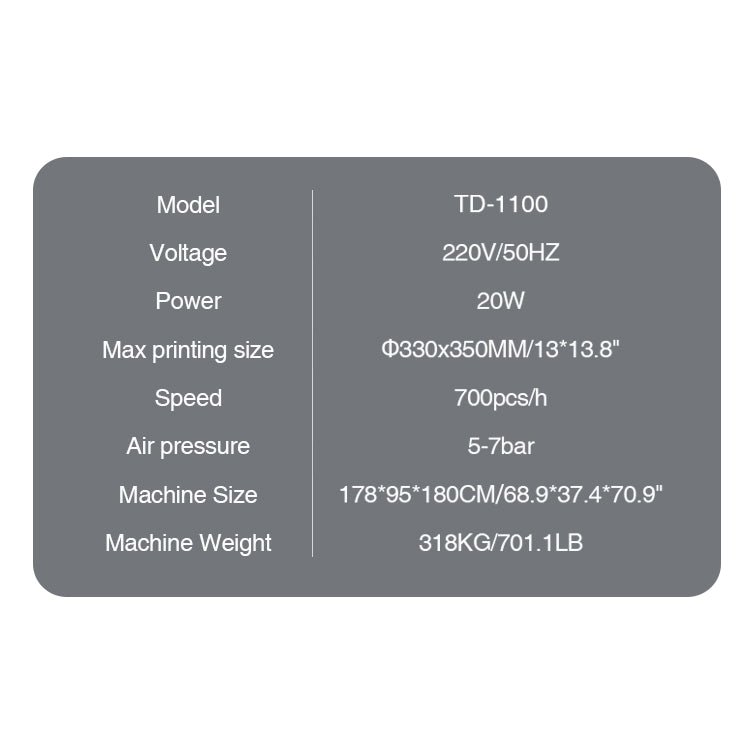

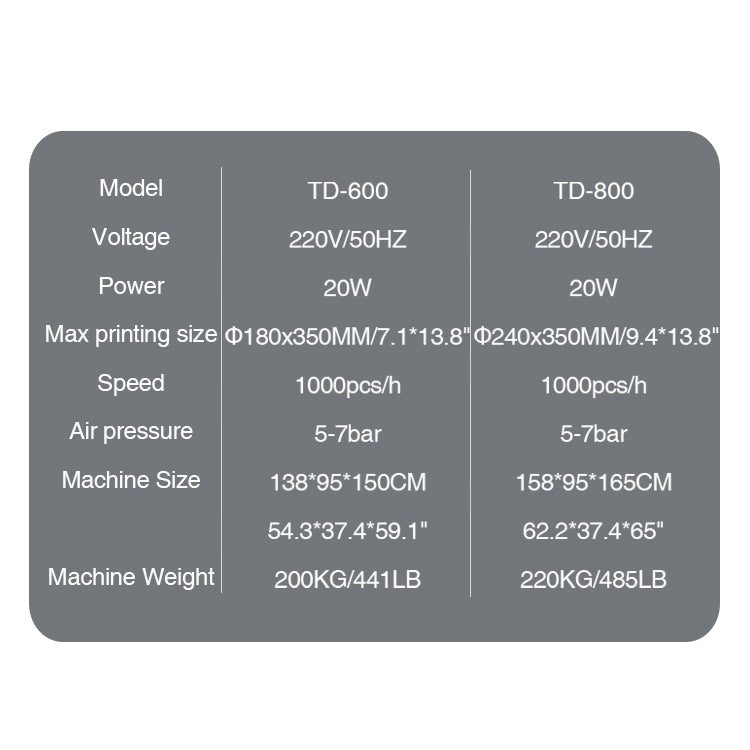

📐 Technical Specifications

(Note: All models are pneumatically driven and available in 110V or 220V)

🛠️ Prerequisites: What You Need to Run This Machine

This is a professional industrial setup. Before operating, please ensure you have the following:

1. Air Compressor (Required): Because the series is pneumatically driven, you must connect it to an external air compressor (approx. 2.2KW power rating).
2. Custom Fixtures (Required): Dedicated fixtures are necessary to hold your specific bottle/cylinder securely during printing. (We offer custom fixture fabrication services!)
3. Positioning Gear (For Multi-Color): If you plan to do multi-color registration, a positioning gear is required.
4. Consumables: Custom-patterned screens, ink, thinner, screen wash, and squeegees.

❓ Frequently Asked Questions (FAQ)

Q: Can this machine print multiple colors on one bottle?
A: Yes, but it requires a specific process. Screen printers print one color at a time. To print 2 or 3 colors (multi-color overprinting), you must run the bottle through the machine for each color separately. Crucial requirement: Your bottle must have a positioning point, and the custom fixture and gear are required to ensure perfect alignment for each layer.

Q: What is the warranty and shipping policy?
A: We offer a 1-year warranty. During this period, if damage occurs under normal use according to the manual, we provide free replacement parts (buyer covers international shipping). Machines are packed securely in export-standard wooden cases and usually ship within 15 days after payment.

📚 Technical Resources & Video Support

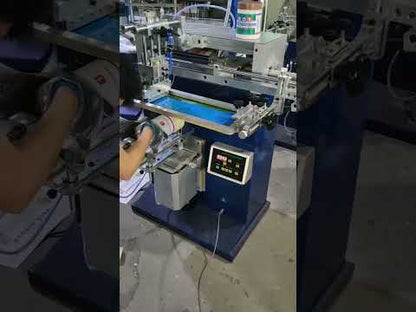

• Watch Operation Video:  View on YouTube
• Comprehensive Knowledge Base: For detailed workflows, screen installation guides, multi-color registration tutorials, and technical support, please visit our official documentation center: Cylindrical-Series Screen Printing Machine Documentation (doc.cecle.net).
