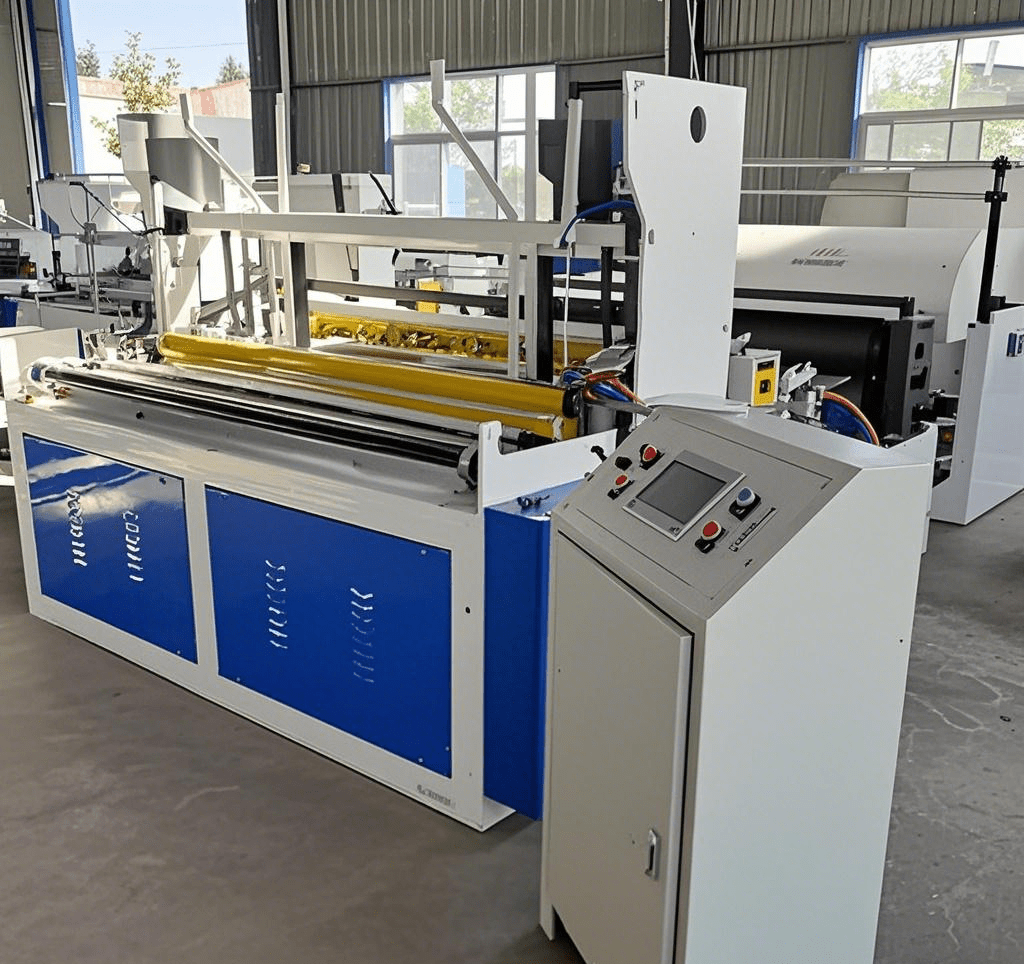

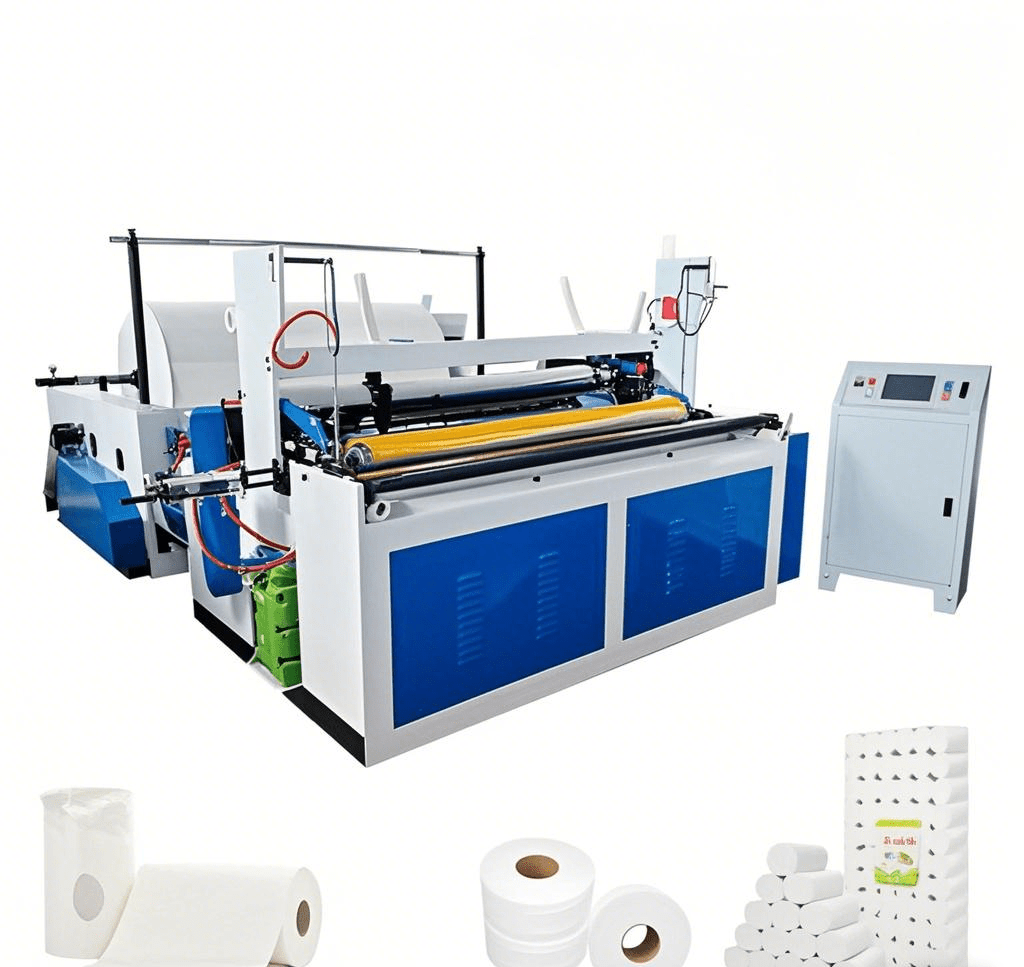

Automatic toilet paper roll processing equipment Toilet Paper Making Machine with Tissue Production Line High Efficiency

$34,000.00 $35,000.00

1. Performance characteristics:

1. This machine adopts the new PLC computer programming technology (the system can be upgraded),frequency control,automatic electronic brake. Supporting touch human-machine interface operating system. The coreless rewinding molding system. Application of PLC wind column forming technology reached the rewinding faster, the molding is beautiful,and so on.

2. The application of PLC in automatic rewinding, automatically send the finished, immediately reset rewinding,automatic trimming, adhesive, sealing synchronously in one time. Instead of the traditional line trimming,realizes new training margin. Sealing tail technology,products have the 10mm-20mm tail paper,convenient opening. To realize no paper tail loss,thereby reducing the cost. PLC is also applied to the finished product in the rewinding process after the tight loose,solutions for long time storage,paper core loose off phenomenon.

3. Application of base paper monitoring system,paper breaking automatic stopping. High speed operation in the process of implementation,monitoring of the base paper,reduce loss off paper produced by the equipment,ensure the normal operation of high speed.

4. All forming coreless rewinding system,changed the traditional process of pumping core rewinding,achieve solid without loosening effect. Reduce the labor cost,make the finished product more beautiful.

5. High precision screw perforated knife,3 scalpel lower noise,hole spacing adjustable,drilling more clear and beautiful.

6. Three layers synchronization conveying unwinder, pneumatic paper,pneumatic double wide belt paper feeding,each layer of base paper has the tension adjusting device.

7. Used in point switch traction base paper,paper leading the operation more simple,more safety.

Model	TD-1575
Finish products	Toilet rolls
Raw paper weight	12-40 g/m2 tissue roll
Raw paper width	Max 1800mm
Raw paper diameter	1200 mm
Finished diameter	50-180mm
Finished paper core	Diameter 30-55mm
Jumbo roll paper core	Diameter 76mm
Parameter setting	PLC computer operating interface,touch screen
Back paper stand	2 layers synchronous transmission
Perforation pitch	80-220mm,150-300mm
Embossing	Steel roll to wool roll
Perfuming device(optional)	Automatic
Paper loader	Automatic Pneumatic loading paper rolls
Paper core feeder	Automatic paper core dropping system
Glue Spraying,cutting rewinding, perforating	Automatic
Total Power	4 kw
Production speed	150-280 m/min
Voltage	3 Phase 380V,50HZ
Air pressure	0.5 Mpa
Dimensions	650034001800 mm
Weight	2500 kg
Qty	1 set
Spare parts	Perforation knife 2pcs Round blade 1pcs

Model	TD-BSP01
Applicable scope	Facial paper,toilet paper
Cut length	Adjustable length
Finish size	adjustable
Working speed	50-100 cut/min
Control system	PLC control,servo drive, touch screen operation
Cutting swing structure	Cam structure
Compressed air	0.5-0.6 Mpa
Power needed	3 phase 380V,50HZ
Weight	1200 kg

Model	TD-JZ
Product name	Automatic toilet paper packing machine
Capacity	15-20 bags/minute
Compressed air	0.6 Mpa
Power needed	3 phase 380V,50HZ
Power	2 kw
Size	511.5m
Weight	1000 kg
