CECLE Machine

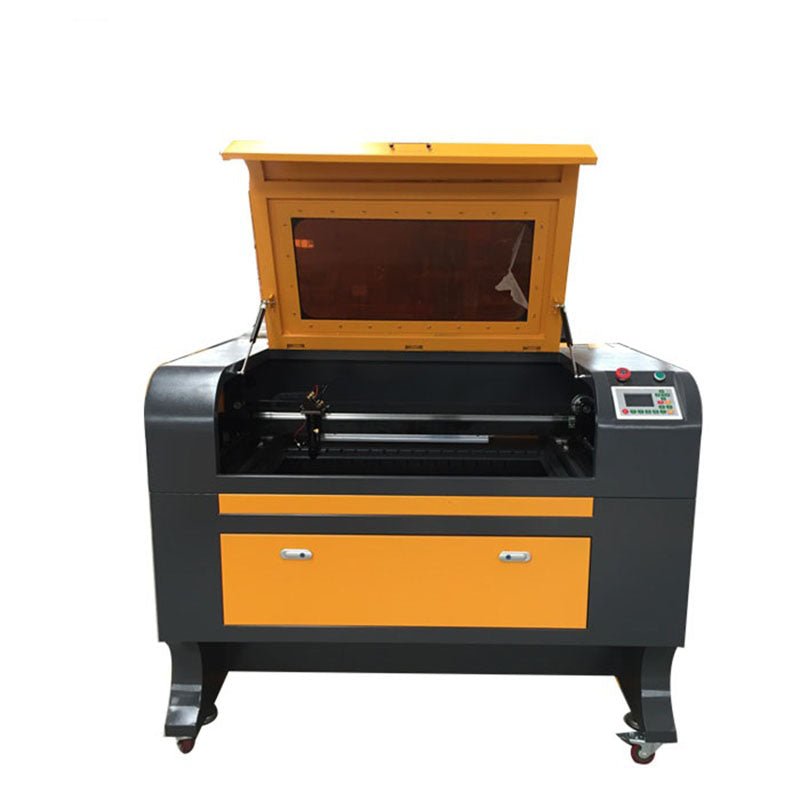

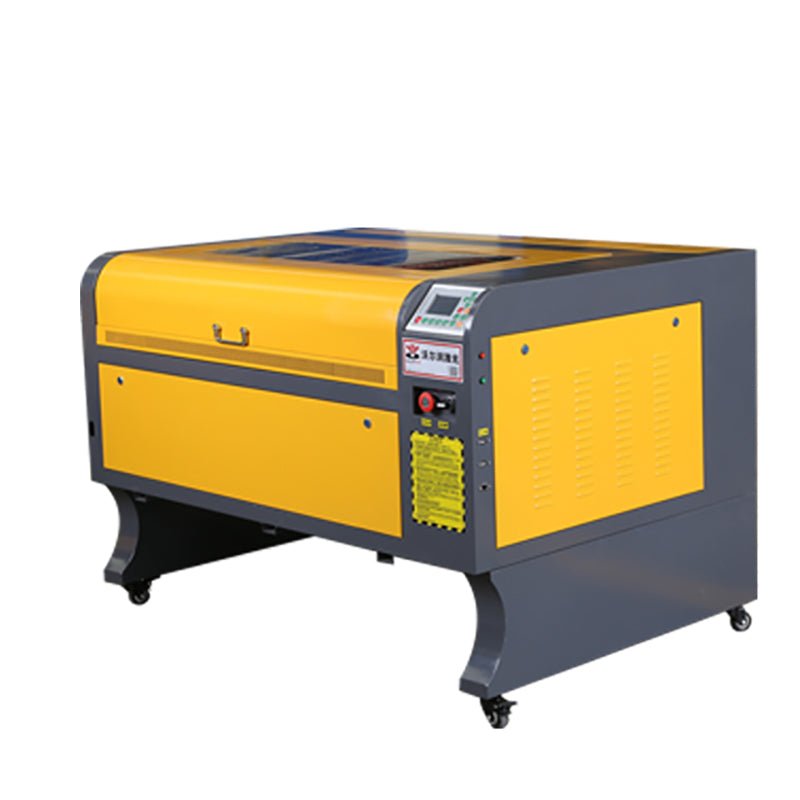

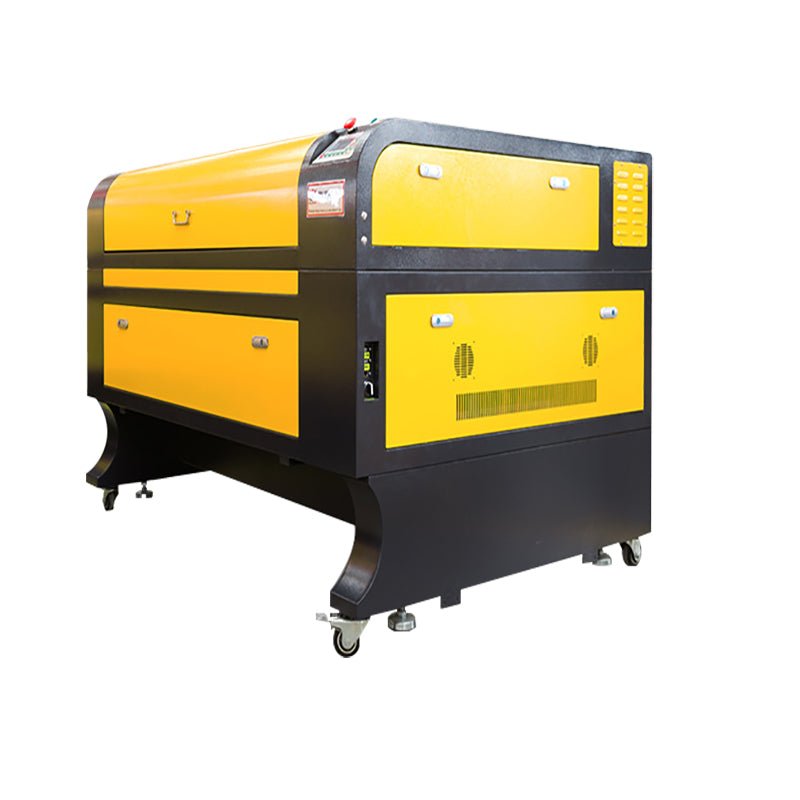

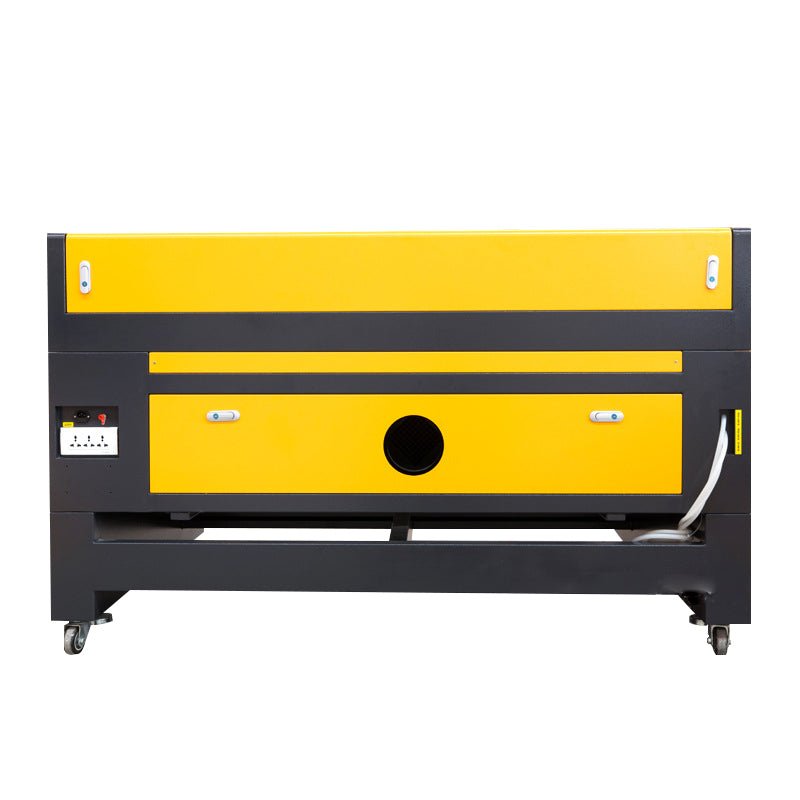

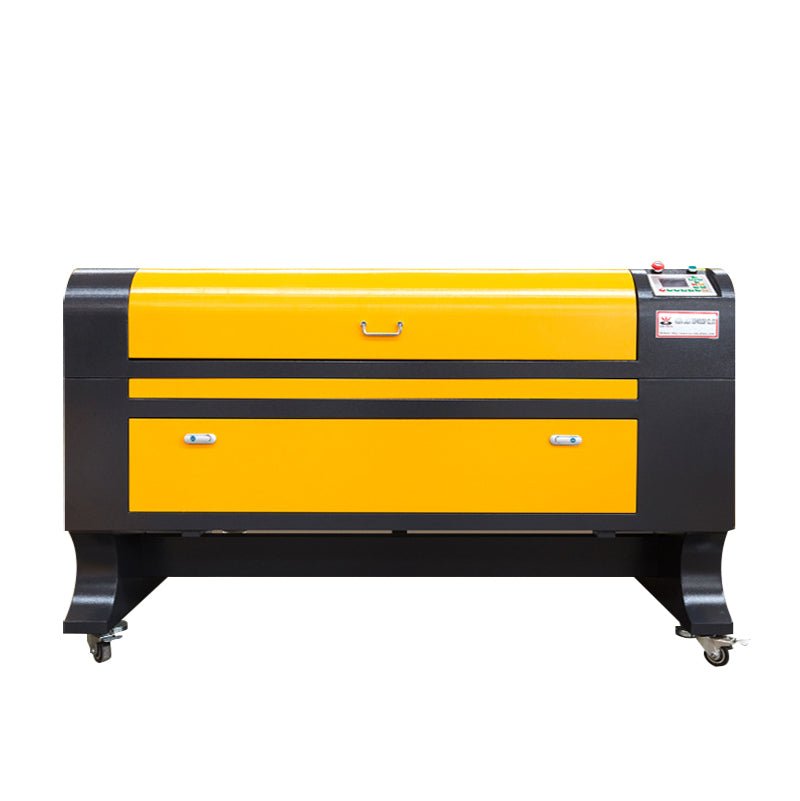

1080 CO2 Laser Engraving Machine for Glass & Crystal Awards (1000×800mm Bed)

$3,800.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Power 60w 80w 100w

Shipping Method By sea to port (20-30 days) By sea to door with tax (25-40days)

Quick Answer: The CECLE 1080 is a CO2 Laser Engraving Machine with an engraving speed of 1 – 500 mm/s, engineered for stable, repeatable commercial-scale production.

CECLE 1080 vs. Traditional / Generic Alternative

Where the CECLE 1080 stands out against generic co2 laser engraving machines — measured on the dimensions buyers care about most.

Glass Engraving Quality

CECLE 1080Elegant micro-fracture frosted finish: the CO2 beam causes localized micro-explosions on the glass surface, leaving a bright frosted mark that does not chip or flake.

Diamond Drag or Sandblastingmechanical scratching leaves ragged edges, and every stencil has to be cut and applied by hand.

Power Range for Fine Detail

CECLE 108060W / 80W / 100W options give lower firing thresholds and a finer focal spot, so lettering stays crisp on trophies and crystal paperweights.

Single Fixed Wattageone tube for every job, so low-power detail work either scorches or lacks contrast.

Bed Size vs Shop Space

CECLE 10801000mm × 800mm bed in a 160 kg frame fits a design studio or a retail back room without taking a whole production floor.

Full-Sheet Flatbed Only1300mm × 2500mm class beds need forklift access and floor space most workshops do not have.

Enclosure & Fume Control

CECLE 1080Fully enclosed lid with a filtered observation window blocks stray reflections, and the cabinet vents dust and fumes outside through ducting.

Open Frame, No Extractionsmoke and reflections stay in the room, so operators need goggles plus a separate extractor.

Technical Specifications

Parameter	Specification
Model	1080
Laser Type	Sealed CO2 laser tube
Laser Power	60W / 80W / 100W (Optional)
Working Area	1000mm × 800mm
Engraving Speed	1 – 500 mm/s
Cutting Speed	1 – 50 mm/s
Repeating Location	≤ ±0.01 mm
Guide Rail	XY 3-wire 15 linear guide
Cutting Thickness	0 – 20 mm (Varies by material density and laser wattage)
Characteristic	256 color layered output / 180-degree Slope Sculpture
Machine Dimensions / Weight	1550 × 1180 × 940 mm / 160 KG

Pre-installation requirements: Laser Power: 60W / 80W / 100W (Optional); Machine Dimensions / Weight: 1550 × 1180 × 940 mm / 160 KG.

Compatible Applications & Materials

industrial products — primary target products for this CO2 Laser Engraving Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Setup: connect the required power / air supply and verify the control display.
Parameter preset: set speed / temperature / pressure per the product spec.
Material loading: place the product in the correct fixture / mold slot.
Execution: start the cycle; monitor for stable, repeatable output.
Quality check: inspect the first units; adjust if deviation appears.
Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.

Engineering FAQ

Can the 1080 laser machine cut through glass and crystal plates?
A: No. CO2 lasers perform high-detail frosted surface engraving and etching on glass and crystal. They cannot slice or cut through glass plates; through-cutting requires high-pressure waterjets or diamond tools.

Is a rotary attachment required for engraving cylindrical bottles or glasses?
A: Yes. For cylindrical or conical items like beverage bottles and tumblers, an optional rotary roller attachment rotates the item synchronously for seamless 360-degree engraving.

How should I choose between 60W, 80W, and 100W laser power?
A: For delicate photo engraving on crystal, fine typography, and thin crafts, 60W or 80W produces finer beam spots and minimal heat distortion. Choose 100W if you also need to cut 8mm to 15mm acrylic or thicker wooden boards.

Why is the 1 – 500 mm/s Engraving Speed rating important for the 1080?
A: The 1 – 500 mm/s Engraving Speed balances throughput and stability for continuous B2B runs — too low limits output, too high compromises seal/transfer quality. This rating is the engineered sweet spot for the target product range.

What routine maintenance keeps the 1080 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the 1080 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
