Why Electronic Component Manufacturers Prefer High-Precision Semi-Automatic Screen Printing?
Why Electronic Component Manufacturers Prefer High-Precision Semi-Automatic Screen Printing?
In the world of electronic component manufacturing—where components are getting smaller and circuits more complex—precision isn't just a requirement; it’s a survival factor. Whether you are producing PCBs (Printed Circuit Boards), membrane switches, sensors, or flexible electronics, the method you choose for screen printing determines your yield rate and product reliability.

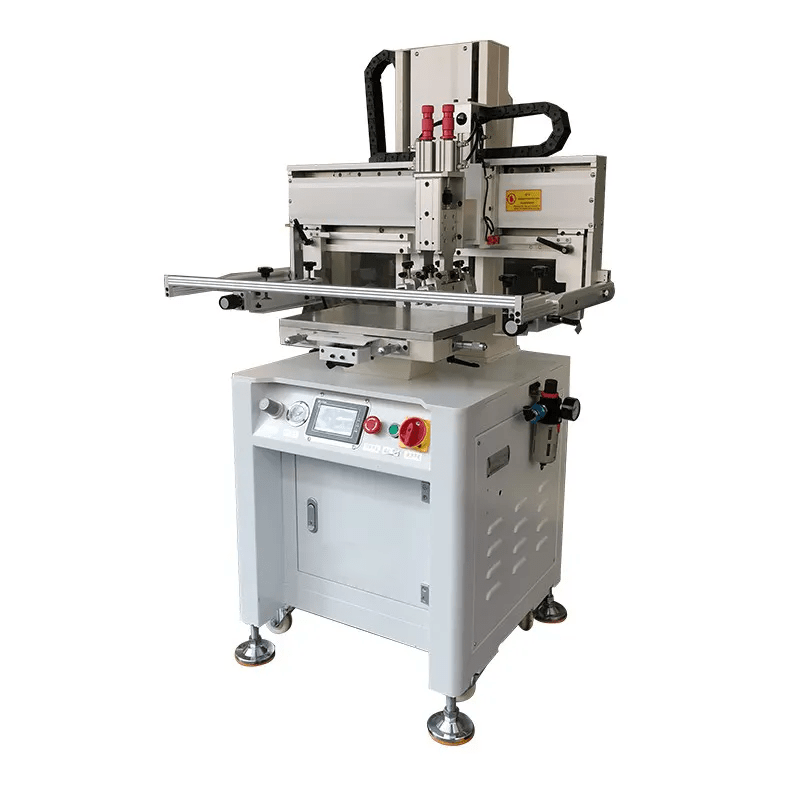

While fully automatic lines are expensive and manual printing is inconsistent, the high-precision semi-automatic screen printing machine has become the "Goldilocks solution" for the industry. Here is why.
1. Micron-Level Accuracy and Repeatability
Electronic components often involve ultra-fine lines and tiny pads. A deviation of even 0.05mm can lead to a short circuit or signal interference.
High-precision semi-auto printers are engineered with:
-
Fine-tuning Worktables: Allowing for X, Y, and Angle (θ) adjustments with micron-level sensitivity.
-
Stable Linear Guides: Ensuring the print head moves with zero vibration.
-
Repeatability: Unlike manual printing, a semi-auto machine delivers the exact same alignment for the 1st piece and the 1,000th piece, ensuring a stable CPK (Process Capability Index).
2. Perfect Control Over Ink Film Thickness
In electronics, screen printing is often used to deposit conductive silver paste, solder mask, or carbon ink. The electrical resistance of these components depends entirely on the thickness of the ink layer.
Semi-automatic machines provide:
-
Constant Squeegee Pressure: Pneumatic or servo-driven squeegees ensure the pressure is identical across the entire substrate.
-
Adjustable Printing Speed: Slow, steady strokes prevent air bubbles and ensure "wetting" of the ink on the substrate.
-
Off-contact Control: Precise control over the gap between the screen and the substrate prevents smudging and ensures sharp edge definition.
3. Versatility for Specialized Substrates
The electronics industry uses a vast array of materials, from rigid FR4 and Ceramic plates to flexible PET films and Polyimide.
High-precision semi-auto printers are preferred because they are "material agnostic." They often feature vacuum suction beds that keep thin, flexible films perfectly flat during the printing process, preventing the material from shifting or warping under the squeegee’s pressure.
4. The Ideal Balance of ROI and Flexibility
Why not go fully automatic? For many electronic manufacturers, the answer is High-Mix, Low-Volume (HMLV) production.
-
Faster Setup: Switching a screen and re-aligning a semi-auto machine takes 10–15 minutes, whereas a fully automatic line might take an hour.
-
Lower Capital Investment: You get 90% of the precision of an automatic line at 20% of the cost.
-
Reduced Footprint: Most semi-automatic flatbed printers are compact, saving expensive clean-room floor space.
5. Enhanced Durability for Clean-Room Environments
Electronic components are usually manufactured in dust-free environments. Quality semi-automatic printers are built with high-grade aluminum alloys and anti-static coatings. They produce minimal debris and are easy to clean, meeting the strict contamination control standards of ISO clean rooms.
Conclusion: Is It Right for Your Factory?
If your production requires high electrical performance, consistent resistance values, and tight tolerances, a high-precision semi-automatic screen printer is the most cost-effective upgrade you can make. It bridges the gap between artisanal manual work and high-cost automation.
