How Belt Conveyors Solve Problems of Complex Terrain and Space Constraints
Belt conveyors are often called the "backbone of logistics and industry" largely because of their exceptional design flexibility. Rather than being rigid, straight machines, they can adapt to various terrains and environments like a "snake" through several technical methods.
Here are the five core technical solutions belt conveyors use to overcome terrain and space limitations:
1. Solving Vertical and Steep Incline Challenges (Height Differences)
On standard conveyors, materials tend to slide back if the incline exceeds 18 degrees. To solve height issues in tight spaces, the following variants are used:
-

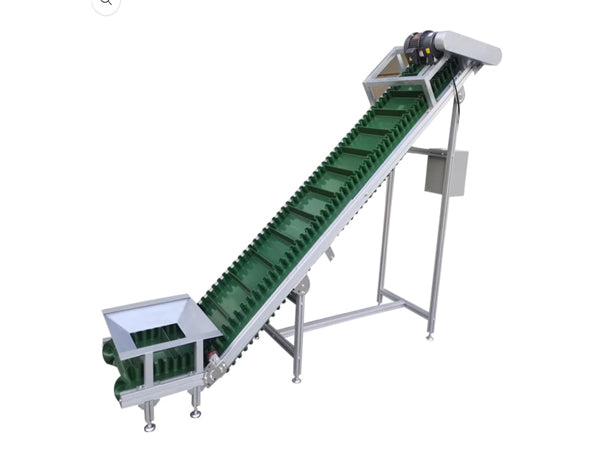

Corrugated Sidewall Belt Conveyors: These feature accordion-like "sidewalls" and horizontal "cleats." They can achieve vertical transport from 0° to 90°, allowing materials to be lifted to high silos within an extremely small footprint.
-
Sandwich Belt High-Angle Conveyors: These use two belts to "sandwich" the material in between. This design allows the machine to flip vertically or navigate bumpy terrain while keeping a firm grip on the cargo.
2. Solving Bypassing Obstacles (Curved Terrain)
In real-world environments, buildings, mountains, or rivers often block the direct path.
-
Horizontal and Vertical Curving: By adjusting the angle of the idlers (rollers) and belt tension, conveyors can "turn" horizontally and vertically simultaneously. This eliminates the need for "transfer stations," allowing the belt to wind around mountains or structures, which also reduces dust and material breakage.
-
Pipe Conveyors: This is a "pro" solution for complex layouts. After loading, the belt is rolled into a closed pipe shape.
-
The Benefit: Because it is a tube, it can perform tight 3D curves in space (much like a water pipe).
-
The Result: It can weave through narrow gaps between factory equipment or wind through protected forests.
-
3. Solving Spanning Issues (Crossing Rivers, Roads, or Valleys)
When two points are separated by a river or a canyon where trucks cannot pass:
-
Long-span Truss Technology: Conveyors are often mounted on steel "trusses." This structure acts like a bridge, spanning dozens of meters without the need for ground support.
-
Cable-Supported Conveyors: In extreme mountainous areas, the belt is suspended on steel cables (similar to a cable car or gondola), allowing it to transport materials directly across deep valleys.
4. Solving Narrow Indoor and Multi-floor Space Constraints
In automated warehouses or food factories, floor space is extremely expensive:
-
Spiral Conveyors: The belt moves in a spiral around a central cylinder. This allows materials to be transported between floors within a space of only a few square meters, significantly saving factory floor area.
-
Telescopic Belt Conveyors: Common in shipping docks, these can extend and retract like a drawer. They solve the "last ten meters" problem between the warehouse door and the inside of a truck trailer.
5. Solving Multi-point Discharge (Spatial Distribution Logic)
Sometimes the constraint is the need to deliver goods to different locations or windows along a single line:
-
Trippers and Reversible Shuttle Conveyors: A "tripper" car can move back and forth along the conveyor track to discharge material at any specific point. Reversible belts can also change direction to feed different silos or processing lines.
