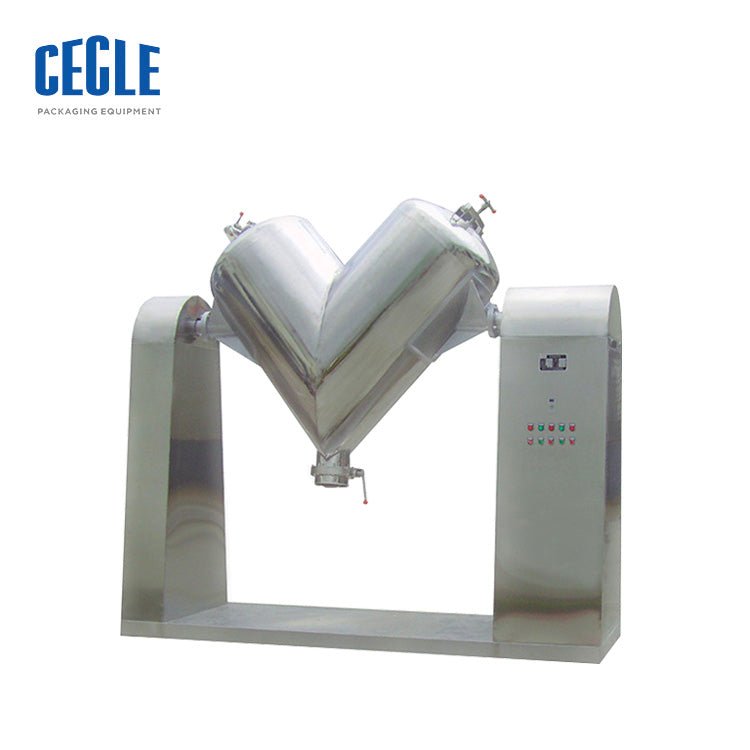

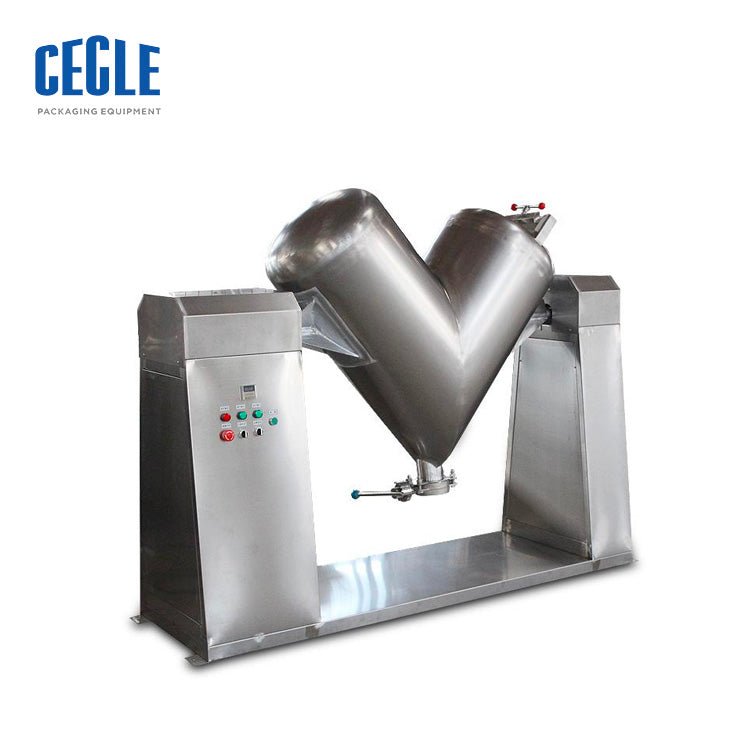

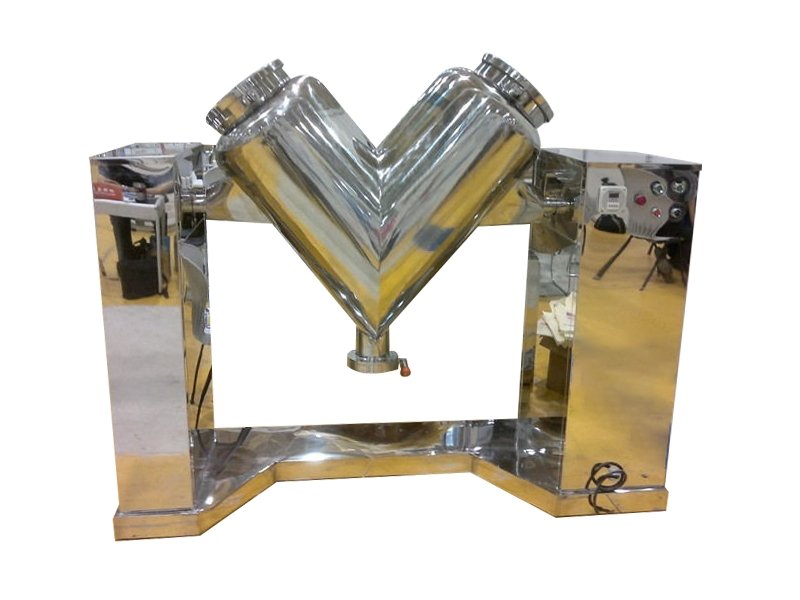

V Series Double Arm Blender Mixer for Pharmaceutical Powder

V Series Double Arm Blender Mixer for Pharmaceutical Powder

$2,769.00 USD
$2,769.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Model
Shipping method
Quick Answer: The CECLE V series V-type double-arm mixer is a heavy-duty, high-efficiency blending machine engineered for precision mixing of dry powders and granular materials across pharmaceutical, food, chemical.

CECLE V Series vs. Traditional / Generic Alternative

Where the CECLE V Series stands out against manual or generic blender mixer — measured on the dimensions buyers care about most.

Output Speed & Throughput
CECLE V SeriesHigh Charging Efficiency : Reaches a working loading rate of up to 80% (compared to only ~40% for conventional drum mixers), significantly shortening batch times and maximizing throughput
Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.
Precision & Consistency
CECLE V SeriesGMP-Compliant Sanitary Construction : Manufactured from high-grade SUS304/SUS316L stainless steel. Upper and lower cylinder sections feature arc-shaped transition zones with precision mirror polishing.
Analog / Blind OperationNo real-time parameter feedback; operators guess settings, so quality drifts batch to batch.
Chassis Rigidity & Vibration Resistance
CECLE V SeriesRobust Double-Arm Structure : Dual heavy-duty side pillars provide optimal mechanical stability for larger capacities, maintaining low operational vibration, reduced noise, and extended mechanical service life
Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.
Pressure Consistency
CECLE V SeriesThe CECLE Blender Mixer holds working pressure steady across batches, cutting weak-output rejects.
Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Technical Specifications

Model Full Vol (L) Max Capacity (kg) Mixing Speed (r/min) Motor Power (kW) Total Weight (kg) Dimensions (mm)
V-5 5 2 12 0.37 50 600×450×700
V-10 10 4 12 0.55 70 700×500×800
V-50 50 20 12 0.75 180 1300×600×1100
V-100 100 40 12 0.75 280 1600×650×1300
V-150 150 60 12 1.1 300 1650×650×1400
V-200 200 80 12 1.1 310 1680×650×1450
V-300 300 90 12 1.1 320 1700×650×1500
V-400 400 120 12 1.5 450 2100×1000×2000
V-500 500 150 12 1.5 550 2500×1220×2420
V-600 600 200 12 2.2 700 2600×1000×2450
V-800 800 250 12 2.2 820 2750×900×2480
V-1000 1000 300 12 3.0 950 2870×900×2500
V-1500 1500 750 12 4.0 1020 2870×900×1800
V-2000 2000 1000 12 5.5 1600 3600×1300×1950

Compatible Applications & Materials

  • industrial products — primary target products for this Blender Mixer line
  • Standard industrial materials compatible with the machine's rated spec range
  • B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

  1. Setup: connect the required power / air supply and verify the control display.
  2. Parameter preset: set speed / temperature / pressure per the product spec.
  3. Material loading: place the product in the correct fixture / mold slot.
  4. Execution: start the cycle; monitor for stable, repeatable output.
  5. Quality check: inspect the first units; adjust if deviation appears.
  6. Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.

Engineering FAQ

What is the primary operational difference between a V-type double-arm mixer and a Three-Dimensional motion mixer?
A: The V-type double-arm mixer utilizes rotational gravity diffusion through asymmetrical cylinder arms to gently tumble and divide dry powders, making it ideal for standard free-flowing granules and powders. A Three-Dimensional (3D) motion mixer utilizes a multi-directional spatial movement (rotation, translation, and inversion) that completely counteracts gravity and centrifugal forces, making 3D mixers preferred for ultra-high density variations or cohesive powders.

Can internal stirring/forced agitation bars be added to the V-type double-arm mixer?
A: Yes. For materials containing minor liquid additives, sticky components, or agglomerated lumps, an optional high-speed internal intensifier bar (stirring system) can be installed inside the V-cylinder to break up agglomerates and accelerate mixing efficiency.

How is the equipment packaged and secured for international ocean freight?
A: All export equipment is cleaned, wrapped in protective moisture-proof film, and enclosed inside solid, export-grade fumigation-free plywood cases. Standard operation tools and critical spare parts are packed together with the machine to guarantee arrival integrity.

What after-sales service and technical support are provided post-purchase?
A: We provide a 1-year warranty covering non-human equipment defects on an EXW/FOB basis. Replacement components are supplied free of charge within the warranty period. Furthermore, lifetime remote engineering guidance, video operation support, and factory-direct spare parts supply are maintained for the entire lifecycle of the machine.

Full Documentation & Drawings

Complete technical manual, parameters and engineering drawings: CECLE Docs — V Series
