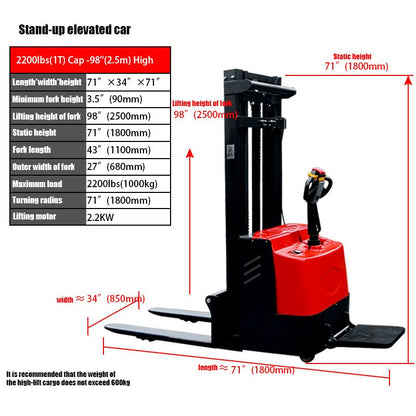

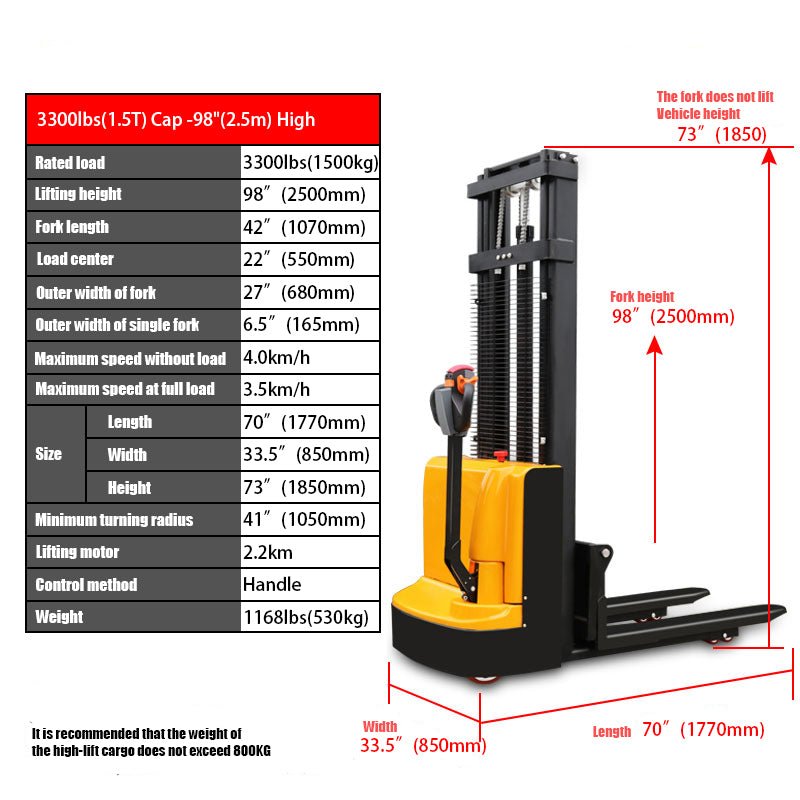

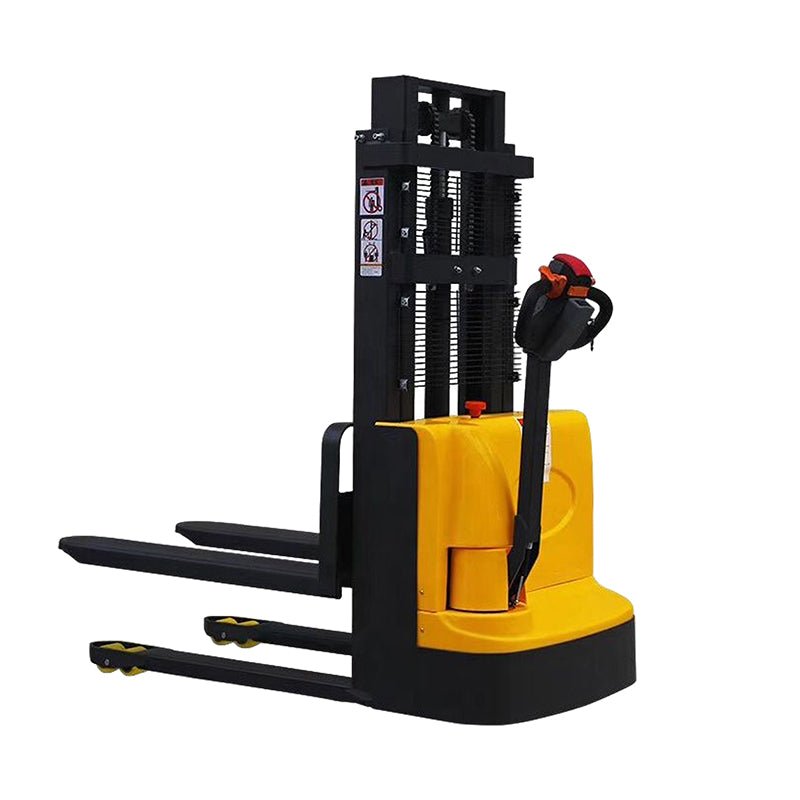

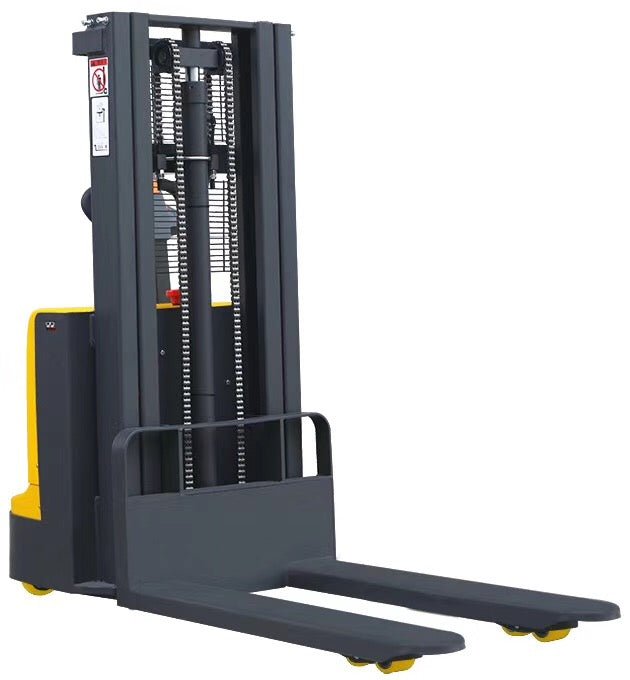

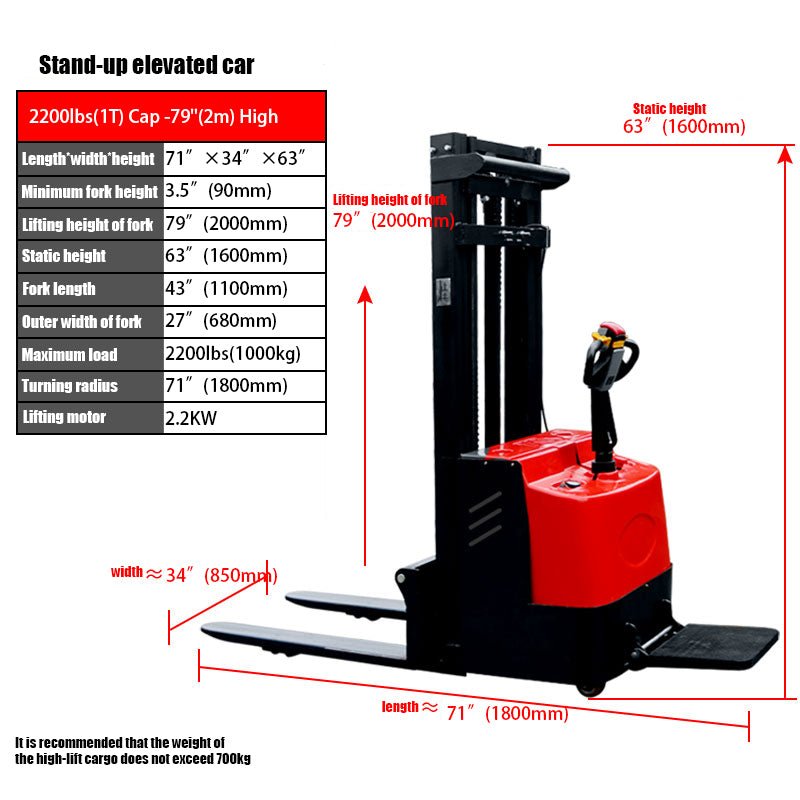

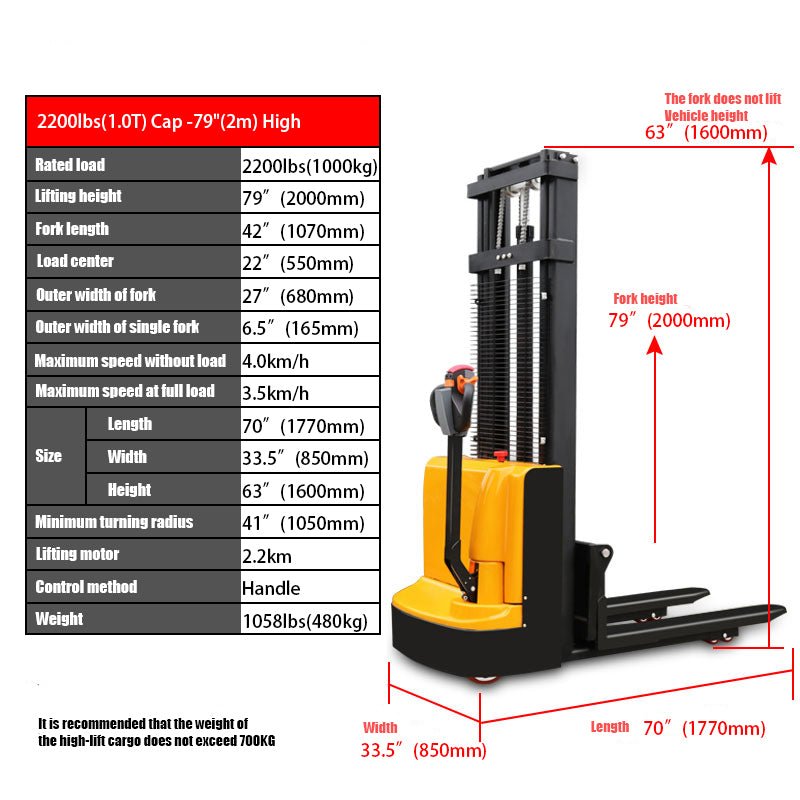

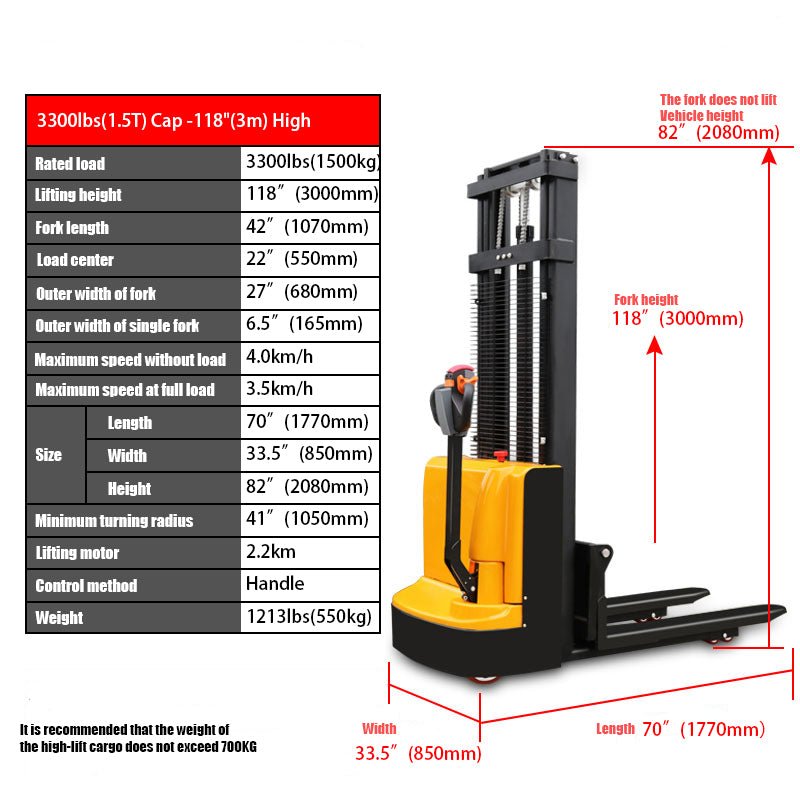

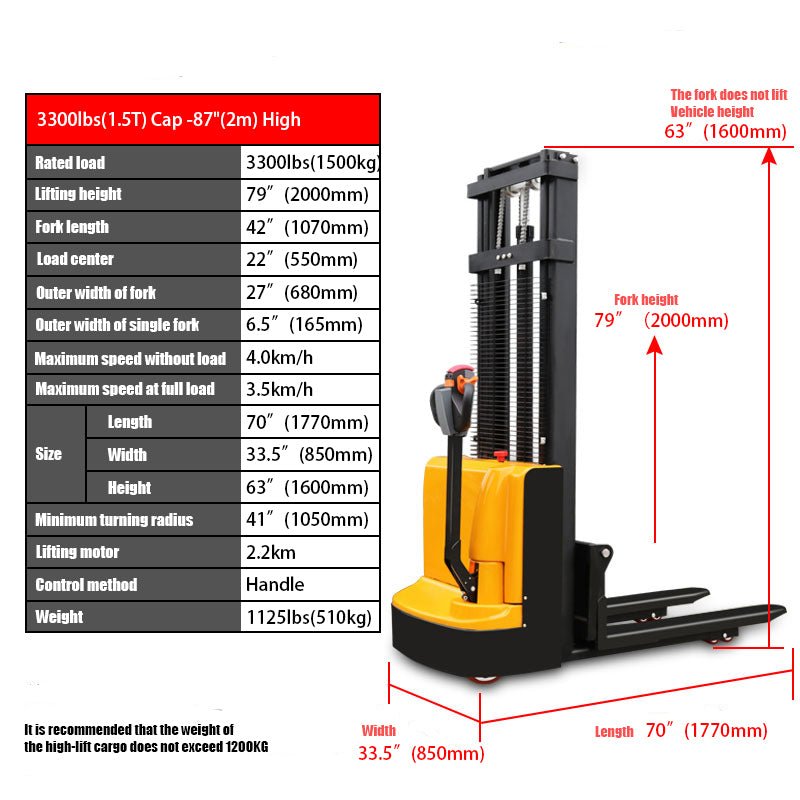

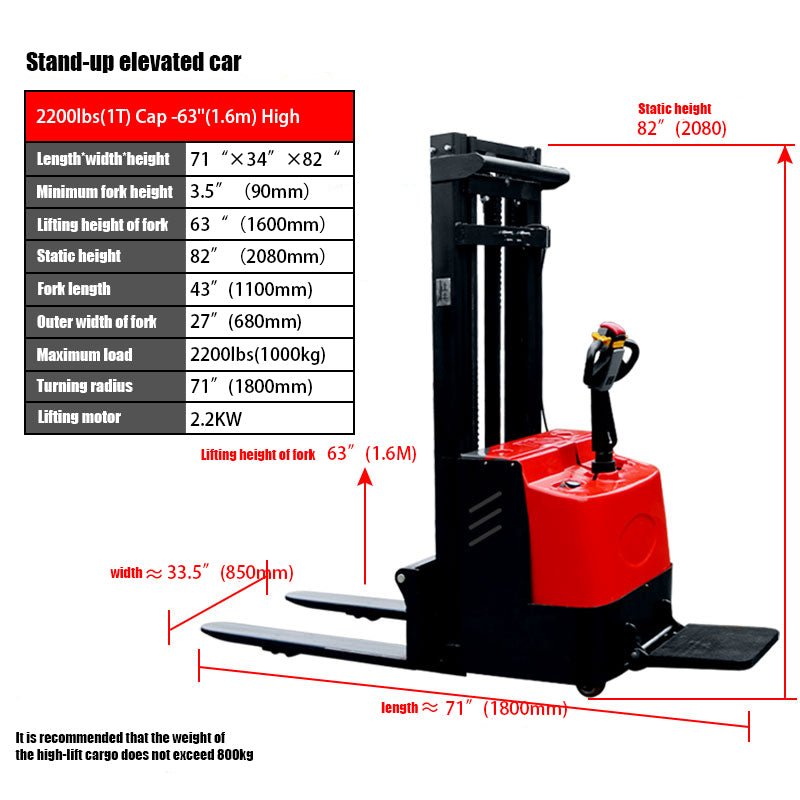

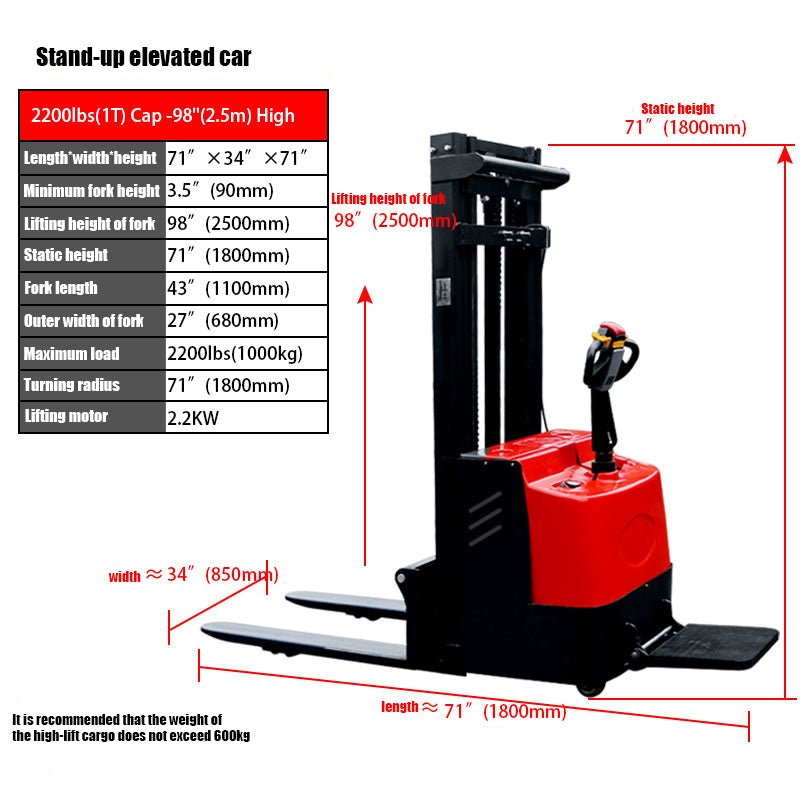

High Fully Powered-Electric Straddle Stacker

  • $7,600.00
Tax included. Shipping calculated at checkout.


Model

CTD10 CTD15

Rated load



2200lbs (1000kg)

3300lbs(1500kg)

Lifiting height

79"/118"

(2m/3m)

79"/98"/118"(2m/2.5m/3m)
Fork length 42"(1070mm) 42"(1070mm)
Load center  22"(550mm) 22"(550mm)
Outer width of single fork 6.5"(165mm) 6.5"(165mm)
Maximum speed without load 4.0km/h 4.0km/h
Maximum speed at full load  3.5km/h 3.5km/h
Minimum turning radius 41"(1050mm) 41"(1050mm)
Lifting motor 2.2km 2.2km
Control method Handle Handle
