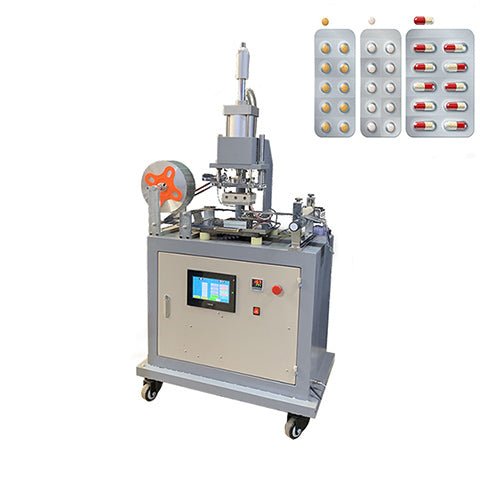

The CP - 210 is a semi-automatic blister packing machine used for packaging tablets, pills, and capsules. It is designed to work with aluminum foil and PVC materials.
Key Features and Components
- Foil Feeding System: It has an automatic foil feeding system with a stepping motor. The foil roller feeding system ensures a smooth supply of the foil. In the case of the BP - 210 model, the foil has to be placed pcs by pcs manually as it doesn't have a film roll device or unwinding and rewinding functions.
- Control and Operation: The CP - 210 model uses pneumatic control for the heating plate to move up and down. It also has a digital display time relay to control the heating time, and the heating plate can be quickly replaced. It requires an external air compressor and is controlled by a foot pedal switch. The DP - 210 model, on the other hand, has added a PLC controller and touch screen, along with a stepping motor and photoelectric sensor for higher efficiency, safety, and stability.
- Size and Capacity: The maximum size of the PVC blister it can handle is 210*260mm. The packing area is 210mm * 260mm, with a pressure of 0.4T and a speed of 10 times/min. The machine operates on 220v / 50Hz voltage and has a power of 500w. The machine weights 120kg for the CP - 210 model (100kg for BP - 210) and has dimensions of 770mm * 460mm * 1320mm for CP - 210 (570mm * 460mm * 1320mm for BP - 210).
This semi - automatic machine provides a cost - effective solution for small - scale packaging operations, offering a balance between manual control and automated functions to ensure accurate and efficient packaging of pharmaceutical products.
