Blister packing machine DPP-80 Automatic Aluminum Foil Packing Machine,For Capsule,Pill,Coffee,Alcohol,Honey,Oil
Blister packing machine DPP-80 Automatic Aluminum Foil Packing Machine,For Capsule,Pill,Coffee,Alcohol,Honey,Oil
Regular price
$6,900.00 USD
Regular price
$7,900.00 USD
Sale price
$6,900.00 USD
Unit price
per
Blister packing machine
Blister packing machine
Capsule blister packing machine Scope application:
The flat-plate aluminum-plastic blister packaging machine is an improved product of our factory based on user needs. It is
suitable for large and medium-sized pharmaceutical factories, health care products factories, hospital preparation rooms, food,electronics, hardware and other industries. package of. It has the effects of preventing moisture and dust, improving the grade of product packaging, and increasing added value. It is suitable for mass production of single varieties.
suitable for large and medium-sized pharmaceutical factories, health care products factories, hospital preparation rooms, food,electronics, hardware and other industries. package of. It has the effects of preventing moisture and dust, improving the grade of product packaging, and increasing added value. It is suitable for mass production of single varieties.
Capsule blister packing machine Full Features
* Adjustable stroke, mold positioning, easy mold replacement, accurate plate alignment, contact heating, positive pressure blow molding;
* Automatic blanking, various molds and blanking devices can be designed according to user requirements;
* The cylinder is heat-sealed, and the heat-sealing mold is automatically separated when it is stopped, which will not burn the packaging and extend the service life of the machine;
* Can choose tangent indentation, batch number;
* Adopt manipulator to clamp and feed, linear reciprocating operation, accurate and reliable synchronization;
* Automatic blanking, various molds and blanking devices can be designed according to user requirements;
* The cylinder is heat-sealed, and the heat-sealing mold is automatically separated when it is stopped, which will not burn the packaging and extend the service life of the machine;
* Can choose tangent indentation, batch number;
* Adopt manipulator to clamp and feed, linear reciprocating operation, accurate and reliable synchronization;

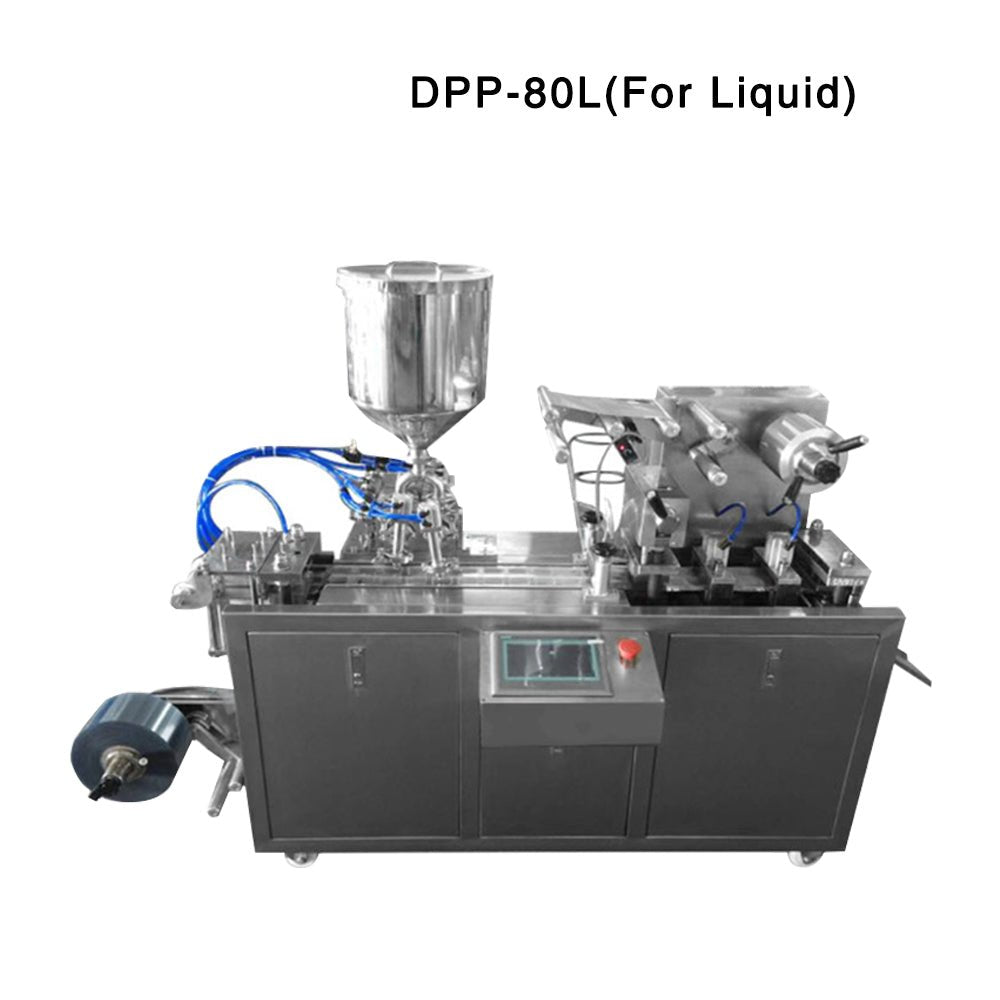

Model
|

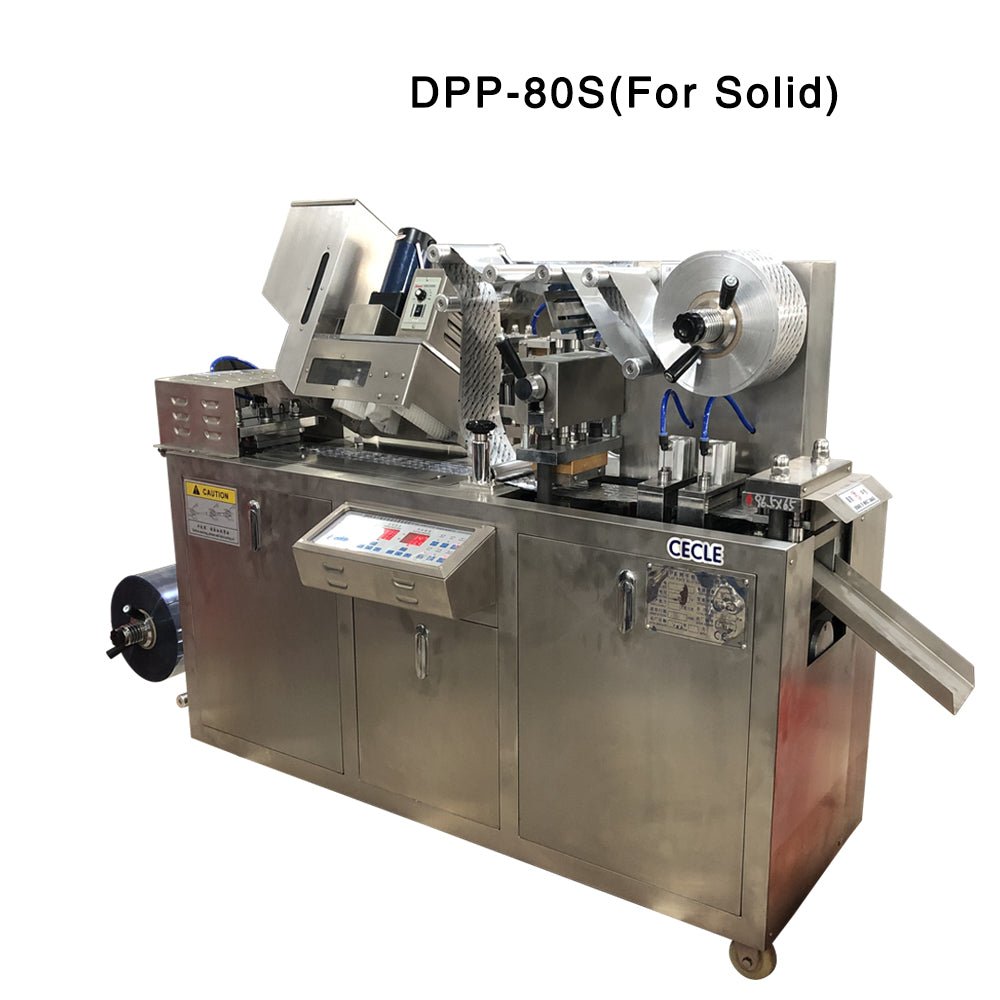

DPP-80S
|
DPP-80L
|
Max Forming Area
|
105mm*70mm*26mm
|
105mm*70mm*26mm
|
Standard Stroke Range
|
30~80mm
|
30~80mm
|
Power Supply
|
220v/380v 50Hz/60Hz 2.8kw
|
220v/380v 50Hz/60Hz 2.8kw
|
Main Motor Power
|
2.8kw
|
2.8kw
|
Speed
|
10~33times/min
|
10~33times/min
|
Air Pressure
|
0.6~0.8Mpa
|
0.6~0.8Mpa
|
Gross Weight
|
480kg
|
520kg
|

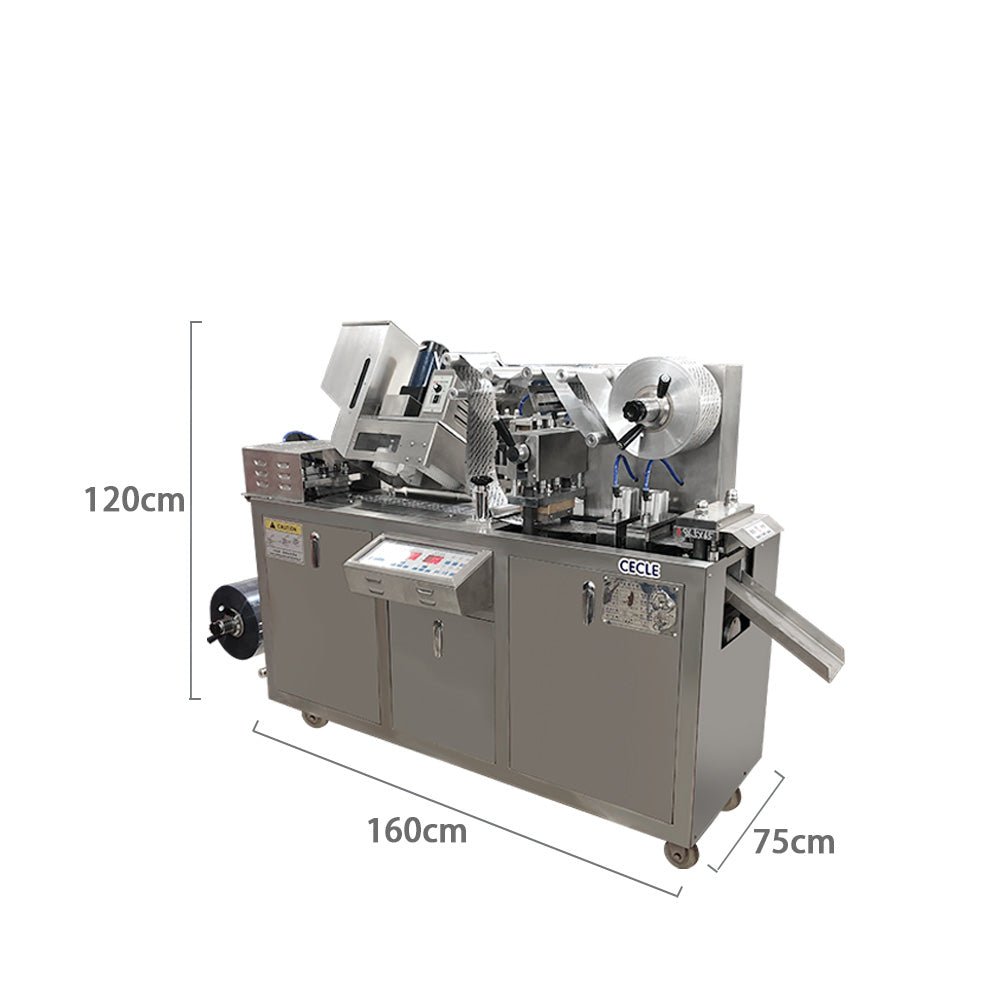

Machine Dimension
|
1600*750*1200mm
|
1880mm*780mm*1200mm
|
Automatic Grade
|
Full automatic
|
Full automatic
|

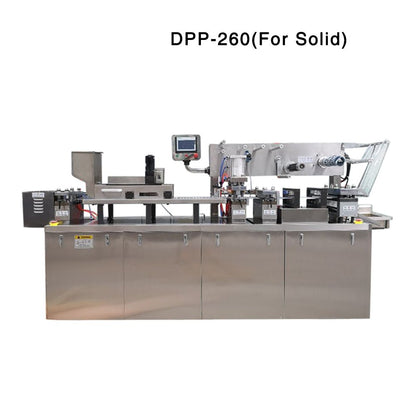

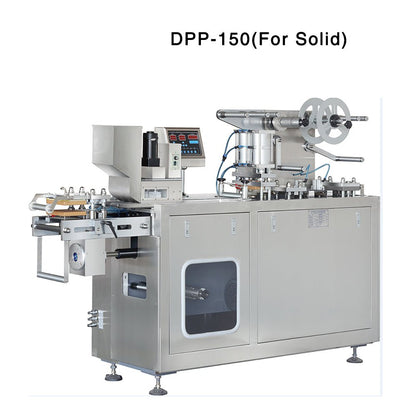

Model
|
DPP-150
|
DPP-260
|
Max Forming Area
|
130*100*26mm
|
240*140*26mm
|
Standard Stroke Range
|
50-120mm
|
40-140mm
|
Power Supply
|
220v/380v 50Hz/60Hz 2.8kw
|
220v/380v 50Hz/60Hz 2.8kw
|
Main Motor Power
|
2.8kw
|
2.8KW
|
Speed
|
10-35times/min
|
10-40times/min
|
Air Pressure
|
0.6~0.8Mpa
|
0.6-0.8Mpa
|
Gross Weight
|
890KG
|
1500KG
|
Machine Dimension
|
2500*800*1780mm
|
3300*900*1850mm
|
Automatic Grade
|
Full automatic
|
Full automatic
|
