Small Liquid & Paste Vertical Packaging Machine | S2 Series Sachet Packer for Honey, Sauces & Ketchup
Small Liquid & Paste Vertical Packaging Machine | S2 Series Sachet Packer for Honey, Sauces & Ketchup
Impossibile caricare la disponibilità di ritiro

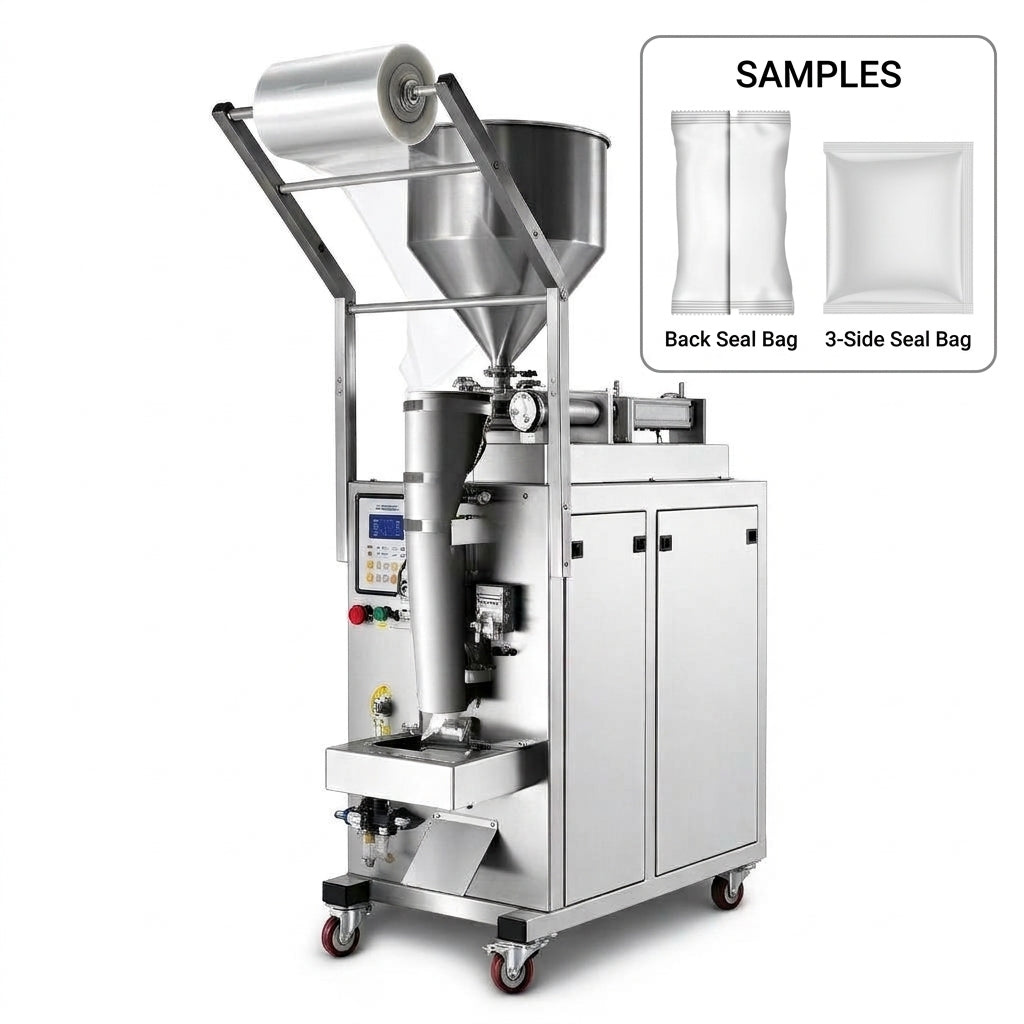

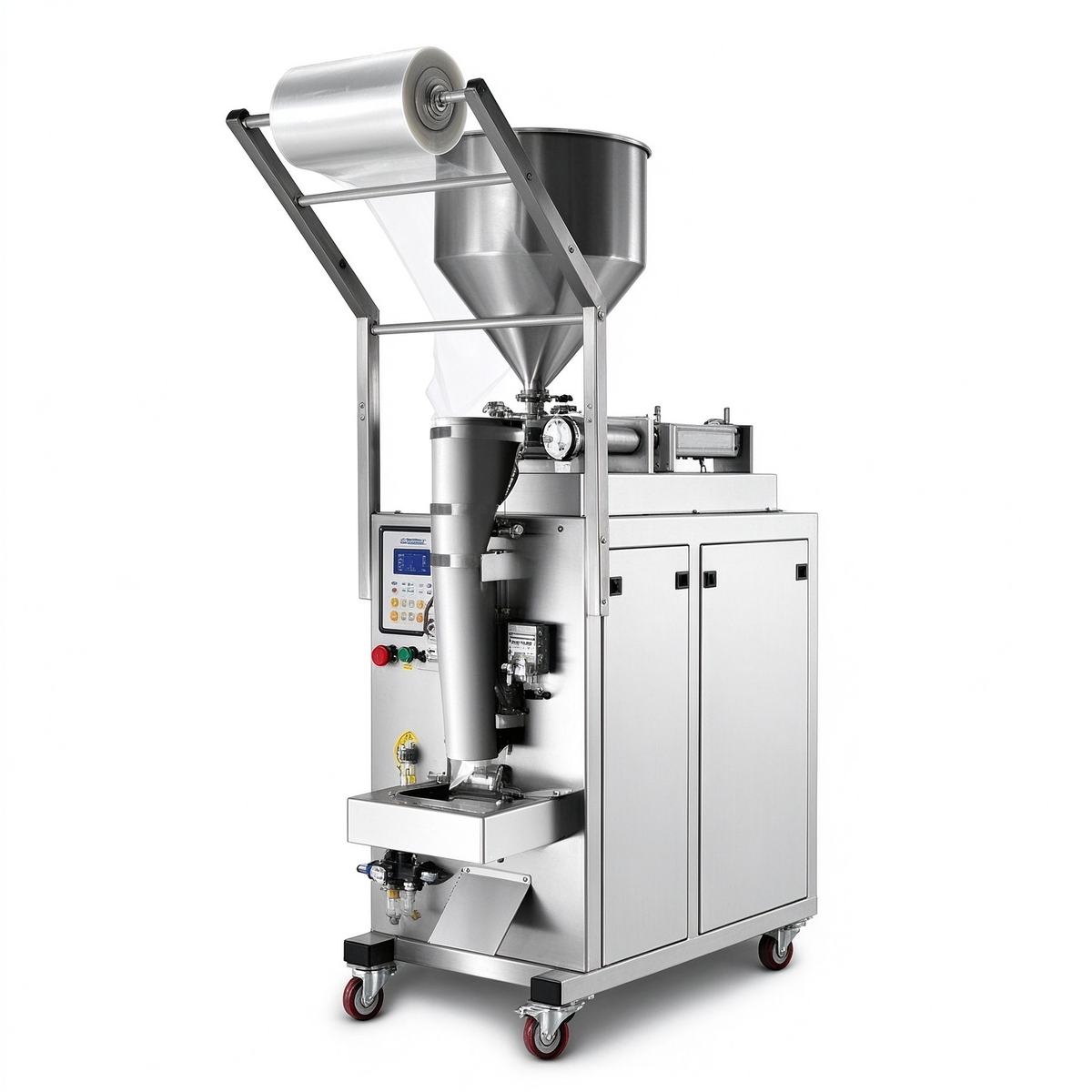

- What it is: A fully automatic small liquid and paste vertical packaging machine series (S2-100, S2-300, S2-500, S2-1000).
- Best for: Small-scale factories, startup businesses, and laboratories packaging sauces, honey, shampoo, and cosmetics.
- Core Advantages: Compact footprint, automatic film forming, volumetric filling, sealing, cutting, and flexible modular upgrades like heating/stirring hoppers.
Key Benefits & Core Features
- Compact Space-Saving Design & High Cost-Performance: Engineered specifically for small factory spaces with a minimal footprint and flexible mobility, significantly reducing initial automation investment.
- Outstanding Material Adaptability & Customization: Supports non-standard upgrades such as heating hoppers, stirring hoppers, and large-capacity U-shaped hoppers to handle liquids and pastes of varying viscosities smoothly without clogging.
- Precise Measurement Across 4 Models: Covers filling volumes from a few milliliters up to 1000ml across the S2-100, S2-300, S2-500, and S2-1000 models.
- Intelligent Control & Easy Maintenance: Features an intuitive control panel that minimizes reliance on skilled labor and simplifies routine upkeep.

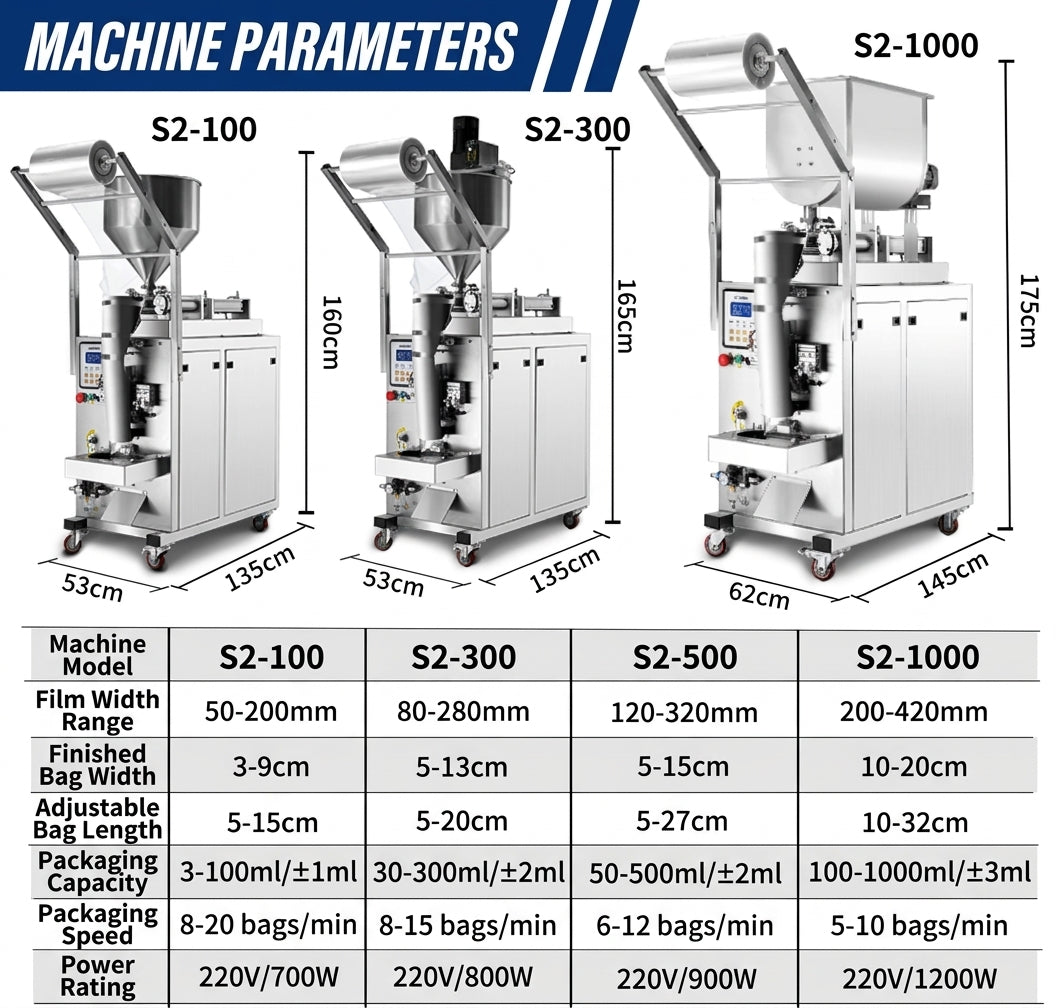

Technical Specifications
| Machine Model | S2-100 | S2-300 | S2-500 | S2-1000 |
|---|---|---|---|---|
| Film Width Range | 50-200mm | 80-280mm | 120-320mm | 200-420mm |
| Finished Bag Width | 3-9cm | 5-13cm | 5-15cm | 10-20cm |
| Adjustable Bag Length | 5-15cm | 5-20cm | 5-27cm | 10-32cm |
| Packaging Capacity | 3-100ml / ±1ml | 30-300ml / ±2ml | 50-500ml / ±2ml | 100-1000ml / ±3ml |
| Packaging Speed | 8-20 bags/min | 8-15 bags/min | 6-12 bags/min | 5-10 bags/min |
| Power Rating | 220V / 700W | 220V / 800W | 220V / 900W | 220V / 1200W |
Official Technical Documentation
Looking for detailed operational guides or specifications? 📖 View Full Technical Documentation & User Manual
Frequently Asked Questions (FAQ)
Q1: What types of materials can this machine pack?
A1: It can package various liquids and pastes, such as sauces, honey, shampoo, shower gel, face cream, and liquid soap.
Q2: Can the machine be heated if my product easily solidifies?
A2: Yes. We support optional heating hoppers or stirring hoppers to prevent materials like chocolate sauce, coconut oil, or specific creams from solidifying or settling during filling.
Q3: What bag sealing styles does the machine support?
A3: The standard machine supports back-seal (pillow bag) or three-side seal bags. We can also customize models to support four-side seal bags upon request.

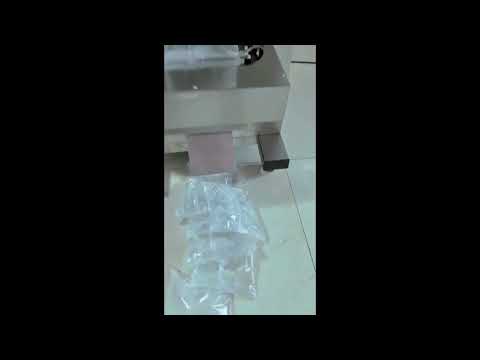

English Marketing Video
Watch the video demonstration here: https://youtu.be/1VpbPr6fISg
Workflow
- Film Loading & Setup: Place the packaging roll film onto the film holder and thread it through the forming mechanism correctly.
- Parameter Configuration: Power on the machine, set the target bag length, filling volume, and temperature parameters via the control panel.
- Material Feeding: Pour the liquid or paste material into the feeding hopper (utilizing heating or stirring functions if required).
- Automatic Forming & Filling: The machine automatically pulls the film into a tube, forms the bag shape, seals the vertical/bottom edges, and dispenses the exact volume of product into the bag.

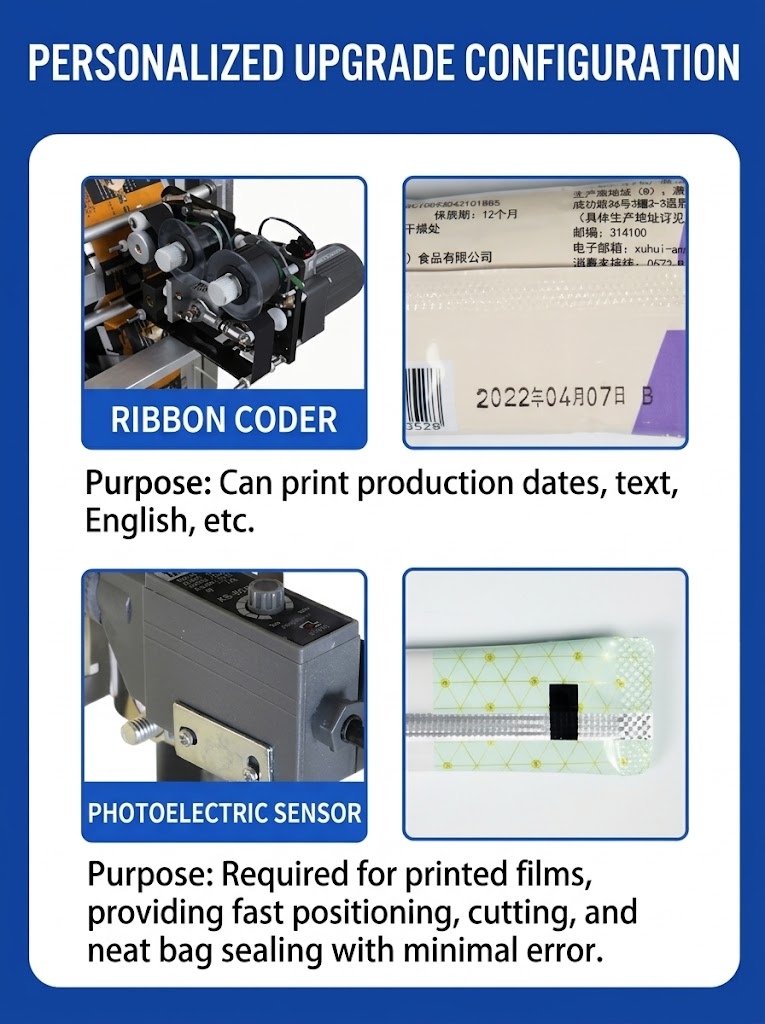

- Final Sealing & Cutting: The machine executes top sealing, imprints date/batch numbers (if code printer is equipped), and cuts the finished bag off for output collection.
