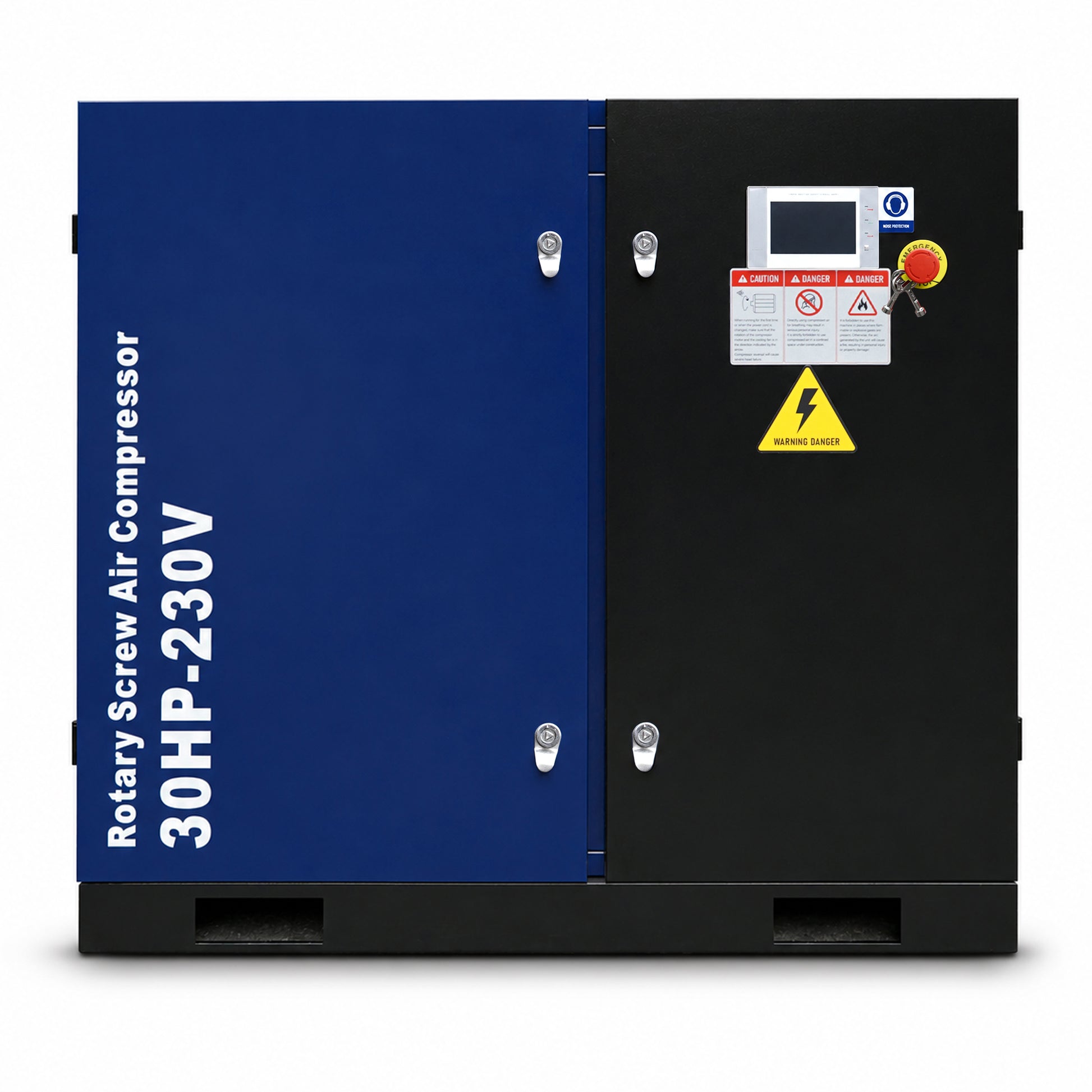

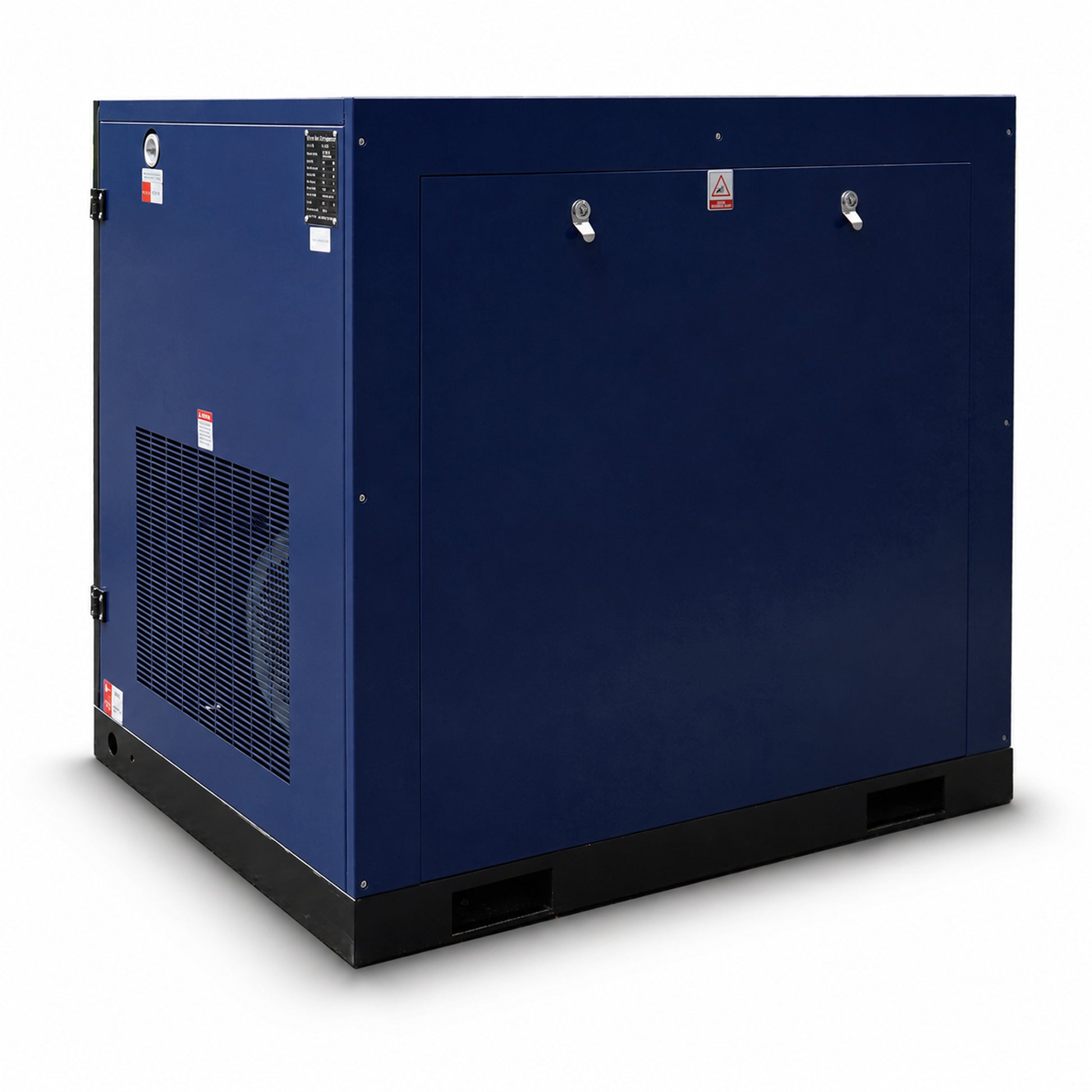

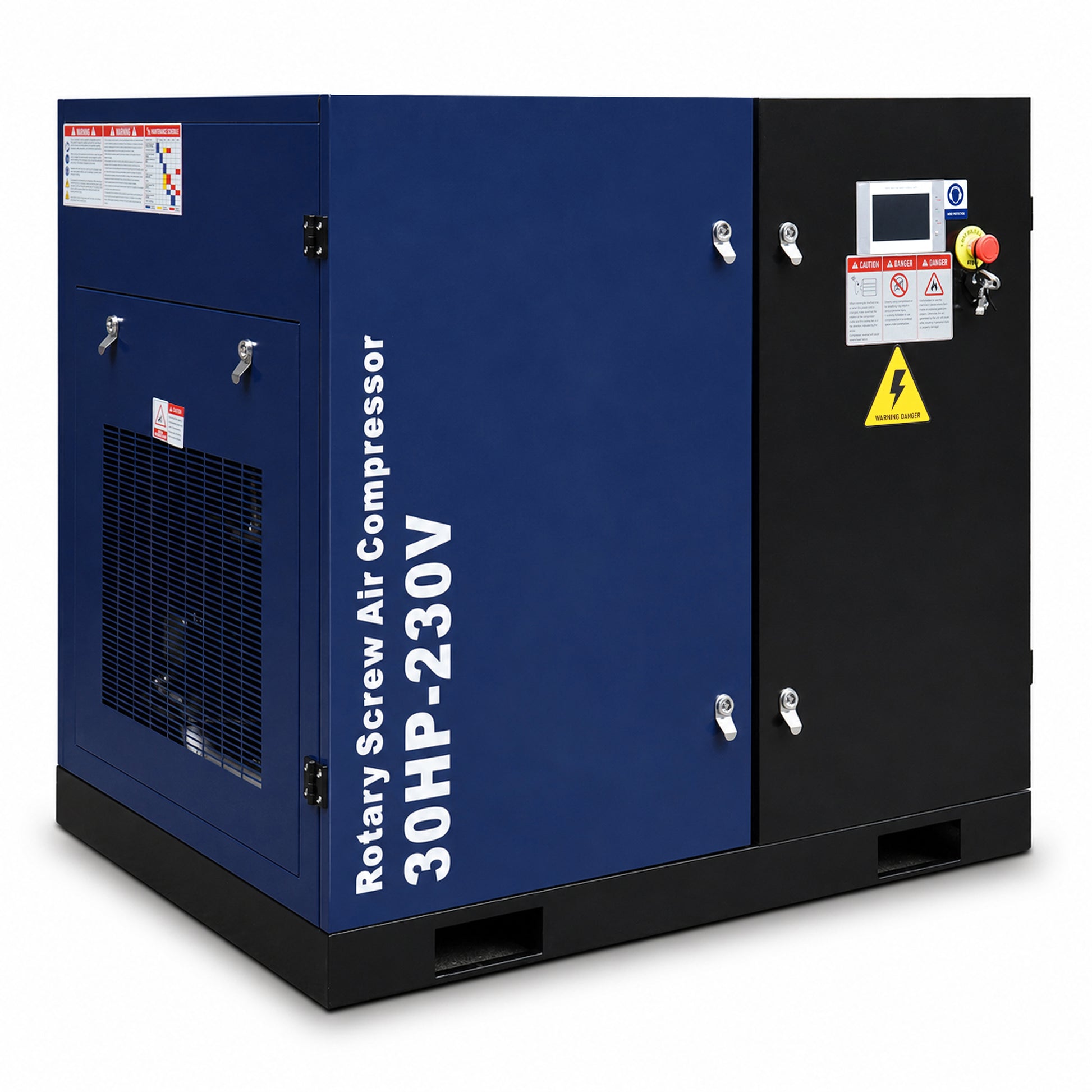

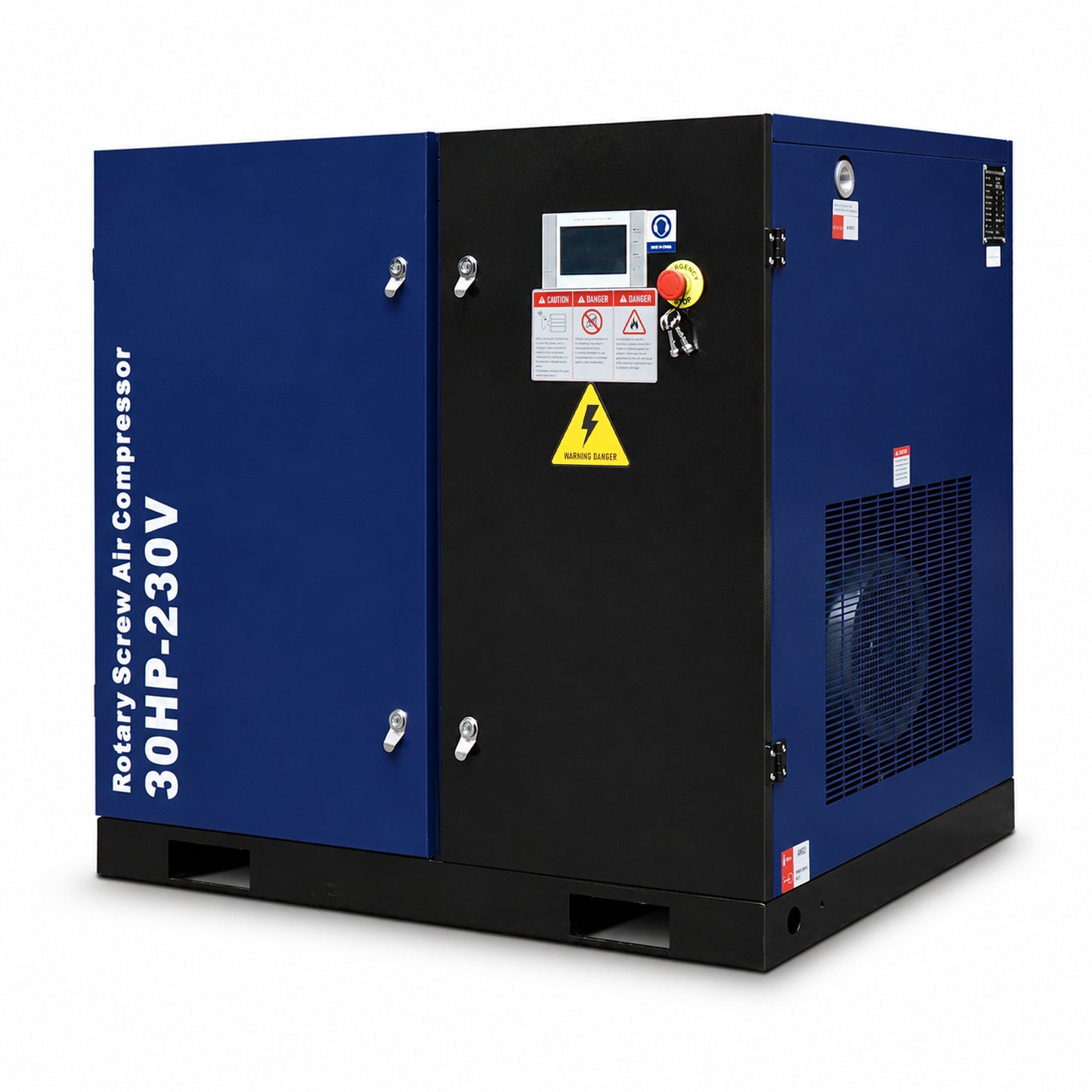

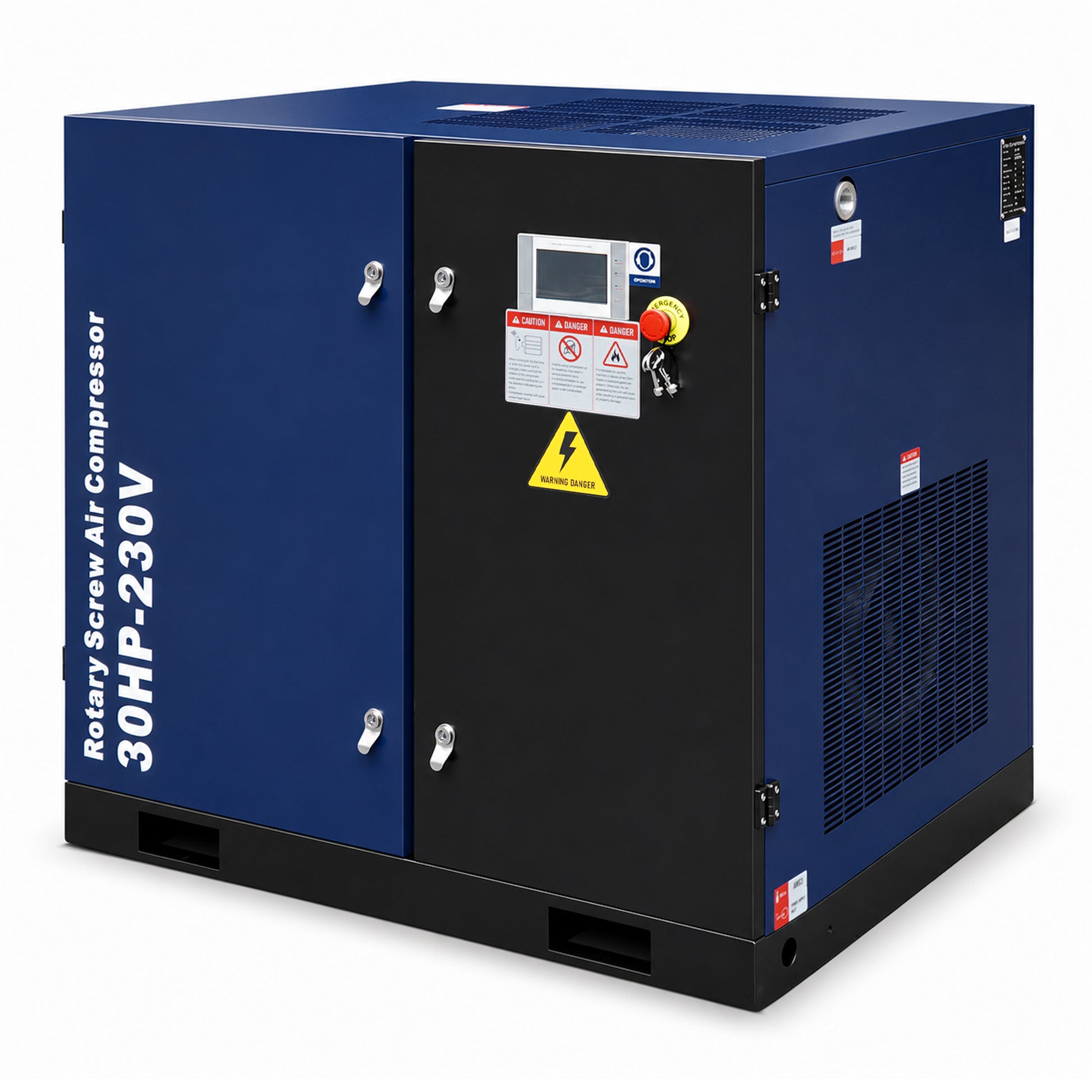

30HP Rotary Screw Air Compressor, 123CFM, 125PSI, 230V 3PHASE 60HZ, Fixed Speed Compressor, Industrial-Grade, Heavy Duty Air Compressed System

$5,999.00 USD

Promotion Épuisé

Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

Model 30HP-230V

Only ship from USA warehouse to USA(PR/AK/HI/GU/AA/AE/AP and PO BOX are not avaliable) Delivery time 7-15 days

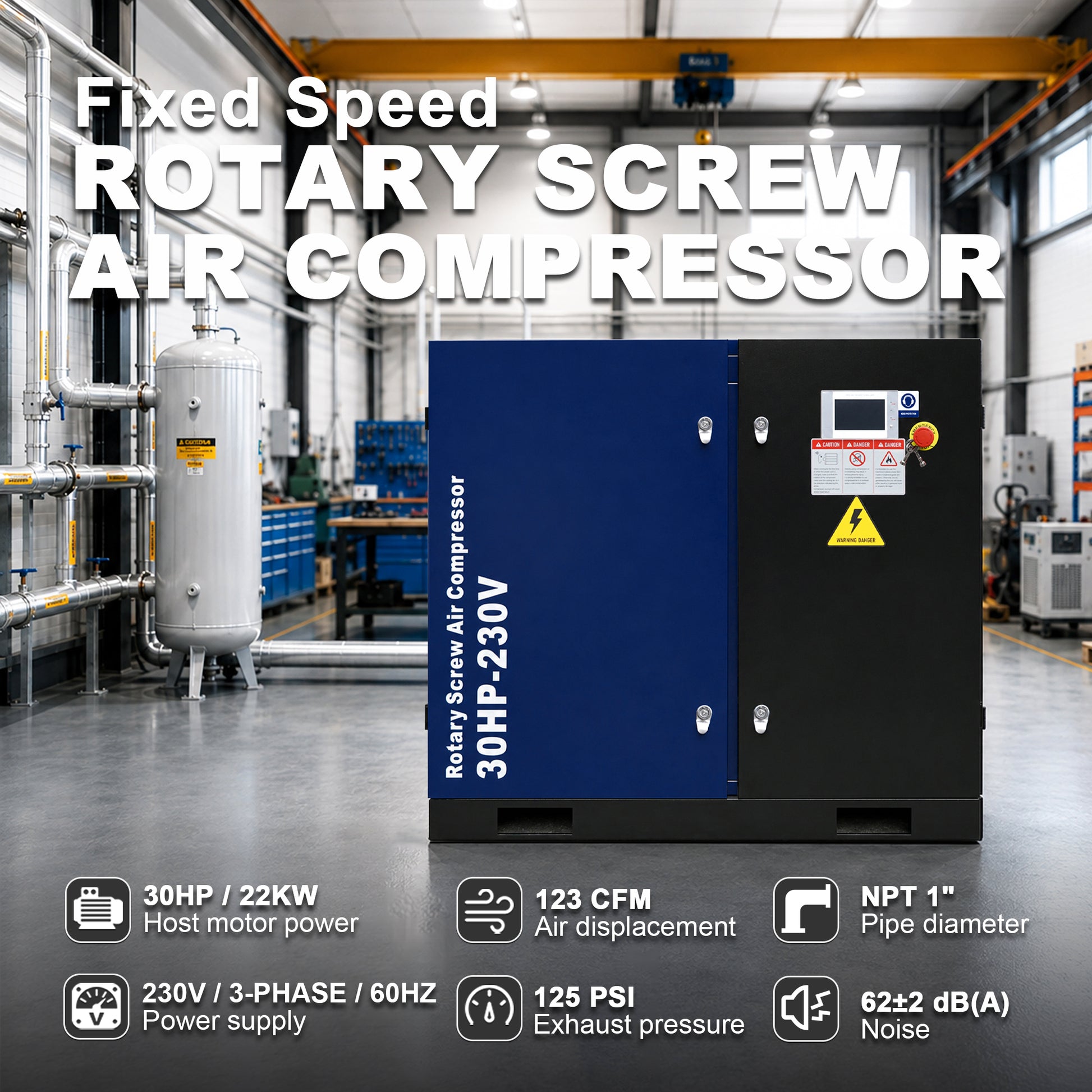

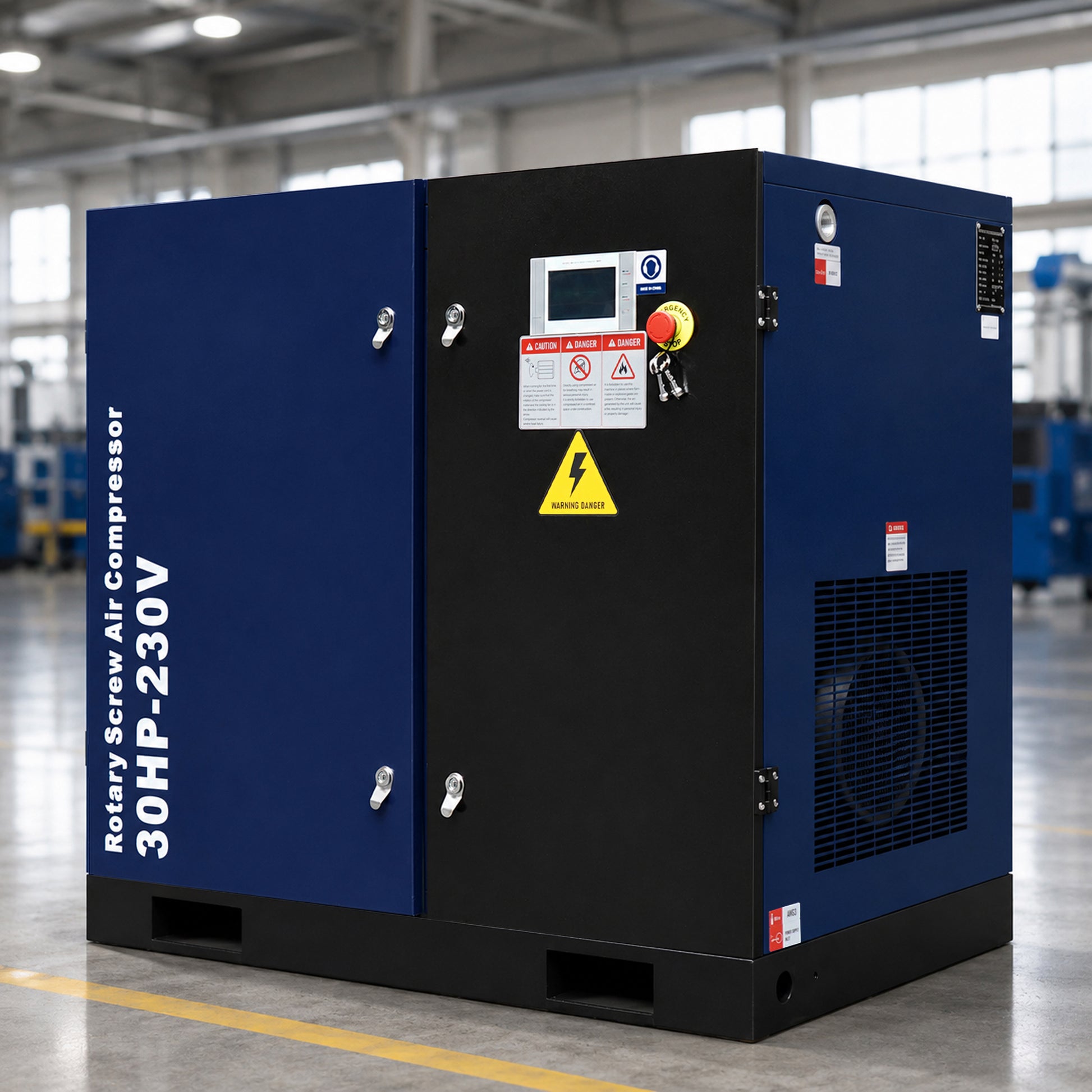

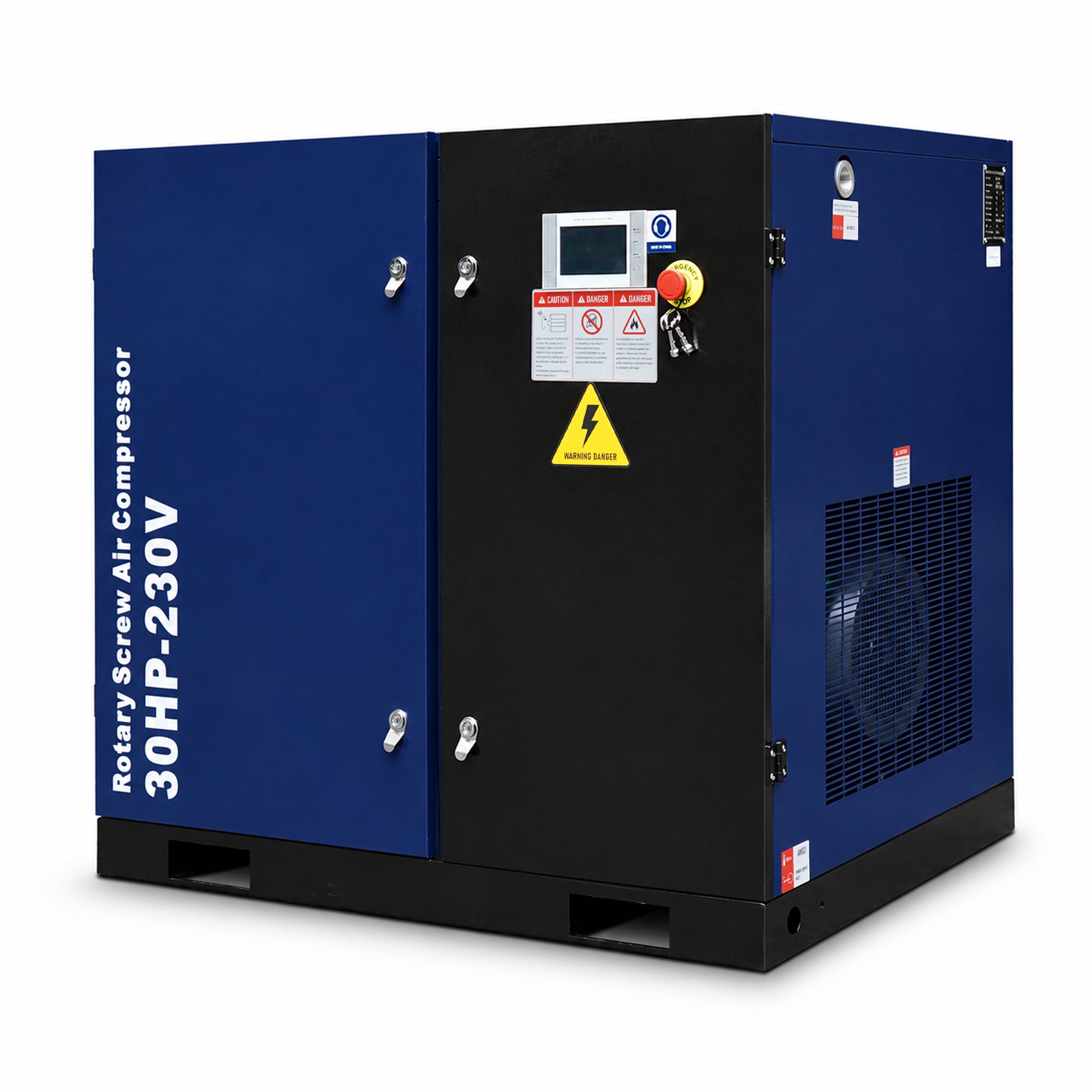

30HP Rotary Screw Air Compressor, 123CFM, 125PSI, 230V 3PHASE 60HZ
Fixed Speed Compressor, Industrial-Grade, Heavy Duty Air Compressed System
Air displacement: 123 CFM, exhaust pressure: 125 PSI.
This rotary screw air compressor is configured with a 30HP motor and operates at a rated exhaust pressure of 125 PSI.

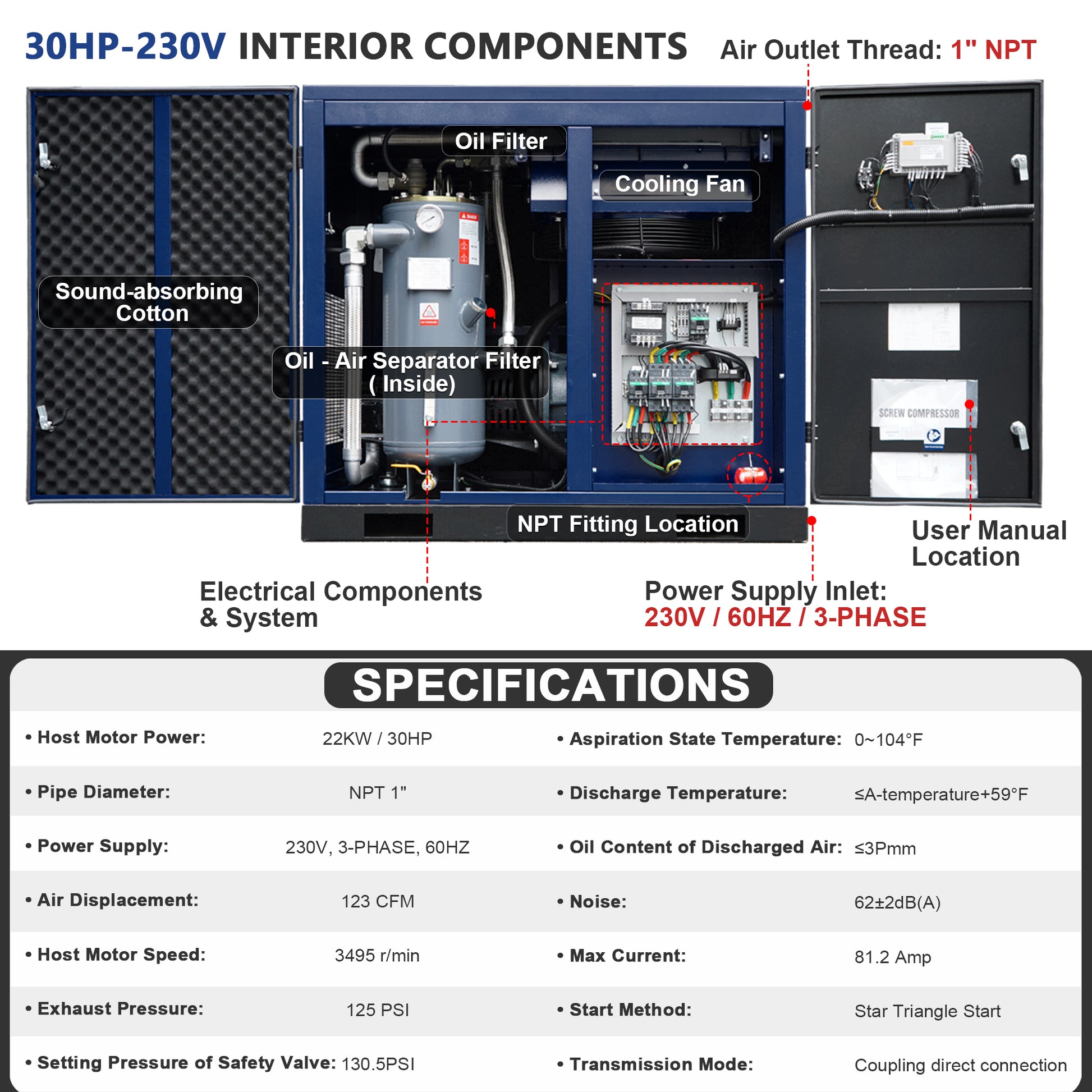

Host Motor Power	22 KW / 30 HP
Power Supply	230V / 60HZ / 3PHASE
Air Displacement	123 CFM
Exhaust Pressure	125 PSI
Setting Pressure of Safety Valve	130.5
Aspiration State Temperature	0～104°F
Cooling Method	forced air cooling
Air Volume Adjustment Method	Upload and Uninstall
Discharge Temperature	≤A-temperature+59°F
Transmission Mode	Coupling direct connection
Oil Content of Discharged Air	≤3Pmm
Host Motor Speed	3495 r/min
Start Method	Star Triangle Start
Noise	62±2dB(A)
Pipe Diameter	NPT 1"
Max Current	81.2 A

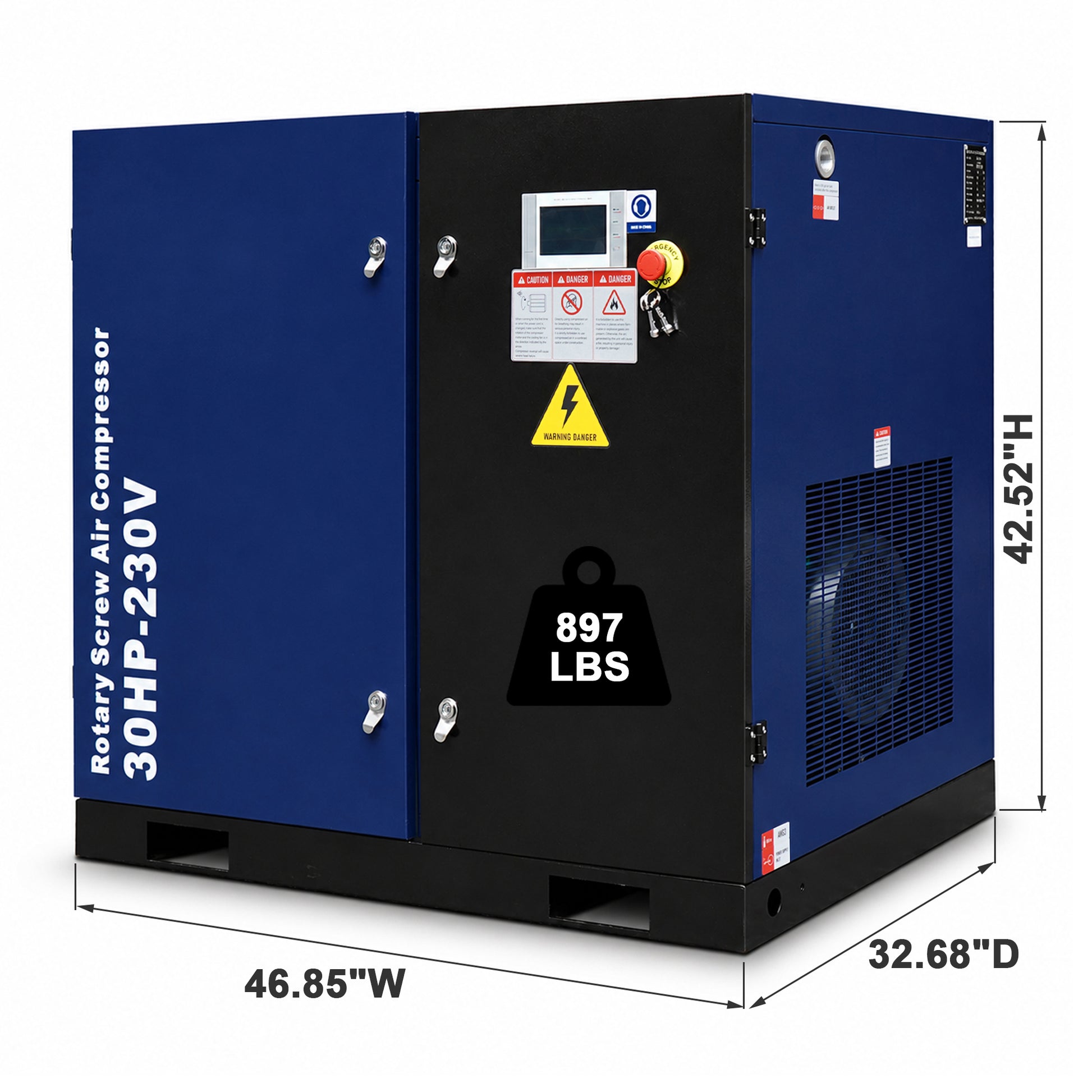

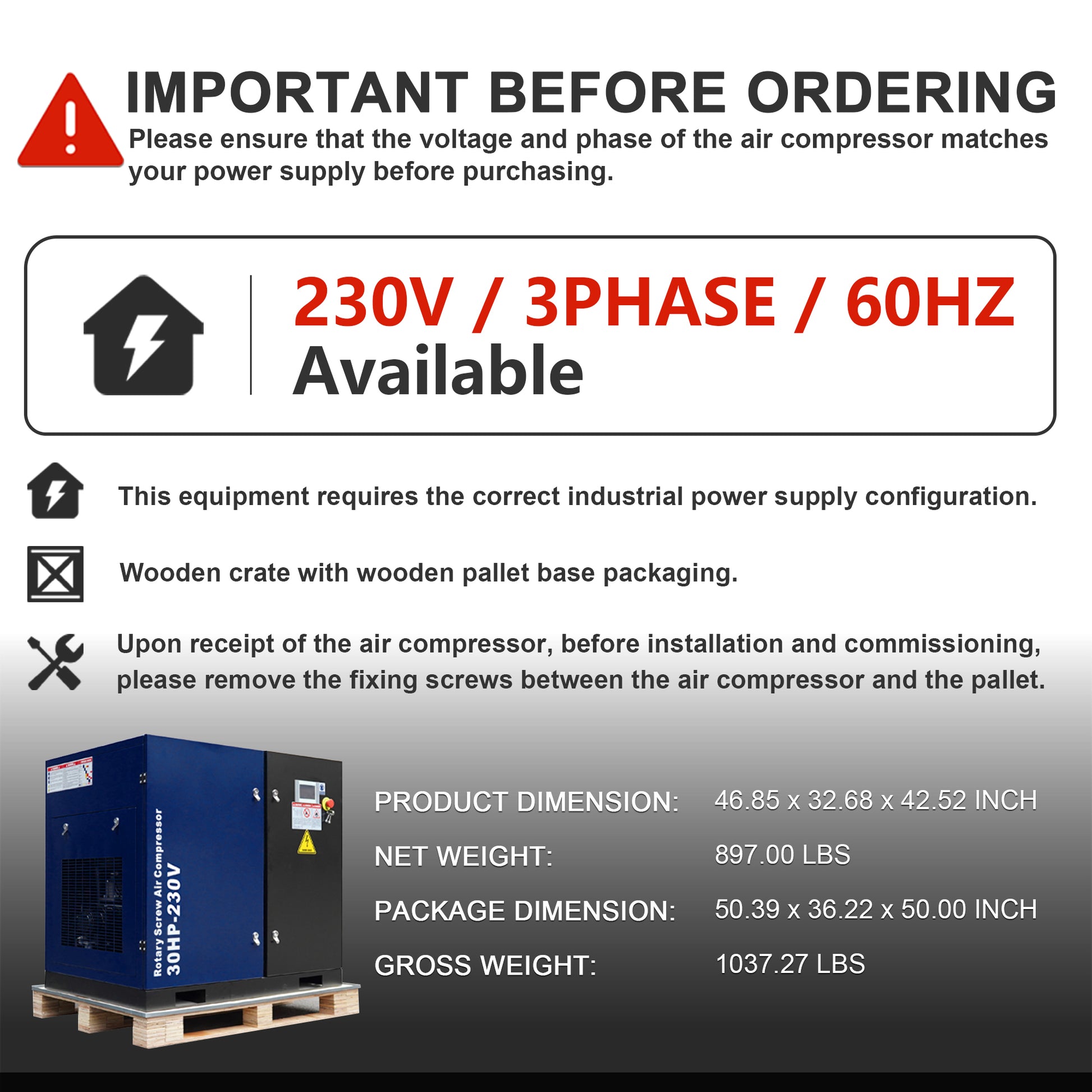

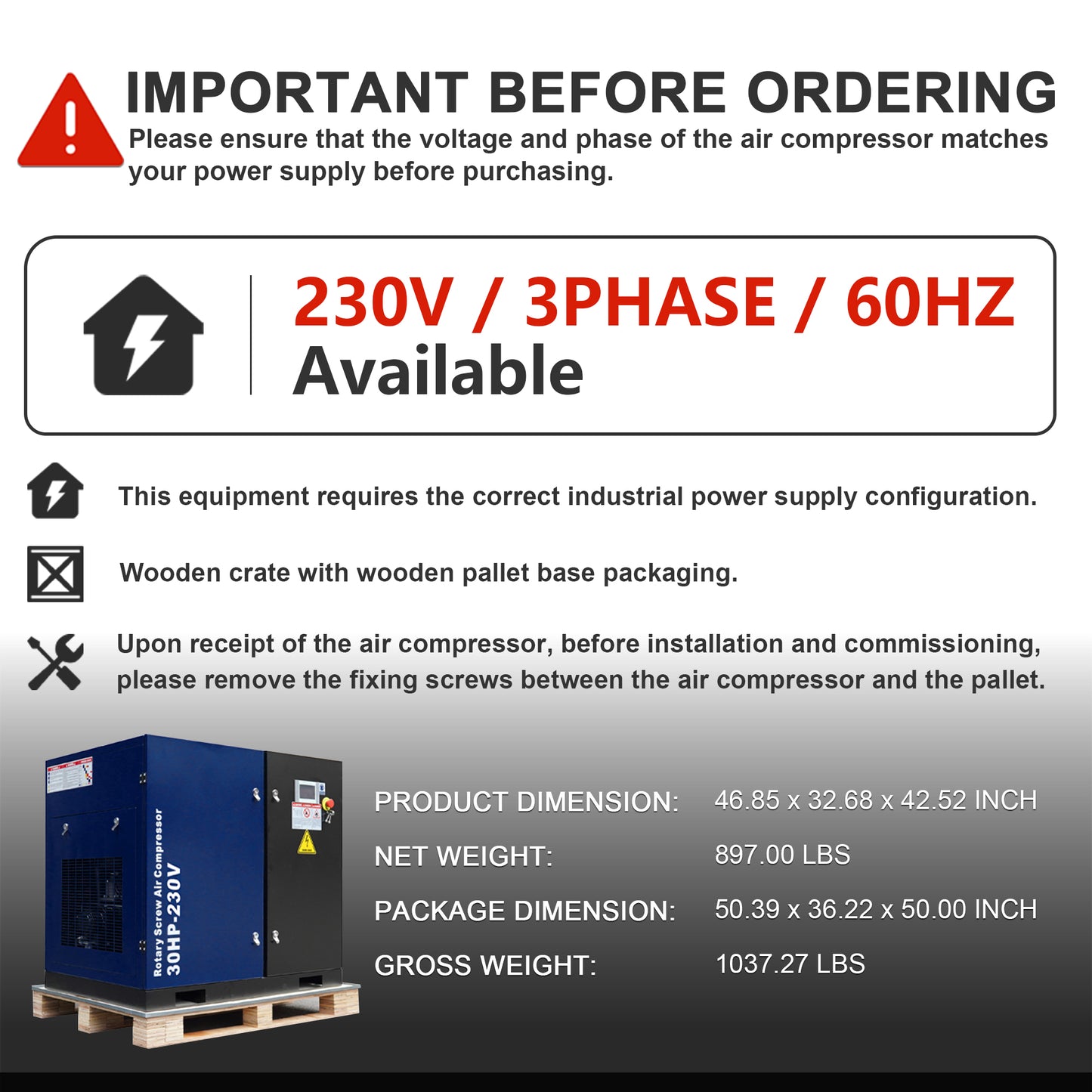

Product Dimension	46.85 x 32.68 x 42.52 in
Net Weight	897 lbs
Package Dimension	50.39 x 36.22 x 50.00 in
Gross Weight	1037.27 lbs
