ZKS Series Electric Vacuum Feeder High-Capacity Powder & Granule Conveying Machine
ZKS Series Electric Vacuum Feeder High-Capacity Powder & Granule Conveying Machine
Verfügbarkeit für Abholungen konnte nicht geladen werden

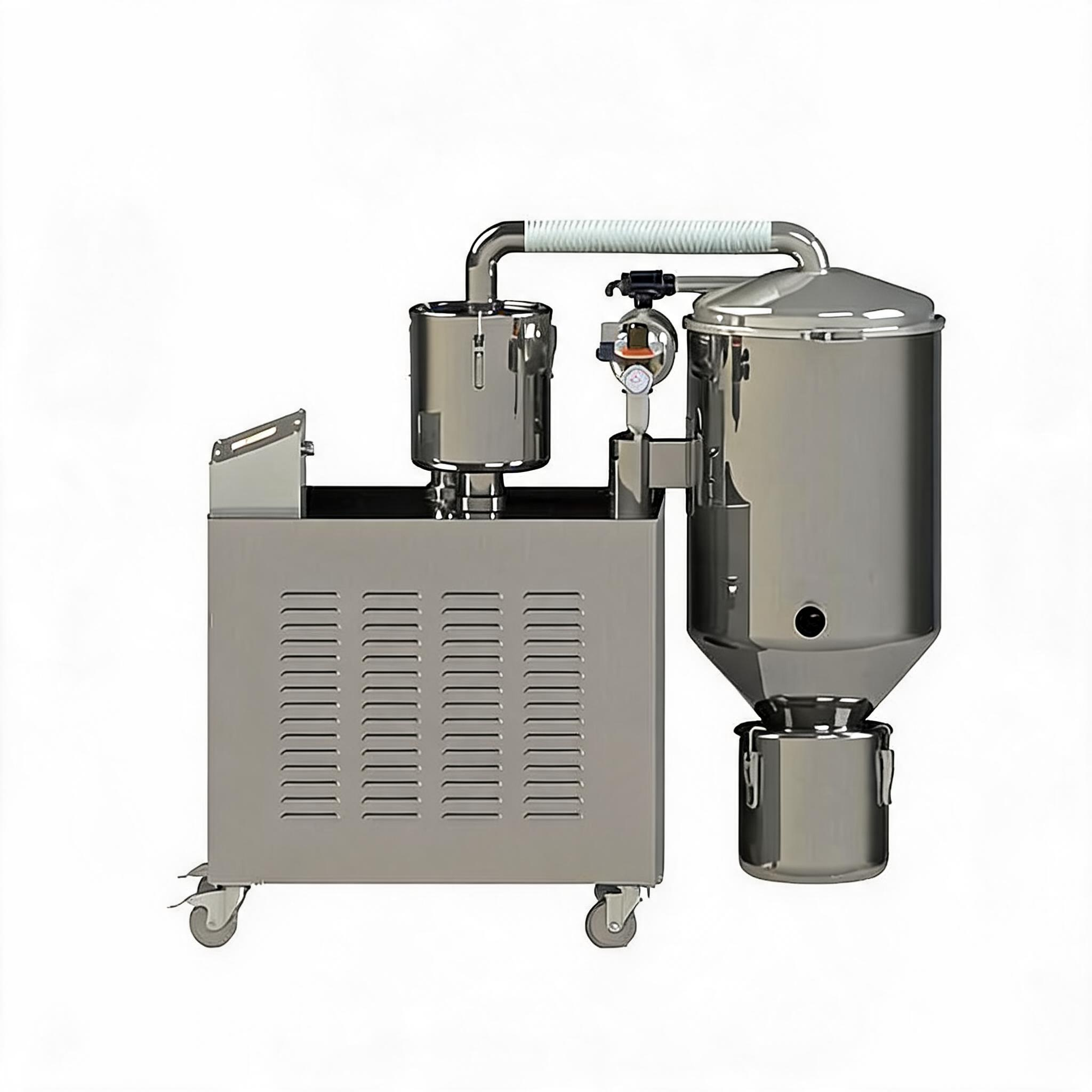

Core Abstract: The ZKS Series Electric Vacuum Feeder is a high-efficiency automated powder and granule conveying equipment powered by a high-quality vortex air pump (electric motor) as its vacuum source. It is extremely suitable for modern dust-free workshops in industries such as pharmaceutical, food, chemical, and new energy, and is particularly applicable for sealed continuous feeding of various powders, granules, and mixed materials. As a premium product of Wenzhou T&D Packing Machinery Factory (CECLE is our registered trademark), the core advantages of this series lie in its powerful and stable electric suction (capacity up to 6,000 kg/h) and its independent operation capability without relying on high-volume compressed air from the workshop. All material-contacting parts of the machine are manufactured from premium 304/316L stainless steel, meeting strict GMP hygiene standards, making it an ideal choice for heavy-load, long-distance, and high-standard dust-free material transfer.
I. Product Overview & Core Advantages
The ZKS Series Electric Vacuum Feeder uses a high-efficiency motor to generate high vacuum levels, drawing materials from silos or containers via negative pressure suction to the target equipment. Its core advantages include:
- Powerful & Stable Conveying: Employs an industrial-grade high-quality vortex air pump that delivers continuous, stable, and powerful vacuum suction, performing exceptionally well when handling high-density materials, long-distance conveying, and high-lift elevation.
- High Adaptability & Independent Operation: Can operate independently without the need for a large factory air compressor, solving the pain point of insufficient or unstable compressed air supply in some workshops. Simply connect to power to achieve efficient feeding.
- Dust-Free & GMP Compliant: The entire system operates under sealed vacuum conditions, completely eliminating dust leakage and environmental contamination. Both the inner and outer walls undergo precision polishing with no hygiene dead corners, fully complying with GMP standards.
- Smart Control & Easy Cleaning: Equipped with an automated control panel for precise timing and an efficient pulse reverse-blow system to prevent filter clogging. Quick-disconnect clamp fittings make maintenance and cleaning extremely convenient.
II. Core Technical Parameter Selection Table
To meet the capacity requirements of different industries, the ZKS Series offers the following standard parameter options:
| Model | Conveying Capacity | Motor Power | Voltage | Weight | Machine Size |
|---|---|---|---|---|---|
| ZKS-1 | 1000 kg/h | 1.5 KW | 380V / 220V | 45 kg | Ø210*750 mm |
| ZKS-2 | 2000 kg/h | 2.2 KW | 380V | 58 kg | Ø250*850 mm |
| ZKS-3 | 3000 kg/h | 3.0 KW | 380V | 75 kg | Ø320*1000 mm |
| ZKS-4 | 4000 kg/h | 4.0 KW | 380V | 90 kg | Ø420*1150 mm |
| ZKS-5 | 5000 kg/h | 5.5 KW | 380V | 115 kg | Ø420*1250 mm |
| ZKS-6 | 6000 kg/h | 7.5 KW | 380V | 140 kg | Ø520*1400 mm |
III. Packaging & Shipping Information
For international shipping and procurement, we provide the following delivery guarantees:
- Minimum Order Quantity & Sturdy Packaging: The minimum order quantity (MOQ) is 1 unit. The equipment is uniformly packaged in sturdy plywood cases with standard spare parts and specialized installation tools included.
- After-Sales Warranty Policy: The entire machine comes with a one-year warranty. Free repairs or replacement parts are provided for non-human damages under normal operation (customer covers shipping from China). Lifetime maintenance support is guaranteed
IV. Frequently Asked Questions (FAQ)
Q: What is the difference between the ZKS Electric Vacuum Feeder and the QVC Pneumatic type? How should I choose?
A: The main difference lies in the power source. QVC relies on factory compressed air (pneumatic) with a lighter structure, while ZKS uses a high-frequency electric motor providing greater suction power and longer conveying distances, ideal for large batches or heavy materials.
Q: What types of materials is the ZKS series suitable for conveying?
A: Powders, granules, and mixed materials, easily handling high-density and bridge-prone items
Q: Does the equipment's filter clog easily? Is cleaning convenient?
A: No, it features an efficient pulse reverse-blow system and a quick-disconnect clamp design for easy manual cleaning.
