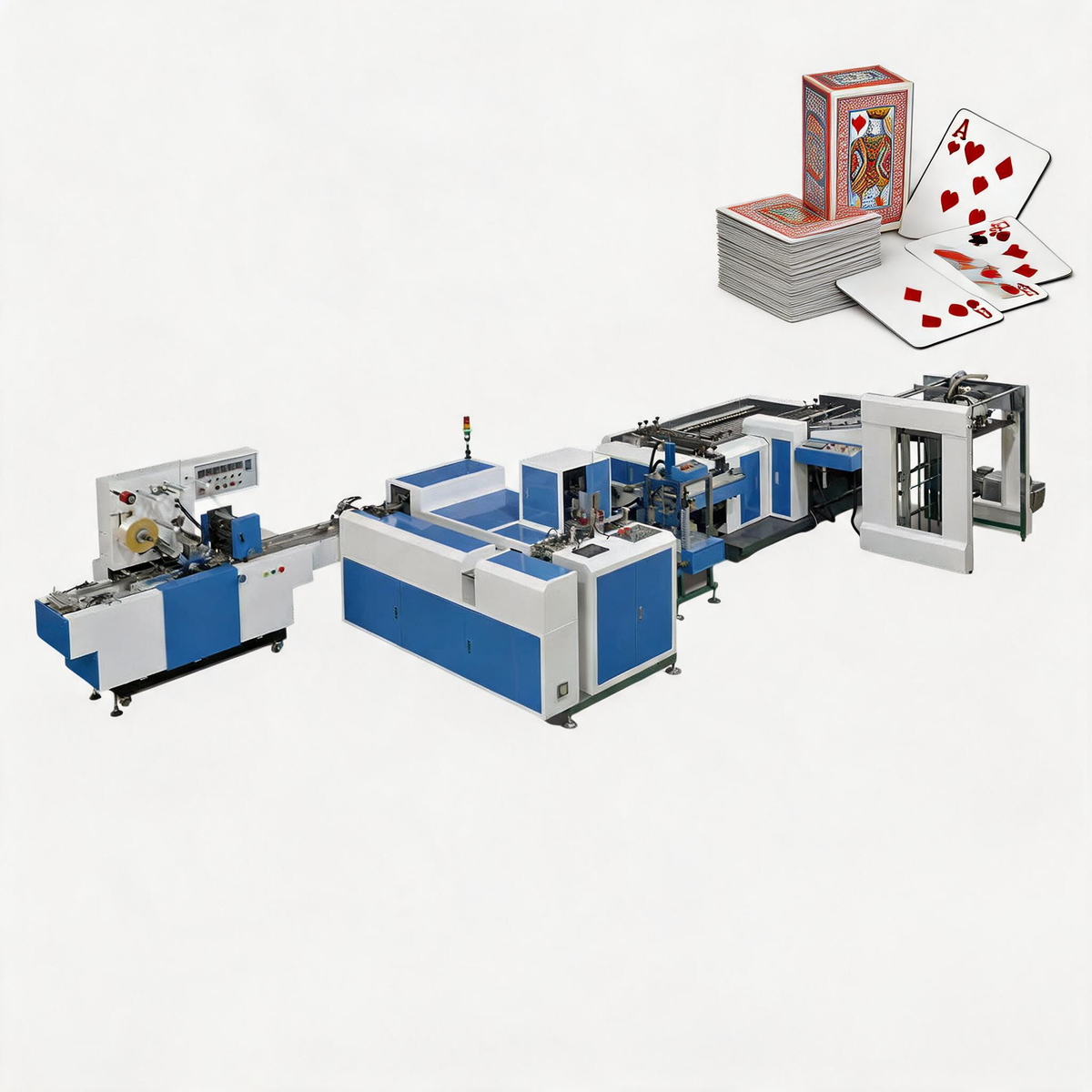

PF-1040S Automatic Card Matching Machine
PF-1040S Automatic Card Matching Machine
Harga reguler
$195,000.00 USD
Harga reguler
Harga obral
$195,000.00 USD
Termasuk pajak.
Biaya pengiriman dihitung saat checkout.
Jumlah
Tidak dapat memuat ketersediaan pengambilan
Product Overview: The PF-1040S Automatic Card Matching Machine is a high-end, fully integrated assembly line designed for the automated slitting and collating of playing cards and board game cards. Capable of reaching speeds up to 4000 decks per hour, this machine flawlessly handles paper feeding, slitting, sorting, counting, boxing, and wrapping—all while guaranteeing the original printing sequence remains perfectly intact.
📖 Deep Technical Specifications & Installation Guides
Looking for detailed electrical schematics, layout requirements, or operator training manuals for this heavy-duty assembly line?
Visit the PF-1040S Technical Documentation Station ➔I. Engineering Excellence & Unmatched Automation
Independently developed by CECLE, the PF-1040S represents the pinnacle of back-end packaging automation for professional card manufacturers. It eliminates manual intervention and ensures absolute precision.
- Fully Automatic Closed-Loop Production: Integrates automatic paper feeding, longitudinal/transverse slitting, card collating, sorting, counting detection, box inserting, and plastic wrapping into one seamless process.
- Guaranteed Printing Sequence: The precision slitting and collating mechanism strictly follows your layout design, ensuring 100% correct card order in every deck without disruption.
- Premium Global Components: Features core electrical components imported from Schneider (France), combining optical, electrical, and pneumatic systems for safe, stable, and highly reliable operation.
- High-Speed Output: Achieves an optimal operating speed of 4,000 decks per hour, drastically improving output for large-scale manufacturing.
II. Core Technical Specifications
| Specification Parameter | Technical Data |
|---|---|
| Model | PF-1040S |
| Max. Paper Size | 1040 × 720 mm |
| Min. Paper Size | 720 × 560 mm |
| Max. Card Size | 63 × 88 mm |
| Min. Card Size | 57 × 87 mm |
| Applicable Paper Thickness | 270 - 350 g |
| Optimal Machine Speed | 4000 decks/h |
| Total Machine Power | 13.6 kw |
| Total Weight | 7000 kg |
III. Industrial Logistics & Global Support
- Heavy-Duty Packaging: The 7000 kg equipment is securely packaged using heavy-duty steel channel bases and sturdy fumigation-free wooden cases to guarantee absolute safety during international sea freight.
- Quality Assurance: Prior to dispatch, the equipment undergoes comprehensive proofing and testing using your actual paper samples.
- Comprehensive Warranty & On-Site Service: Includes a standard one-year warranty on core components. Given the complexity of this assembly line, we provide global on-site engineer installation, debugging, and operator training services (travel/accommodation covered by buyer).
IV. Frequently Asked Questions (FAQ)
What paper thickness can this machine handle?
The PF-1040S is designed to handle cardboard thicknesses between 270g and 350g, perfectly covering the standard thickness for the vast majority of high-quality playing cards and board games on the market.
Will the machine disrupt the order of the cards during the slitting process?
Absolutely not. A core advantage of this machine is its guarantee that the "printing sequence remains unchanged." It automatically slits and collates strictly according to your pre-designed layout.
In what specific processes is the automation of this machine reflected?
It is a true fully automatic assembly line. The operator loads printed sheets into the feeder, and the machine completes feeding, slitting, collating, sorting, counting (rejecting errors), boxing, and external plastic wrapping, producing ready-to-sell finished products in a single run.
V. Operation Demonstration
