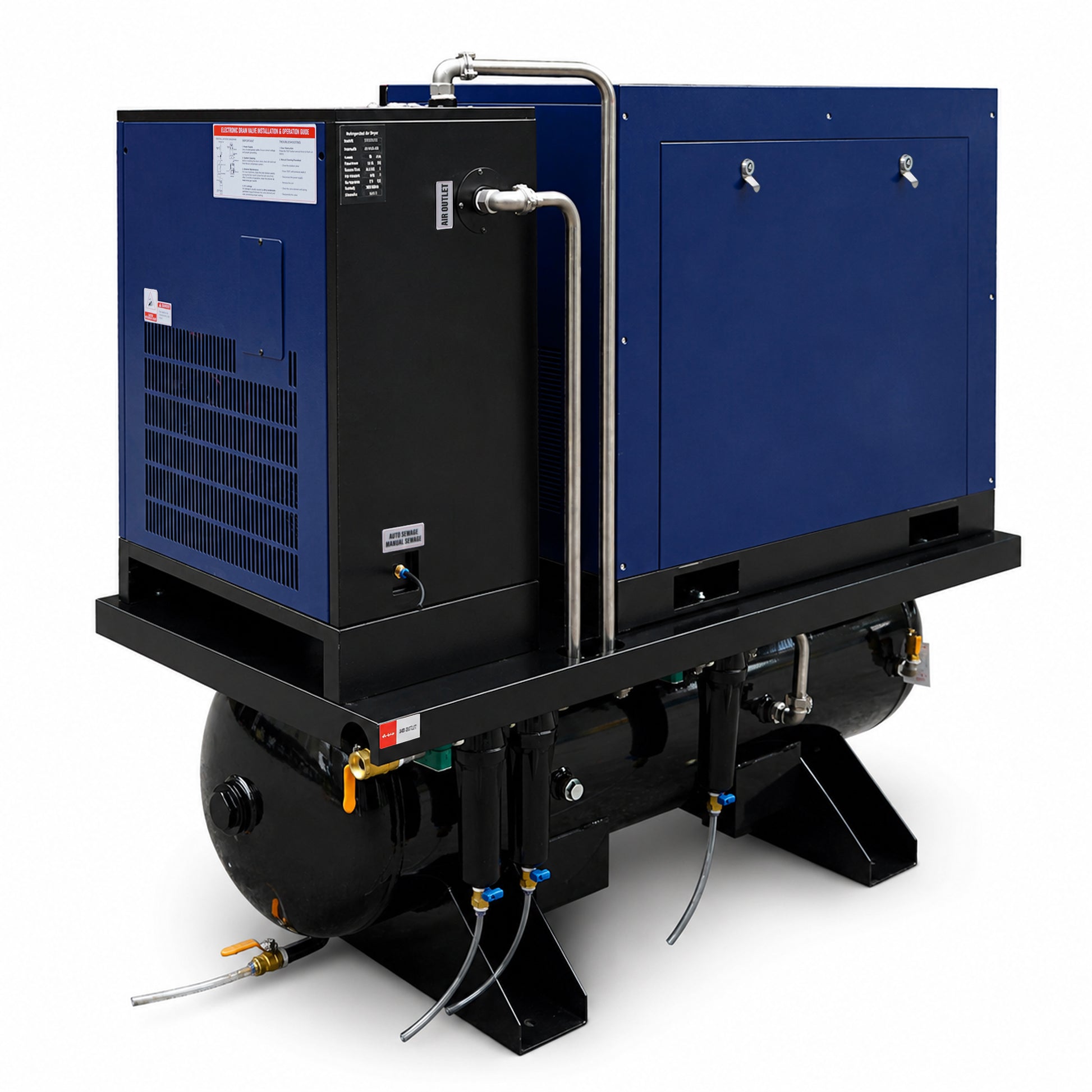

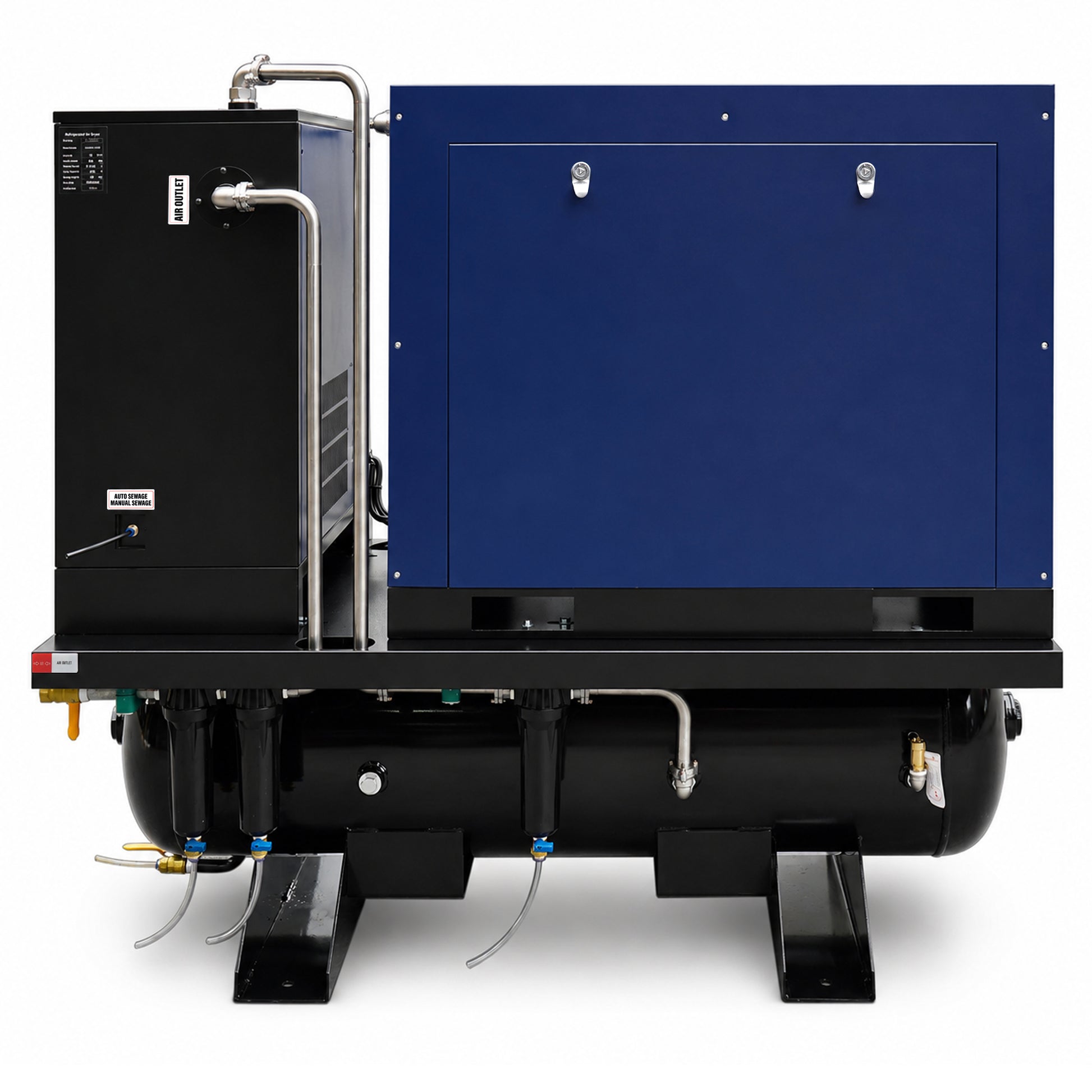

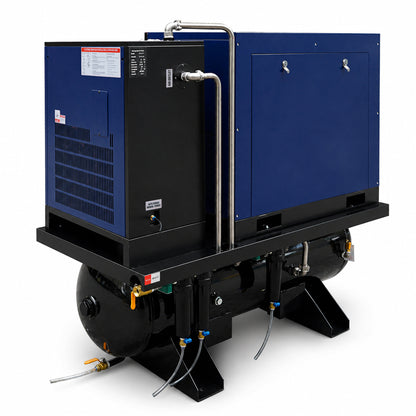

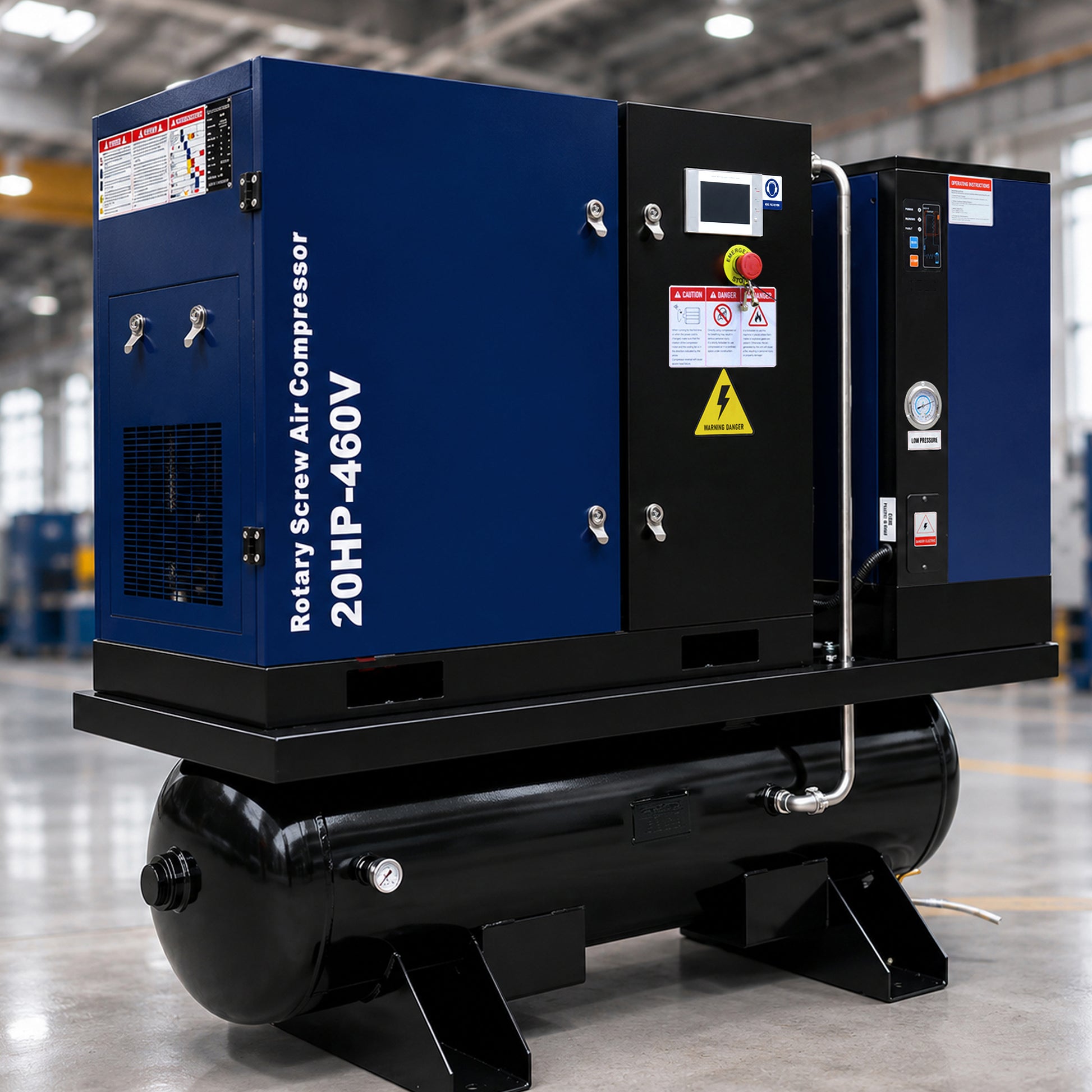

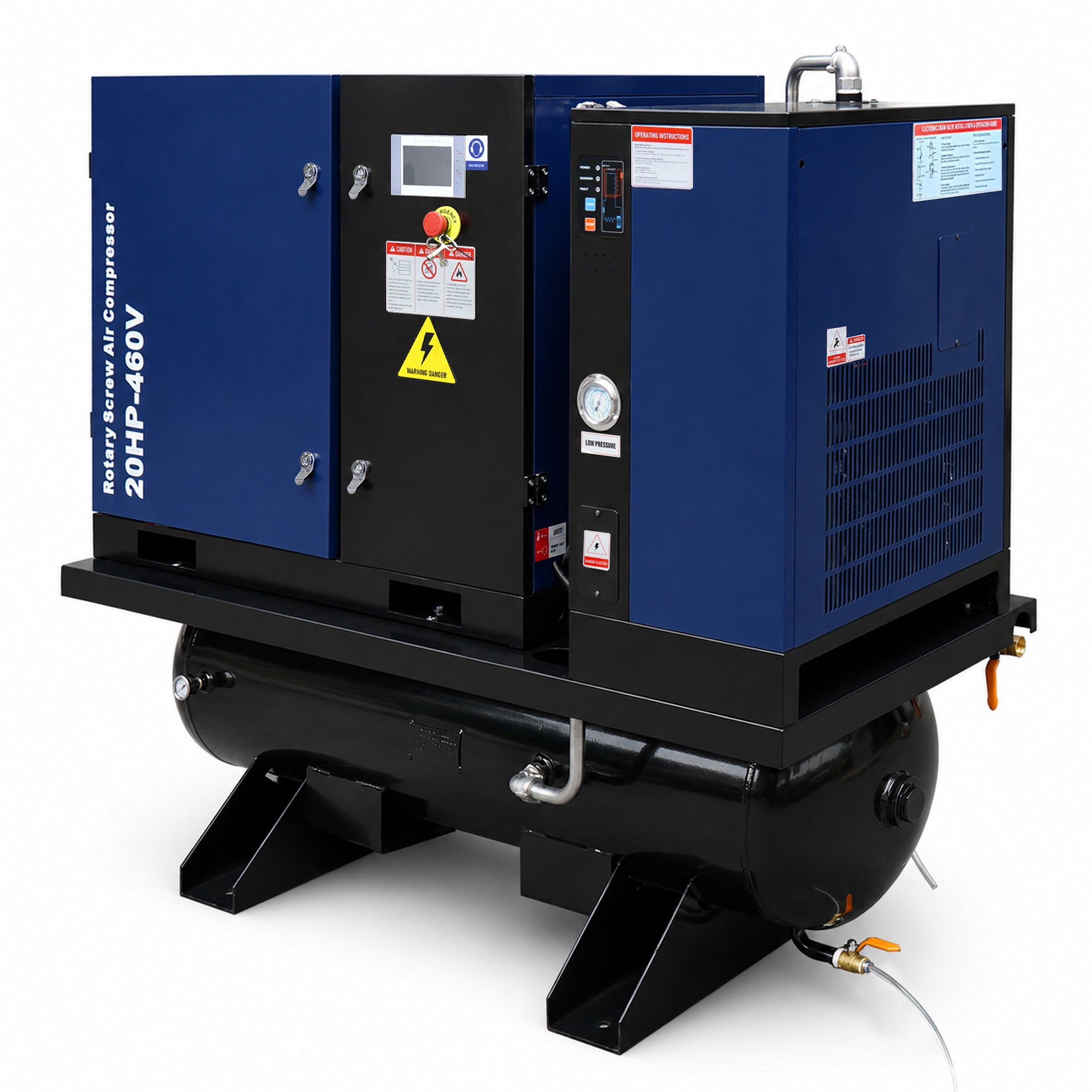

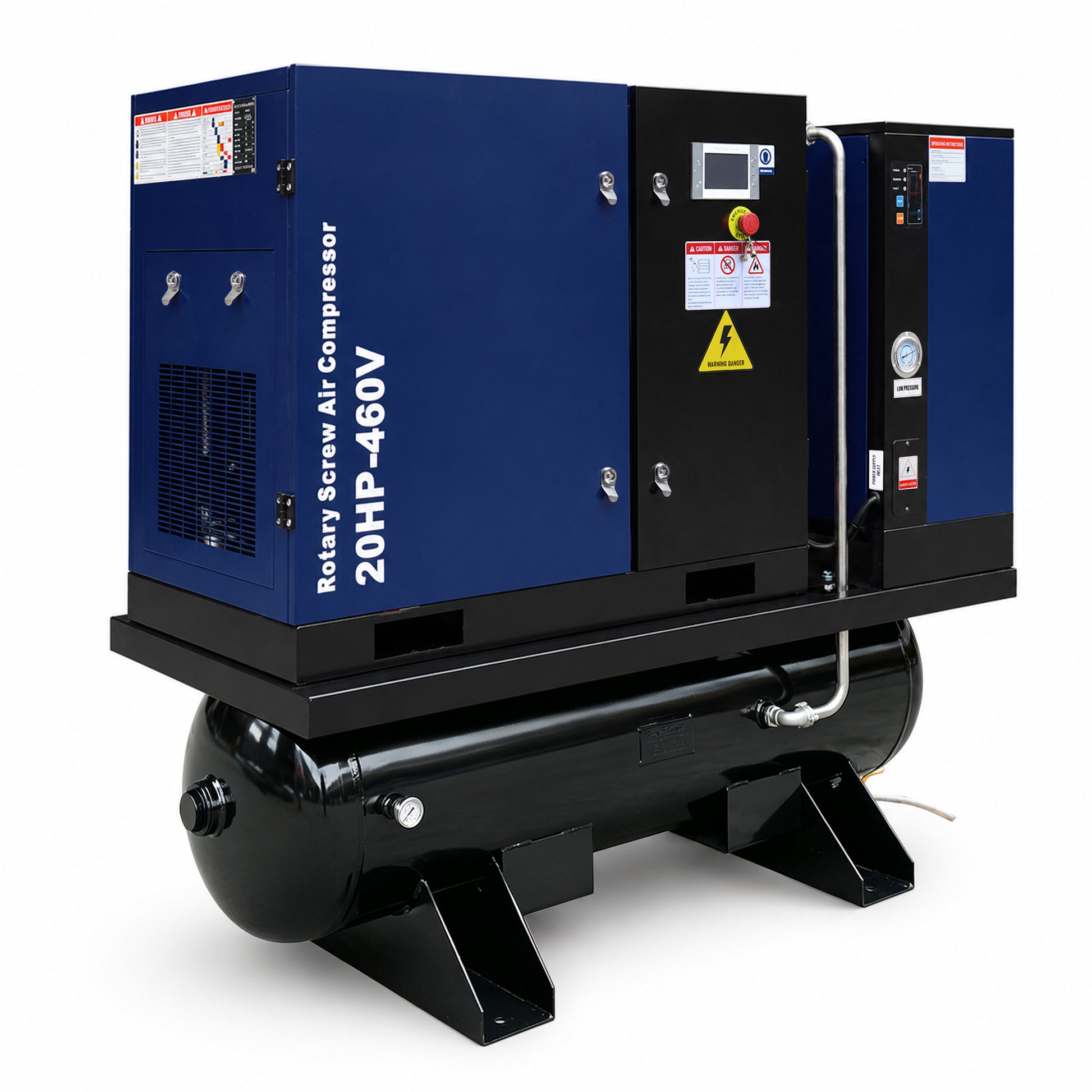

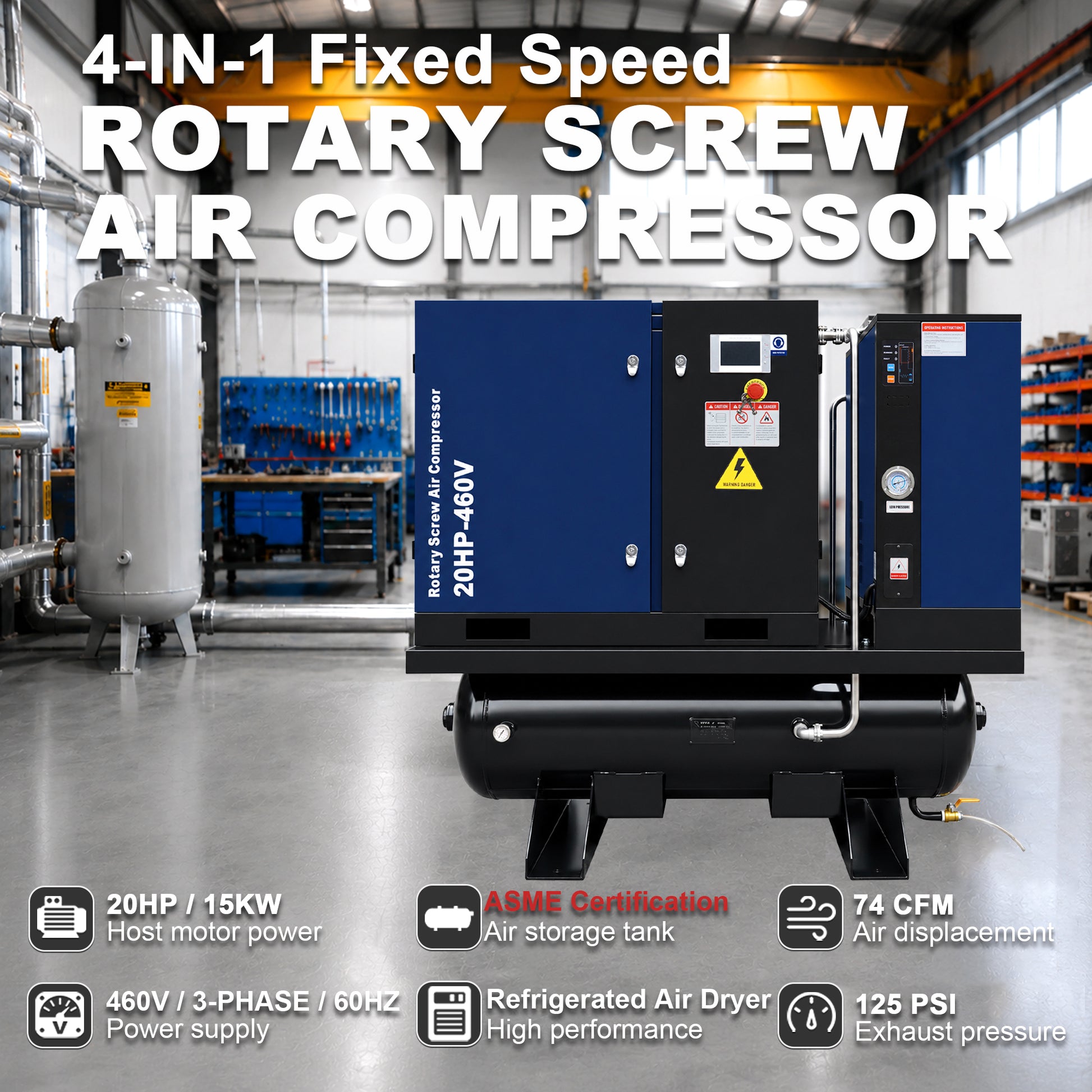

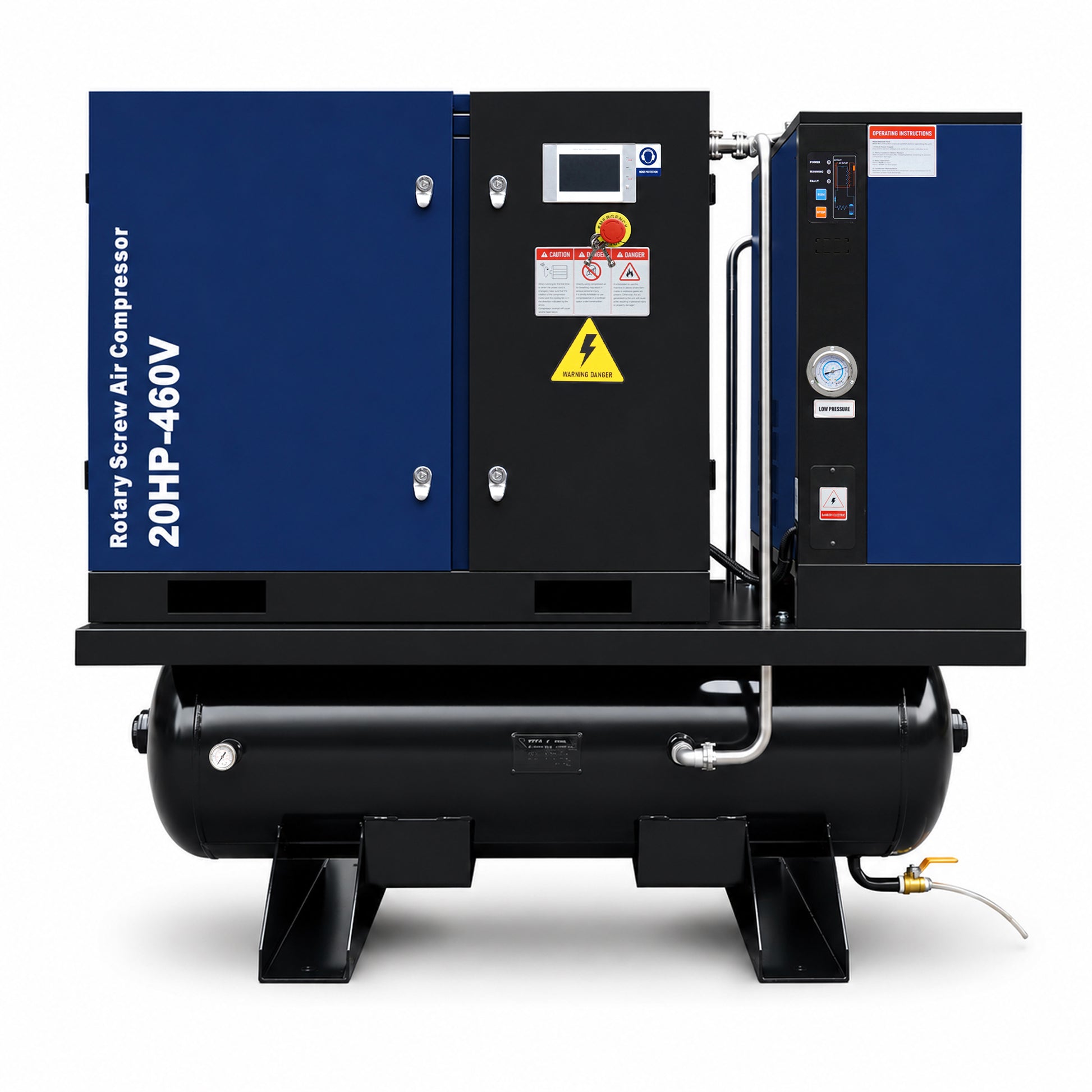

20HP Combined Rotary Screw Air Compressor with Dryer & 68.7-Gal ASME Tank – 74CFM, 125PSI, 460V 3PHASE 60HZ Heavy Duty Air Compressed System – Industrial Grade, 4-in-1

$8,699.00 USD

Obral Habis

Termasuk pajak. Biaya pengiriman dihitung saat checkout.

Model 20HP-460V

Only ship from USA warehouse to USA(PR/AK/HI/GU/AA/AE/AP and PO BOX are not avaliable) Delivery time 7-15 days

Capacity: 74 CFM. Rated Pressure: 125 PSI. Rated Power: 15 KW / 20 HP. Max Current: 27.6 Amp.
Power Supply: 460V / 60HZ / 3-Phase. Motor Speed: 3515 r/min. Start Method: Star Triangle Start. Noise: 62±2dB(A).
Outlet Pipe Size: 1" NPT. Air TanK Volume: 260L / 68.7Gal, ASME Certification Air Tank.
Cooling Method: forced air cooling. Discharge Temperature: ≤A-temperature+59°F. Transmission Mode: Coupling direct connection.

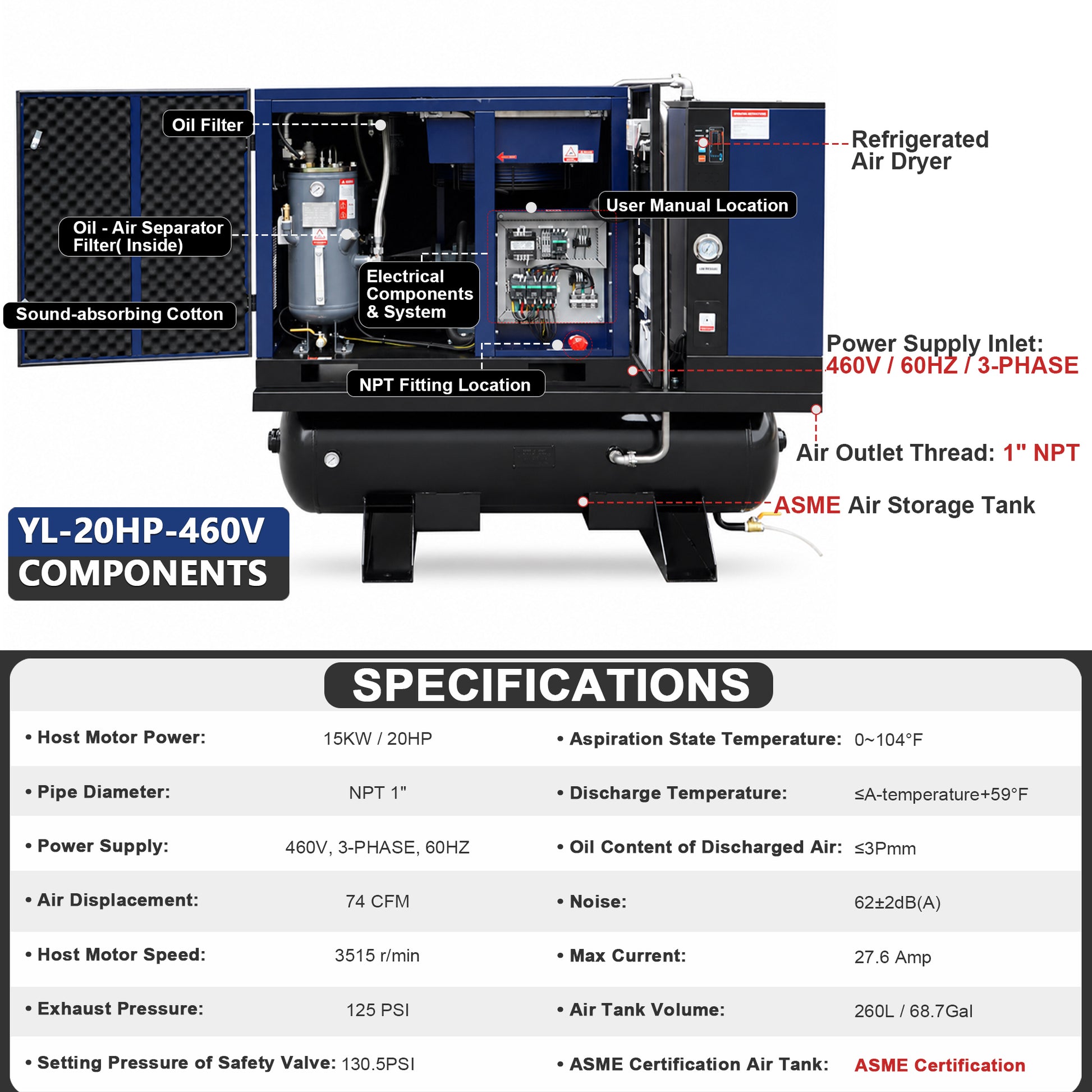

Capacity	74 CFM
Rated Pressure	125 PSI
Rated Power	15 KW / 20 HP
Max Current	27.6 Amp
Motor Speed	3515 r/min
Power Supply	460V / 60HZ / 3-Phase
Outlet Pipe Size	1" NPT
Air TanK Volume	260L / 68.7Gal
ASME Certification Air Tank	ASME Certification
Setting Pressure of Safety Valve	130.5PSI
Aspiration State Temperature	0～104°F
Cooling Method	forced air cooling
Air Volume Adjustment Method	Upload and Uninstall
Discharge Temperature	≤A-temperature+59°F
Transmission Mode	Coupling direct connection
Oil Content of Discharged Air	≤3Pmm
Start Method	Star Triangle Start
Noise	62±2dB(A)
Net Weight / Gross Weight	1044.00 LBS / 1243.41 LBS

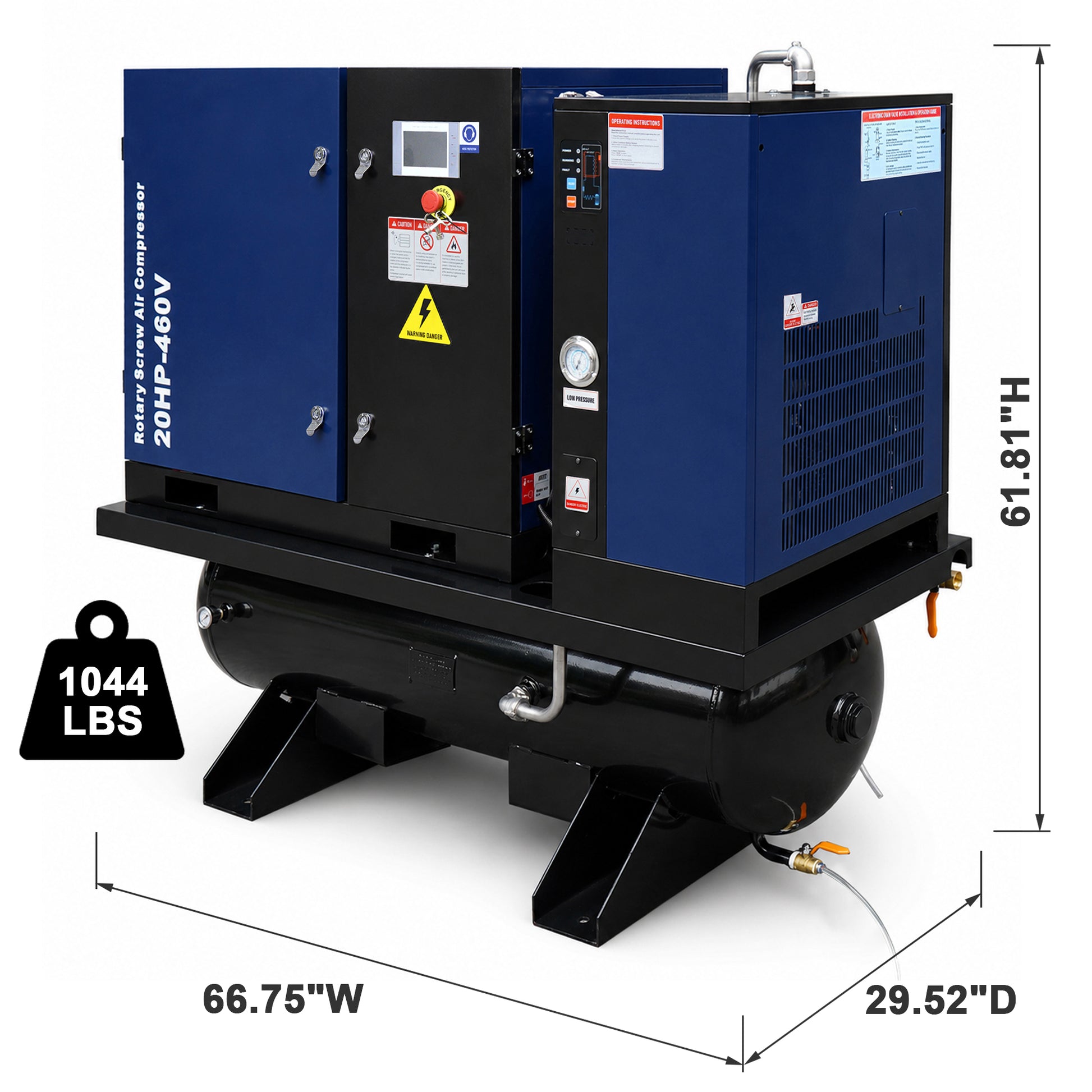

Product Dimension / Package Dimension	66.75 x 29.52 x 61.81 INCH / 69.49 x 32.09 x 68.50 INCH
