CECLE Machine

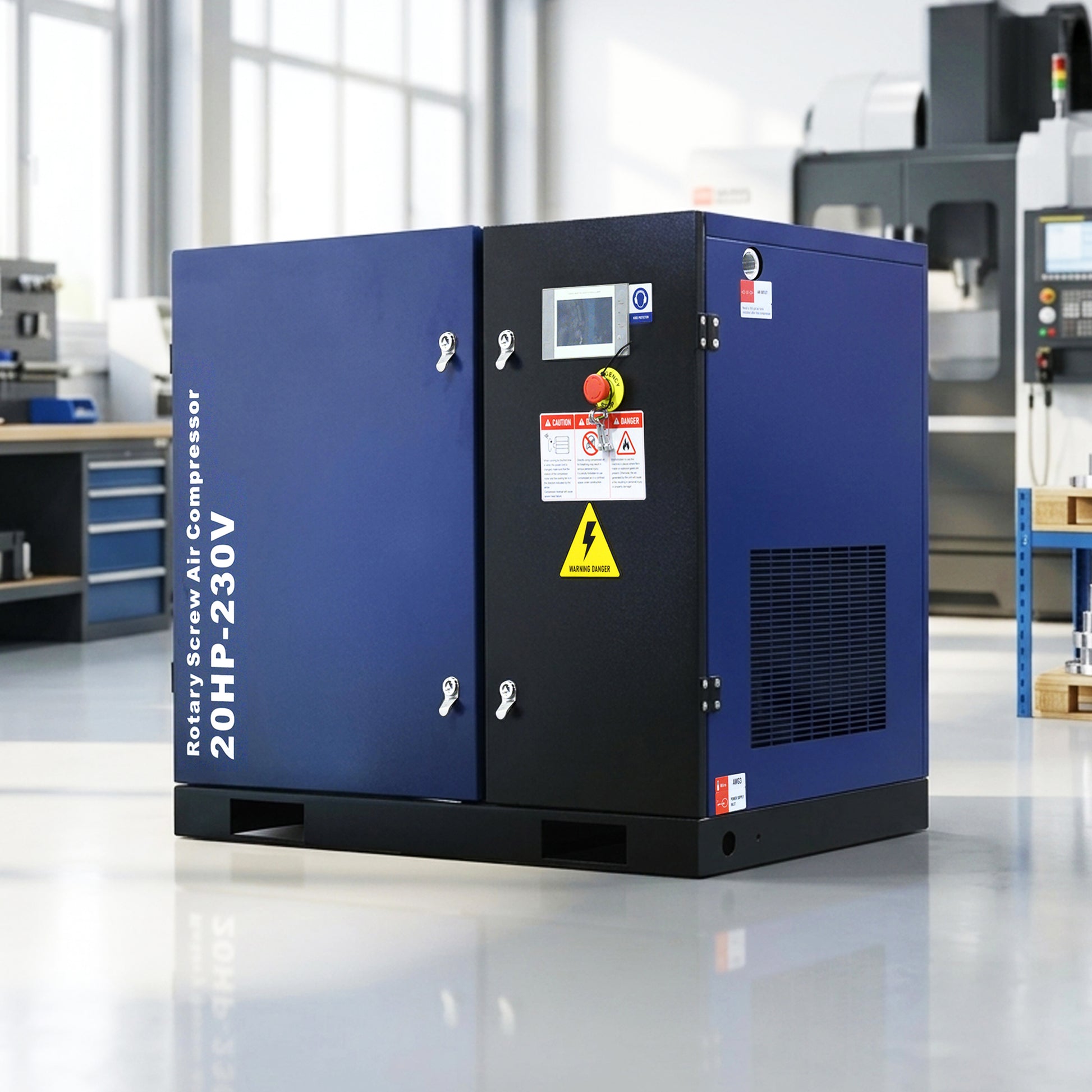

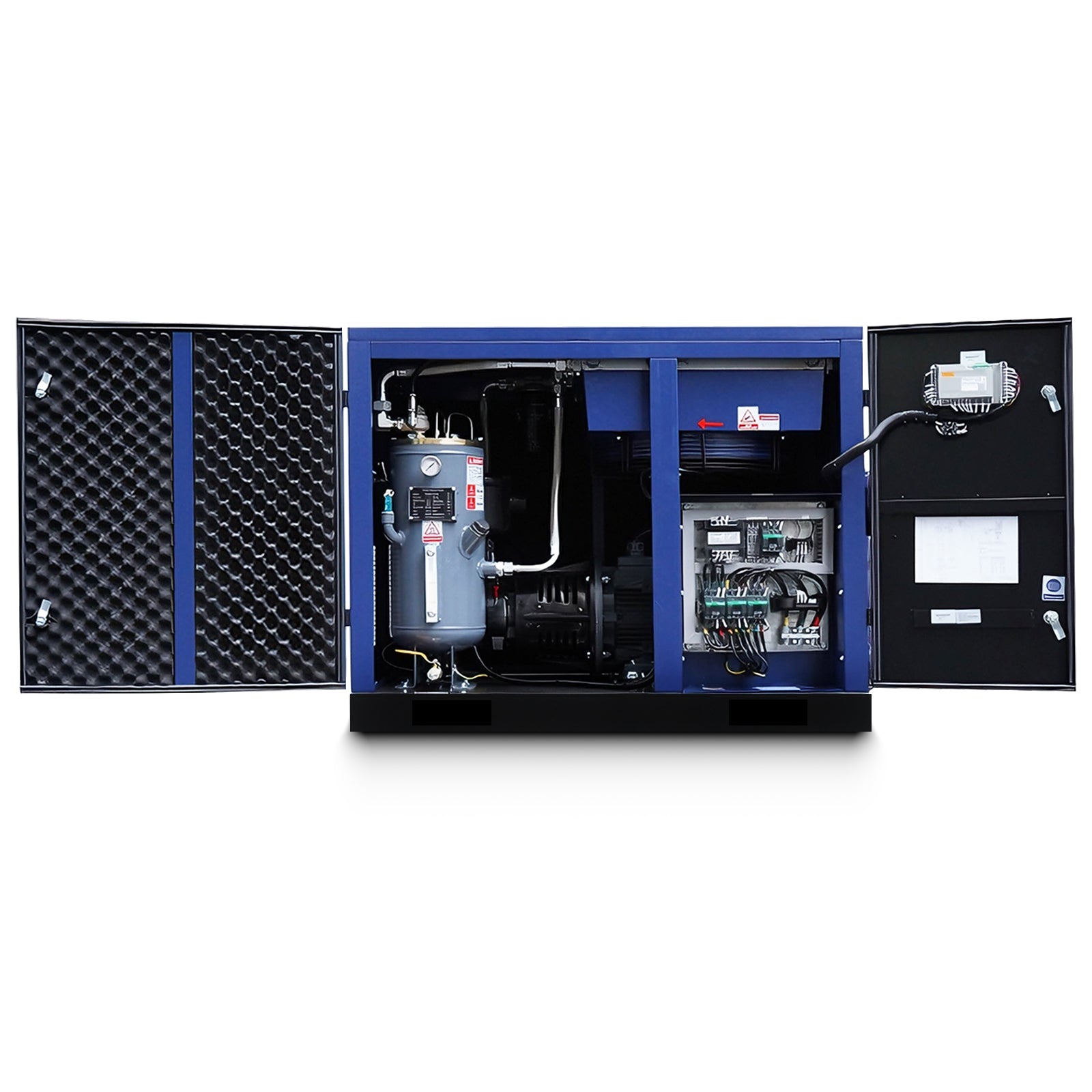

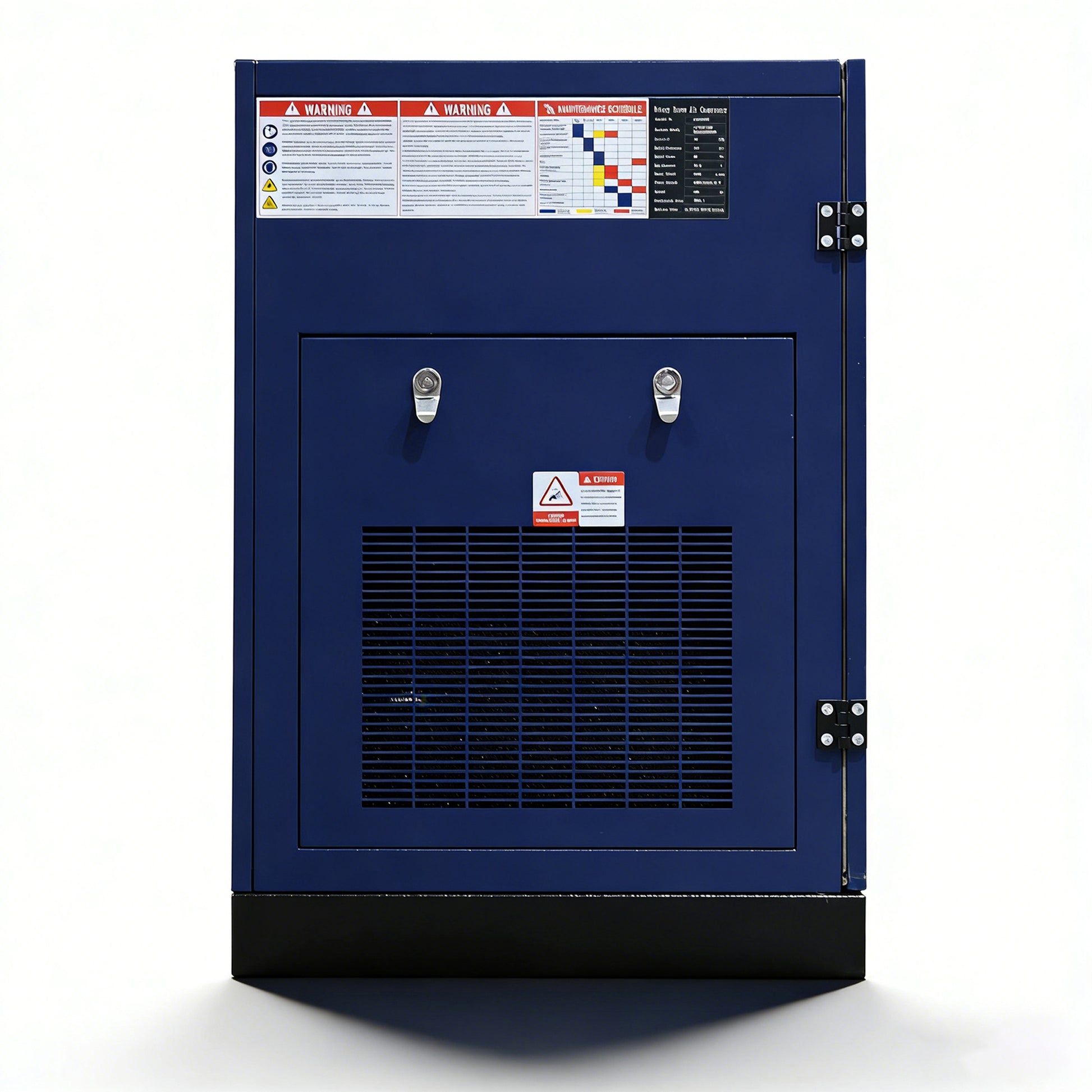

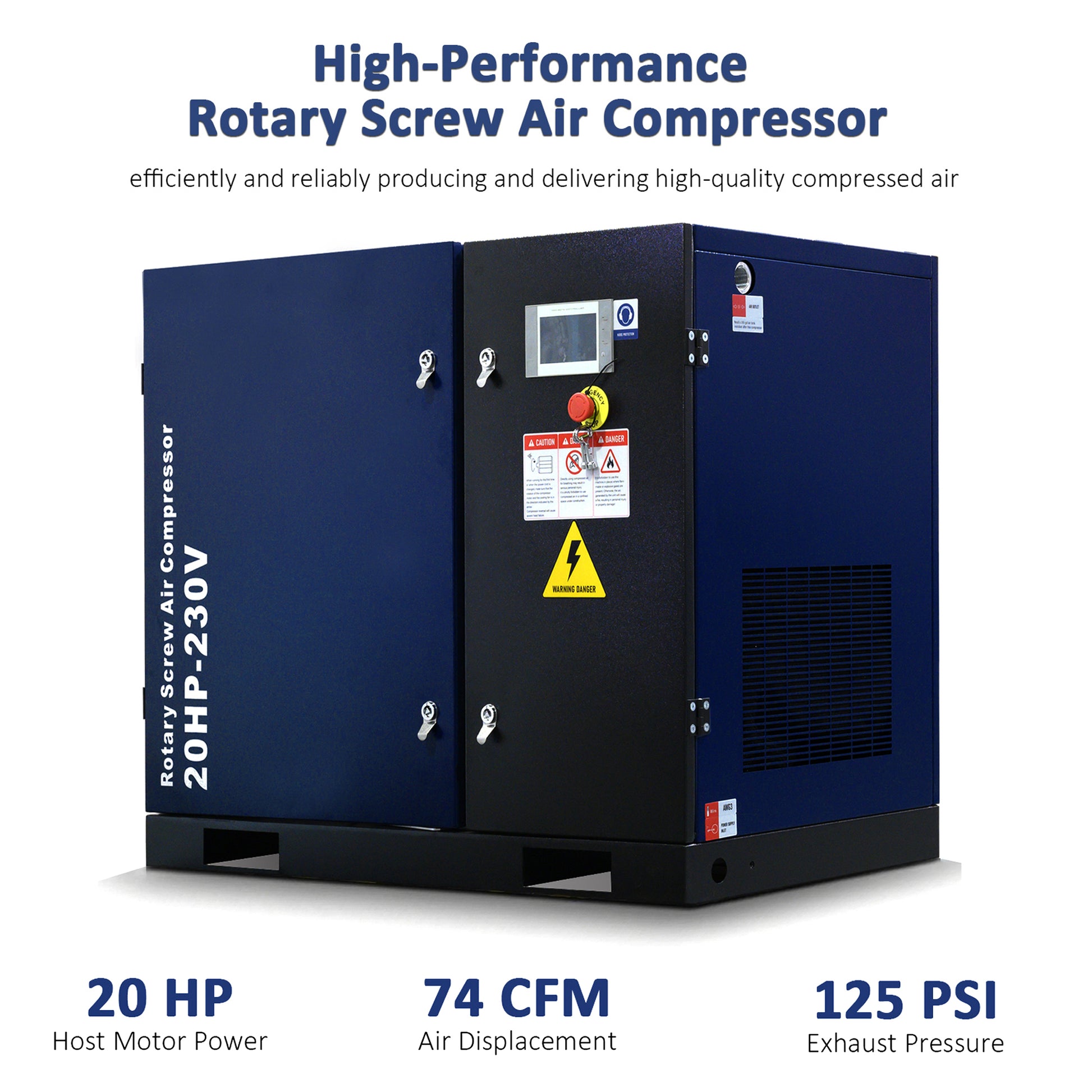

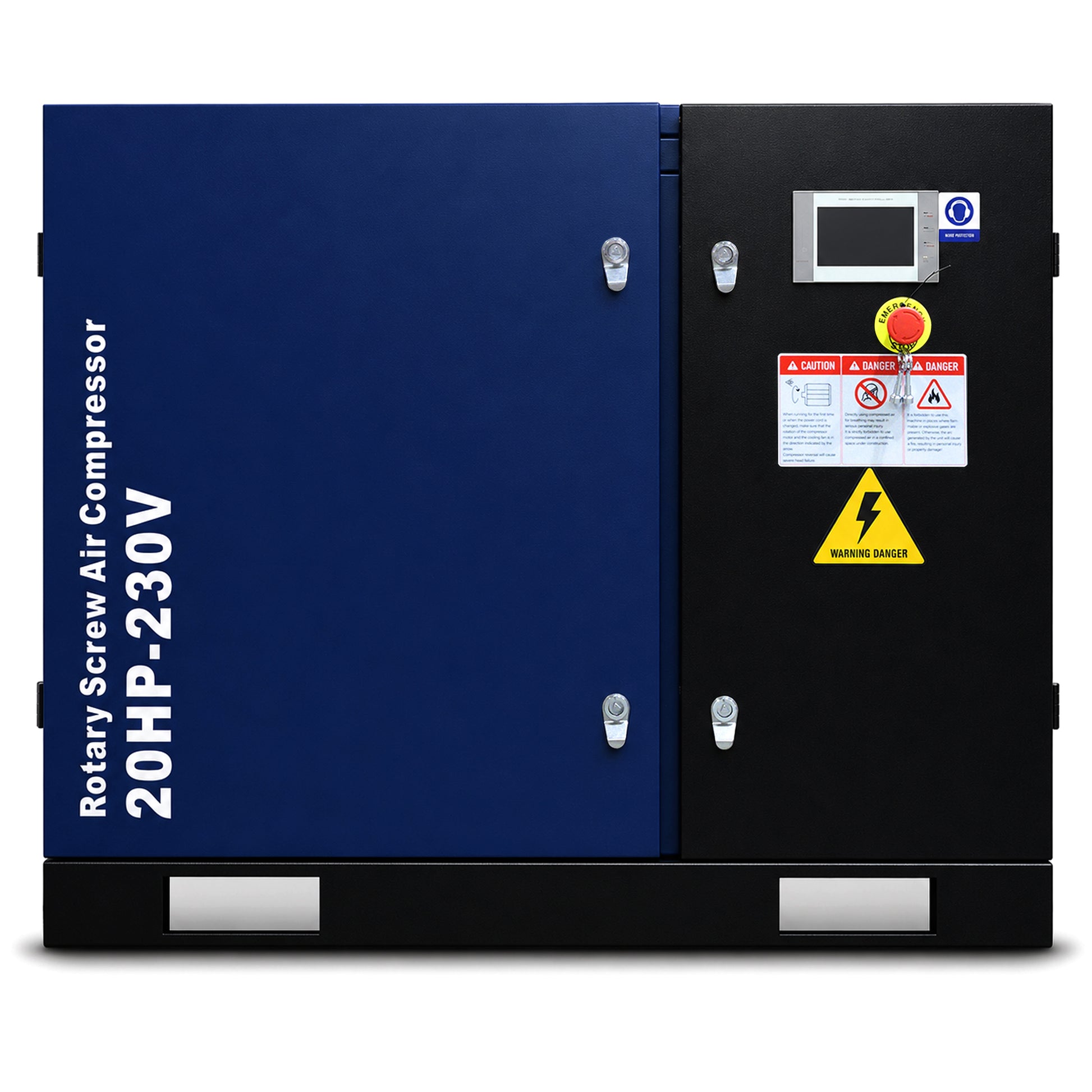

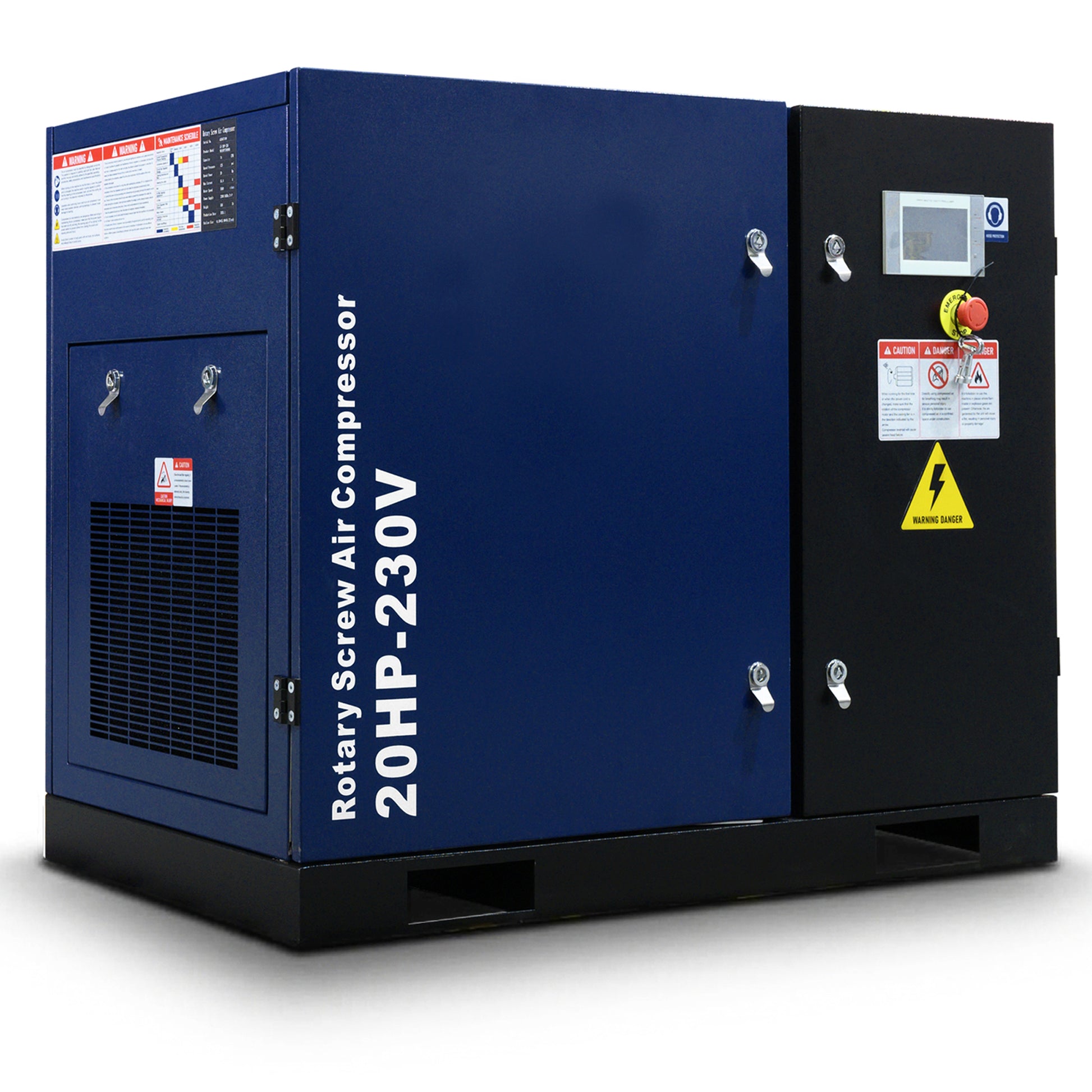

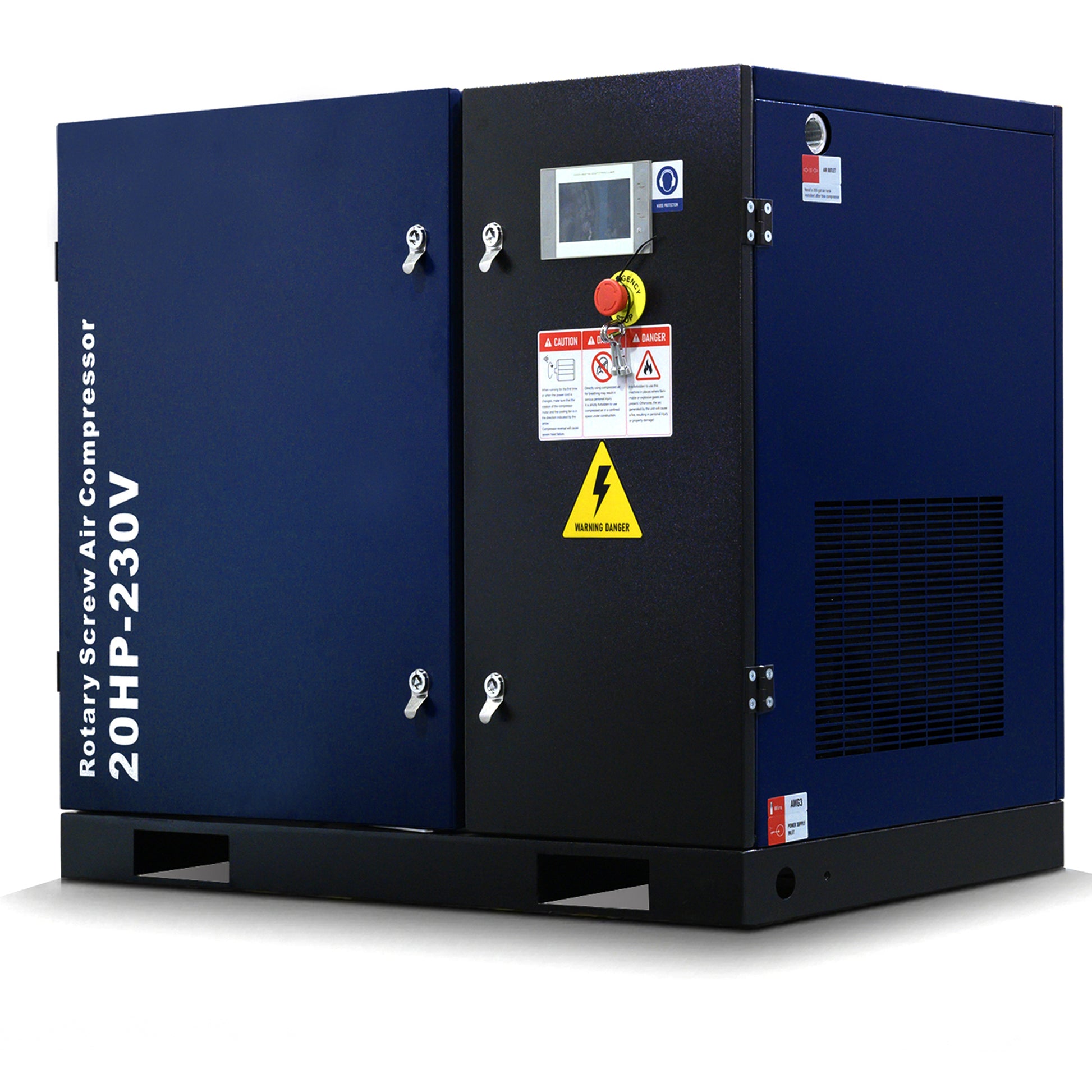

20HP Rotary Screw Air Compressor, 74CFM, 125PSI, 208-230V 3PHASE 60HZ, Fixed Speed Compressor, Industrial-Grade, Heavy Duty Air Compressed System

$4,899.00 USD

Oferta Agotado

Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.

Model 20HP-230V

Only ship from USA warehouse to USA(PR/AK/HI/GU/AA/AE/AP and PO BOX are not avaliable) Delivery time 7-15 days

1. Air displacement: 74 CFM, exhaust pressure: 125 PSI.
2. Host motor speed: 3500 r/min, start method: star triangle start.
3. Host motor power: 15 kw / 20 HP, power supply: 208-230V / 60HZ / 3 PHASE.
4. Pipe diameter: NPT 1", max current: 55.8 A, aspiration state temperature: 0～104°F.
5. Discharge temperature: ≤A-temperature+59°F.

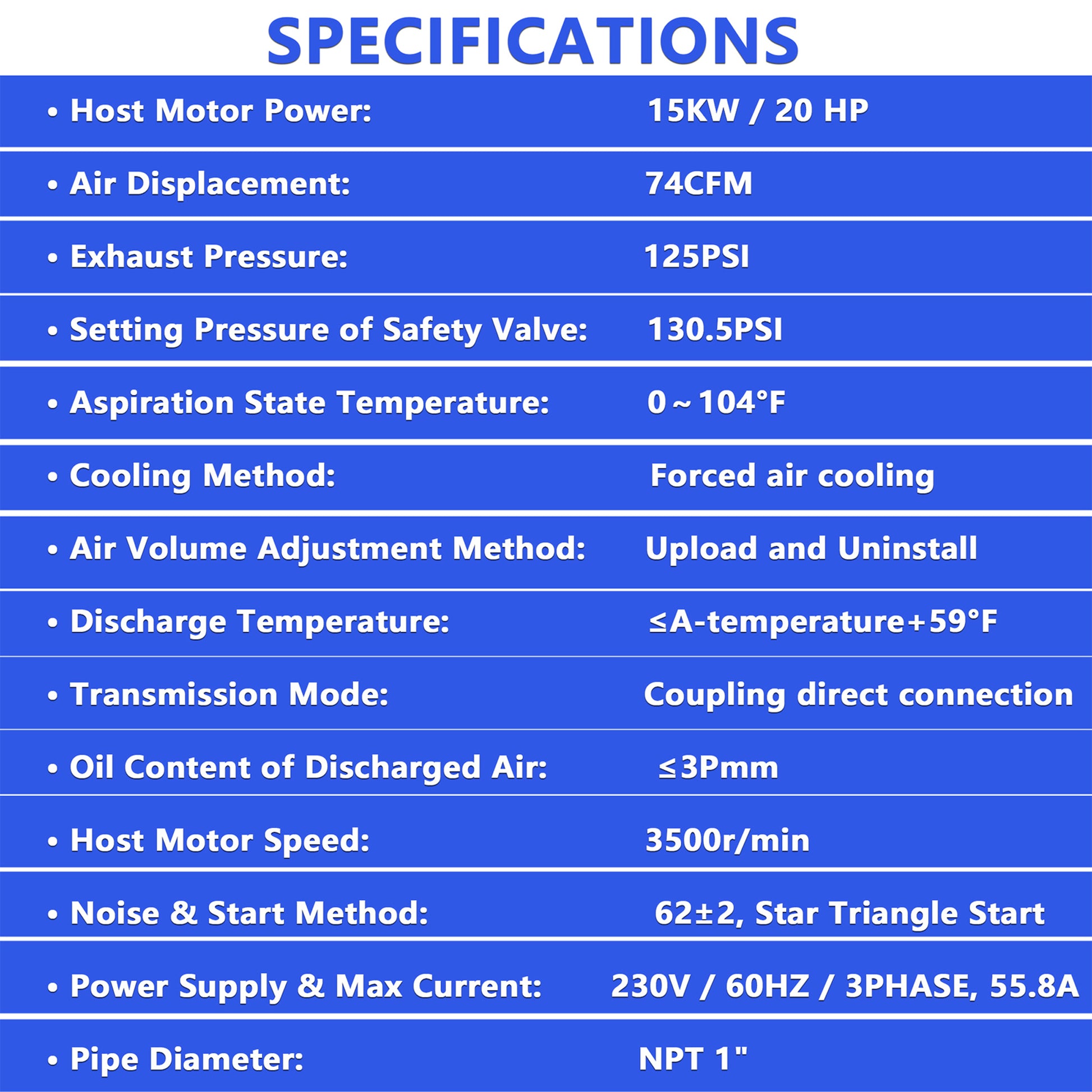

air displacement	74 CFM
Exhaust pressure	125 PSI
Setting pressure of safety valve	130.5 PSI
Aspiration state temperature	0～104°F
Cooling method	forced air cooling
Air volume adjustment method	Upload and Uninstall
Discharge temperature	≤A-temperature+59°F

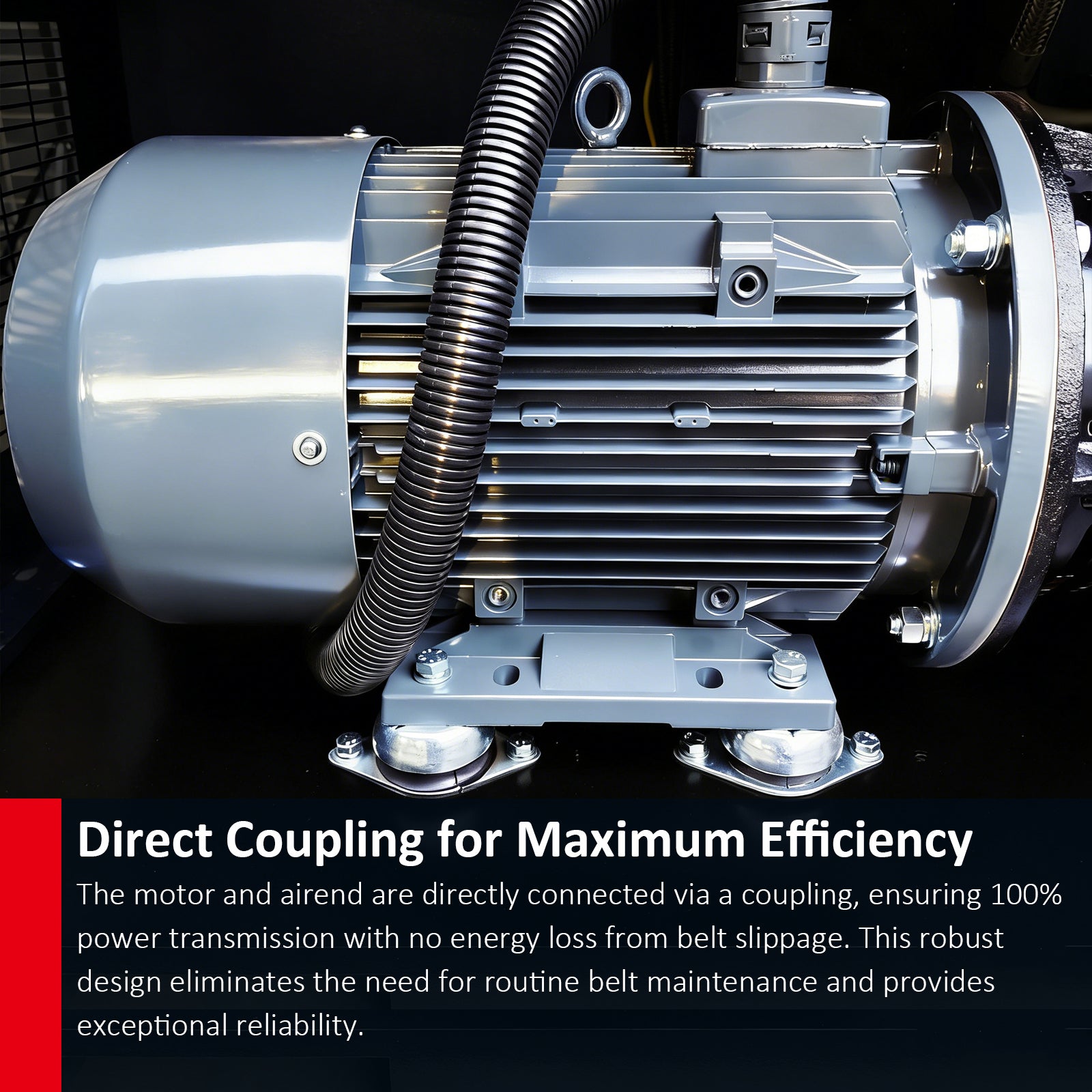

Transmission mode	Coupling direct connection
Oil content of discharged air	≤3pmm
Host motor power	15 kw / 20 HP
Host motor Speed	3500 r/min
Power supply	230 V / 60 HZ / 3 PHASE
Start method	Star Triangle Start
Noise	62±2

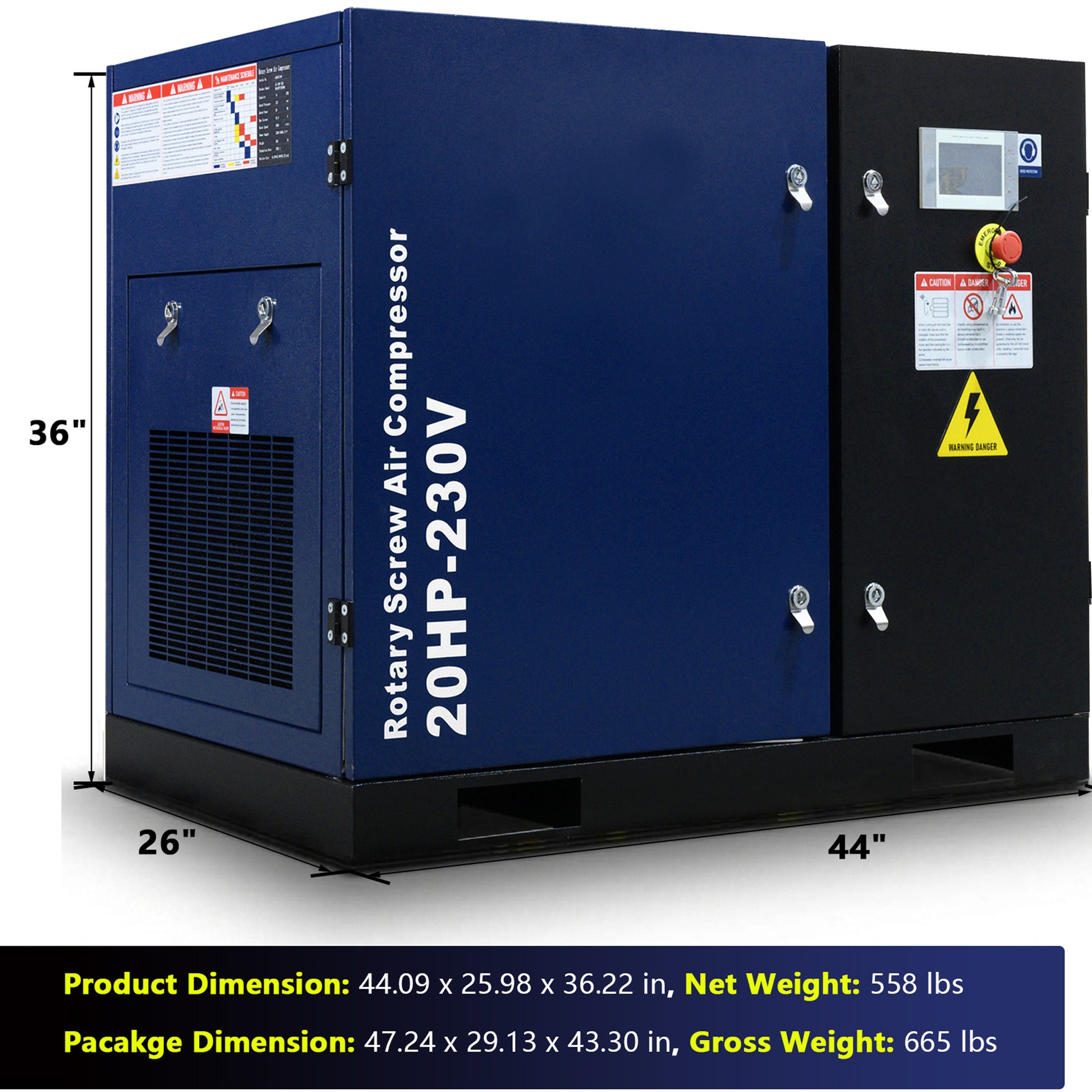

Product Dimension	44.09 x 25.98 x 36.22 in
Net Weight	558 lbs
Pacakge Dimension	47.24 x 29.13 x 43.30 in
Gross Weight	665 lbs

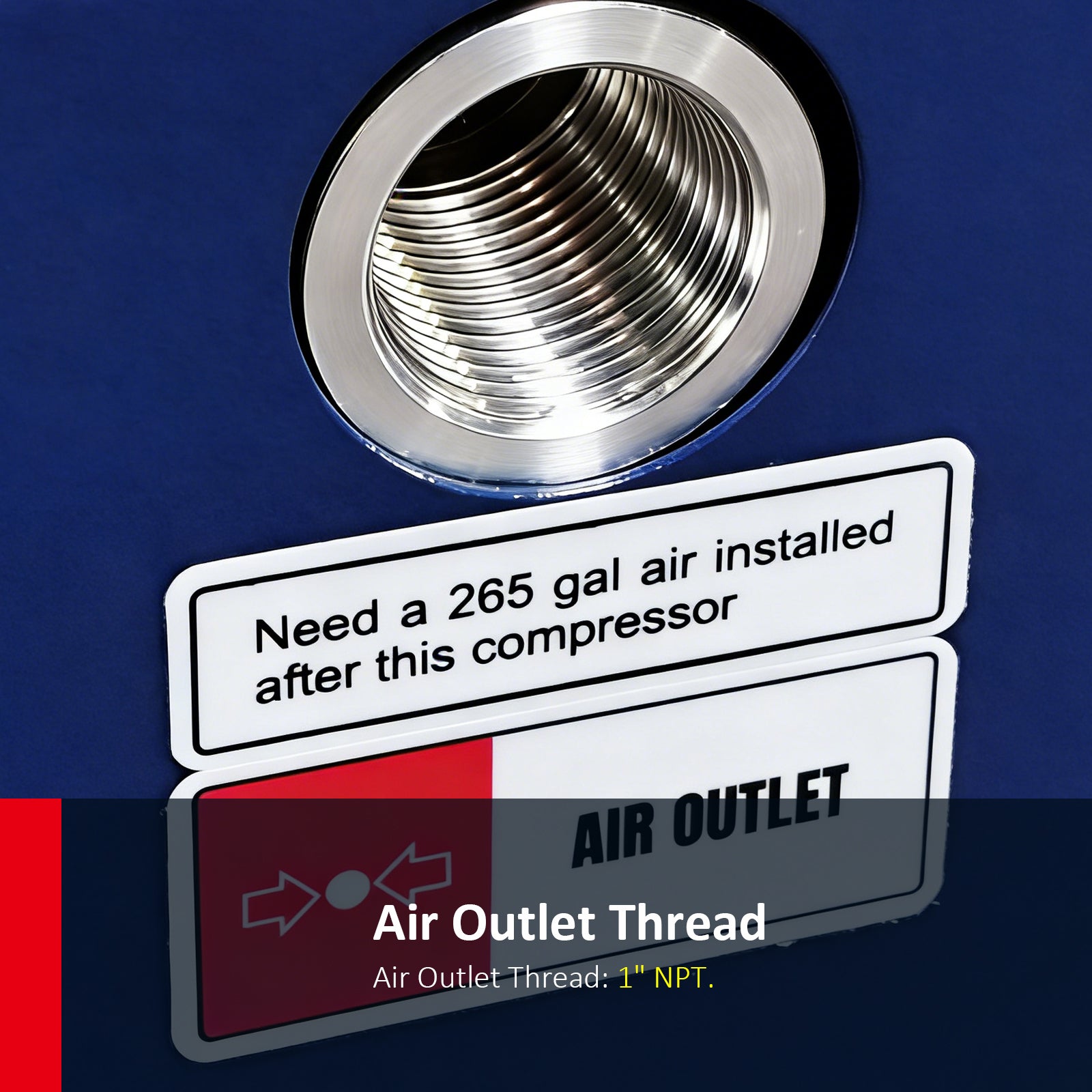

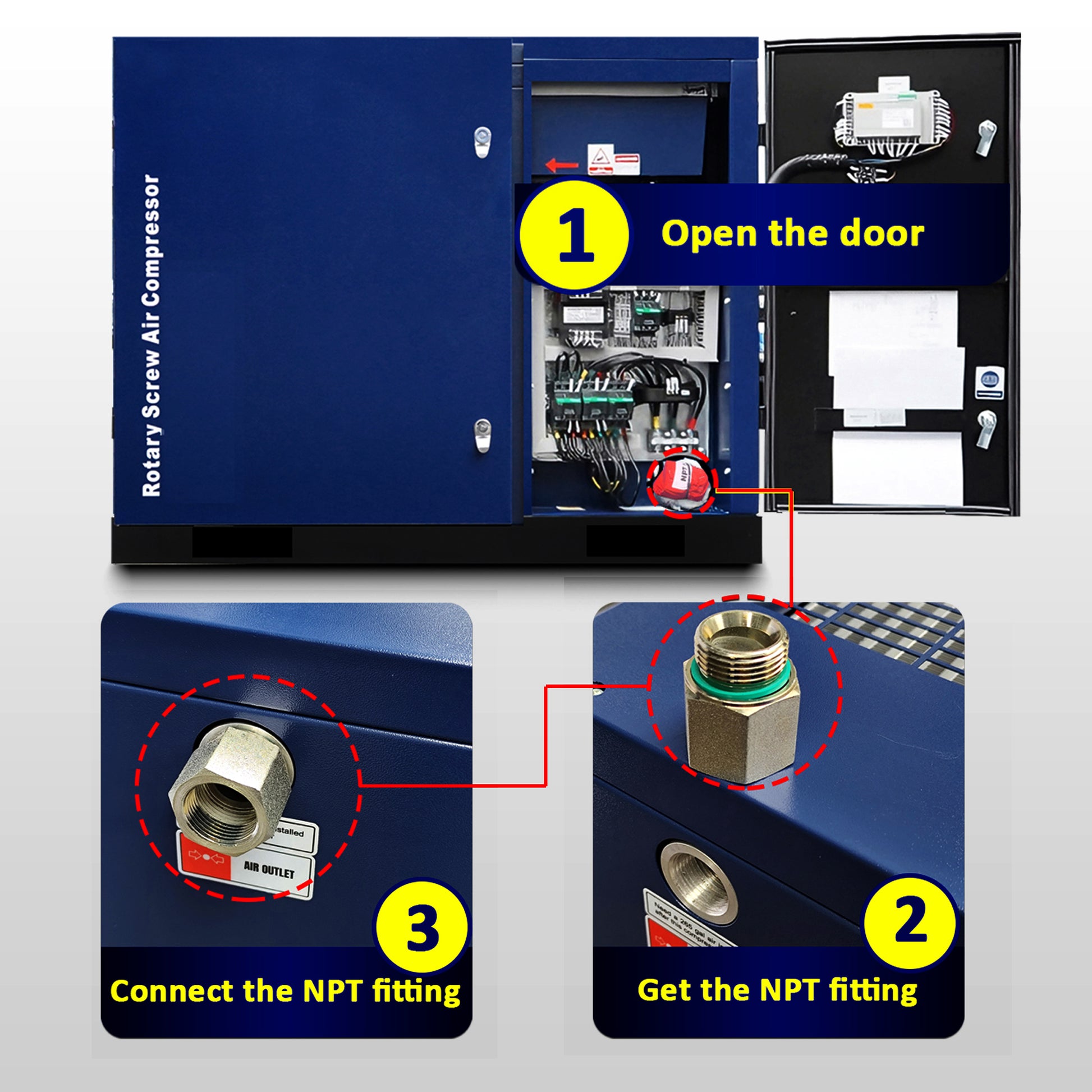

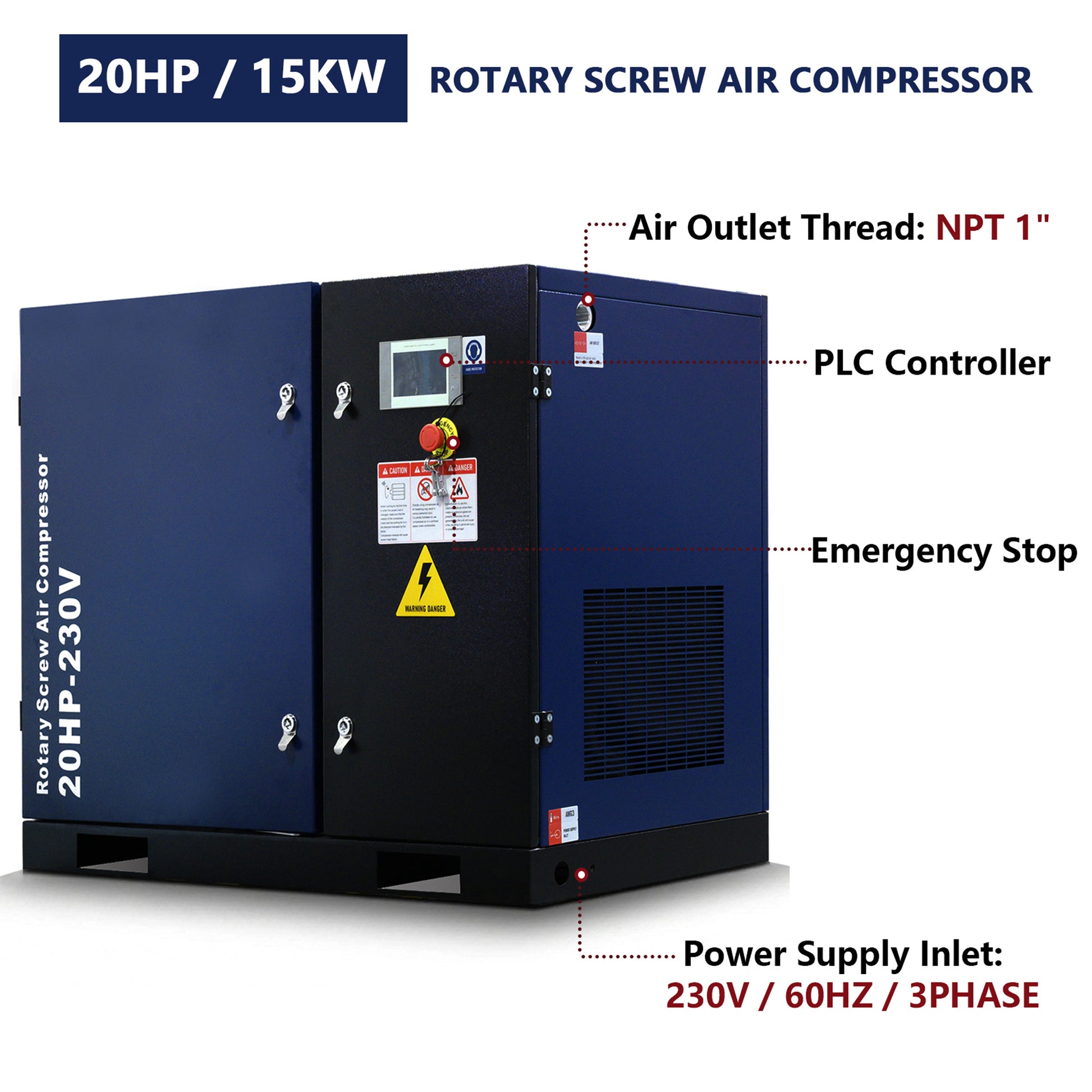

pipe diameter	NPT 1"
Max Current	55.8A
