VFFS & Stand-Up Pouch: FAQ on Speed, Film & Dosing

What is the maximum production speed for liquid and powder stand-up pouch machines in the DGD-W30TD series?

The DGD-W30TD series supports a production speed range of 10 to 60 pouches per minute, making it suitable for both small-scale operations and mid-to-large volume production lines. For liquid applications using the DGD-W30TD-W-YSK280 model, the speed can reach up to 60 pouches/minute when handling low-viscosity fluids like fruit juice or water-based sauces. The DGD-W30TD-W-G300 model, designed for pastes and viscous liquids, maintains high efficiency with speeds up to 55 pouches/minute due to its pneumatic plunger pump and auto-blowoff system. Powder filling via the DGD-W30TD-W-F500 achieves similar throughput, reaching 60 pouches/minute thanks to its vertical auger filler with deep-nozzle insertion that minimizes dust and ensures consistent dosing. These speeds are optimized for snacks & nuts, coffee & powder products, and sauces/pastes/liquids across food and daily chemical industries.

How do film types affect performance and sealing quality in stand-up pouch packaging?

Film compatibility is critical to sealing integrity and machine performance. The DGD-W30TD series accepts premade stand-up pouches made from multi-layer films including BOPP, CPP, PET, and laminated materials, with thickness ranging from 0.04mm to 0.12mm. Films must be compatible with the thermal sealing temperature (typically set between 160°C–220°C) and pressure (0.4–0.6 MPa) regulated by the machine’s mesh-pattern sealing mold. Using non-compatible films may lead to weak seals, inconsistent sealing width, or material entrapment during sealing. For example, the DGD-W30TD-W-J500 model uses a 28mm blowoff nozzle paired with a precision-mesh seal to prevent paste residue from entering the seal zone—this setup works best with smooth-surfaced films without embossing. Always verify film specifications against the machine’s operating parameters to avoid downtime and product loss.

What is the dosing accuracy for different material types across the DGD-W30TD series?

Dosing accuracy varies significantly by material type and model configuration. The DGD-W30TD-W-YSK280 delivers ±0.1g accuracy for pure liquids such as fruit juice or clear sauces, thanks to its digital control self-priming pump and zero-washing-hopper design. The DGD-W30TD-W-G300 achieves ±0.5g accuracy for thick pastes like ketchup or chili sauce, enabled by its pneumatic plunger pump and auto-blowoff mechanism that prevents stringing. For powders, the DGD-W30TD-W-F500 uses a vertical auger filler with deep-nozzle insertion to ensure precise metering, achieving ±1g accuracy at 60 pouches/minute. Granule applications using the DGD-W30TD-W-K500 are handled by a three-head electronic linear weigher, offering ±1g accuracy per bag when processing items like dried fruit or pet food. All models integrate real-time feedback systems that monitor fill weight and trigger adjustments to maintain consistency across batches.

How long does it take to switch between different pouch formats or sizes?

Format changeover time ranges from 5 to 15 minutes depending on the complexity of the adjustment. For simple changes like switching from a flat pouch to a zipper pouch, the process takes approximately 5 minutes using the machine’s quick-changeover mechanisms. Changing pouch dimensions—such as increasing from 10×15cm to 15×20cm—requires adjusting the suction cup position, sealing mold alignment, and bag guide rails, which takes about 10 minutes. When switching between material types (e.g., from liquid to powder), additional steps include cleaning the filling head and recalibrating the dosing system. The DGD-W30TD-W-YSK280 allows rapid reconfiguration via its zero-washing-hopper design, eliminating manual hopper rinsing and reducing changeover time by up to 70%. This efficiency makes stand-up pouch machines ideal for mixed-product lines in snacks & nuts, coffee & powder, and sauces/pastes/liquids manufacturing.

What voltage options are available for the DGD-W30TD series machines?

All models in the DGD-W30TD series operate on dual-voltage power supply: 110V or 220V, with a frequency of 50/60Hz. This flexibility allows seamless deployment in diverse global markets, including North America, Europe, Asia, and South America. The electrical system is protected by overload and short-circuit safeguards, ensuring stable operation even under fluctuating grid conditions. A dedicated 3-phase motor is used in high-demand models like the DGD-W30TD-W-K500 and DGD-W30TD-W-J500 to support continuous operation at full capacity. Power consumption averages 2.5kW per machine, with an optional energy-saving mode available on select models. This universal voltage compatibility simplifies integration into existing facilities and reduces infrastructure costs, especially for companies expanding into new regions.

Which spare parts are most commonly replaced, and how often should they be maintained?

Commonly replaced components include suction cups, sealing molds, filling nozzles, and air filters. Suction cups typically require replacement every 3–6 months depending on usage intensity and material abrasiveness; they are easily swapped out in under 5 minutes. Sealing molds (mesh-pattern) last approximately 6–12 months and should be inspected monthly for wear or debris buildup. Filling nozzles, especially those in the DGD-W30TD-W-J500’s U-shaped stirring hopper, need cleaning after each material change and replacement every 8–12 months. Air filters in the pneumatic system require monthly inspection and replacement every 3 months under heavy use. The DGD-W30TD-W-G300’s pneumatic plunger pump includes a replaceable diaphragm that lasts around 10,000 cycles. Regular maintenance schedules are recommended every 200 hours of operation to prevent unexpected downtime. Spare parts are readily available through CECLE’s official service network, ensuring minimal disruption to production.

How does integrating a combination weigher improve granular product packaging accuracy?

Integrating a multi-head combination weigher—such as the TD-14-0.5L or TD-10-0.5L models—significantly enhances accuracy and efficiency in granular packaging. These weighers can simultaneously measure multiple portions and select the optimal combination to match the target weight within ±1g tolerance. When paired with the DGD-W30TD-W-K500 granule filling machine, the system reduces particle breakage by up to 40% compared to direct drop feeding. The weigher’s dynamic algorithm adjusts for variations in material density and shape, ensuring consistent fill weights across all bags. This integration is particularly effective for fixed-shape granules like nuts, dried fruit, hardware parts, and seeds. The entire workflow—from weighing to bag opening, filling, and sealing—is synchronized via PLC control, minimizing cycle time and maximizing throughput. For businesses focused on snacks & nuts, coffee & powder, and hardware/seeds/granular goods, this upgrade delivers measurable improvements in yield and customer satisfaction.

Can I automate the entire packaging line with just one machine?

While the DGD-W30TD series is highly modular and capable of full automation when integrated with external devices, a single machine cannot complete the entire process end-to-end without auxiliary equipment. For fully automated operation, you must pair the DGD-W30TD mainframe with a compatible filler—such as a piston pump, auger, or electronic weigher—and connect it to a bag loading system. The DGD-W30TD-W-J500, for instance, requires an 80L U-shaped stirring hopper and a pneumatic plunger pump to handle mixed sauces automatically. Similarly, the DGD-W30TD-W-K500 relies on a three-head electronic linear weigher for accurate granule dosing. Manual collaborative feeding remains necessary for irregular or tangled materials, such as large nuts or tangled seed clusters. However, the system supports seamless integration with combination weighers and spout-pouch filling machines to create a turnkey solution. For complete automation, consider combining the DGD-W30TD series with automatic standing-pouch zipper making machines and conveyor systems to form a closed-loop packaging line.

Related Equipment & Solutions

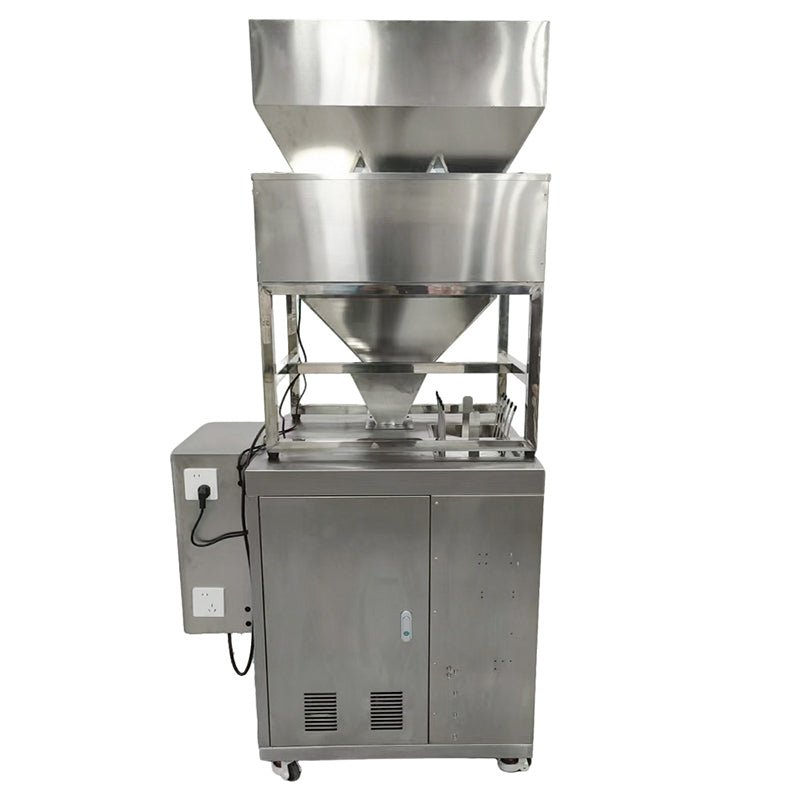

Multifunction Three - head Electronic Packing Scale Packing Machine, Granule Stand Up Pouch Filling And Sealing Machine - view 4
