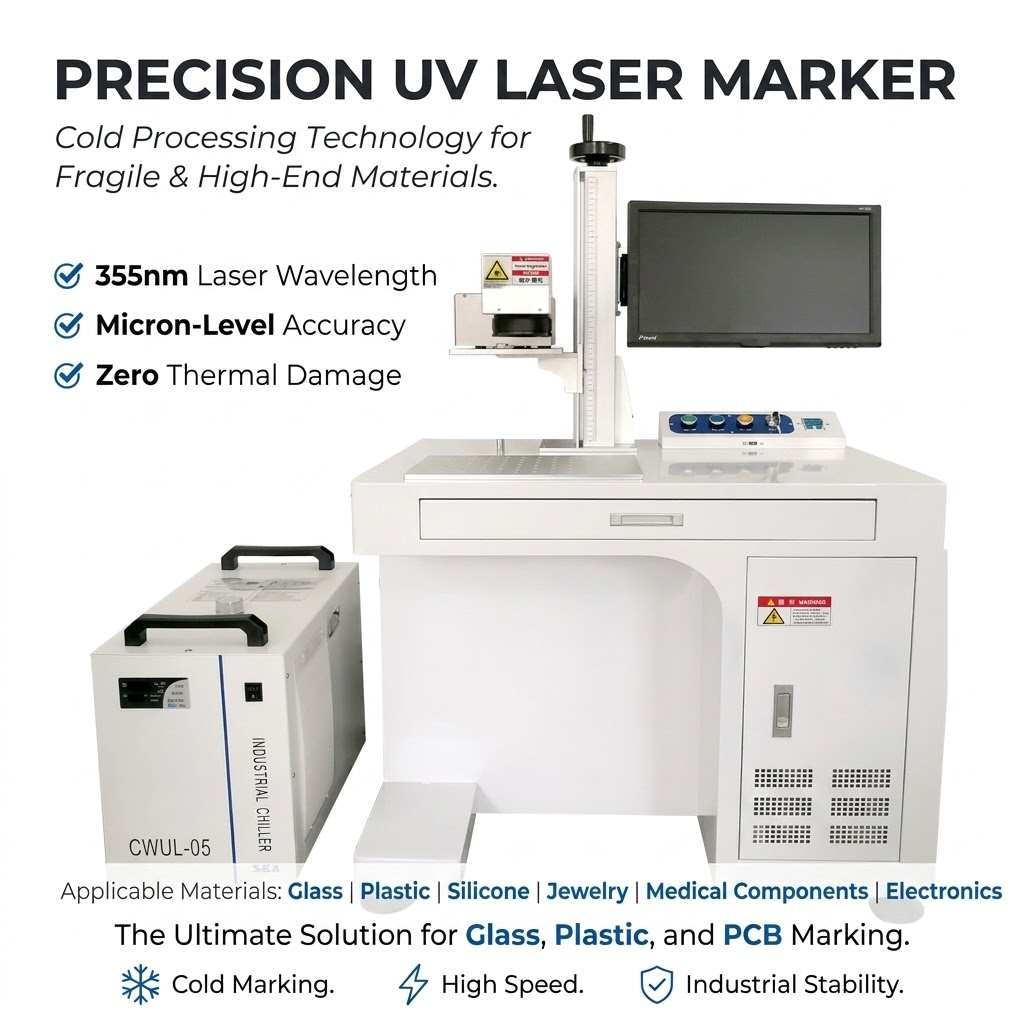

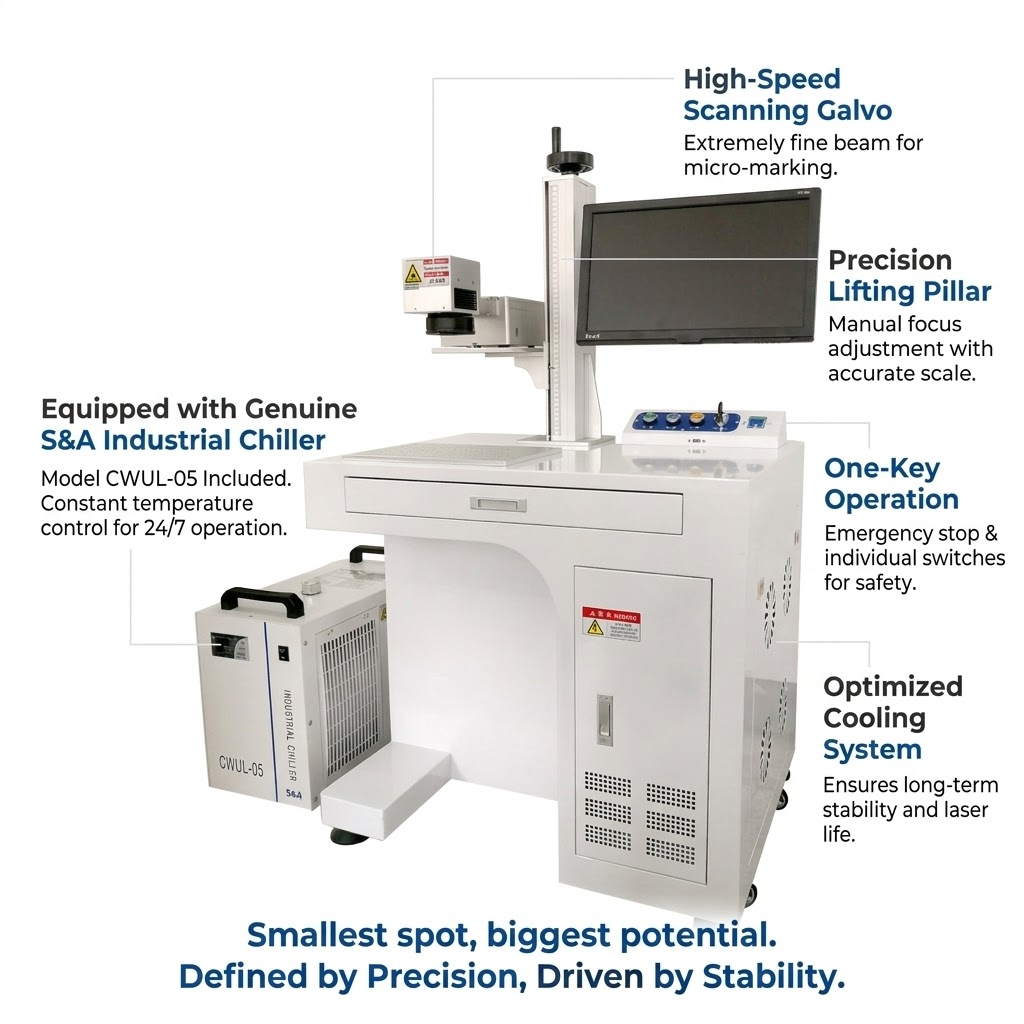

1.The machine takes 355nm pumped purple light laser device as the light source.
Narrower pulse width and smaller heat affection contribute to generate peak power.
2.Higher pulse stability, namely better pulse consistency of laser produces the same carving effect, so it’s very suitable for precision marking. Higher pulse repetition frequency meets the need of quick marking and high production efficiency.
-
Model
TD-ZW
Laser output power
3w/5w
Laser wavelength
355nm
Speed of light mass(m²）
＜1.3
Laser Q-switching frequency
30kHz-500kHz
Standard marking range
100*100mm/150*150mm/175*175mm/200*200mm/300*300mm
Standard depth
≤0.01mm-≤1.0mm
Minimum line width
0.01mm
Minimum characters
0.5mm
Marking speed
7000-14000 mm per second
Repetition accuracy
±0.01m
Power
1500w-2000w

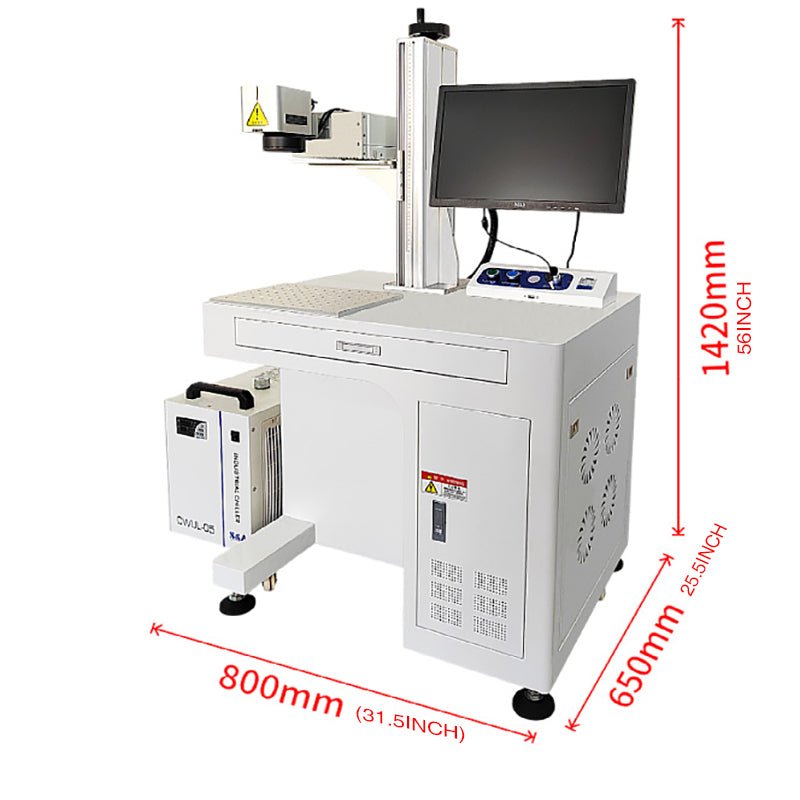

Overall dimensions (L * W * H)
800*650*1420mm
