Collection: Cartoning Machine

Cartoning Machine

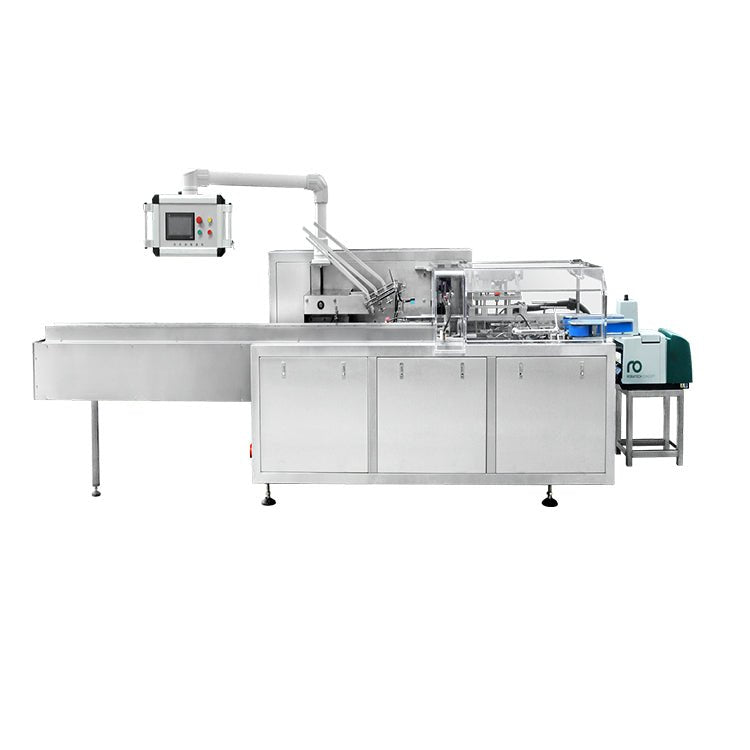

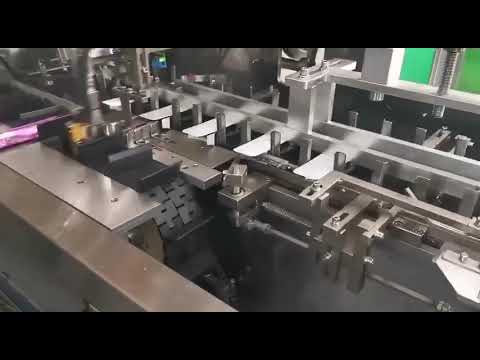

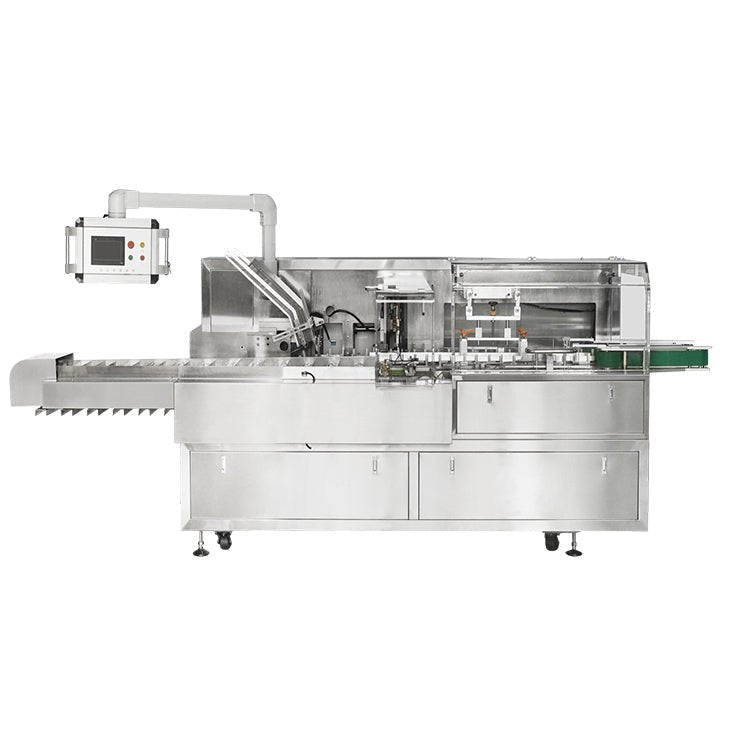

This cartoning machine is suitable for boxing and packaging of cosmetics, medicines, food, hardware, etc. It can automatically complete the folding of instructions, unfold the carton, box items, print batch numbers, and seal. Using PLC control, photoelectric monitoring of the movement of each part, if there is an abnormality in operation, it can automatically stop and display the cause, so as to eliminate the fault in time.

Model:
CM-120 CM-130
CM-150
Packaging Speed:
30-100times/min
30-100times/min
30-100times/min
Suitable box size:
L80-150mm/3.1''-5.9''
W30-90mm/1.2''-3.5''
H30-80mm/1.2''-3.1''
L80-150mm/3.1''-5.9''
W30-90mm/1.2''-3.5''
H30-80mm/1.2''-3.1''
L80-150mm/3.1''-5.9''
W30-90mm/1.2''-3.5''
H30-80mm/1.2''-3.1''
Sealing method: Folding/Gluing Folding/Gluing Folding/Gluing
Air consumption:
20m³/h 20m³/h
20m³/h
Air pressure:
0.6~0.8Mpa 0.6~0.8Mpa
0.6~0.8Mpa
Power:
1.5kw
1.8kw
2.0kw
Voltage:
110/220V 50-60hz 110/220V 50-60hz 110/220V 50-60hz
Weight:
1200kgs/2645lbs 1300kgs/2866lbs
1500kgs/3306lbs
Packaging dimension:
3100*1600*1700mm
(10'*5.2'*5.5')
3100*1600*1700mm
(10'*5.2'*5.5')
3100*1600*1700mm
(10'*5.2'*5.5')
