TP1650F-DS Electric Top Press Side Film Frame Pallet Stretch Wrapping Machine, Stretch Film Wrapper Packing Machine
TP1650F-DS Electric Top Press Side Film Frame Pallet Stretch Wrapping Machine, Stretch Film Wrapper Packing Machine
Regular price
$7,499.00 USD
Regular price
Sale price
$7,499.00 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
TP1650F-DS Electric Top Press Side Film Frame Pallet Stretch Wrapping Machine, Stretch Film Wrapper Packing Machine
Detail:

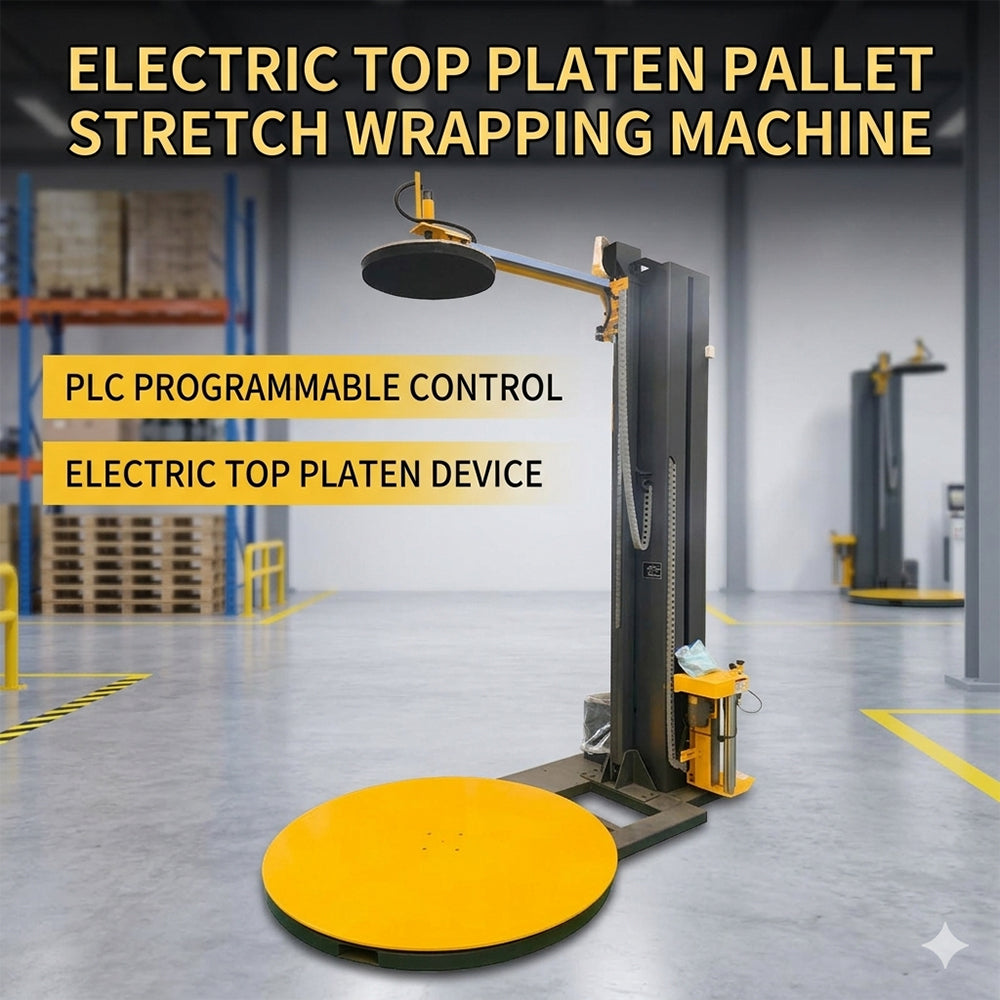

1.PLC programmable control: The operation is simple.The number of top and bottom winding layers, times, over-top time, and number of reinforcement layers 0-9 can be set directly on the panel.

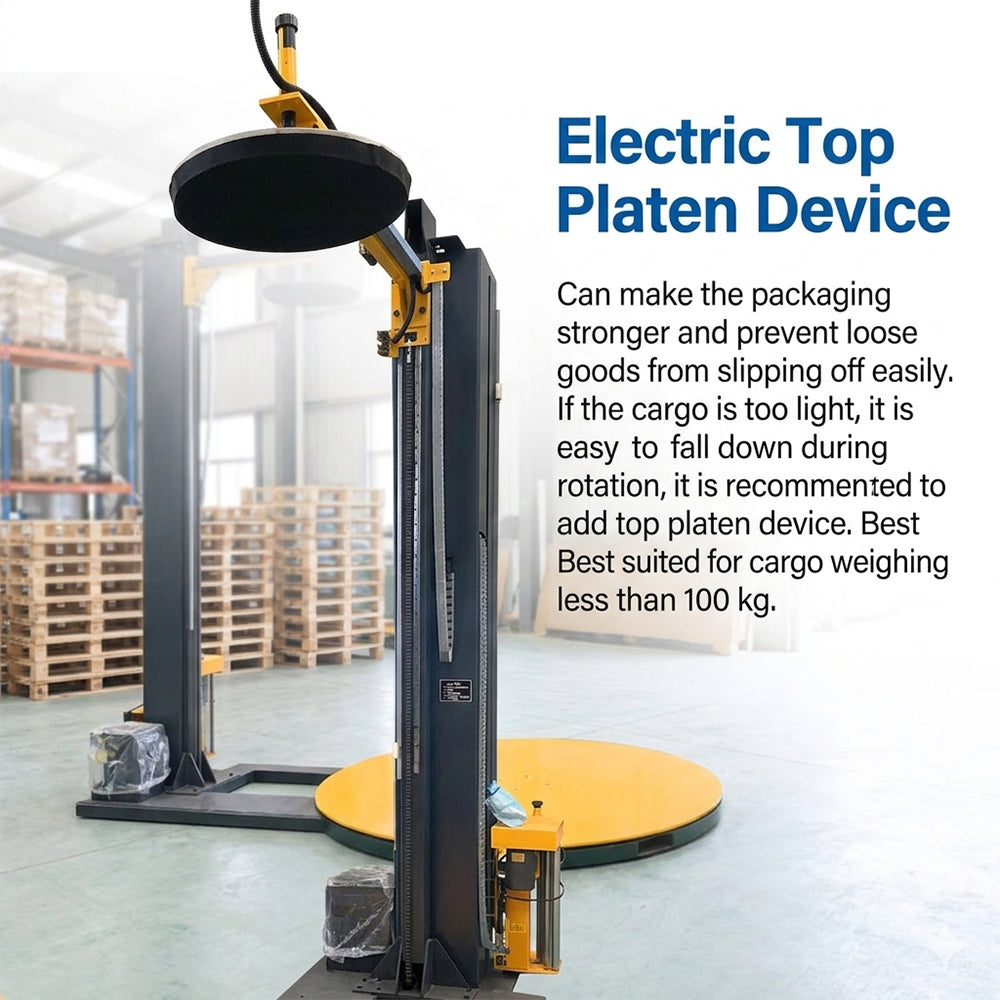

2.Electric top press device: The top pressure device is safe and reliable, which can make thepackaging stronger and prevent loose goods from slipping off easily.
3.Side film frame: This machine adopts side film frame,the film frame power pre-stretching mechanism, the pre-stretch can reach 250%.
| Model | TP1650F-DS |
| Voltage | 220V |
| Power | 2KW |
| Turntable diameter | 1650MM/65" |
| Packing height | 2700MM/106.3" |
| Column height | 3200MM/126" |
| Max packaging size | 1200MM*1100MM |
| Turntable height | 85MM/3.3" |
| Load capacity | 2000KG/4409LB |
| Turntable speed | 0-12 rpm |
| Stretch wrap film | 15-35μm thickness (recommended 25μm) |
| Machine size | 280*180*340CM / 110.2*71*133.9" |
| Weight | 700KG/1543LB |
