Cylindrical Screen Printing Machine,Screen Printing Equipment For Plastic Cups Perfume Bottle Screen Printer
Cylindrical Screen Printing Machine,Screen Printing Equipment For Plastic Cups Perfume Bottle Screen Printer
Couldn't load pickup availability

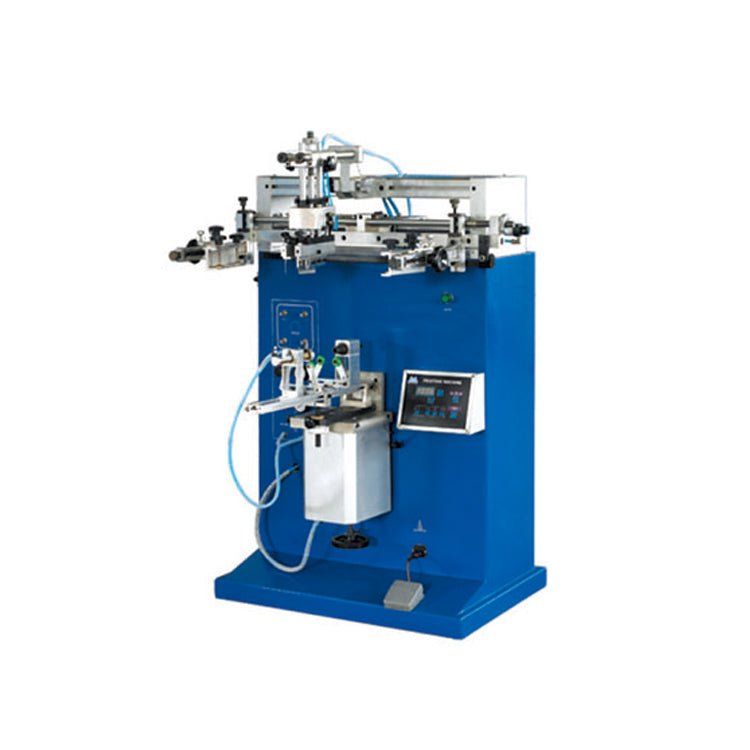

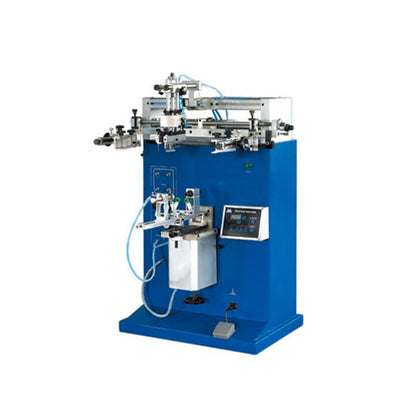

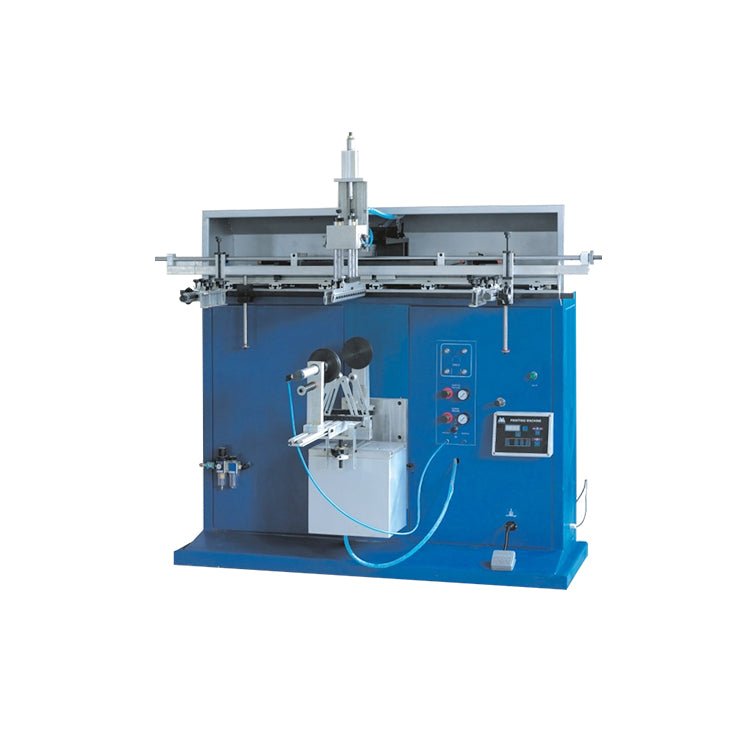

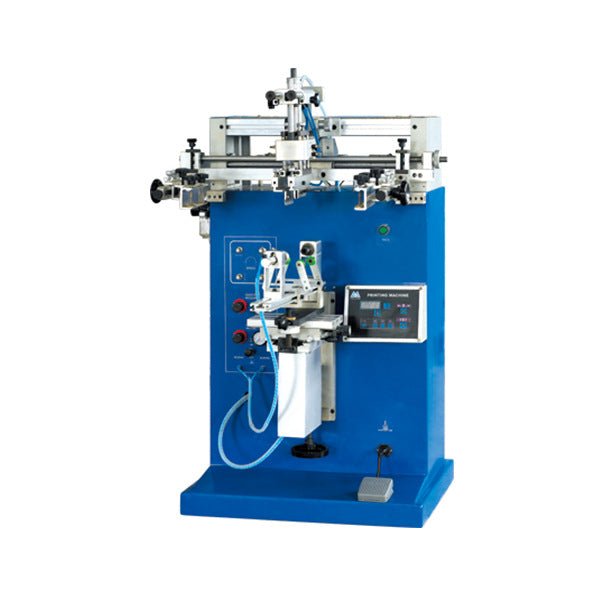

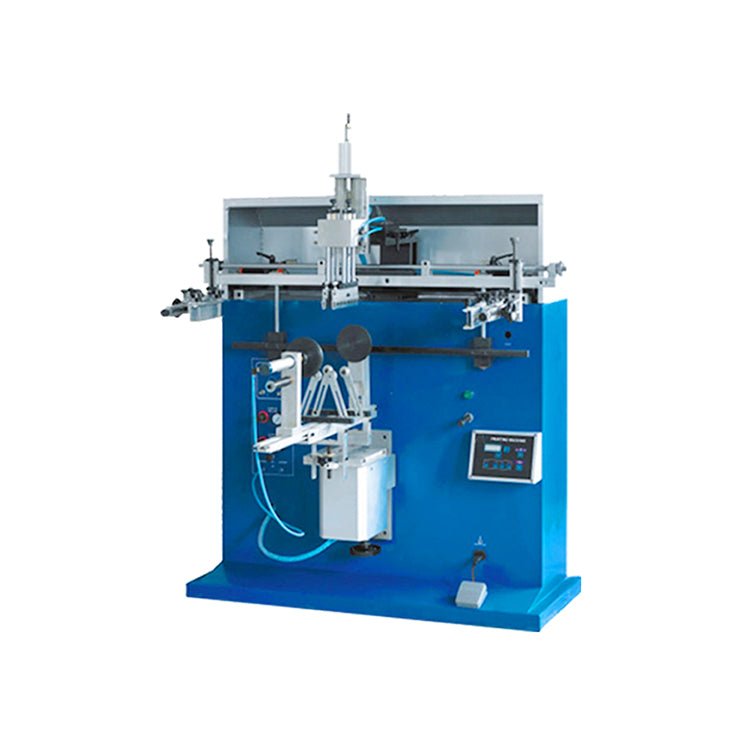

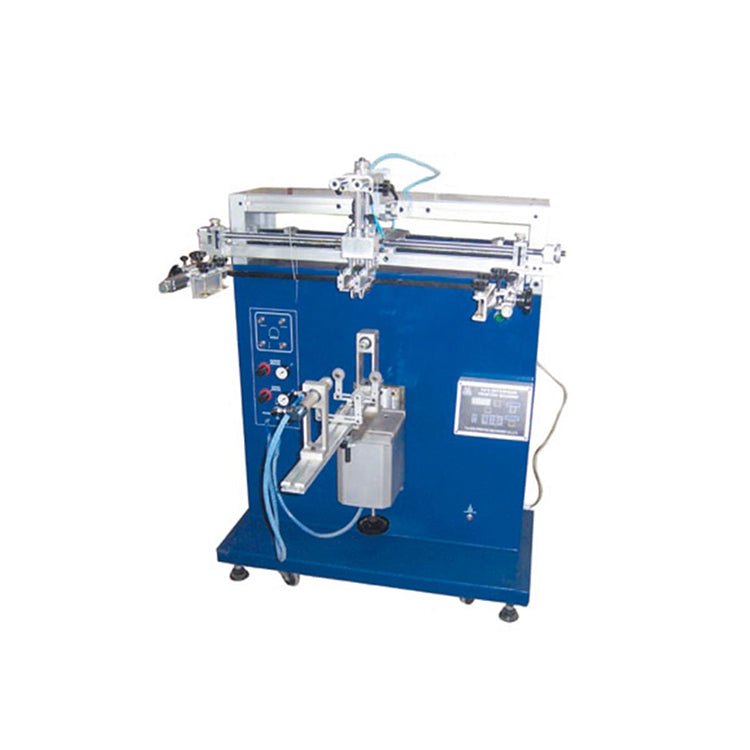

Cylindrical Bottle Screen Printing Machine,Paper Cup Screen Printer,Curved Screen Printing Machine for Plastic Cups
Details:
1.Microcomputer controls each function with high automation and easy operation;
2.4-digit auto counter built in;
3.Cylindrical printing function available;
4.Auto ink squeegee and flooding, worktable elevating to assure easy operation and consistent print quality;
5.Printing stroke and speed are adjustable to meet different requirements;
6.Fine adjustment available on squeegee left/right position to make substrate alignment easy and exact;
7. The frame front/rear, left/right and up/down with high printing precision.
Application:

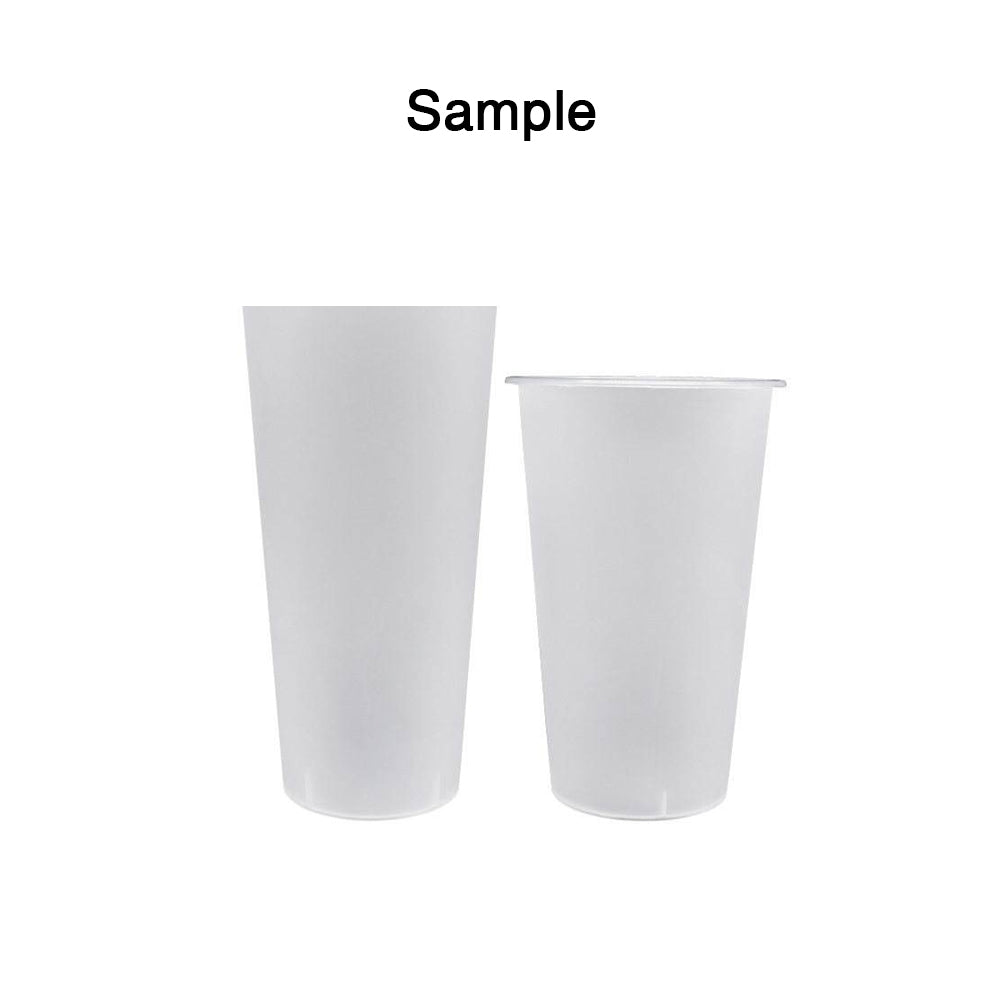

This Cylinder Screen Printing Machine is widely used in plastic drink bottle, drum, cosmetic bottle, plastic/paper/foam cup, glass bottle, stainless mug, piston, paint barrel, etc..

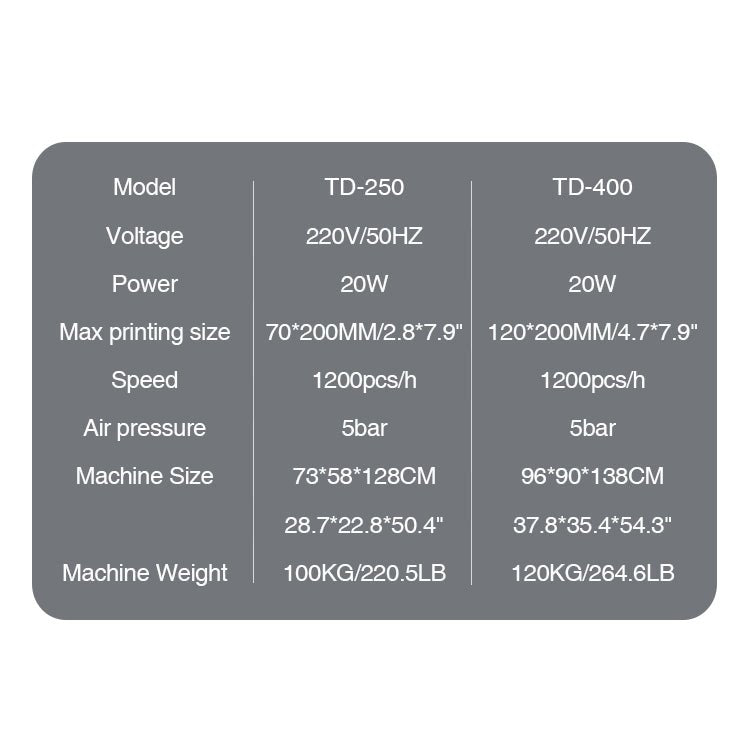

| Model | TD-250 | TD-400 |
| Voltage | 220V | 220V |
| Power | 20W | 20W |
| Max printing size |
Φ70*200MM 2.8*7.9" |
Φ120*200MM 4.7*7.9" |
| Speed | 1200pcs/h | 1200pcs/h |
| Air pressure | 5bar | 5bar |
| Machine Size | 73*58*128CM 28.7*22.8*50.4" | 96*90*138CM 37.8*35.4*54.3" |
| Machine Weight | 100KG/220.5LB | 120KG/264.6LB |

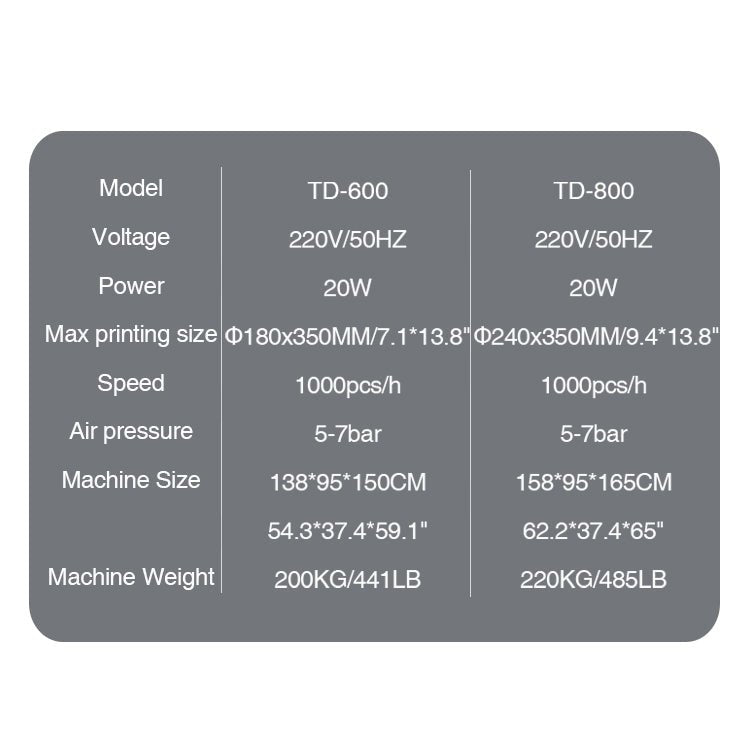

| Model | TD-600 | TD-800 |
| Voltage | 220V | 220V |
| Power | 20W | 20W |
| Max printing size |
Φ180x350MM 7.1*13.8" |
Φ240x350MM 9.4*13.8" |
| Speed | 1000pcs/h | 1000pcs/h |
| Air pressure | 5-7bar | 5-7bar |
| Machine Size |
138*95*150CM 54.3*37.4*59.1" |
158*95*165CM 62.2*37.4*65" |
| Machine Weight | 200KG/441LB | 220KG/485LB |

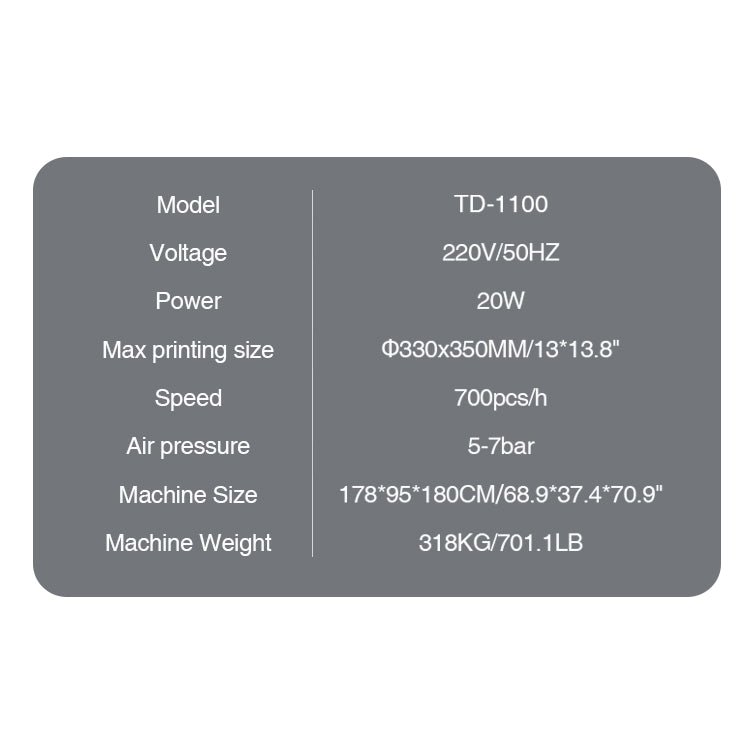

| Model | TD-1100 |
| Voltage | 220V |
| Power | 20W |
| Max printing size |
Φ330x350MM/13*13.8" |
| Speed | 700pcs/h |
| Air pressure | 5-7bar |
| Machine Size | 178*95*180CM/68.9*37.4*70.9" |
| Machine Weight | 318KG/701.1LB |
