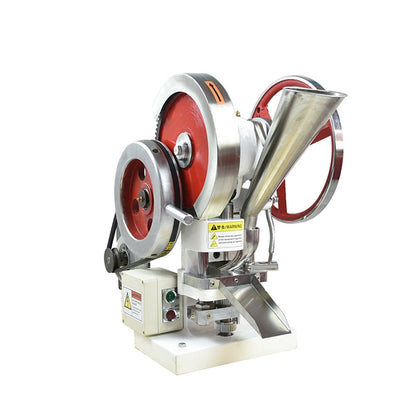

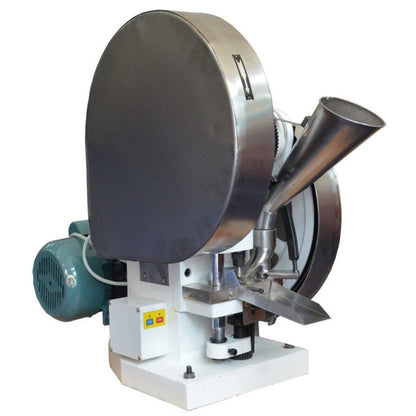

Tablet Press Machine Mini Desktop Tdp 5 Single Punch Diy Press Tableting Machine

  • $1,899.00
Tax included. Shipping calculated at checkout.




  • Explanation of shipping method:
    By default, the machine will be divided into two parts and shipped by express. The consignee needs to install it after receiving the goods. You can contact us to get the assembly video.

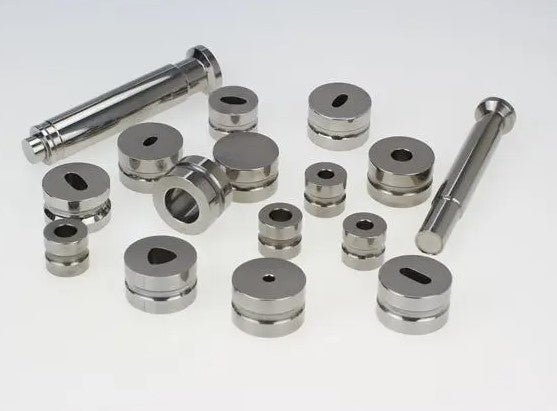

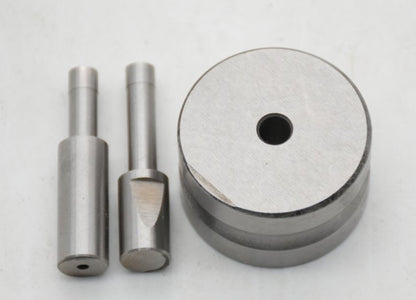

  • Default Mold (ø6mm x1~6mm/ø0.23" x0.04~0.23")
  • Tablet Press Machine pressing pill diameter  ø4-25mm, The filling depth can be adjusted according to the needs of the product to achieve the ideal tablet thickness.
  • The machine is suitable for most dry powder tablets, milk tablets, effervescent tablets and other products
  • If you need customized molds of tablet press machine, please contact Email: info@cecle.net OR Whatsapp: +86 18067765553

Tablet press machine Product manual

Model

TDP-1.5T

TDP-5T

TDP-6T

Max.Pressure

15KN

50KN

60KN

Max.Tablet Diameter

4-12mm/0.15”-0.47”

4-20mm/0.15”-0.8”

4-25mm/0.15”-0.98”

Max.Tablet Thickness

6mm/0.24”

6-8mm/0.24”-0.31”

Max.Filling Depth

12mm/0.47”

16mm/0.63”

Production Capacity

600pcs/min

300pcs/min

Weight

50kg

130kg

145kg

Dimension

700*370*800mm

700*400*800mm

700*500*900mm

Motor Speed

1400r/min

Motor Power

370w

750w

1100w

Additional explanation

In order to facilitate transportation, let the tablet press pass through customs as soon as possible to reduce transportation time. We will disassemble the machine into two parts and ship by express. To ensure that the goods can reach the delivery address smoothly, we will provide assembly videos to facilitate self-assembly after arrival.
