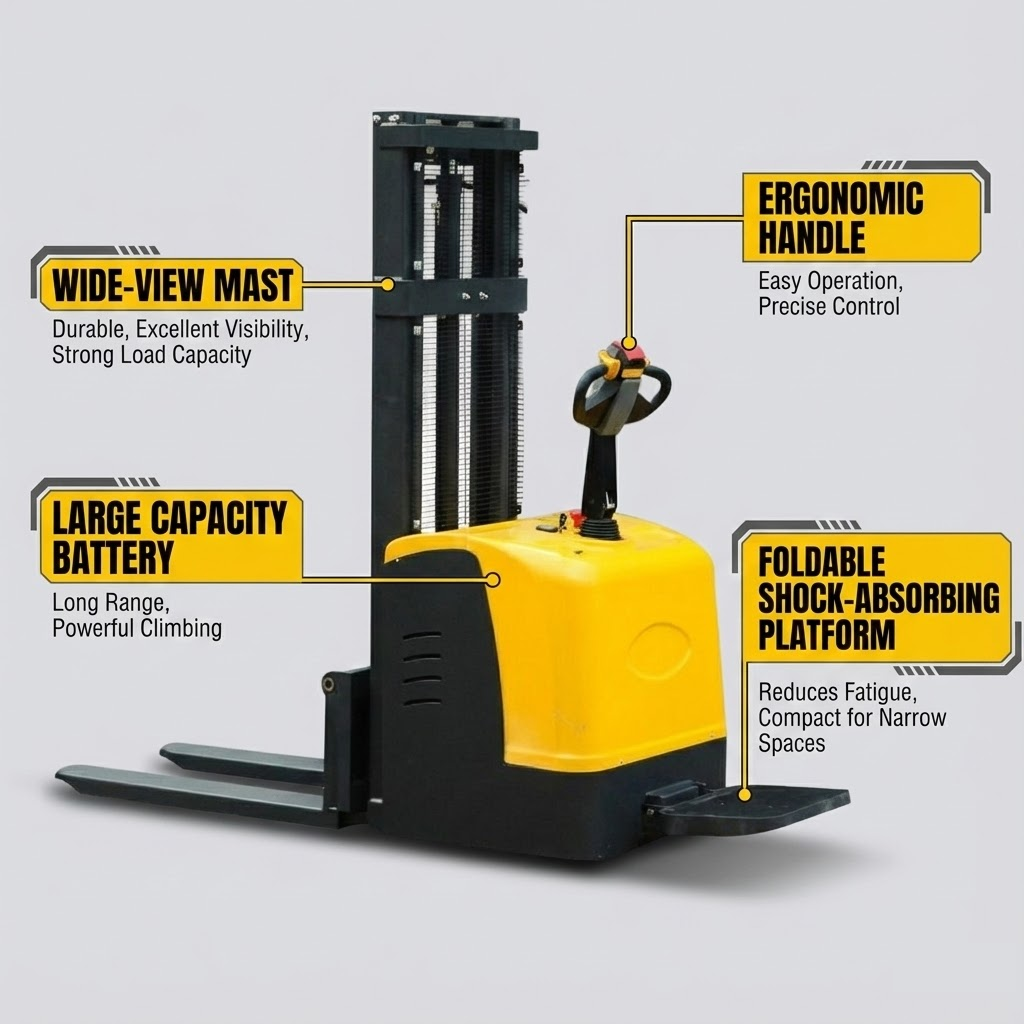

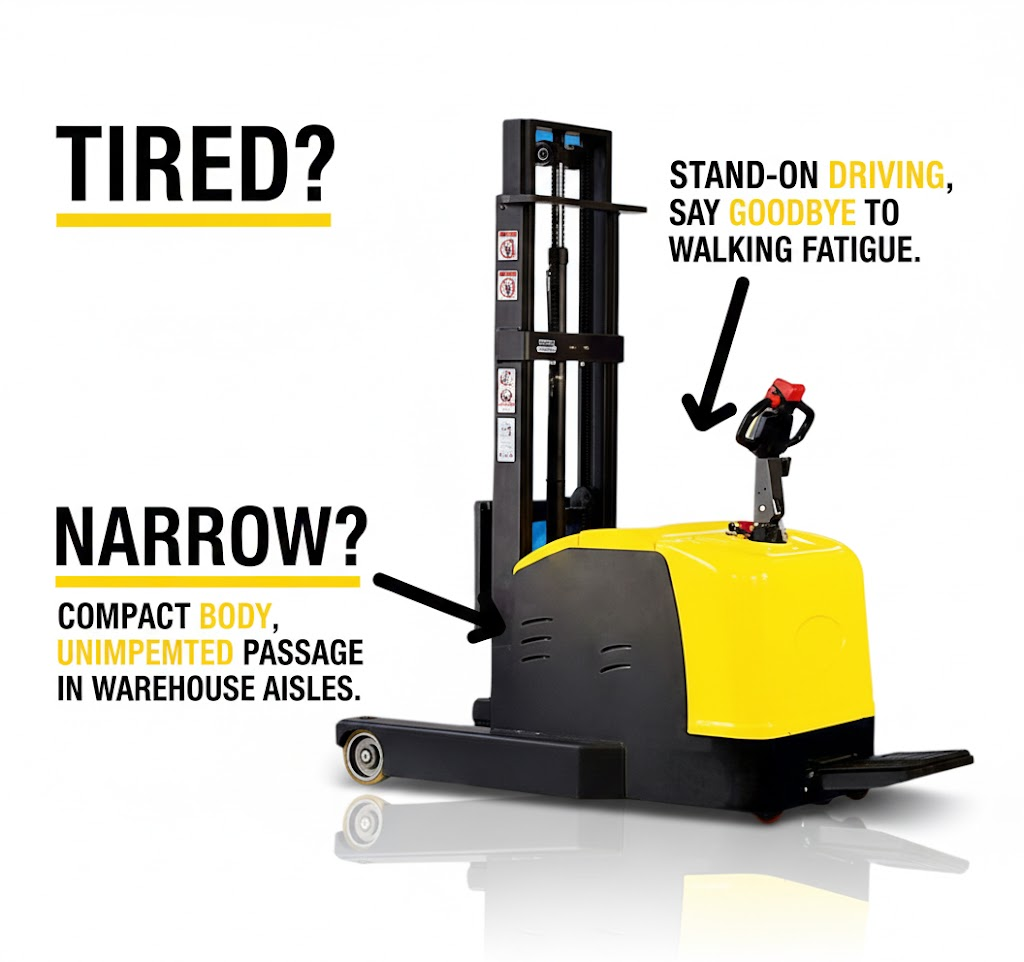

Full electric forklift stand-on electric lifting stacker Hydraulic Pallet Full Electric Stacker
Full electric forklift stand-on electric lifting stacker Hydraulic Pallet Full Electric Stacker
Couldn't load pickup availability
1.Humanized design of the operation desk, equipped with emergency stop switch, only need to press the economic situation can power off the automatic brake, to ensure the safety of the operator

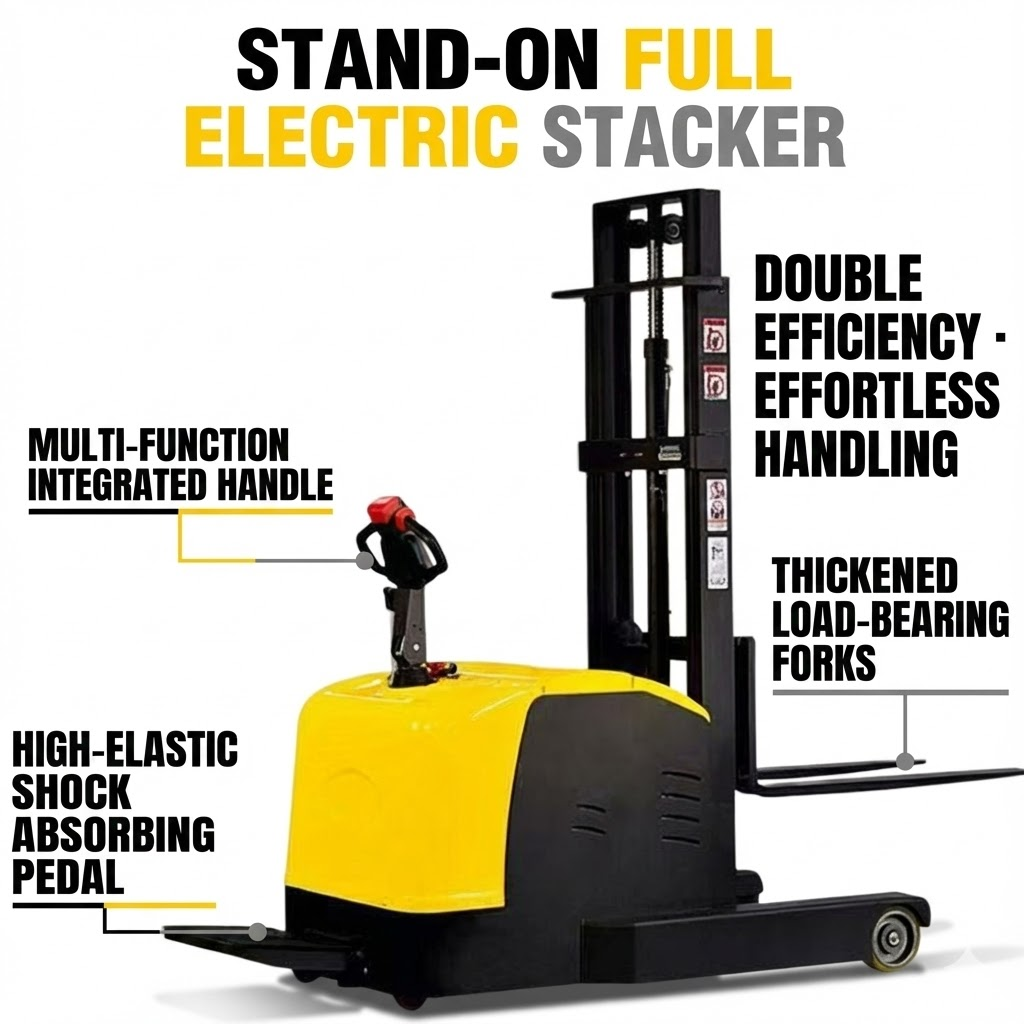

2.The handle is designed with glue,anti-slip and comfortable, it integrates lifiting, forward, backward, horn and emergency braking in one, convenient and flexible.
3.Multi-chip composite chain, smooth transmission, strong bearing capacity, is several times the ordinary chain.
|
Model |
SD-10 |
SD-10 |
SD-10 |
SD-20 |
SD-20 |
|
Rated Load |
1000kg |
1000kg |
1000kg |
1000kg |
1000kg |
|
Standard door stand height |
1600mm |
2000mm |
2500mm |
1600mm |
2000mm |
|
Maximum height of the vehicle when the gantry is in operation |
2180mm |
2180mm |
2180mm |
2180mm |
2180mm |
|
Static height of the vehicle when the gantry retracted |
2100mm |
2100mm |
2100mm |
2100mm |
2100mm |
|
Load center distance |
500mm |
500mm |
500mm |
500mm |
500mm |
|
Minimum height of fork |
85mm |
85mm |
85mm |
85mm |
85mm |
|

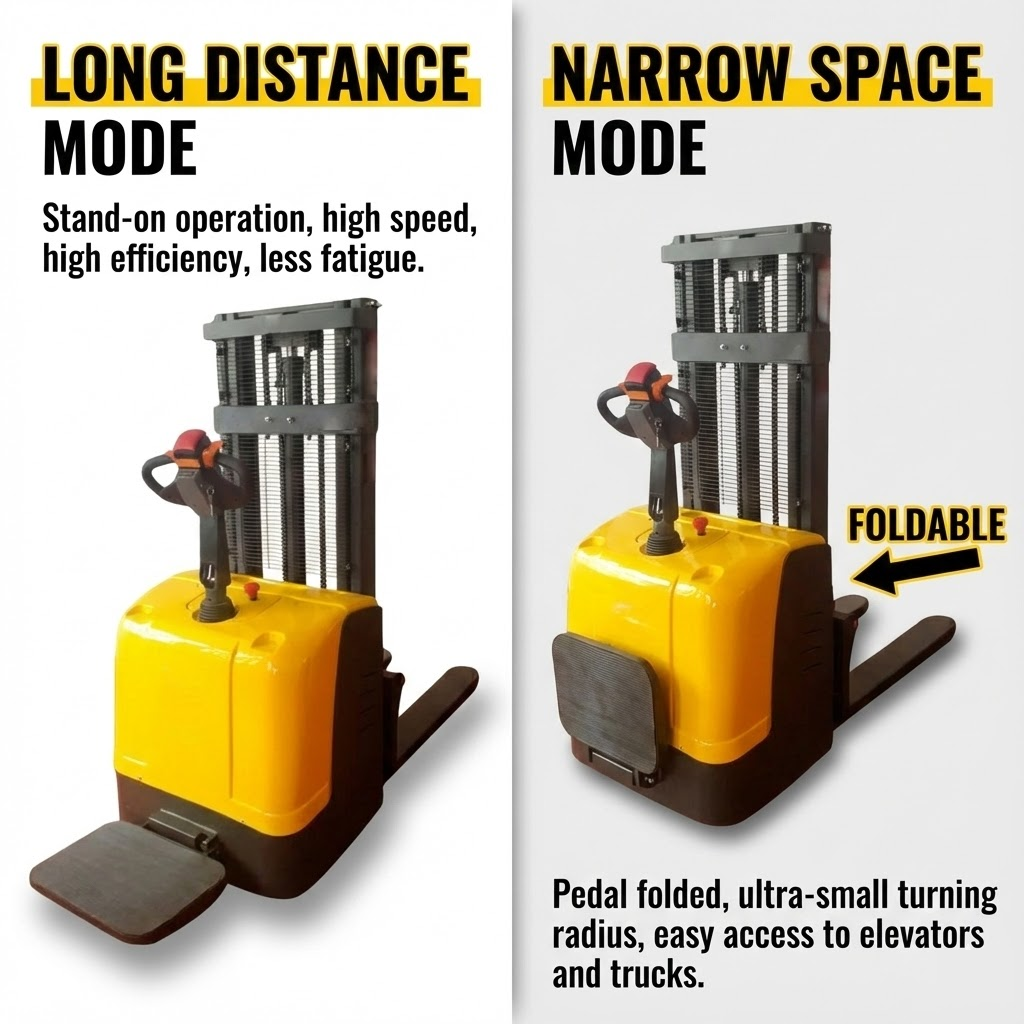

The full length pedal is |
2000/2400mm |
2000/2400mm |
2000/2400mm |
2000/2400mm |
2000/2400mm |
|
The vehicle width |
850mm |
850mm |
850mm |
850mm |
850mm |
|
Miniumum turning radius |
1500mm |
1500mm |
1500mm |
1500mm |
1500mm |
|
Maximum speed full/no load |
4/6 km/h |
4/6 km/h |
4/6 km/h |
4/6 km/h |
4/6 km/h |
|
Maximum lifting speed full load/no |
80/130 mm/s |
80/130 mm/s |
80/130 mm/s |
80/130 mm/s |
80/130 mm/s |
|
Maximum descent speed full load/no |
100/90 mm/s |
100/90 mm/s |
100/90 mm/s |
100/90 mm/s |
100/90 mm/s |
|
Drive motor/hoist motor |
1.2/2.2 kw |
1.2/2.2 kw |
1.2/2.2 kw |
1.2/2.2 kw |
1.2/2.2 kw |
|
Battery voltage/capacity |
24/190 V/Ah |
24/190 V/Ah |
24/190 V/Ah |
24/190 V/Ah |
24/190 V/Ah |
|
Weight |
710kg |
720kg |
720kg |
750kg |
750kg |
