$9,399.00

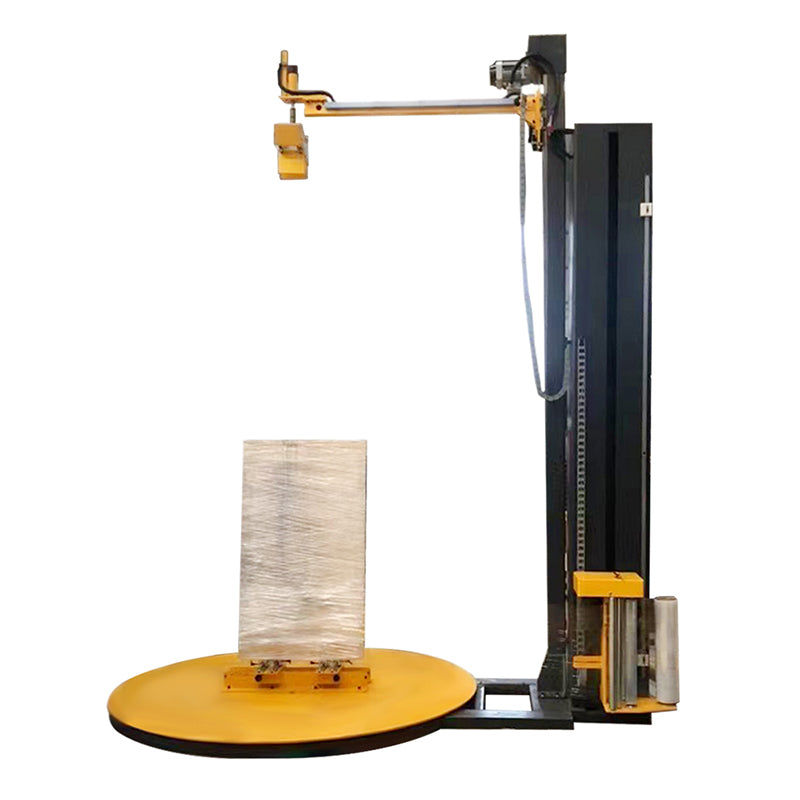

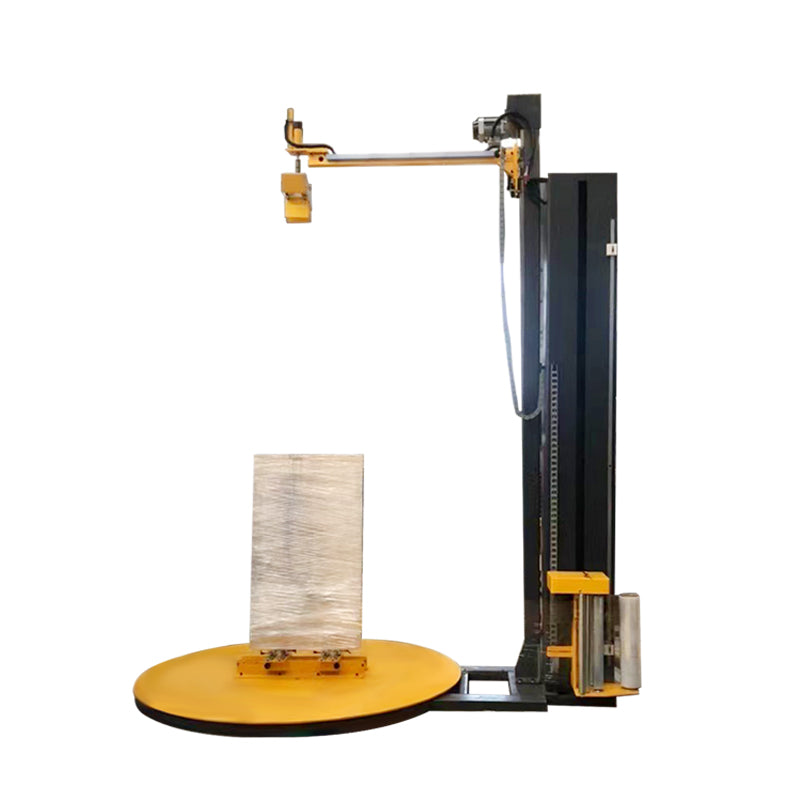

Door Panel Stretch Wrapping Machine, Pallet Packing Machine With Top Plate Pressure
Detail:
1.PLC programmable control: The number of stretch wrapping layers and times can be changed. The over-top time setting function allows for safe membrane replacement, which is quick and convenient and can achieve single-ascent or single-descent action.
2.Fixtures device: The turntable has a manual fixing device. Fix the door panel.Turntable frequency conversion speed adjustable from 0 to 10 rpm.
3.Side film frame: This machine adopts side film frame,the film frame power pre-stretching mechanism, the pre-stretch can reach 250%.
| Model | TP1650F-DCS |
| Voltage | 220V |
| Power | 2KW |
| Turntable diameter | Φ1650MM/65" |
| Turntable height | 85MM/3.35" |
| Packing hight | 800-2000MM/31.5-78.7" |
| Load capacity | 2000KG/4409LB |
| Turntable speed | 0-10 rpm |
| Door panel width | 1000MM/39.4" |
| Door panel height | 2000MM/78.7" |
| Door panel thickness | 100MM/3.94" |
| Machine Size | 260*195*270CM/102.4*76.8*106.3" |
| Weight | 800KG/1764LB |
