Blister Packing Machine CP-210 Mini Alulinum Foil Alu Pvc Tablet Pill Capsule Blister Packing Machine

Blister packing machine

Machine Feature:

BP-210 is the basic model, does not include the film roll device,Without unwinding and rewinding functions,it is necessary to manually place the cut aluminum film pieces by pieces

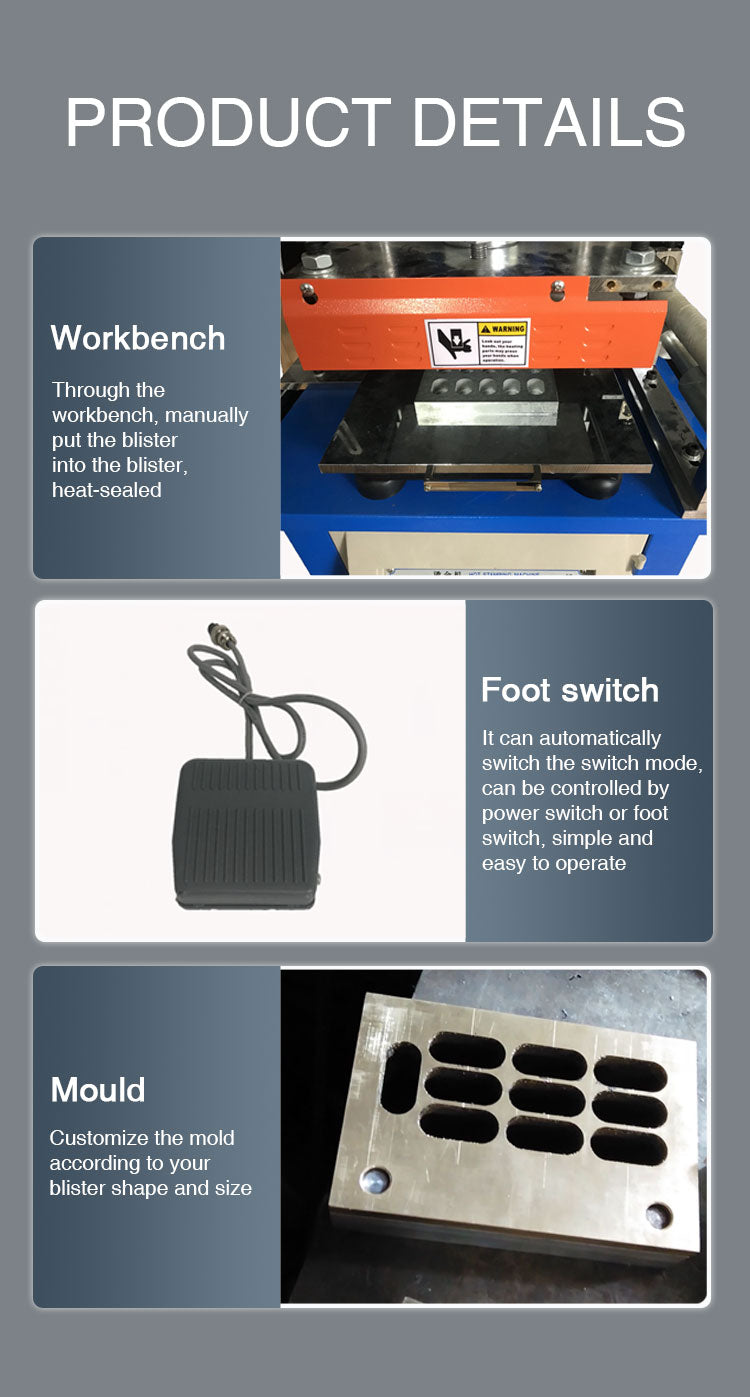

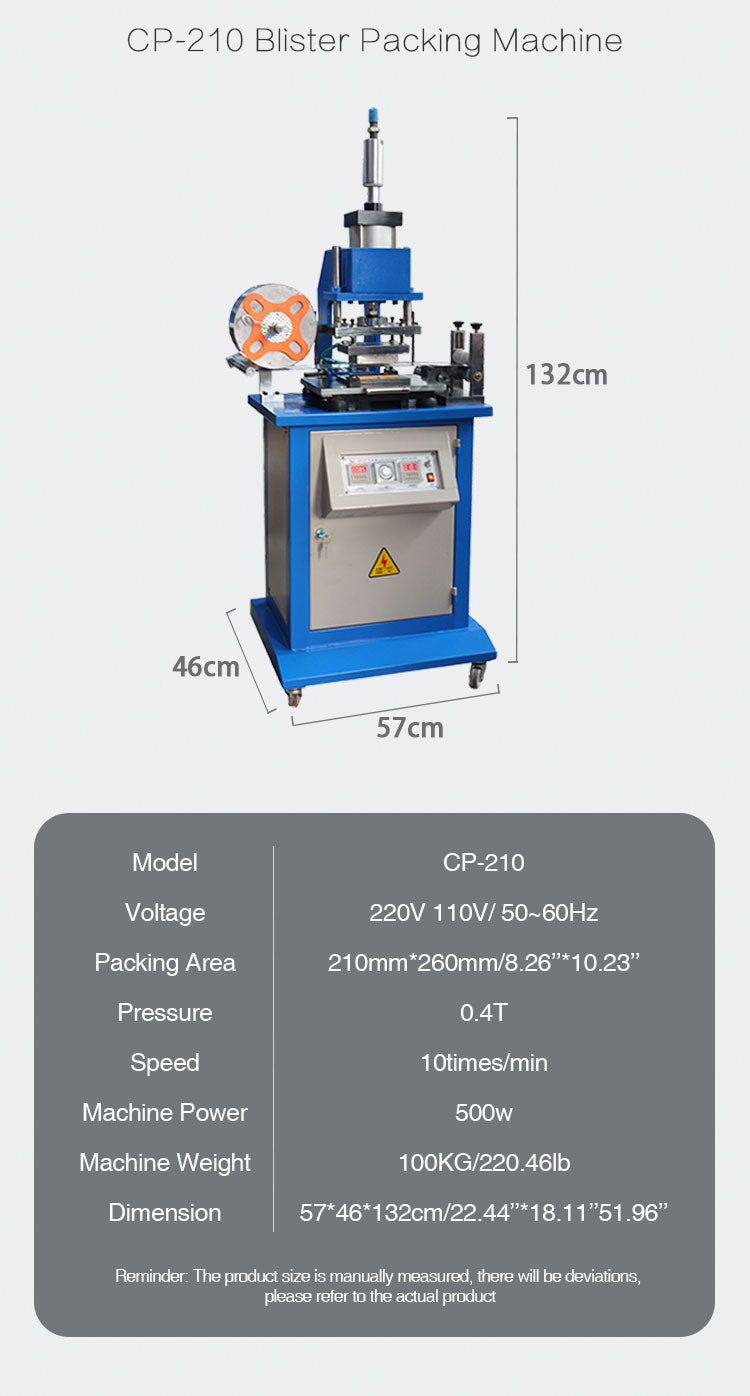

CP-210:1. Pneumatic control heating plate moves up and down 2. Automatically convey aluminum foil film 3. Digital display time relay controls heating time 4. The heating plate can be quickly replaced 5. An external air compressor is required 6. Foot pedal switch control

DP-210:On the basis of CP-210, added PLC controller and touch screen, stepping motor, photoelectric sensor,Higher efficiency, safety and stability

Model	BP-210	CP-210	DP-210
Voltage	220v / 50Hz
Packing Area	210mm*260mm
Pressure	0.4T
Speed	10times/min
Machine Power	500w
Machine Weight	100kg		120kg
Dimension	570mm*460mm*1320mm		770mm*460mm*1320mm
