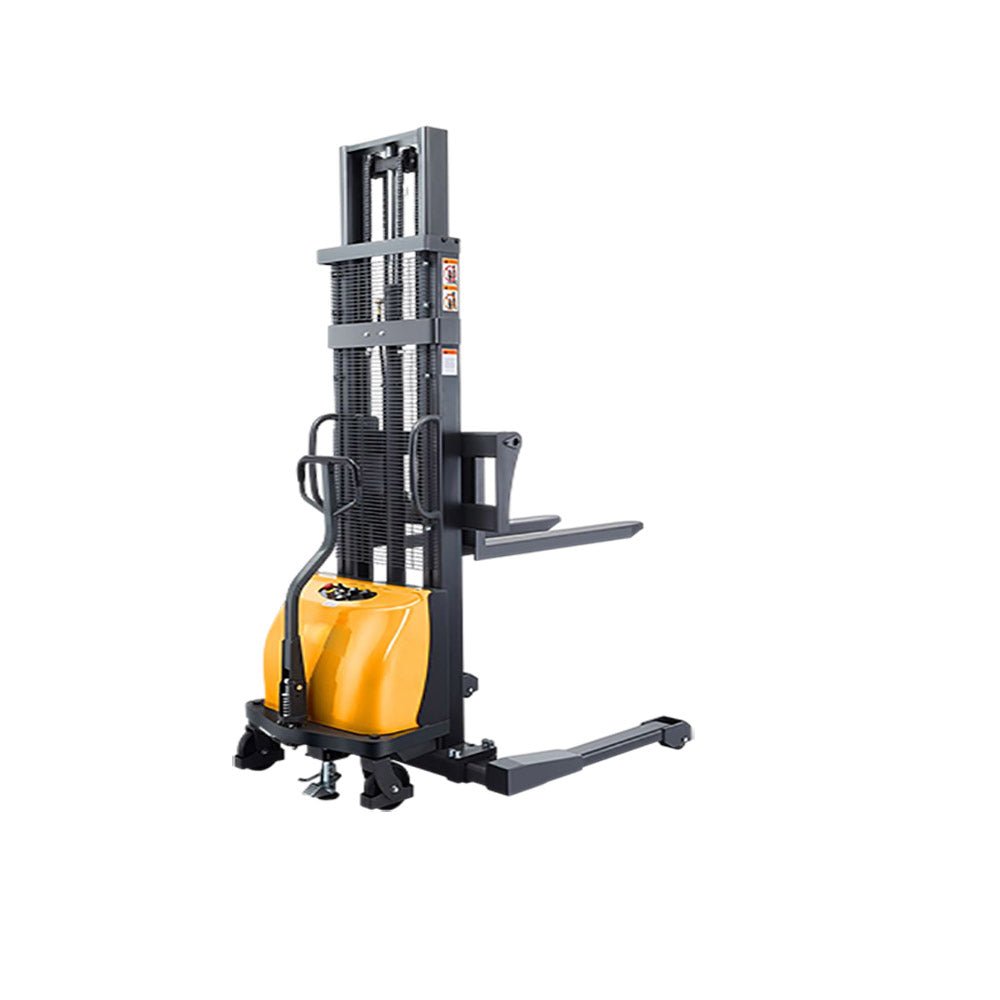

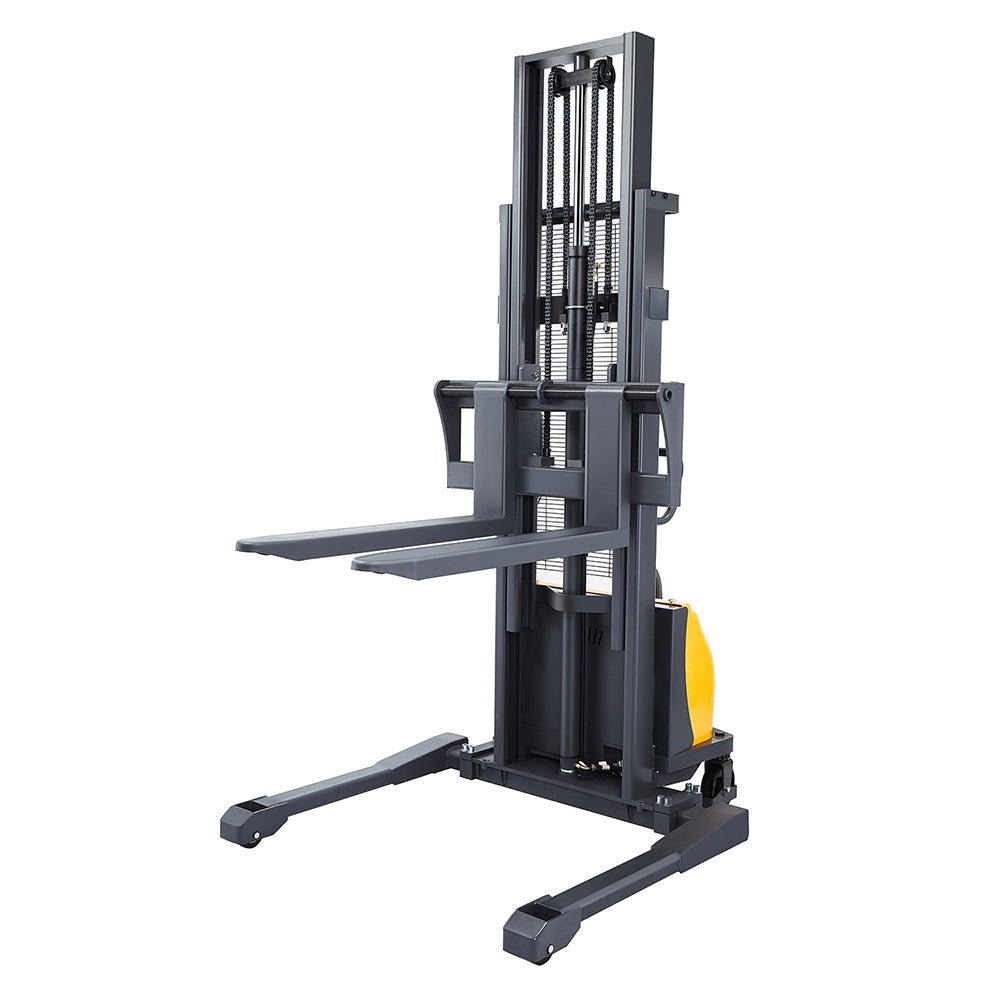

118" High Semi Electric Straddle Stacker with Straddle Legs 2200lbs Capacity, Semi Electric Straddle Stacker with Adj Forks and Legs
118" High Semi Electric Straddle Stacker with Straddle Legs 2200lbs Capacity, Semi Electric Straddle Stacker with Adj Forks and Legs
Couldn't load pickup availability
SEMI-ELECTRIC STACKERS
1.Adjustable Fork Width: The fork width is adjustable range from 11.6"-36.6". Leg inner width 14.5 inch, leg outer width 22.4 inch.
2.Function: Lifting & lowering by battery power, driving by manual pushing or pulling. So the operator only needs manual move the stacker to the right place and place the goods on the fork, it will be lifted by electric.

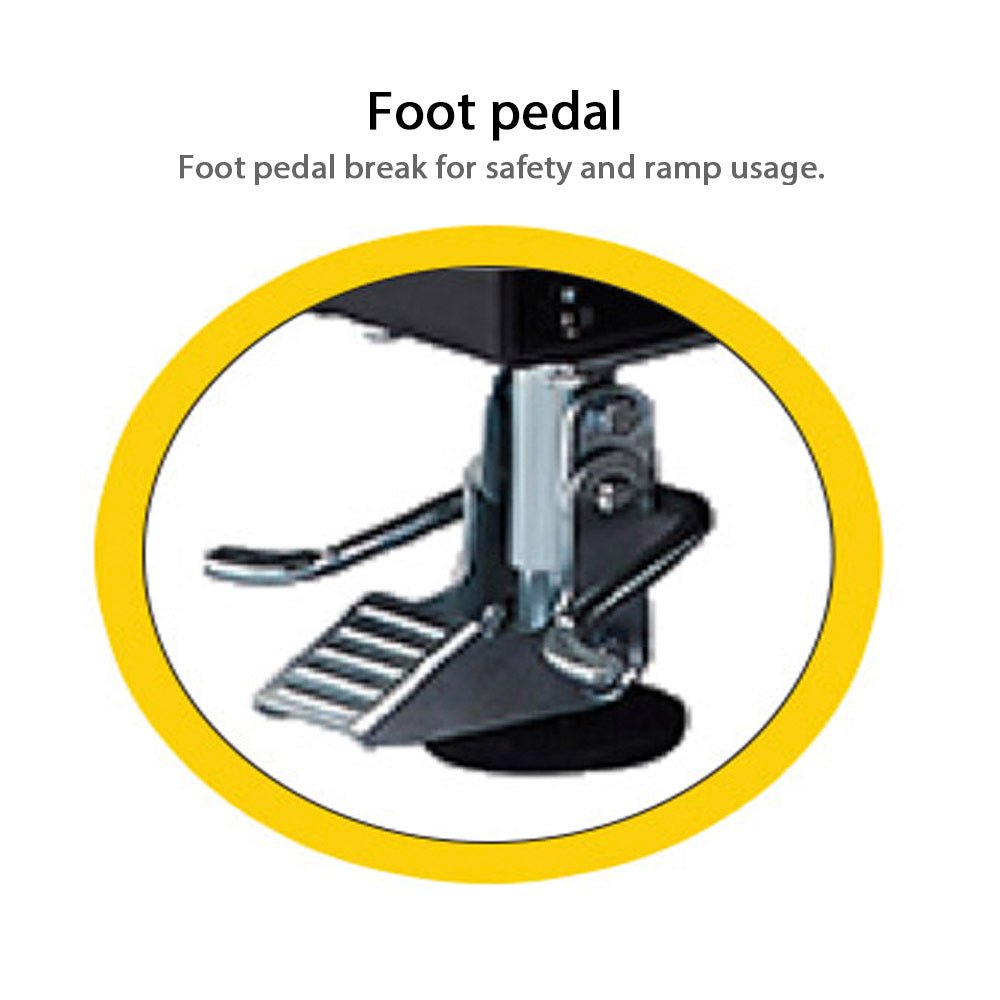

3.Security Assurance: This semi electric straddle tacker has foot pedal parking brake, it can protect your safety when the stacker is used on a ramp.

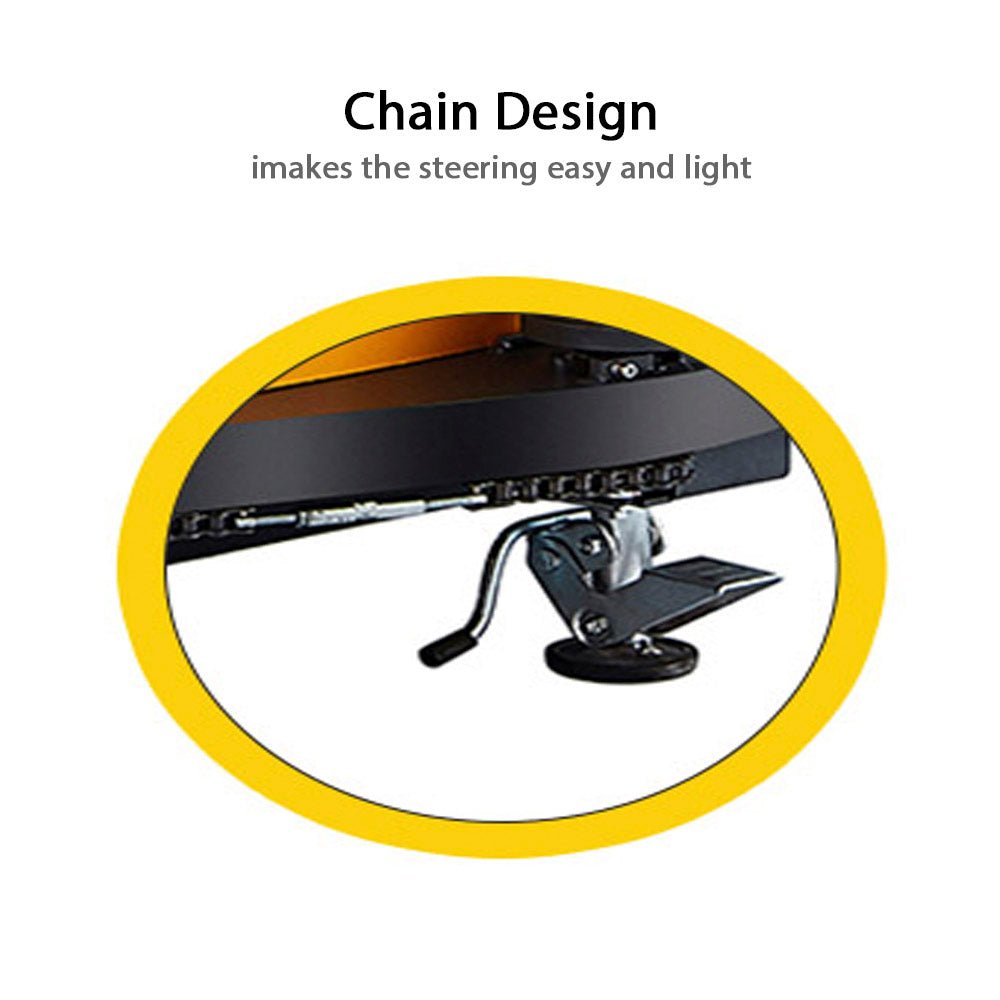

4.Easy To Operate: This semi electric straddle tacker load capacity is 2200 lbs with small turning radius (56.1"), special chain steering system design for warehouse operation.
5.Wide Usage Scenarios: The stacker can be widely used in supermarket, factory, warehouse and any place where goods need to be moved
|
Load Capacity |
1000kg (22000 LBS) |
|
Height. Mast Lower |
184cm (72.4 inch) |
|
Max. Lifting height |
250cm (98 inch) |
|
Overall Length |
173cm (68.3 inch) |
|
Overall Width |
95.5cm (37.6 inch) |
|
Fork Dimensions |
5.8*14*106cm (2.3 x 5.6 x 42 inch) |
|
Lifting Speed (Laden/Unladen) |
6.8/10cm/s (2.7/3.9 inch/s) |
|
Lowering Speed (Laden/Unladen) |
15/12cm/s (5.9/4.7 inch/s) |
|
Turning Radius |
142cm(56.1 inch) |
|
Battery type |
Lead Acid |
|
Rated Voltage |
12V/120Ah |
|
Service Weight(With Battery) |
475kg (1045 LBS) |
