10 head weigher small food particles automatic quantitative combination scale,Weighing Combination Scale
10 head weigher small food particles automatic quantitative combination scale,Weighing Combination Scale
Regular price
$9,000.00 USD
Regular price
Sale price
$9,000.00 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Combination scale
Product Description
Applicable for weighing of all types of small-sized / dosed, granular products, such as prepared herbal medicine, tea, seeds, MSG, chicken essence seasoning, coffee beans, chocolate beans, etc.
1. Professional digital weighing module for high precision and good stability.
2. Control system: MCU or PLC (optional).
3. Touch screen interface has different levels of authorized access; up to 16 different languages for choice; application software upgraded through USB.
4. Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements.

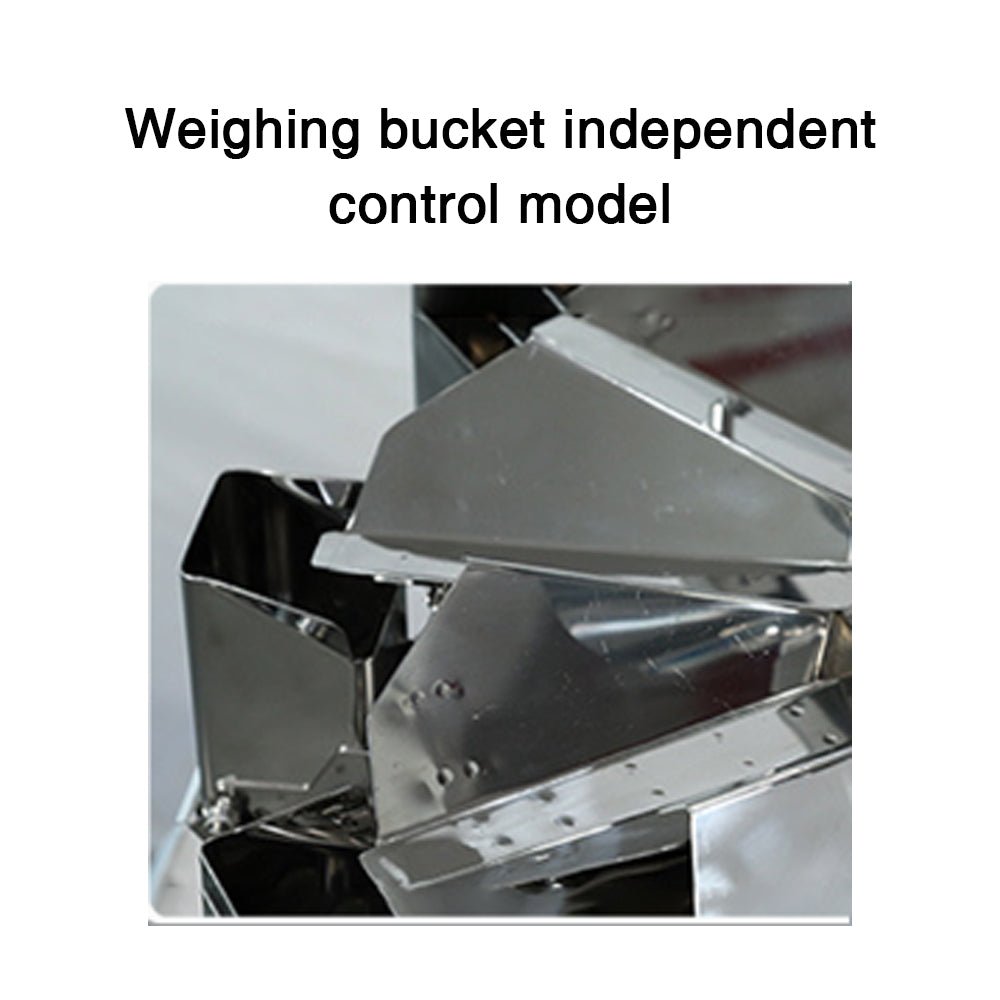

5. Weighing hopper able to discharge in turn to effectively prevent products from blocking.
6. Weighing and counting function to meet diverse needs from customers.
7. Real-time display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running status of the machine.
Applicable for weighing of all types of small-sized / dosed, granular products, such as prepared herbal medicine, tea, seeds, MSG, chicken essence seasoning, coffee beans, chocolate beans, etc.
1. Professional digital weighing module for high precision and good stability.
2. Control system: MCU or PLC (optional).
3. Touch screen interface has different levels of authorized access; up to 16 different languages for choice; application software upgraded through USB.
4. Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements.
5. Weighing hopper able to discharge in turn to effectively prevent products from blocking.
6. Weighing and counting function to meet diverse needs from customers.
7. Real-time display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running status of the machine.
|
Model
|
TD-10-0.5L
|
|
Single Weighing range
|
50-1000g
|
|
Avg. Accuracy
|
0.1~1g
|
|
Max.speed
|
10-60 bags/min
|
|

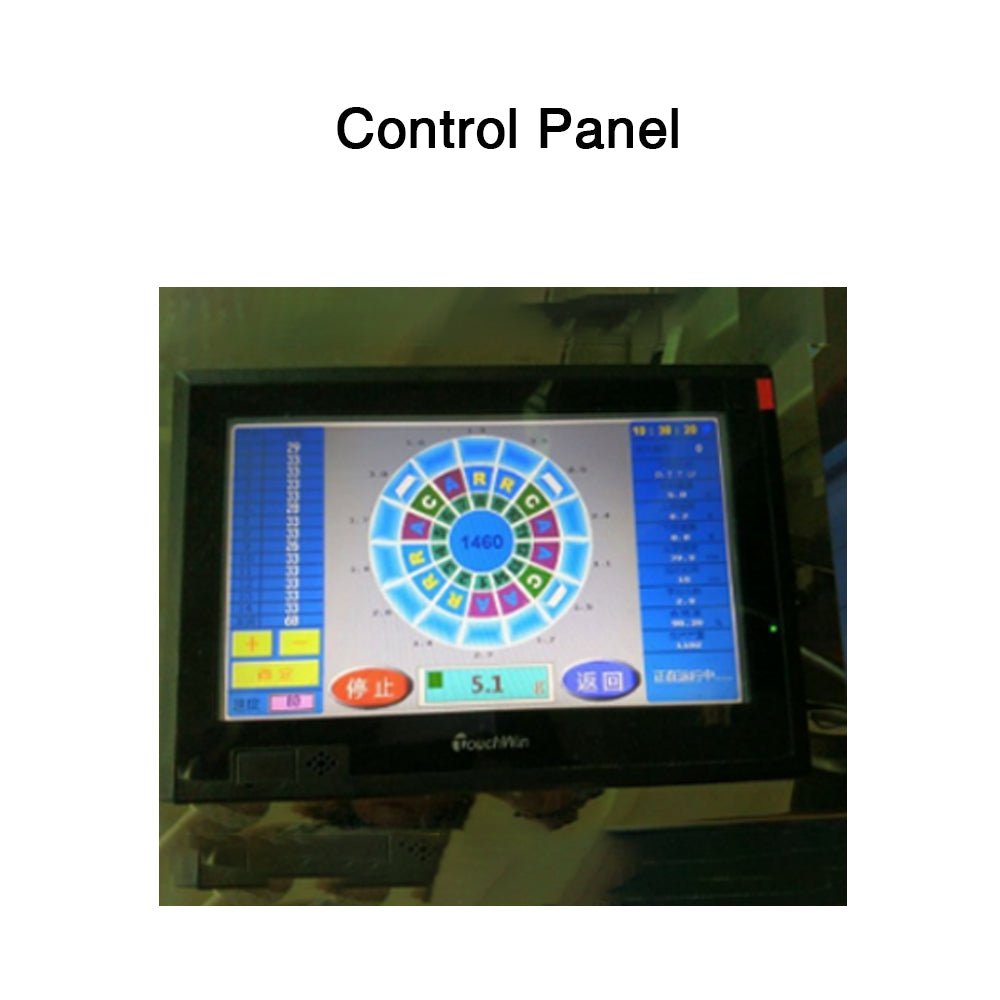

Control panel
|
7 inch color touch screen
|
|
Hoppers Volume
|
0.5L(single door) / 2.5L(double door), plain plate
|
|
Driving system
|
Step Motor
|
|
Control system
|
Modular control system
|
|
Power requirement
|
AC 220V/110V ±10% 50Hz(60Hz) 1KW
|
|
Options
|
Dimple plate/timing hopper/printer/rotary top cone/multi-mouth top cone/reject device
|
|

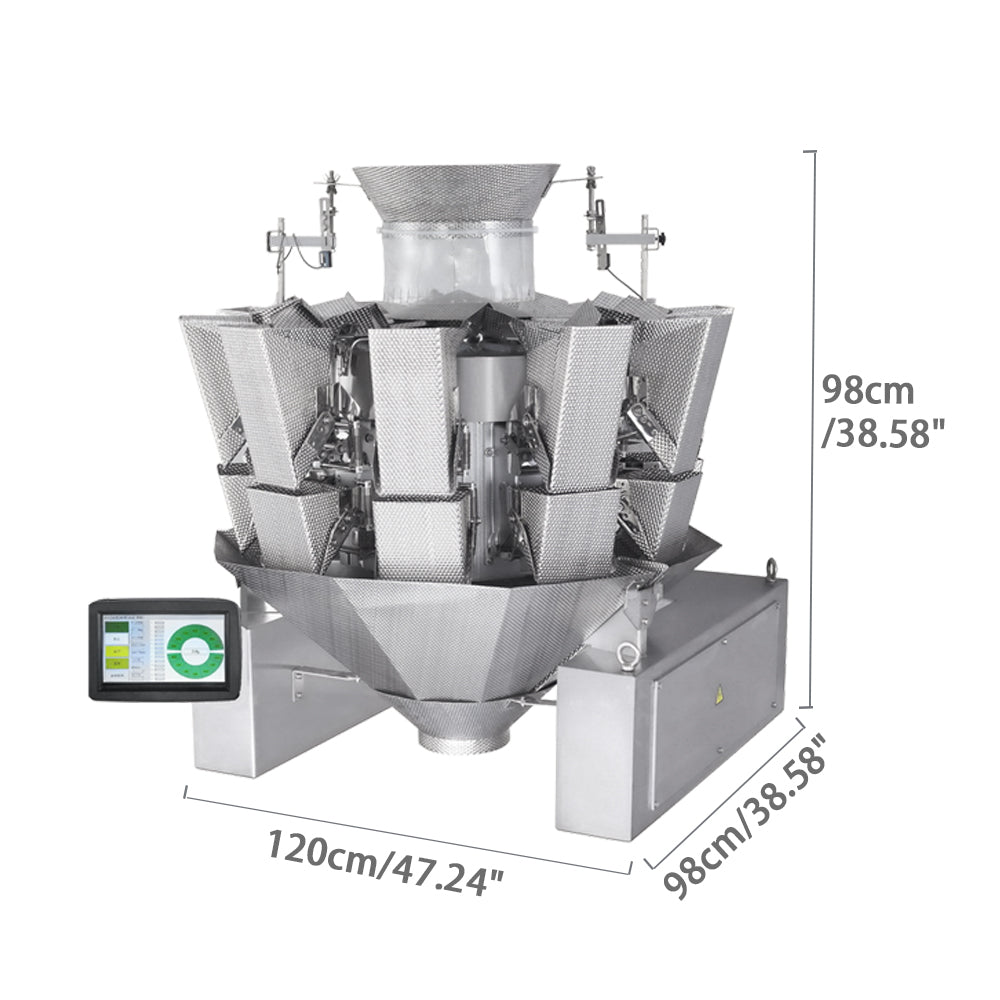

Packaging dimension (mm)
|
1200*980*980mm
|
|
Gross weight
|
250KG
|
