CECLE Machine

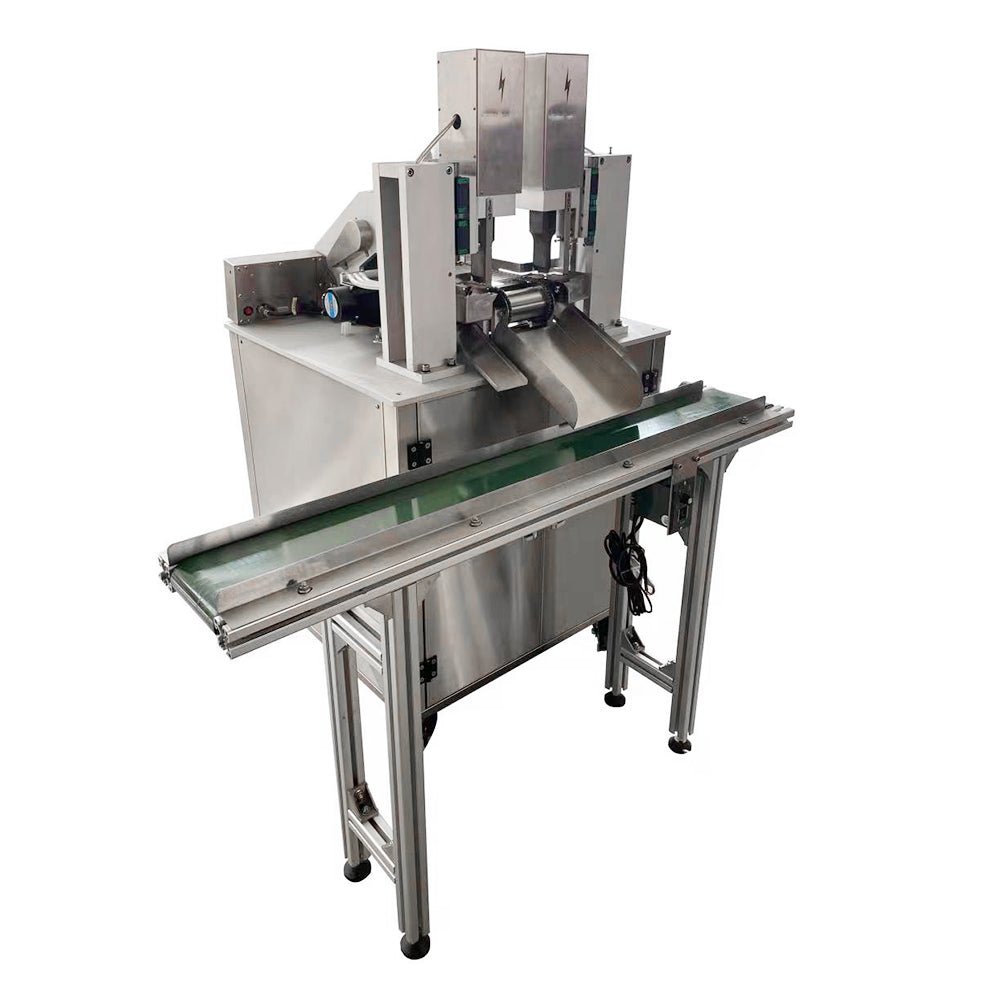

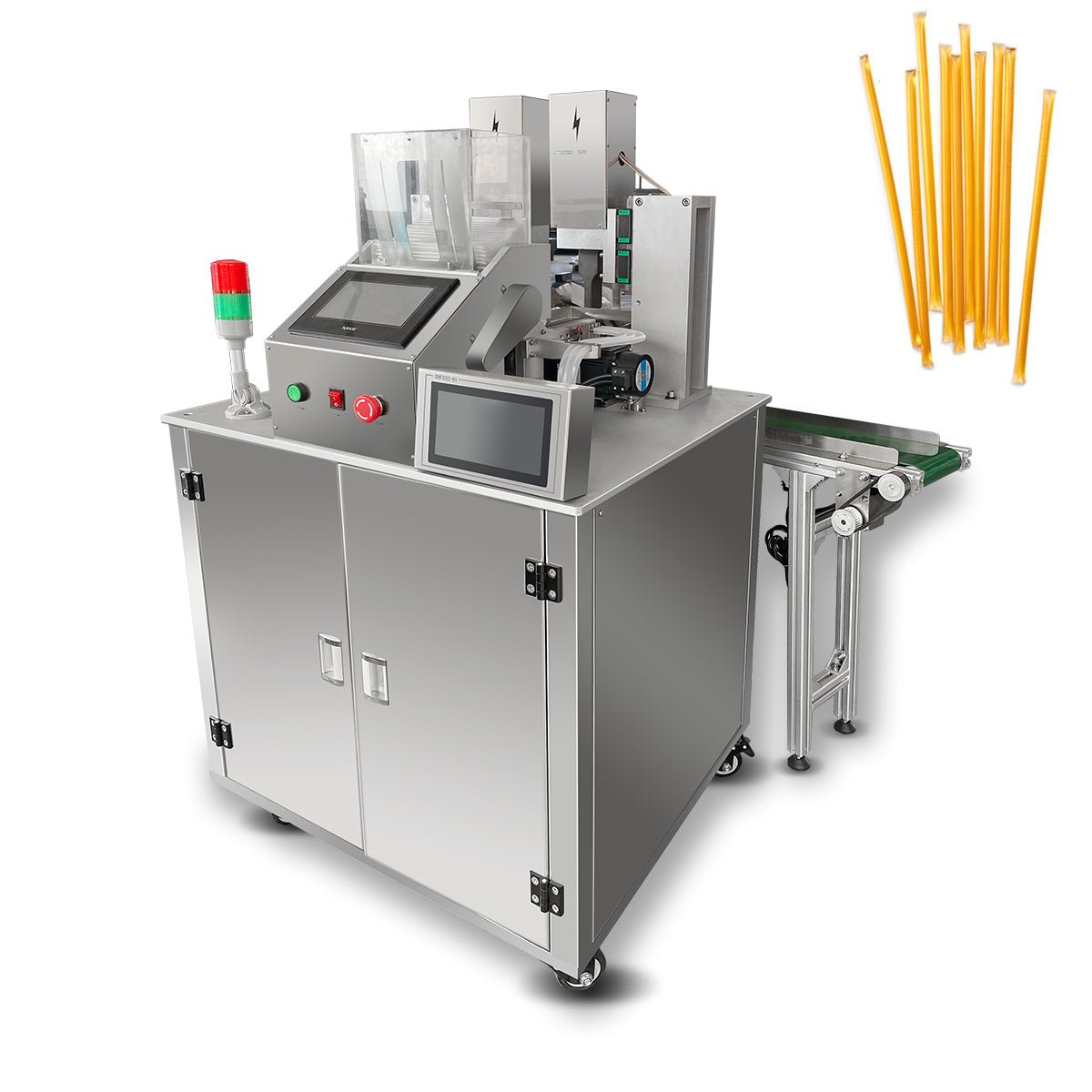

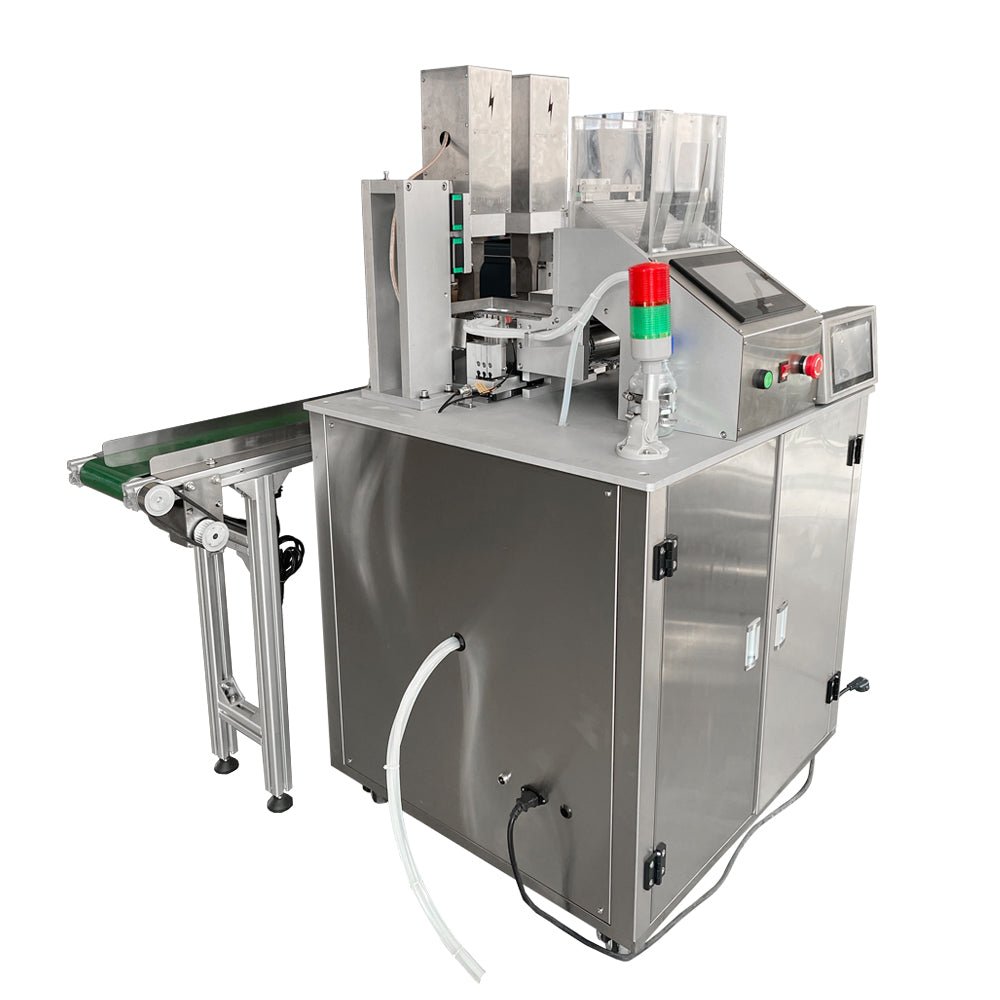

Honey straw filling machine, Automatic honey stick machine with conveyor belt

Honey straw filling machine, Automatic honey stick machine with conveyor belt

$23,700.00 USD
$23,700.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Shipping Mehod
Model

Scale your single-serve honey packaging business with the HSP-200 Automatic Honey Straw Filling and Sealing Machine. Specifically engineered for high-precision, high-volume production, this all-in-one automation solution allows food brands, honey apiaries, and contract packagers to produce professional, retail-ready honey straws effortlessly.

Whether you are capturing the outdoor fitness market, targeting coffee shop condiments, or creating healthy children's snacks, the HSP-200 provides the perfect blend of performance, reliability, and innovative packaging features.

Key Product Highlights

  • Proprietary Easy-Open Sealing: Say goodbye to scissors. Our unique custom sealing dies create a textured finish allowing consumers to simply squeeze or pop the straw open.

  • Zero-Heat Ultrasonic Cold Sealing: Traditional heat sealing destroys the active natural enzymes, antioxidants, and nutritional profile of raw honey. The HSP-200 utilizes advanced ultrasonic high-frequency vibrations to create a hermetic, leak-proof seal without generating heat, preserving 100% of your honey’s natural quality.

  • Smart Interlocked Conveyor System: The integrated synchronous conveyor belt links natively with the central control logic. Program the line to auto-advance at custom counts (e.g., every 3 straws or multiples of 3) to drastically reduce labor time during sorting and final boxing.

  • Viscosity Optimized Peristaltic Pump: Designed specifically for sticky, dense liquids like raw honey, maple syrup, and edible oils, providing clean, dripless cutoffs and precise dosage weights.

  • Fully Automatic Operation: Automated vibratory sorting bowl continuously aligns, feeds, fills, seals, and counts straws without manual intervention.

The Market Shift: Why Choose Honey Straws?

Traditional packaging methods present major operational and consumer limitations. The single-serve honey straw market is booming due to its massive advantages:

  • Jars & Squeeze Bottles: Heavy to transport, messy to dispense, prone to crystallizing at the rim, and leave up to 15% of product wasted inside the container.

  • Sachets & Stick Packs: Prone to tearing unevenly, resulting in sticky hands and spilled product.

  • Honey Straws (HSP-200 Solution): 100% portable, hygienic, neat, and highly profitable. Offering precise 5g to 10g portions, they command a significantly higher retail margin per gram, elevating your brand’s perceived value.

Specifications & Technical Parameters

  • Model: HSP-200

  • Production Capacity: 2,000 to 2,500 pieces per hour (pcs/hr)

  • Sealing Technology: Ultrasonic Cold Sealing (Differentiated Dual-End Seal)

  • Compatible Straw Sizes: Length 190–200 mm | Diameter 5.5–6.35 mm (Custom tooling available for other sizes)

  • Filling Range: Customized and adjustable based on straw specifications

  • Voltage Requirements: 220V, 50/60Hz (Single-Phase)

  • System Footprint: 82 x 78 x 151 cm (Excluding conveyor extension)

  • Total Weight: Approx. 220 kg (Machine and conveyor combined)

Frequently Asked Questions (FAQ)

Q: Will the easy-open end leak or rupture during shipping?

A: No. By precision-controlling the ultrasonic pressure profile, the easy-open textured end boasts exceptional static compression resistance. It is engineered to withstand the rigors of transit and will only open when a consumer applies deliberate, targeted lateral pressure at the pinch point.

Q: Can this machine handle multiple straw sizes?

A: The HSP-200 is built as a dedicated, high-speed system to ensure absolute alignment stability. It natively fits standard 190–200 mm lengths and 5.5–6.35 mm diameters. For alternative custom tube diameters, contact our technical team to order interchangeable precision mold dies.

Q: Can it fill dense, cold, or crystallized honey?

A: The system can be configured with an optional custom hopper heating jacket. This applies a gentle, controlled warmth to reduce viscosity and optimize liquid flow, delivering a smooth, fast, and completely dripless filling process.

Q: What after-sales support and warranty are included?

A: We back every machine with a comprehensive 1-Year Global Warranty. Your shipment includes a free foundational kit of wear-and-tear spare parts, along with fully narrated English step-by-step setup videos and direct remote technical assistance.

Watch the Machine in Action
