Introduce:

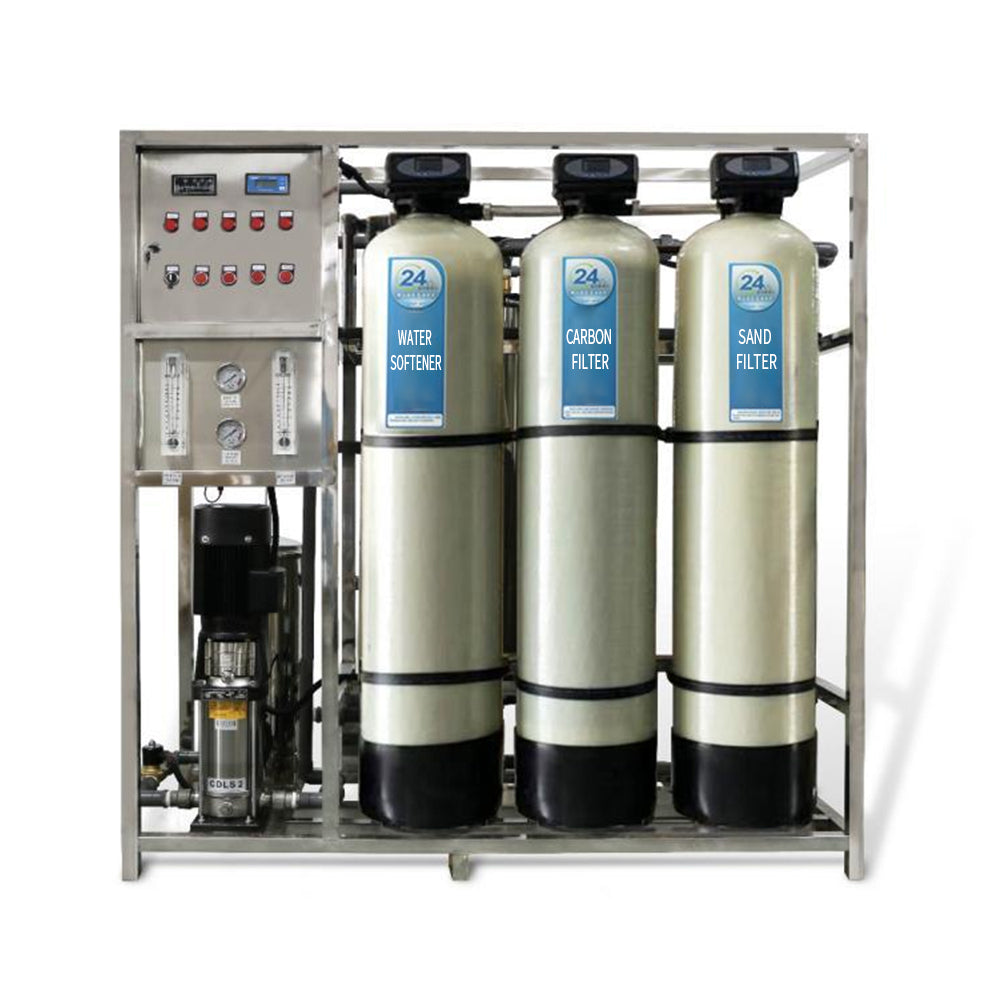

1. Integrated: One piece stainless steel frame type, automatic water production system, capable of continuous water supply.
2. Dual effect energy-saving: energy-saving technology, wastewater ratio of about 1:1, humanized computer design, water full shutdown.
3. Fast and efficient: After the first start-up, rinse the RO membrane to protect the service life of the filter element; Can ensure in water storage state
Filter and use immediately, no need to wait.
4. Outlet water quality: Imported reverse osmosis technology is used, with a filtration accuracy of 0.0001 microns, and the effluent meets the national pure water standard.
5. Easy maintenance: The inlet and outlet of this machine are located on both sides, making maintenance extremely convenient. The electrical board is independently located
Front, separation of water and electricity.
6. Three proof design: This machine is moisture-proof, fireproof, and leak proof, suitable for indoor or outdoor use, and the circuit is located above the equipment
Ensure absolute safety.
7. Intelligent display: machine working status, water inlet status, usage status, water level display, fault display, automatic flushing
Washing function, touch the button, and when the water is flowing out, the screen will display a water receiving status.
Features:
1. The main components are made of high-quality imported products with reliable performance. ·
2. The system has no vulnerable components, does not require extensive maintenance, and operates effectively for a long time.
3. Pre processing protection system to protect the high-pressure pump and RO membrane from damage caused by particles or other hard objects; At the same time, the low-pressure switch protects the high-pressure pump from damage due to low pressure. If the water supply is interrupted or under voltage, the system will automatically shut down.
4. Advanced membrane protection system, when the equipment is turned on, the device automatically sends out a physical flushing action of the membrane, using the high water pressure generated by the high-pressure pump to flush the surface pollutants of the membrane, reduce the pollution rate, and extend the membrane life.
5. The polyamide composite membrane has a high desalination rate, ensuring the high efficiency of the system operation.
6. Product water and concentrated water are each equipped with flow meters to monitor and adjust the operating water output and system water utilization rate. Through reasonable process design, the water utilization rate is high.
7. Real time monitoring of water quality using conductivity meters for raw water and RO produced water.
8. Inlet and concentrate pressure gauges, real-time monitoring of RO membrane pressure difference, indicating reverse osmosis cleaning cycle.
9. The preprocessing part adopts manual control of its filtering and forward and backward washing operations.
10. The reverse osmosis part adopts PLC automatic remote control, automatic operation, with water quality control, overpressure alarm shutdown, fault automatic alarm shutdown, automatic operation according to the water level of the purified water tank, low water level operation, high water level standby, and system automatic backwashing and other functions. And set up manual/automatic control functions to facilitate daily operation and equipment maintenance.
